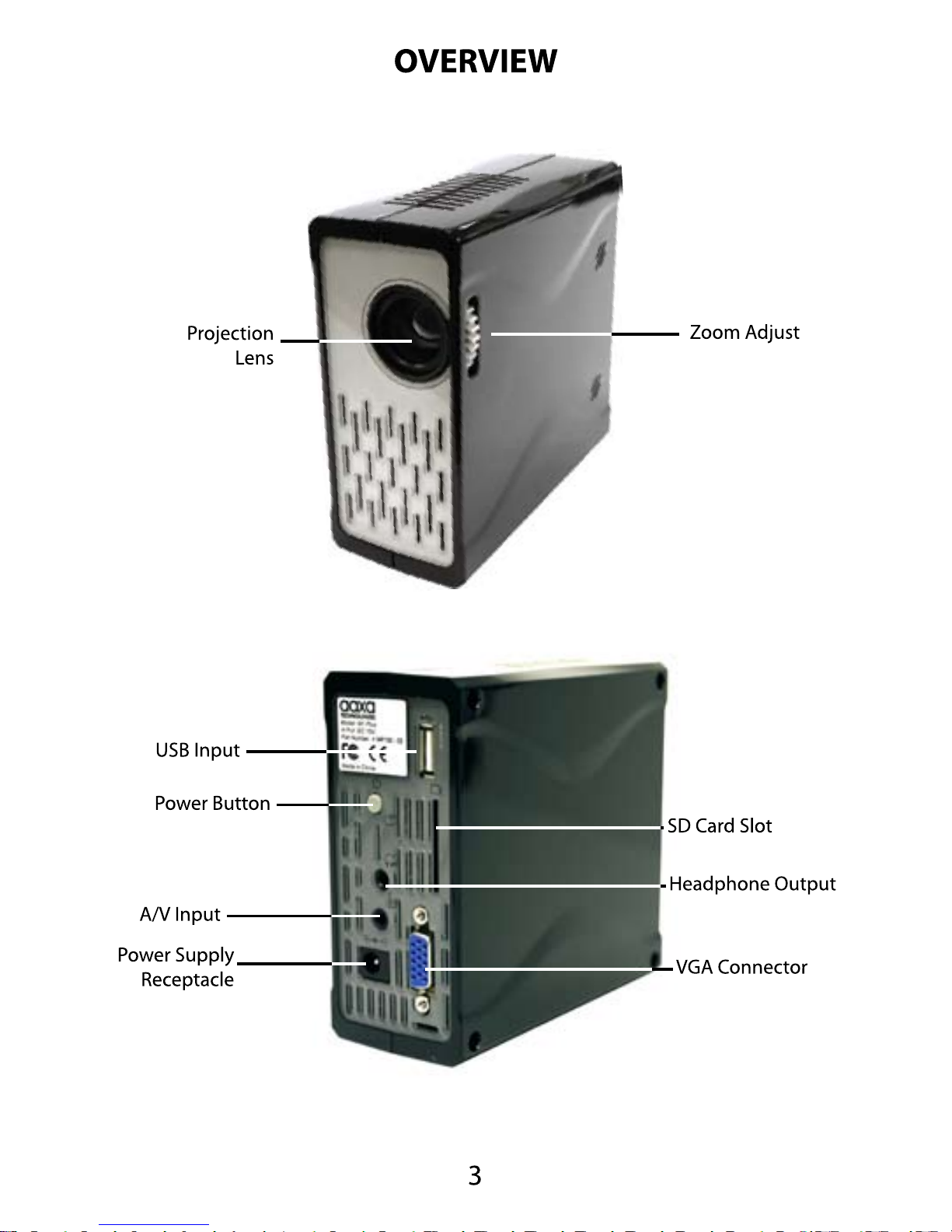

3

WARNINGS

*Do not operate the Projector in direct sunlight or near heat sources such as

heaters, fires, and stoves as this may cause a fire hazard.

*Do not operate the projector close to sources of steam or oil such as a

humidifier as this may cause electric shock.

*Do not operate the projector near water such as by the sink or bathtub as this

may cause electric shock.

*Do not block or restrict airflow from ventilation holes as this may cause the

Projector to overheat.

*Do not place inflammable materials beside the projector as this may cause a fire

hazard.

*Do not drop the projector or allow heavy impacts or shock as this will damge the

projector.

1

7

GENERAL OPERATION

Startup and Shutdown – To startup, connect the power supply or external

battery to the rear power receptacle. Press and hold the power button for 3

seconds until the welcome logo appears. To shutdown hold the power button for

3 seconds until optical engine turns off.

Positioning – Position the projector at an even plane and a right angle to the

desired image. If the projector is not at a right angle or on an even plane the

projected image will appear distorted.

8

Focus Adjustment / Throw Distance – The focus can be adjusted by turning

the wheel located at the front of the projector. The Projector is capable of the

following throw and focus distances:

Diagonal size Diagonal size Vertical size Horizontal size Throw distance

(inch) (mm) (mm) (mm) (mm)

30 762 457 610 1250

40 1016 610 813 1666

50 1270 762 1016 2083

60 1524 914 1219 2499

70 1778 1067 1422 2916

80 2032 1219 1626 3332

90 2286 1372 1829 3749

100 2540 1524 2032 4166

9

Connecting an Audio/Video input source - The Projector can accept different

A/V (Audio/Video) sources through the A/V port. These sources are connected

through a 3.5mm A/V cable.

To connect an A/V cable insert the 3.5mm portion into the A/V port of the

projector. Then click on either the “A/V input” icon in the main menu, or press

“source” on the remote control and select “A/V input”. A blue screen will appear

and the Projector will be ready to accept an A/V signal.

MAXIMUM SUPPORTED RESOLUTIONS

NTSC: 720x480

PAL: 720x576

9

Connecting an Audio/Video input source - The Projector can accept different

A/V (Audio/Video) sources through the A/V port. These sources are connected

through a 3.5mm A/V cable.

To connect an A/V cable insert the 3.5mm portion into the A/V port of the

projector. Then click on either the “A/V input” icon in the main menu, or press

“source” on the remote control and select “A/V input”. A blue screen will appear

and the Projector will be ready to accept an A/V signal.

MAXIMUM SUPPORTED RESOLUTIONS

NTSC: 720x480

PAL: 720x576

10

Possible A/V sources: Composite (included), Iphone / Ipod (optional), Zune

(optional), Playstation Portable (optional), and others. Please check

www.aaxatech.com or your AAXA dealer for optional A/V cables.

CONNECTING TO USB DISPLAY

USB-Display is not supported on the “standard” model of the M1 projector.

Third party software is available to enable the USB Display feature. However

AAXA Technologies does not support the USB Display feature. Please visit our

website for more information at www.aaxatech.com.

9

Connecting an Audio/Video input source - The Projector can accept different

A/V (Audio/Video) sources through the A/V port. These sources are connected

through a 3.5mm A/V cable.

To connect an A/V cable insert the 3.5mm portion into the A/V port of the

projector. Then click on either the “A/V input” icon in the main menu, or press

“source” on the remote control and select “A/V input”. A blue screen will appear

and the Projector will be ready to accept an A/V signal.

MAXIMUM SUPPORTED RESOLUTIONS

NTSC: 720x480

PAL: 720x576
