AAXA Technologies P4X Manual de usuario

aaxa

TECHNOLOGIES

User Guide

P4X Pico Projector

Caution!

WARNING: Please use this product as instructed. Misuse may cause

injury or death.

DO NOT use while driving

DO NOT expose to water or wet

surfaces. Electric shock may occur

DO NOT expose the LED to your

eyes or the eyes of others

DO NOT block or restrict airow

from ventilation holes as this may

cause the projector to overheat

Keep the projector, battery, or

charger away from any heat sources

Caution for Battery Use

• Do not pierce or puncture the battery

with sharp objects

• Do not heat the product or expose it to

high temperature.

• Do not wet it or place it in any liquid

Caution for Earphone (Earplug) Use

• Prolonged use at high volume may

impair your hearing.

• High volume during walking or driving

may cause distractions and result in

injury or death

Table of Contents

Chapter 1: P4X at a glance

Main Unit Front/Back

Remote & Keypad

Accessories

Chapter 2: Getting Started

Powering On / OFF

Focus Adjustment / Throw

Distance

External Inputs /Input Sources

Connecting to a Computer VGA

Connecting to a Computer HDMI

Connecting to Composite Video

Connecting to HDMI Video

Connecting to Speaker or Head-

phones

Connecting a Micro SD Card

Connecting to a USB Host

Chapter 3: Menu Screens

Main menu

Video Player Menu

Photo Viewer Menu

Music Player Menu

Ebook Viwer Menu

Setup Menu

Chapter 4: Technical Details

Troubleshooting

Specications

P4X at a Glance

Power Button

VGA Input

Power Input

A/V Input

Projection Lens

Headphone

Conrm Selection

Directional Pad

Mini USB Port

Mini HDMI

Chapter 1

Main Unit Front/Back/Side

Charge Indicator

Micro SD Card Port

Back Button

Focus Adjustment

Reset Hole

Power On/Off

Main Menu Navigation

Remote & Keypad

NOTICE: Pressing power on the remote will only put the projector in STANDBY

mode. Please press the power button on the projector if you want to turn it off.

Power On/Off

Main Menu Navigation

Select Source

Media Player Menu

Navigation

Power Exit/BackDirection Pad

Both the keypad and remote can be used to navigate through the menus. The Main Menu

Navigation on the remote functions exactly the same as the directional pad on the P4X unit.

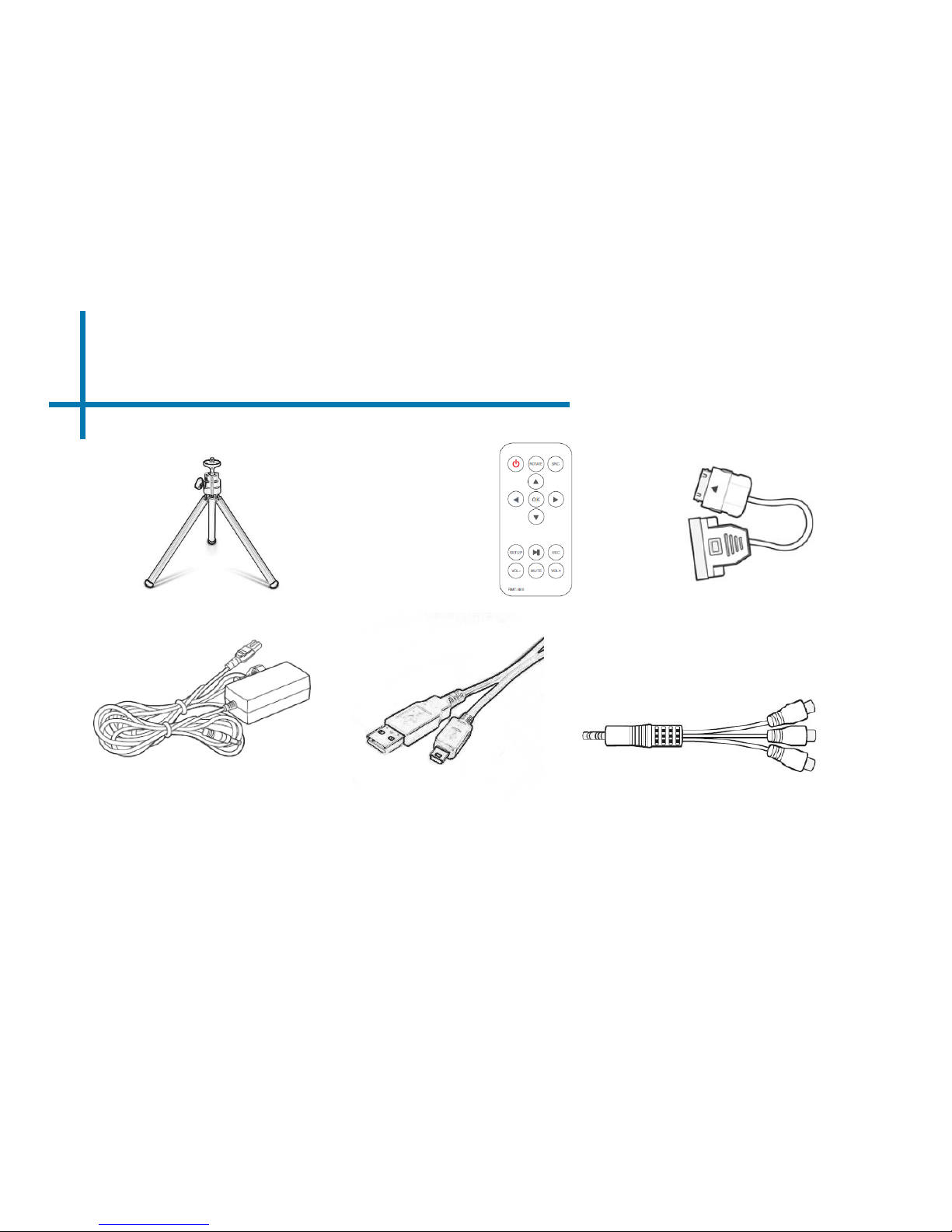

Accessories

*Under various circumstances, the actual accessories may be different from

those shown in the pictures above.

Tripod Remote

Power Adapter

VGA Cable

A/V Cable

Mini USB to

USB Adapter

Getting Started

1. Connect the power cord to the P4X.

2. Connect the wall plug into the wall power source.

3. Press POWER button and hold for 2-3 seconds to switch on or switch off

the power

• The LED turns red while charging.

• The LED turns green when charging is nished.

• 4 hours of charge time is required to reach a full charge.

Powering ON the projector

Chapter 2

Powering OFF the projector

1. Press and hold the power button for 3 seconds.

2. The optical engine should power off and the fan should stop spinning.

• Note. Pressing the power button on the remote puts the projector in

standby mode. It will NOT turn off the projector.

Note: The P4X Projector battery does not charge when it is in operation.

Focus Adjusment / Throw Distance

Focus Adjustment

1. Spin the focus wheel left of right until the image becomes

clear.

2. The recommended focus distance for this projector is 12” to

innity.

DIAGONAL SCREEN SIZE

16:9 Aspect Ratio

Throw Distance Chart

Distance inch (“)

Diagonal Inch (“)

6.3

9.5

12.6

15.8

18.9

38.9

44.2

50.5

Throw Ratio 1.9

*minimum throw distance: 10 inches

External Inputs/Outputs

Laptop Desktop USB Stick

Headphone/speaker

Micro SD Card

Composite Cable HDMI Cable

Connecting to a Computer via VGA

Connect the large end of the

VGA Cord

to your computer’s

VGA Adapter

Connect the small end of the

VGA Cord

to your P4X’s

VGA Adapter

Step 1:

Step 2:

Step 3:

In the Main Menu

Select “VGA” icon
