Turning on

1. To turn on the Edge, press the on/off

enter key.



The start-up screen will appear

indicating the model and firmware

version. Then, the measurement

view will display.

Resetting

Resetting the dosimeter is performed

using QSP-II software via the clear tab

from the Edge Set-up button.

The Edge may also be reset using the

keypad. (See Chapter 3 and Chapter 4 in

the Edge user manual for details.)

Navigating

1. Press the up/down arrow key to

navigate through measurement values,

battery condition, and run time.

Setting-up the Edge

All the Edge parameters are set up via

QSP-II software. (See

Chapter 3 in the Edge user manual for

details).

Calibrating

1. Remove the windscreen.

2. Ensure The Edge is turned on and

stopped.

3. Slide the Edge into the mouth of the

calibrator (ensuring the adapter ring is

inserted into the calibrator).

4. Turn on the calibrator. Ensure the

calibrator is set to 114 dB and 1000 Hz.



See subsequent steps on backside.

5 6

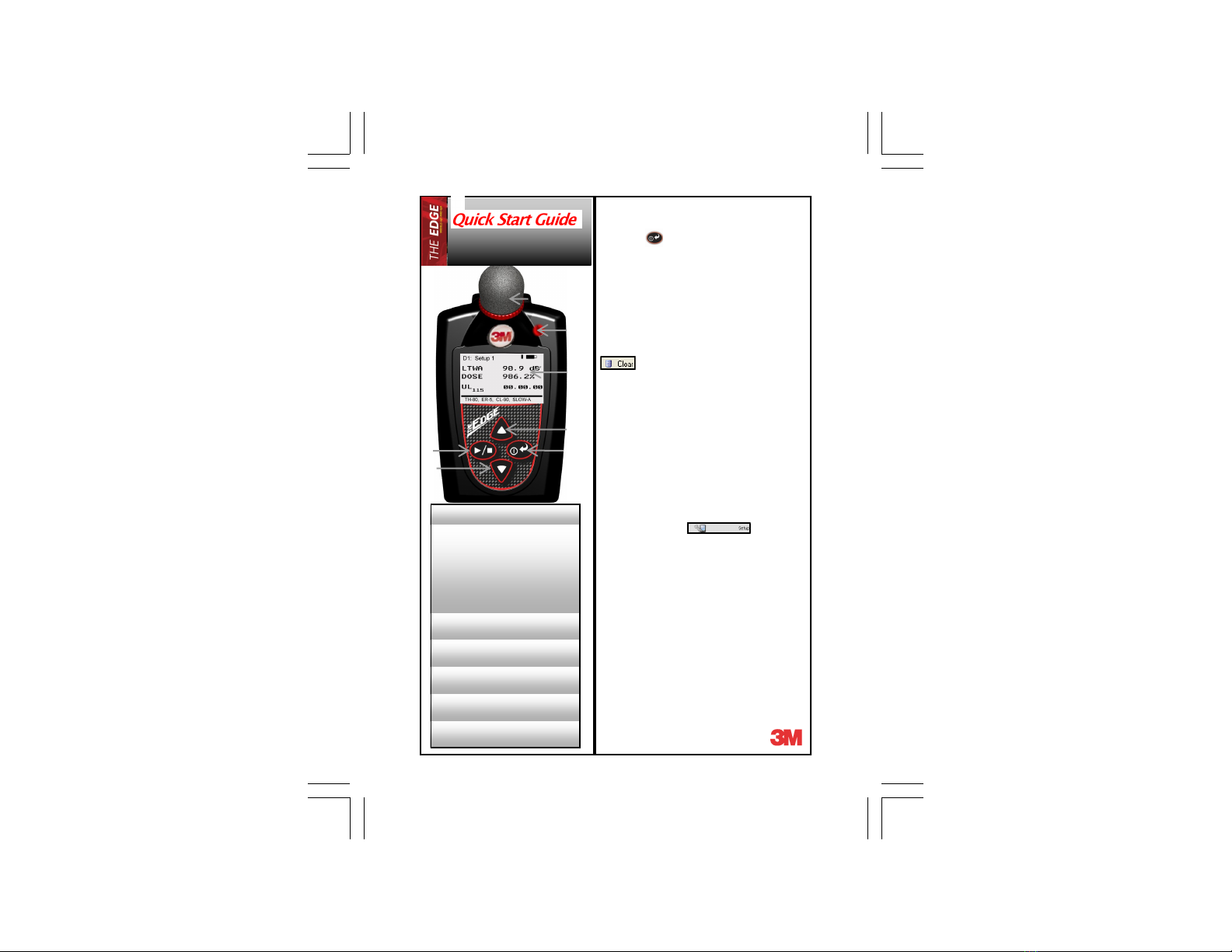

1. Windscreen & Microphone

2. LED indicator

 Red –indicates dose has

exceeded the alarm level.

 Amber –indicates

stopped.

 Green –indicates

measuring.

3. Measurement display

4. Up arrow

5. Run/Stop key

6. On/Off Enter key

7. Down arrow

Turning off

1. Press and hold the on/off enter

key for the count down.

Reviewing results

Data is downloaded to QSP-II for

analysis, managing, file storage, and

printing. (See “Downloading” in the

Edge user manual for

details.)

Locking and unlocking

1. Turn the dosimeter on and press

the run/stop key to start

measuring.

2. To enable lock, press run/stop

Key three consecutive times

within one second intervals.

The

Lock screen will appear.

3. To unlock, press the run/stop

key 3 consecutive times

within one second intervals. Then

press on/off enter key.

5. “CAL” will flash on the display.

6. Press the on/off enter to

trigger the calibration display.

7. To adjust the calibration value on

the display, repeatedly press the

up or down arrow.

8. When you have selected the

appropriate dB level, press

the on/off enter key.



A shaded bar will appear when

loading your calibration informa-

tion. Then a summary screen will

indicate the date and time.

9. To return to measurement

screen, press on/off enter

key.

Running a study

1. Once the dosimeter is turned on,

press and hold the run/stop

key.



A 3, 2, 1 countdown will appear.



Then, a run indicator will appear

on the top right of the display. Also,

the LED indicator will flash green

(unless you disabled this in QSP-II).

Ending a Study

1. While running a study, press and

hold the run/stop key.

Cal screen

www.questtechnologies.com

098-610, Rev. D, 3/11

Key indicator

Indicates dosimeter

is locked while

Padlock icon

Indicates measure-

ment values are

hidden during run.
