3D Systems ProJet 5500X Manual de usuario
8/11/22, 10:07 AM
Quick Start Guide
infocenter.3dsystems.com/projetmjp5500x/print/book/export/html/966
1/13
Quick Start Guide
Introduction
Congratulations on the purchase of your new ProJet® 5500X 3D Printer! This Quick Start
Guide has the use and safety information you need to get started. Welcome to the 3D
creative revolution-let the possibilities begin!
This Quick Start Guide will give you basic instructions on how to get your Projet® 5500 3D
Printer plugged in and printing so you can start making creations. For more detailed
instructions, please go to http:3dscentral.3dsystems.com to access the ProJet® 5500X
User Guide.
8/11/22, 10:07 AM
Quick Start Guide
infocenter.3dsystems.com/projetmjp5500x/print/book/export/html/966
2/13
Safety Information
Safety Guidelines
Before using your printer, read and understand all safety warnings and
precautions.
Before using the printer, your company should have a safety program in place.
The safety program should:
Label and point out hazardous equipment, materials, and procedures.
Explain what to do in case of an emergency.
Provide information about hazards of equipment and materials in the form of Global Health
and Safety sheets. The Global Health and Safety sheets are provided with all materials
supplied by 3D Systems.
8/11/22, 10:07 AM
Quick Start Guide
infocenter.3dsystems.com/projetmjp5500x/print/book/export/html/966
3/13
At A Glance
8/11/22, 10:07 AM
Quick Start Guide
infocenter.3dsystems.com/projetmjp5500x/print/book/export/html/966
4/13
8/11/22, 10:07 AM
Quick Start Guide
infocenter.3dsystems.com/projetmjp5500x/print/book/export/html/966
5/13
Printer Startup and Demo Build
The purpose of this section is to execute the following:
Power the printer on.
Load support and part material cartridges into the material delivery modules.
Install a build platform.
Perform a successful Demo build.
Remove the nished parts from the printer.
Empty the waste drawers.
Switch the printer off.
Completion of this process will familiarize you with all of the “basic” printer operations
needed to build parts on the ProJet 5500X and provides a functional “shakedown” for a new
installation. It is strongly recommend that you complete this section before moving on to
larger more sophisticated builds.
Power the Printer ON.
1. Connect power cord to the printer (A) and plug into facility receptacle.
2. Place power switch (B) located at the rear of printer, to the ON position.
3. Wait 4 hours for printer to warm up before attempting to start a build job.
4. Because the materials also require a warm up period, proceed to the next step of adding
material to the material delivery modules.
NOTE: Build les can not be submitted to the printer while it is warming up.
8/11/22, 10:07 AM
Quick Start Guide
infocenter.3dsystems.com/projetmjp5500x/print/book/export/html/966
6/13
Install Material Bottles
1. For the purpose of the Demo print, we will use only two bottles of support material and two
bottles of part material. Make certain that the two bottles of part material are the same type.
2. Unpack the material bottles and the Global Health and Safety (GHS) Sheet from cartons. Save
sleeves and material carton to store partially used material bottles.
3. Press and release the upper left material delivery module to open it. Install two bottles of
support material into the MDM. Pull levers up and place bottle down into the holder. Press on
the top of the material bottle until you hear a click to make certain the bottles are fully seated.
4. Press and release the upper right material delivery module to open it. Install two bottles of
part material into the MDM. Pull levers up and place bottle down into the holder. Press on the
top of the material bottle until you hear a click to make certain the bottles are fully seated.
5. As previously stated, only two MDM are loaded with material for the Demo print. Subsequent
build jobs will require all MDMs to be fully loaded with both support and part material.
Install Build Platform
1. Clean the platform using isopropyl alcohol before installing the platform into the printer.
2. Open the chamber door.
8/11/22, 10:07 AM
Quick Start Guide
infocenter.3dsystems.com/projetmjp5500x/print/book/export/html/966
7/13

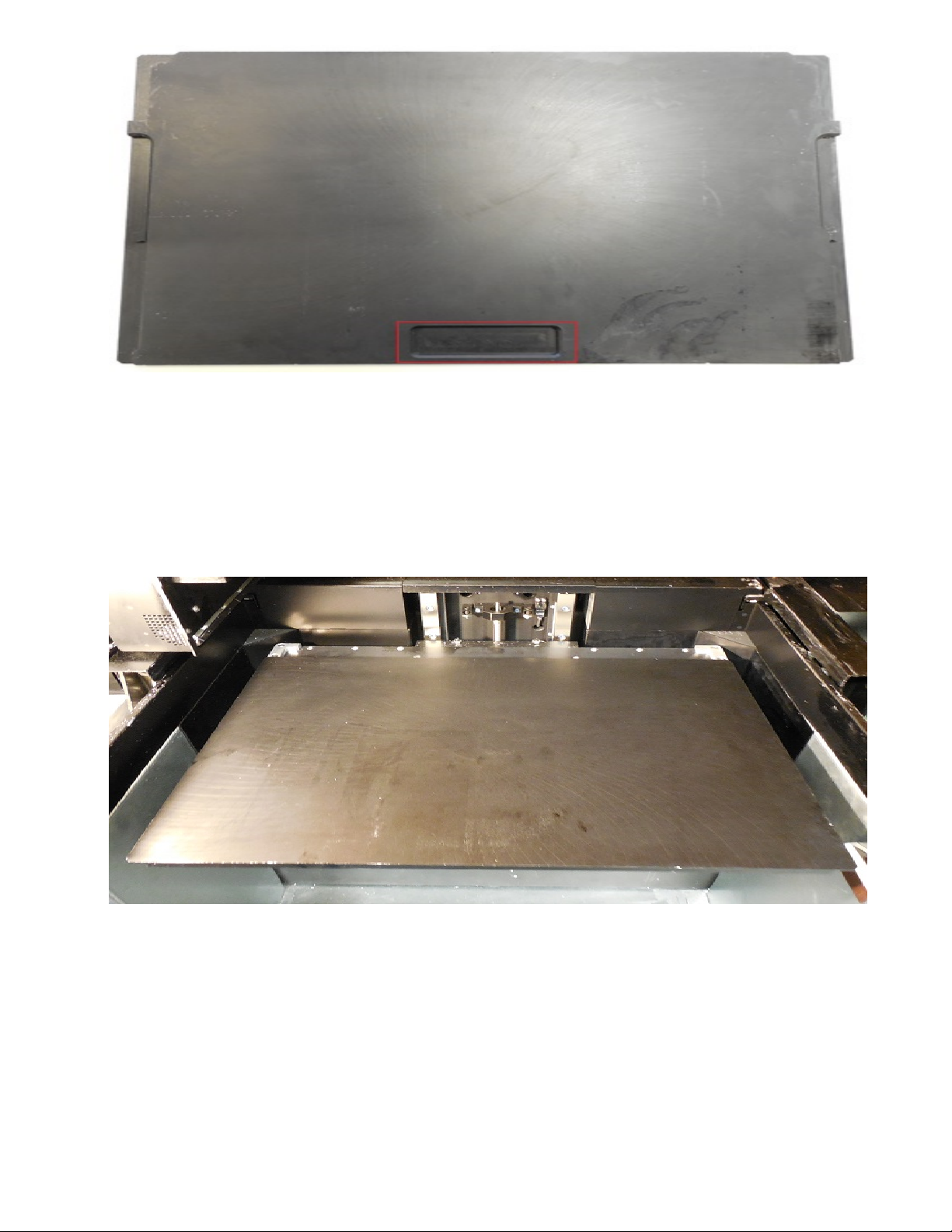

3. The adjacent view shows the bottom of the print platform. The recessed area on the bottom
of the platform is placed toward the front of the printer.
4. Place the platform on the X-carriage so the rear edge of the platform is positioned in front of
the rear brackets.
5. Slide the platform toward the rear of the printer until it is rmly pressed against the rear
brackets. Press down on the platform at the points indicated to make certain the platform is
“seated” onto the X-carriage.
. Close the front door and press the Start key on the touchscreen to bring the printer on-line.
8/11/22, 10:07 AM
Quick Start Guide
infocenter.3dsystems.com/projetmjp5500x/print/book/export/html/966
8/13
Demo Print
On the operator panel, press the Tools icon.
Press Print Diagnostics.
Press Demo Print
8/11/22, 10:07 AM
Quick Start Guide
infocenter.3dsystems.com/projetmjp5500x/print/book/export/html/966
9/13
Select the mode (HD or UHD) for the Demo Print
The system displays PLATFORM EMPTY & DOOR CLOSED? Y/N.
Make certain the platform is empty, the door is closed and press YES.
The printer starts the demo print job.
The demo print will take approximately three hours.
8/11/22, 10:07 AM
Quick Start Guide
infocenter.3dsystems.com/projetmjp5500x/print/book/export/html/966
10/13
Remove Build Platform
When operator panel display shows DONE: <job_name> remove build platform
1. Open the chamber door.
2. To remove the platform, Pull the platform forward until you feel it contact the stops. Place your
hands on either side of the platform to lift and remove it from the printer
Remove Part From Build Platform
To remove your part from the build platform:
