ZyXEL Communications NBG4115 Manual de usuario

www.zyxel.com

NBG4115

Wireless N-lite 3G Home Router

Version 1.00

Edition 3, 04/2010

DEFAULT LOGIN DETAILS

LAN Port LAN1 ~ LAN2

IP Address http://192.168.1.1

Password 1234

CONTENTS

ENGLISH 3

DEUTSCH 9

ESPAÑOL 15

FRANÇAIS 21

ITALIANO 27

SVENSKA 33

NEDERLANDS 39

2010 ZyXEL Communications Corporation

ENGLISH

Hardware Connections

ENGLISH

Connect to the NBG4115

Connect to:

http://192.168.1.1

Enter thedefault password

of “1234”, then change it

when prompted.

Select a mode:

Wizard or Advanced.

ENGLISH

Set Up Your Internet Connection

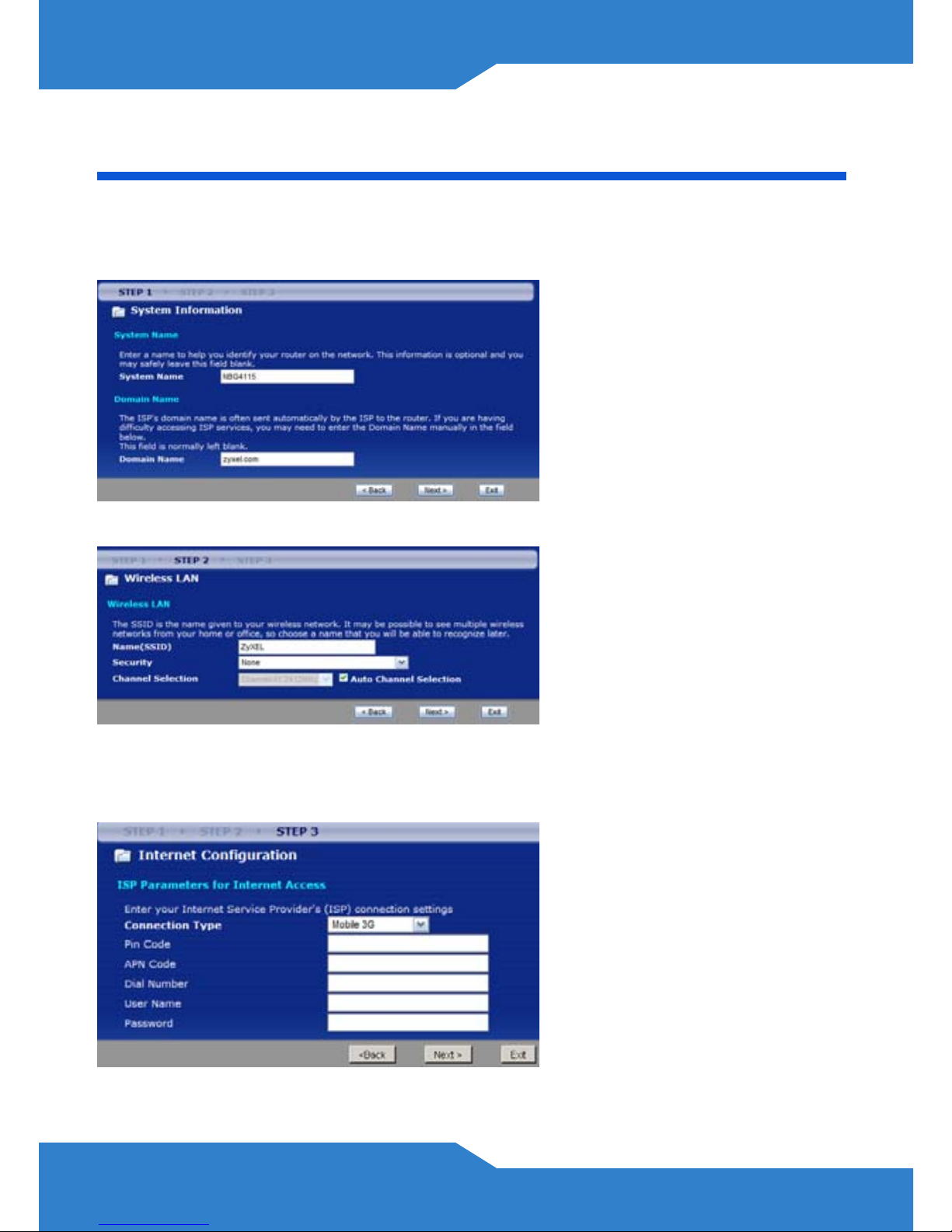

Connect to the NBG4115 then select Wizard mode:

System Name: Enter up to 30

characters for the device’s

name.

Domain Name: Leave this

blank unless your ISP gave you

this information.

Name (SSID): Enter up to 30

characters for the network

name as it appears to other

wireless devices.

Security: Select a security

type. The option selected here

may require additional

configuration.

Connection Type: Select how

you will connect to the Internet.

This information is provided by

your ISP. The options available

here vary according to the

selected connection type.

ENGLISH

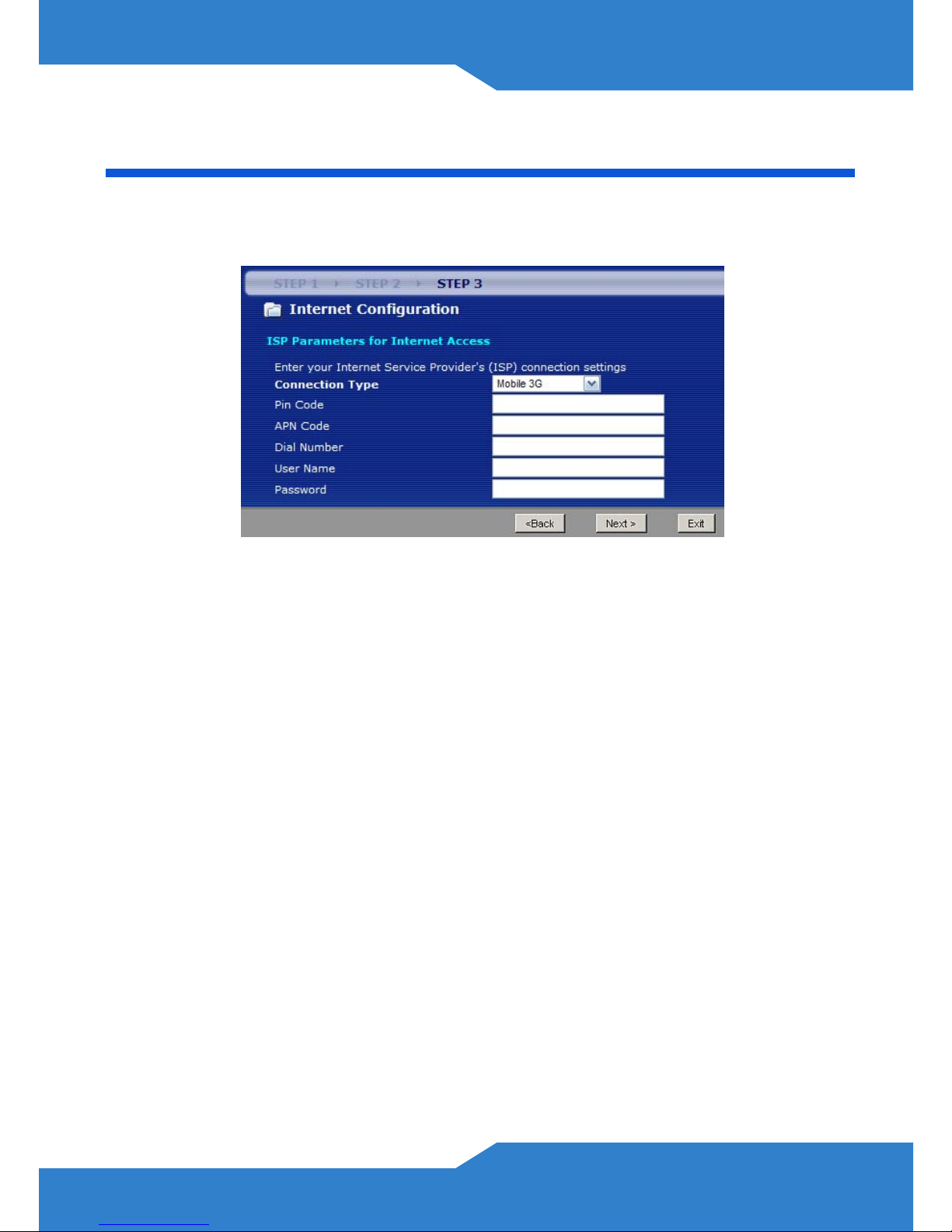

Set Up Your 3G Connection

On Step 3 of the Wizard, configure the following:

•Connection Type - Select Mobile 3G.

•PIN Code - Enter the 4-digit Personal Identification Number

(PIN) for the SIM card on your 3G device.

•APN Code - Enter the Access Point Name (APN) of the 3G

network to which you will connect.

•Dial Number - Enter the dial-up number used to sign into

your 3G account.

•User Name and Password - Enter up to 50 alphanumeric

characters for your 3G account user name and password.

Note: If you use a USB 3G device with your NB4115, then all

incoming and outgoing WAN connections are made through it

and not the WAN port.

Set Up a WPS Connection

Place the devices you want

to connect near one

another.

Press the WPS button on

the NBG4115.

The WLAN light blinks.

Press the WPS button on a

compatible device (such as

the NWD-270N) within 2

minutes of pressing the

button on the NBG4115.

The WLAN light on the

NBG4115 shines steadily

when connected.

ENGLISH

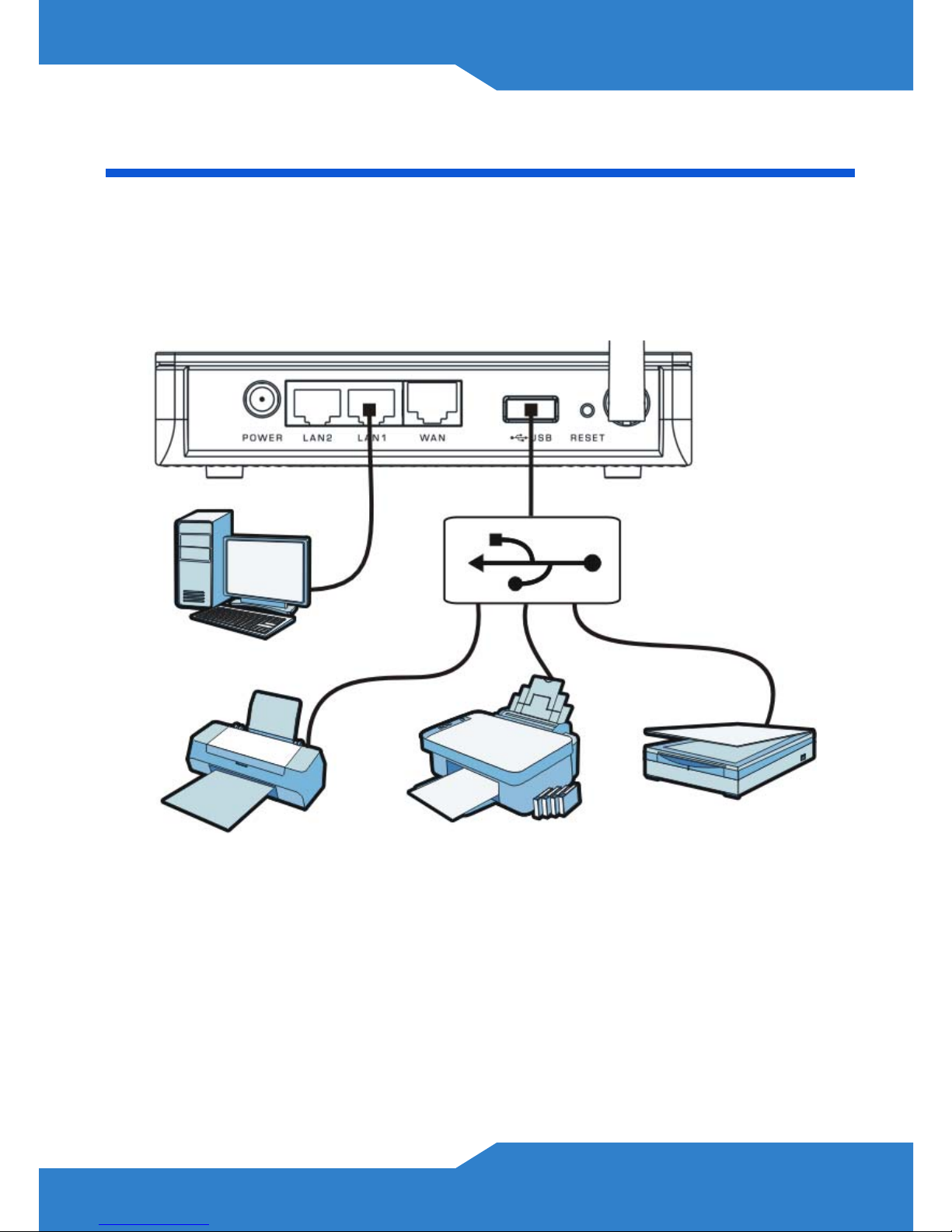

NetUSBTM

NetUSB allows you to work with the USB devices connected

directly to the NBG4115 over the LAN as if they are

connected directly to your computer.

This allows you to easily share USB-based devices such as

printers (A), faxes (B) and scanners (C), among others, with

people on the network.

For more information about these features, see the User’s

Guide on the included disc.

ABC

DEUTSCH

Anschließen an den NBG4115

Verbinden mit:

http://192.168.1.1

Geben Sie das Standard-

Kennwort “1234” ein, und

ändern Sie es nach

Aufforderung.

Wählen Sie einen Modus:

Wizard (Assistent) oder

Advanced (Erweitert).

DEUTSCH

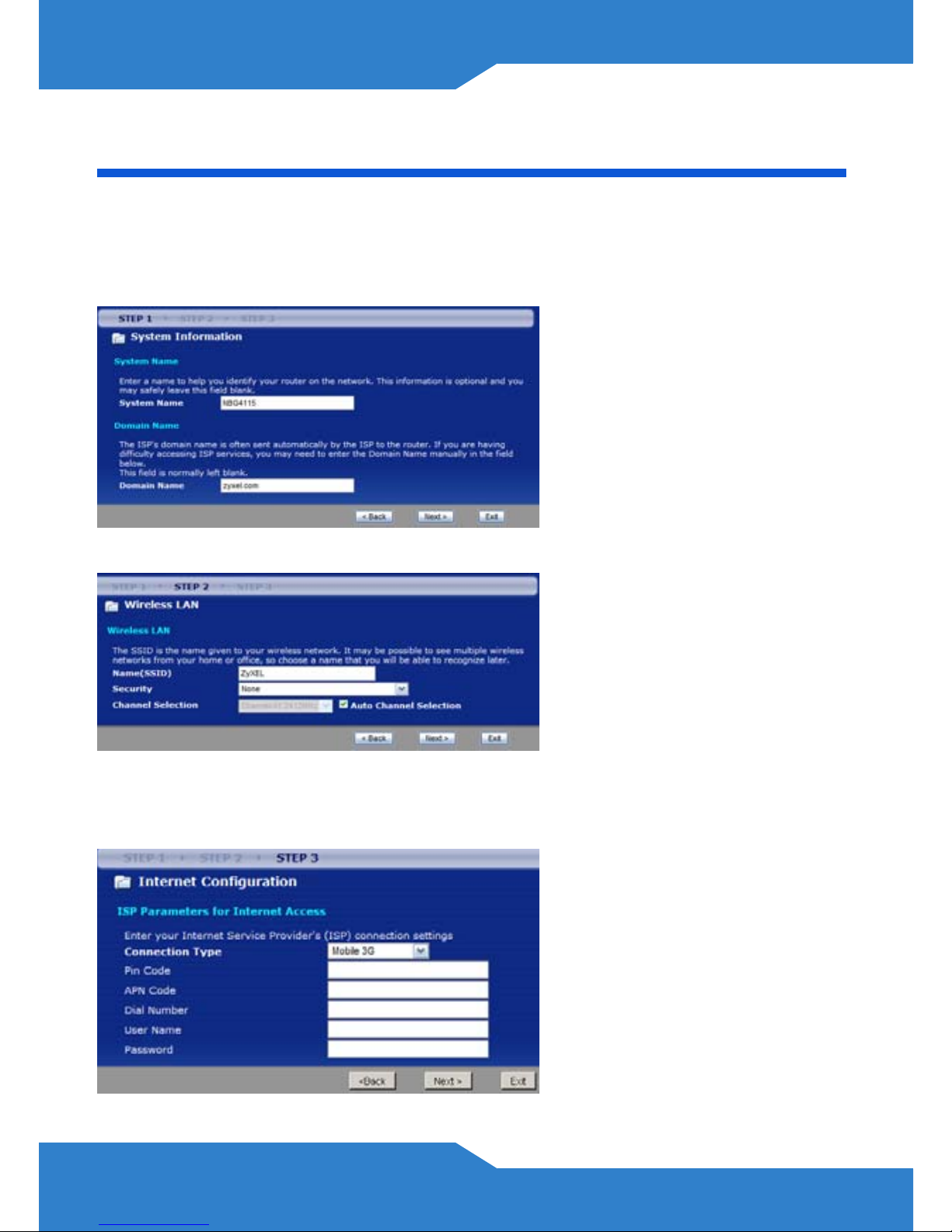

Einrichten der Internetverbindung

Schließen Sie das Gerät an den NBG4115, und wählen Sie

den Modus Wizard (Assistent):

System Name (Systemname):

Geben Sie bis zu 30 Zeichen

als Namen für das Gerät ein.

Domain Name (Domainname):

Lassen Sie dieses Feld frei,

wenn Ihnen der

Internetdienstanbieter keinen

Namen mitgeteilt hat.

Name (SSID): Geben Sie die

bis zu 30 Zeichen des

Netzwerknamens ein, wie er

anderen Drahtlosgeräten

angezeigt wird.

Security (Sicherheit): Wählen

Sie einen Sicherheitstyp. Die

hier gewählt Option muss u.U.

weiter konfiguriert werden.

Connection Type

(Verbindungstyp): Legen Sie

fest, wie die Verbindung zum

Internet hergestellt werden soll.

Diese Information erhalten Sie

von Ihrem

Internetdienstanbieter. Die

angezeigten Optionen hängen

vom gewählten Verbindungstyp

ab.
