ZyXEL Communications P-660HN-51

www.zyxel.com

802.11n Wireless ADSL2+ 4-port

Gateway

Firmware v1.10

Edition 1, 7/2010

P-660HN-51

DEFAULT LOGIN DETAILS

IP Address: http://192.168.1.1

User Name: admin

Password: password1

ZyXEL Communications Corporation

Device Panels

POWER

LAN1-4

INTERNET

WPS/WLAN

DSL

RESET

LAN PORT 1-4

POWER

DSL PORT

P-660HN-51

Overview

The P-660HN-51 is an ADSL router with a four-port built-in Ethernet

switch and IEEE 802.11n wireless capability. The P-660HN-51 allows

wired and wireless clients to safely access the Internet. The built-in

firewall blocks unauthorized access to your network. It supports other

helpful features, including Quality of Service (QoS) which allows time-

sensitive services and applications to flow more smoothly.

Hardware Connections

This section shows you how to set up your P-660HN-51.

1. DSL: Use a telephone cable to connect your P-660HN-51’s DSL port

to a telephone jack (or to a splitter, if one is already installed).

2. LAN: Use an Ethernet cable to connect a computer to a LAN port for

initial configuration and/or Internet access.

3. POWER: Use the power adaptor provided with your P-660HN-51 to

connect an appropriate power source to the POWER socket. Make

sure the power at the outlet is on. After connecting the power adapter,

look at the lights on the front panel.

• The POWER light blinks while your P-660HN-51 starts up and then

stays on once it is ready. The DSL light turns on when the P-

660HN-51 has a DSL connection. The WPS light turns on when the

wireless LAN is ready. The INTERNET light turns on when the

gateway is able to access the Internet and will blink when the P-

660HN-51 is sending or receiving data.

• Each LAN light stays on if the corresponding LAN port is properly

connected and blinks when there is traffic.

If the POWER, DSL, or connected LAN lights are not on, please check

your connections and inspect your cables for damage. If the lights are

still off, contact technical support.

P-660HN-51

Set Up a Wireless Network

You can set up a wireless network using the following methods:

Using Wireless Protected Setup (WPS)

Press the WPS button on the P-660HN-51’s front panel for more than 5

seconds to turn the WPS function on.

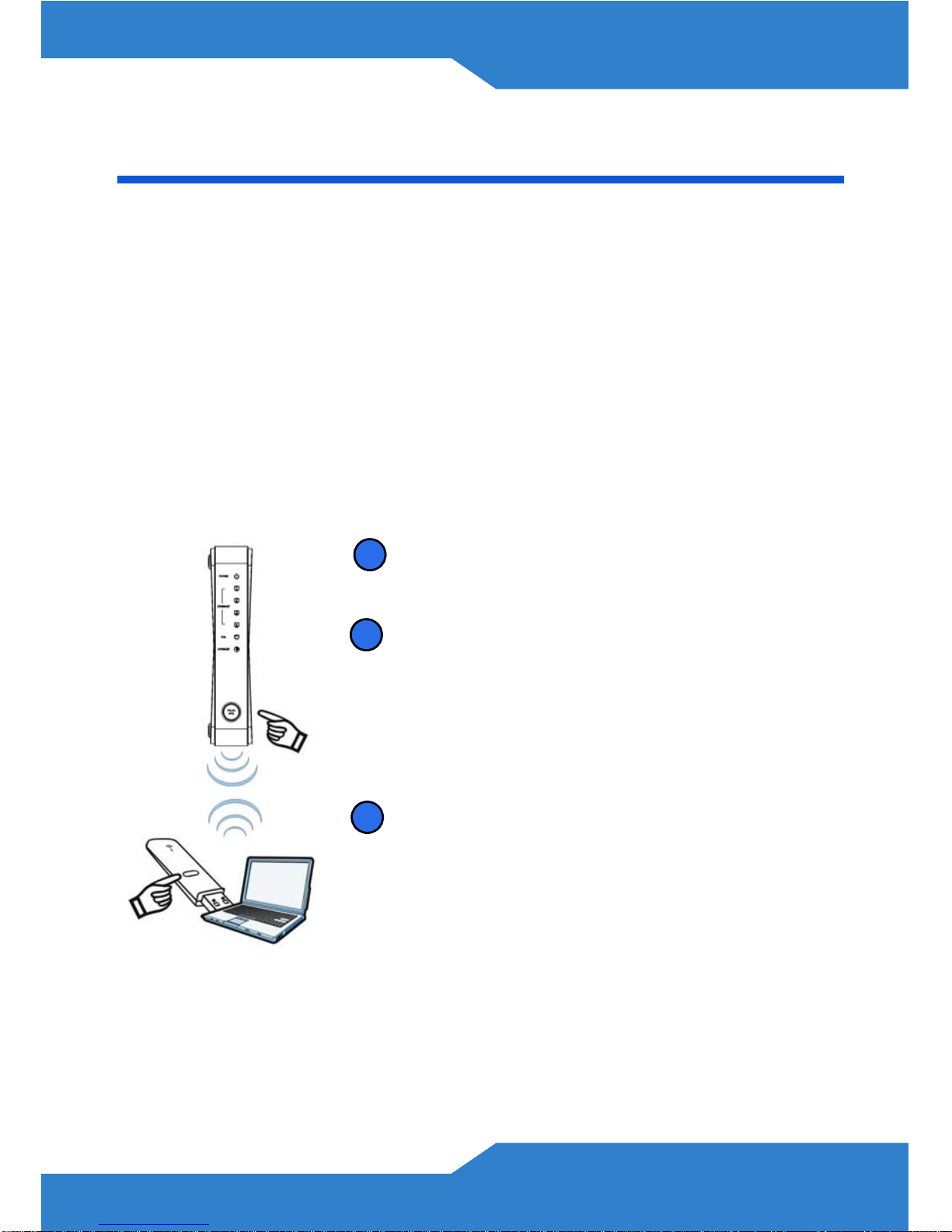

Follow these steps to add a WPS-enabled device to the wireless network

using the WPS/WLAN button.

Place the devices you want to connect near

one another.

Press the WPS button on the P-660HN-51.

The WPS light blinks.

Press the WPS button on a compatible

device within 2 minutes of pressing the

button on the P-660HN-51.

The WPS light on the P-660HN-51 shines

steadily when connected.

Set Up a Wireless Network Manually

The wireless LAN on your P-660HN-51 is enabled by default. To add a

wireless client to the network, use the settings found on the bottom panel

of your P-660HN-51, which will look similar to the following example:

Configure wireless devices that you want to connect to the wireless

network to use the same wireless settings as the P-660HN-51.

The default wireless settings vary for each P-660HN-51. Refer to the

bottom panel of your device and use the provided information.

Log into the Web Configurator

Your device may already be set up for Internet access. However, you

may want or need to log on to the P-660HN-51 Web Configurator to

perform tasks:

• Configure your Internet access settings manually

• Customize the Quality of Service (QoS) and routing features

• Create firewall and web filter rules

• Edit remote management, as well as other features

1. In your browser, go to http://192.168.1.1.

SSID: ZyXEL00561

Security Mode: WPA-PSK

Pre-Shared Key: FB373BD356

P-660HN-51

2. Enter the default user name admin and password password1. Click

If the login screen does not open, make sure you allow web

browser pop-up windows, JavaScripts and Java

permissions. Your computer should be also set to get an IP

address automatically from a DHCP server. See the

appendices in your User’s Guide for more information.

3. A welcome screen appears showing a summary of your last login,

such as the time, number of failed login attempts, and when the

password expires. It also shows if you are logged on from an IP

address or through a console. Select Show this page next time to

see the welcome screen on your next login. Otherwise, deselect it.

Click Continue.

4. In the next screen to appear, you can change the login password.

This is a recommended step. To do so, enter your new password in

the New Password field. Re-type your new password in the second

field and then click Apply.

If you prefer not to change the password, leave the two fields

blank and click Skip.

We recommend you write down your new password in the space

provided below.

New Password:

_________________________

P-660HN-51

5. The Network Map page appears. This shows whether the P-660HN-

51 and computers/devices connected to it have Internet access.

Click on Status to display the following screen, where you can view the

P-660HN-51 device, interface and system information.

See your User’s Guide for how to use the rest of the Web Configurator

screens. You will need to refer to the section on how to setup the

Broadband connection if the INTERNET LED (light) remains off.

Viewing Certifications

• Go to www.zyxel.com.

• Select your product from the drop-down list box on the ZyXEL home

page to go to that product's page.

• Select the certification you wish to view from this page or click on

the Specifications tab to see the certifications list.

Customer Information Statement

The information informing the user of his and the telephone company's

rights and obligations is outlined on the following pages. This information

will be included in the final version of the manual.

1.If this equipment DL causes harm to the telephone network, the telephone

company will notify you in advance that temporary discontinuance of service

may be required. But if advance notice isn't practical, the telephone company

will notify the customer as soon aspossible. Also you will be advised of your

right to file a complaint withthe FCC if you believe it is necessary

2.If you experience trouble with this equipment, you disconnect it fromthe

network until the problem has been corrected or until you are sure that the

equipment is not malfunctioning.

3.Please follow instructions for repairing if any (e.g. battery replacement

section); otherwise do not alternate or repair any parts of device except

specified.
