ZyXEL Communications ZyAIR B-420 Manual de usuario

ZyAIR B-420

Wireless LAN Ethernet Adapter and Bridge

Quick Installation Guide

Version 3.50

November 2003

ZyAIR B-420 Wireless LAN Ethernet Adapter and Bridge

Table of Contents

1 Introducing the ZyAIR ................................................................................................................ 4

2 Hardware Connections .............................................................................................................. 4

2.1 Top Panel and Connections...................................................................................................4

2.2 The LED Display.................................................................................................................... 5

3 Set Up Your Computer’s IP Address......................................................................................... 7

3.1 Windows 2000/NT/XP ........................................................................................................... 7

3.2 Testing the Connection to the ZyAIR..................................................................................... 8

4 Accessing the ZyAIR .................................................................................................................. 8

4.1 Accessing the ZyAIR via the Web Configurator .................................................................... 8

4.2 Common Screen Command Buttons................................................................................... 10

5 Key Features ............................................................................................................................. 10

5.1 Power over Ethernet (PoE)...................................................................................................11

5.2 Wireless LAN Overview........................................................................................................11

5.3 Configuring Wireless LAN ....................................................................................................11

Infrastructure ........................................................................................................................................11

Ad-Hoc.................................................................................................................................................13

Bridge...................................................................................................................................................15

6 Hardware Installation ............................................................................................................... 17

6.1 Attaching Antennas.............................................................................................................. 17

6.2 Hardware Mounting Installation ........................................................................................... 18

7 Troubleshooting ....................................................................................................................... 20

ZyAIR B-420 Wireless LAN Ethernet Adapter and Bridge

1 Introducing the ZyAIR

The ZyAIR B-420 is an IEEE 802.11b compliant wireless LAN Ethernet Adapter and Bridge. The driven-

free installation process makes setup easy. You can also configure your ZyAIR through the user-friendly

web configurator or SMT menus. The key features of the ZyAIR are PoE (Power over Ethernet) and the

ability to function in bridge mode. See your User’s Guide for more details on all ZyAIR features.

2 Hardware Connections

2.1 Top Panel and Connections

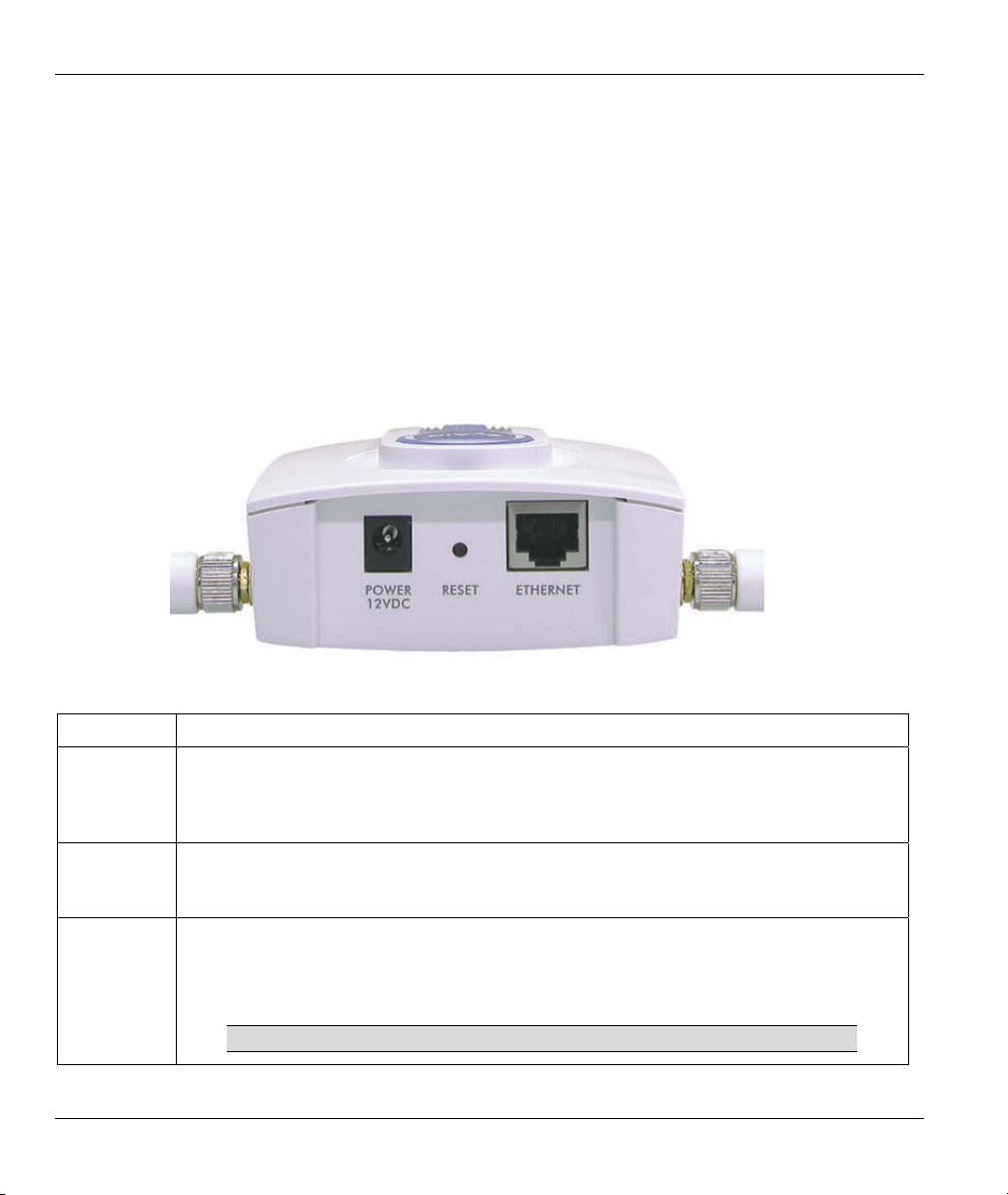

Figure 1 ZyAIR Top Panel

LABEL DESCRIPTION

ETHERNET For initial configuration use an Ethernet cable to connect a computer (with an Ethernet

card) to this port. The port is auto-negotiating (can connect at 10 or 100Mbps) and auto-

crossover (automatically adjusts to the type of Ethernet cable you use (straight-through

or crossover)).

RESET You only need to use this button if you’ve forgotten the ZyAIR’s password. It returns the

ZyAIR to the factory defaults (password is 1234 and LAN IP address 192.168.1.11).

Refer to the User’s Guide.

POWER

12VDC

Connect the end of the included power adaptor to this power socket. You only need to

connect the external power adaptor if you are not using PoE. If you simultaneously use

both PoE and the external power adaptor, the ZyAIR will draw power from the PoE

connection only.

Use only the included power adaptor.

ZyAIR B-420 Wireless LAN Ethernet Adapter and Bridge

2.2 The LED Display

The PWR and the ZyAIR LEDs turn on when the power is connected. The ETHN LED turns on, if the

ETHERNET port is properly connected. See the ZyAIR Front Panel LED Description table for more

information.

Figure 2 ZyAIR Front Panel

ZyAIR B-420 Wireless LAN Ethernet Adapter and Bridge

Table 1 ZyAIR Front Panel LED Description

LED COLOR STATUS DESCRIPTION

Red Blinking The ZyAIR is not ready or rebooting.

Green On The ZyAIR has a successful wireless bridge connection.

BDG

(SYS)

Off The ZyAIR does not have a wireless bridge connection.

Blinking

(Breathing)

The ZyAIR is sending/receiving data through the wireless LAN.ZyAIR Blue

On The ZyAIR is ready, but is not sending/receiving data

On The ZyAIR has a successful 10Mbps Ethernet connectionGreen

Blinking The ZyAIR is sending/receiving data.

On The ZyAIR has a successful 100Mbps Ethernet connectionOrange

Blinking The ZyAIR is sending/receiving data.

ETHN

Off The ZyAIR does not have a 10/100Mbps Ethernet connection.

Green On The ZyAIR is receiving power from power supply

Orange On The ZyAIR is receiving power over the Ethernet cable

PWR

Off The ZyAIR is not receiving power

To access the ZyAIR, configure your computer’s IP address and subnet mask to be in the same range as the

ZyAIR’s.

The default IP address of the ZyAIR is 192.168.1.11.

ZyAIR B-420 Wireless LAN Ethernet Adapter and Bridge

3 Set Up Your Computer’s IP Address

Skip this section if your computer’s IP address is already in the range of

192.168.1.11 ~ 192.168.1.254 with subnet mask 255.255.255.0.

Your computer must have a network card and TCP/IP installed. TCP/IP should already be installed on

computers using Windows NT/2000/XP, Macintosh OS 7 and later operating systems. Refer to the Setting

Up Your Computer’s IP Address appendix in the User’s Guide for other operating systems.

3.1 Windows 2000/NT/XP

1. In Windows XP, click start, Control Panel. In Windows 2000/NT, click Start, Settings,

Control Panel.

2. In Windows XP, click Network Connections.

In Windows 2000/NT, click Network and Dial-up Connections.

3. Right-click Local Area Connection and then click Properties.

4. Select Internet Protocol (TCP/IP) (under the General tab in Win XP) and click Properties.

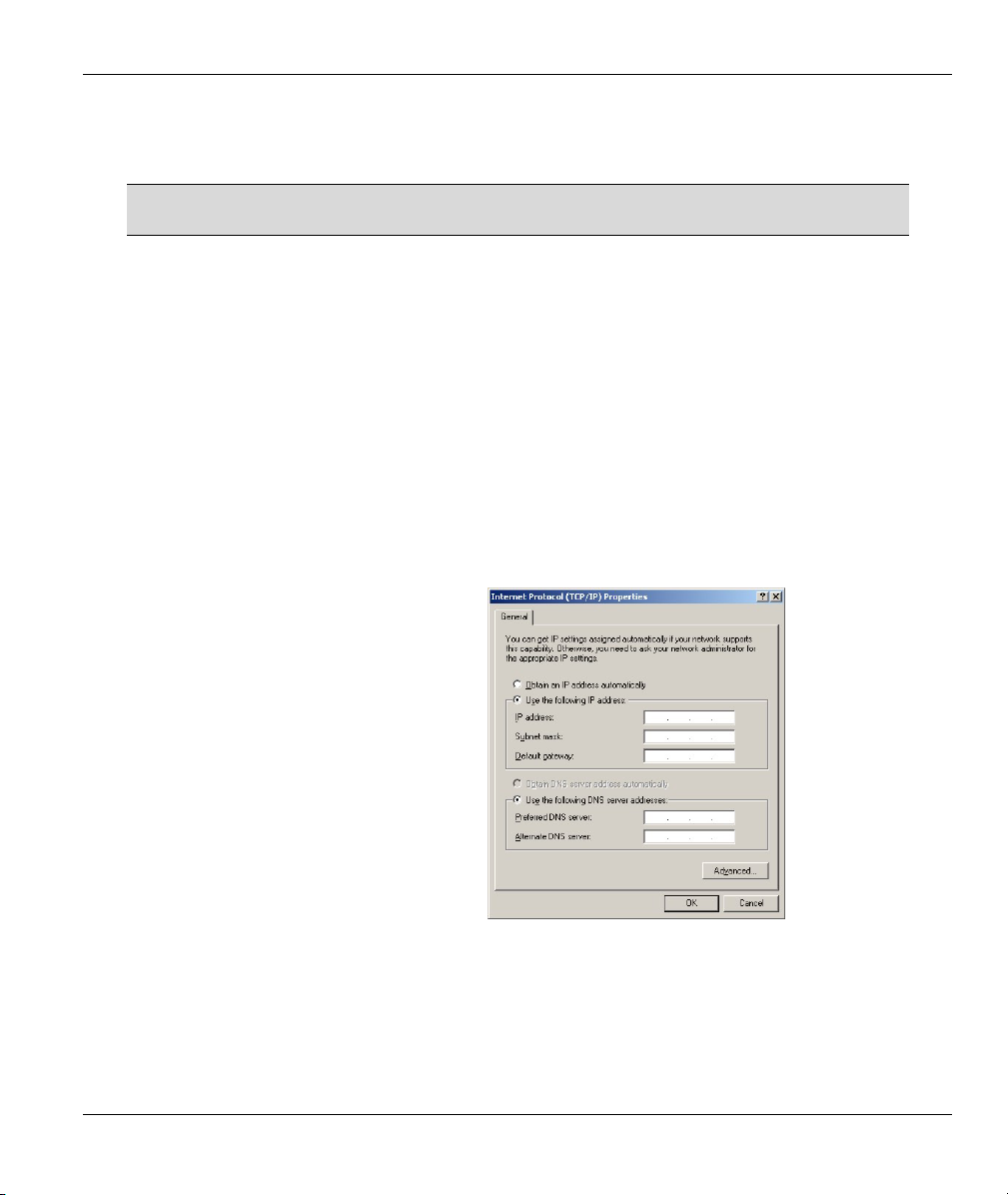

5. The Internet Protocol TCP/IP Properties

screen opens (the General tab in

Windows XP).

Configure your computer to use a static IP

address, select Use the following IP

address and fill in the IP address

(192.168.1.1 to 192.168.1.254, except

192.168.1.11) and Subnet mask

(255.255.255.0) fields.

6. Leave the Preferred DNS sever and Alternate DNS server fields blank if you do not know the

IP address(es) of the DNS server.

7. Click OK to close the Internet Protocol (TCP/IP) Properties window.

8. Click OK to close the Local Area Connection Properties window.

ZyAIR B-420 Wireless LAN Ethernet Adapter and Bridge

3.2 Testing the Connection to the ZyAIR

1. Click Start, (All) Programs, Accessories and then Command Prompt.

2. In the Command Prompt window, type "ping 192.168.1.11” followed by a space and the IP address of

the ZyAIR (192.168.1.11 is the default).

3. Press ENTER. The following screen displays.

Your computer can now communicate with the ZyAIR via the ETHERNET port.

4 Accessing the ZyAIR

The Quick Installation Guide shows you how to use the web configurator Wizard

and introduces the ZyAIR’s key features. See your User’s Guide for configuration

details and background information on all ZyAIR features using the SMT (System

Management Terminal) and web configurator.

4.1 Accessing the ZyAIR via the Web Configurator

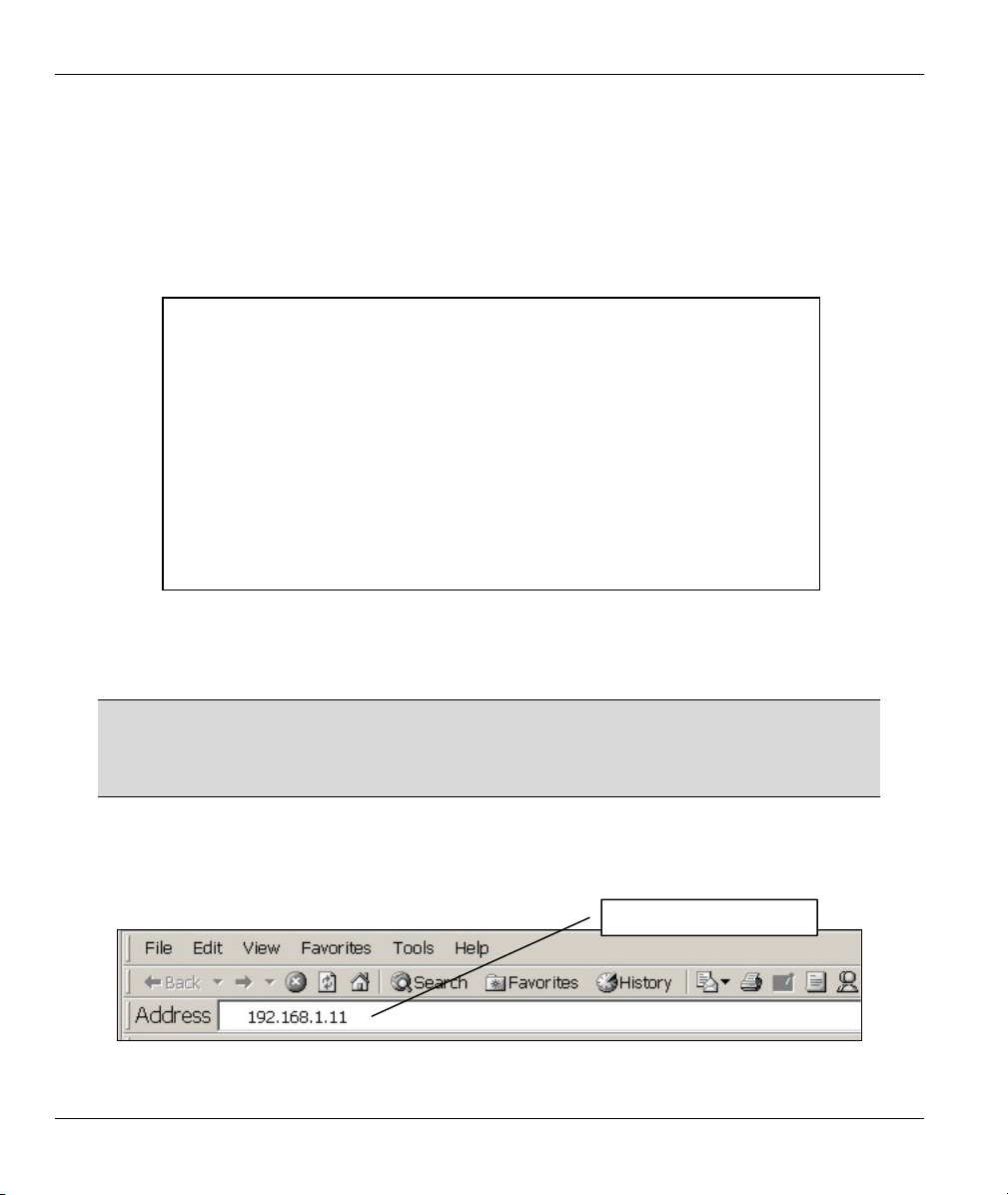

1. Launch your web browser. Enter “192.168.1.11” as the web site address.

C:\>ping 192.168.1.11

Pinging 192.168.1.11 with 32 bytes of data:

Reply from 192.168.1.11: bytes=32 time=10ms TTL=254

Reply from 192.168.1.11: bytes=32 time<10ms TTL=254

Ping statistics for 192.168.1.11:

Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),

Approximate round trip times in milli-seconds:

Minimum = 0ms, Maximum = 10ms, Average = 2ms

C:\>

Default ZyAIR IP address.

ZyAIR B-420 Wireless LAN Ethernet Adapter and Bridge

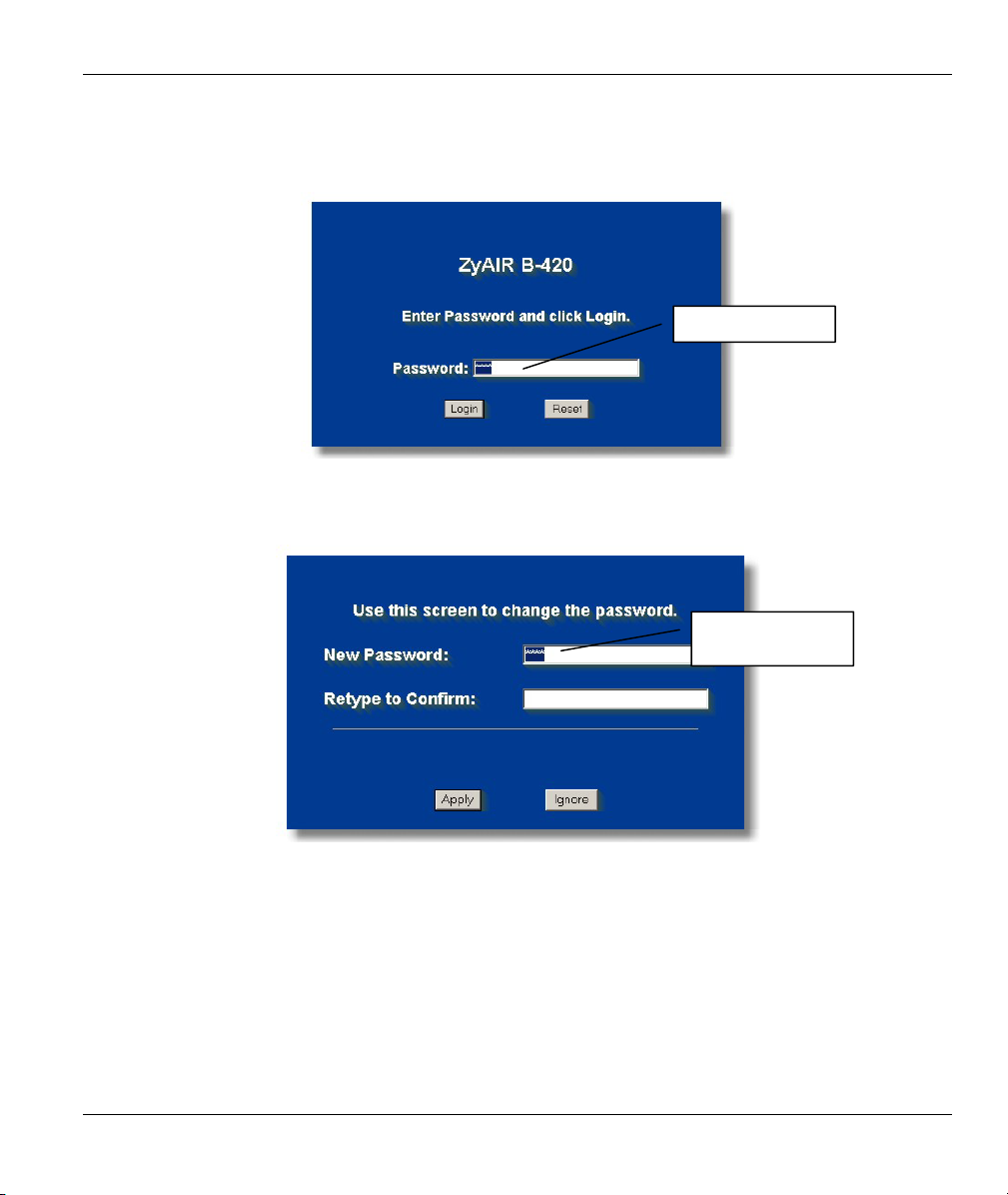

2. The default password (“1234”) is already in the password field (in non-readable format). Click

default password in the password field.

3. It is highly recommended you change the default password! Enter a new password, retype it to

confirm and click Apply; alternatively click Ignore to proceed to the MAIN MENU screen if you

do not want to change the password now.

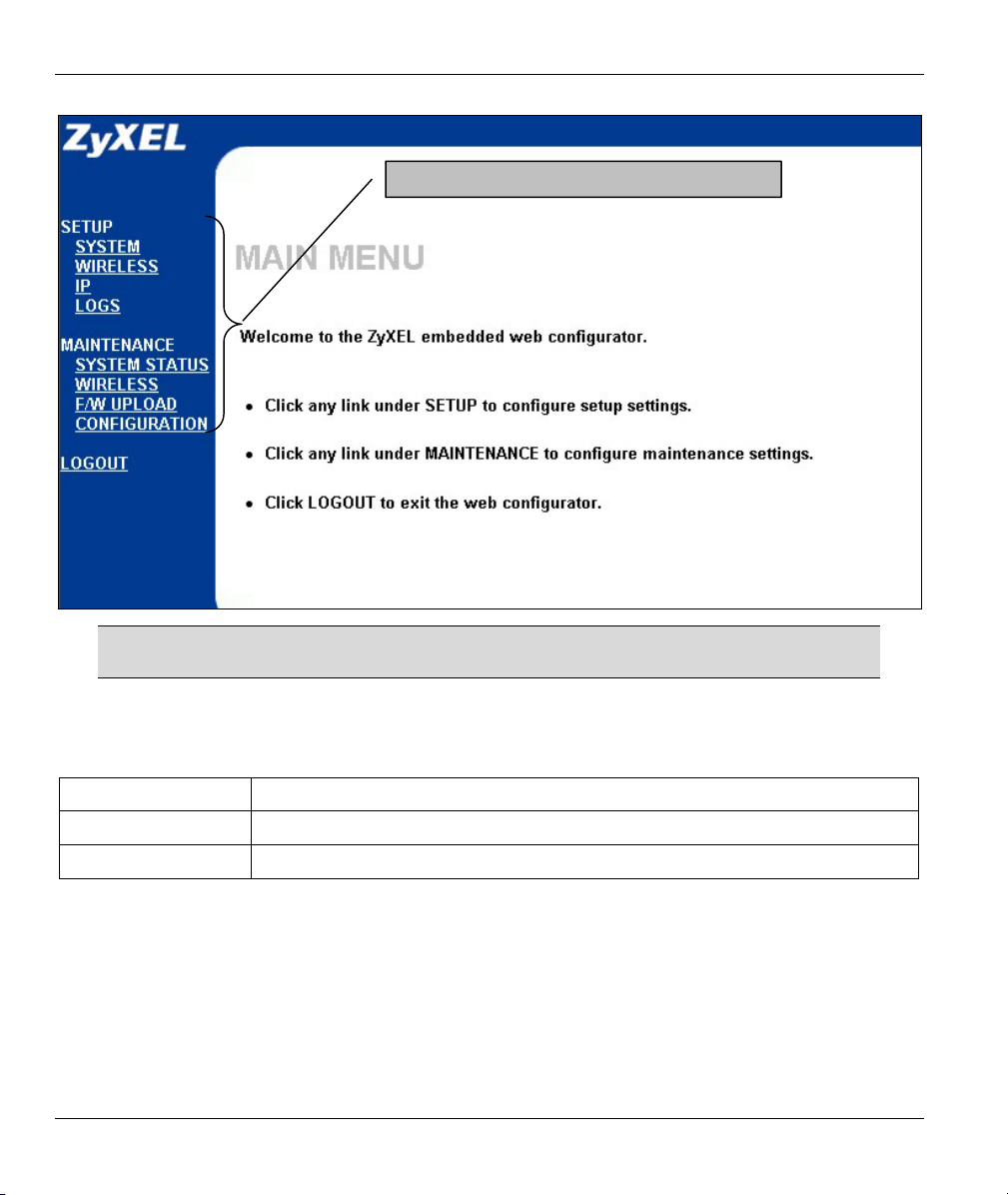

4. You should now see the web configurator MAIN MENU screen.

Default password.

Change default

password.

ZyAIR B-420 Wireless LAN Ethernet Adapter and Bridge

The ZyAIR automatically times out after five minutes (default) of inactivity.

Simply log back into the ZyAIR if this happens.

4.2 Common Screen Command Buttons

The following table shows common command buttons found on many web configurator screens.

Back Click Back to return to the previous screen.

Apply Click Apply to save your changes back to the ZyAIR.

Reset/Cancel Click Reset or Cancel to begin configuring this screen afresh.

5 Key Features

This section shows you how to configure some of the advanced features of the ZyAIR.

Refer to your User’s Guide for more information on ZyAIR configurations.

Use these submenus to configure ZyAIR features.
