Zte T3000 Manual de usuario

1

T3000

Let’s go

Getting started with your device.

2

1. Connect Your Device

Connect the WAN/LAN4 port to the broadband service network port with a

network cable.

3

2. Power on Your Device

Connect the original power adapter to your device and then your device will be

powered on and connect to the Internet automatically.

4

3. Access the Internet

Wi-Fi: Get the default SSID and password on the label and connect to the

Wi-Fi network with your mobile device, and then access the Internet.

5

Network cable(RJ45): Connect with the computer via LAN ports and then

access the Internet.

6

Manage Your Device

You can manage the device by logging in to the configuration web page.

1. View the label on your device to get the default Device Manager Website IP

address and Password.

2. Launch the Internet browser and enter the Device Manager Website IP

address in the address bar.

3. Input the password and then click Login.

4. After the configuration web page is opened, you can change the Wi-Fi SSID,

password or other settings.

7

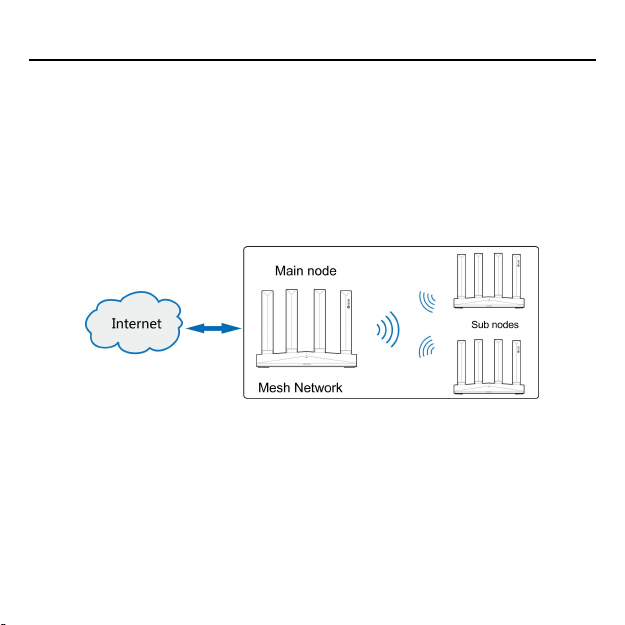

Mesh Network Function

Your device has the Wi-Fi Mesh ability. You can create Wi-Fi Mesh network to

form a larger range of Wi-Fi network in your house and ensure seamless Wi-Fi

roaming when you move.

8

To set your mesh network:

1. Log in to the management web page.

2. Click Mesh Network icon .

3. Follow the instructions to create your mesh network.

4. Enjoy your mesh network.

9

Indicator Lights and Interfaces

10

1

LAN ports

Connect to a PC.

2

WAN/LAN

ports

WAN/LAN4: Connect to a WAN in the single WAN mode.

WAN/LAN3: If you want to use two WAN connections, you need to switch to the

Multi WAN mode on the management web page and then connect the other WAN

to the WAN/LAN3 port.

3

Power port

Connect to the original power adapter.

4

WPS key

Press and hold for about 2 seconds to activate the WPS function or create the

mesh network.

5

NFC area

When you bring your NFC-enabled phone and the device together, follow the

instructions on your phone to connect to the Wi-Fi network without entering the

password.

6

Indicator

Red blinking:

The device is being started.

The device is being restored to the factory settings.

Red on: The WAN is not connected.

White blinking:

WPS is activating.

The mesh network is being created.

White on: The WAN is connected.

Off: The power adapter is not connected.

7

RESET

Press and hold for about 3 seconds to restore your device to the factory settings.
