Zte MF253L Manual de usuario

Confidential and Proprietary Information of ZTE CORPORATION 1

MF253L

Let’s go

Getting started with your device.

ZTE CORPORATION

NO. 55, Hi-tech Road South, ShenZhen, P.R.China

Postcode: 518057

LEGAL INFORMATION

No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any

means, electronic or mechanical, including photocopying and microfilm, without the prior written

permission of ZTE Corporation.

The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors

or update specifications without prior notice.

Version No. : R1.0

Connecting Your Device

Follow the number to connect your device.

If you select a different operation mode, the connection of the LAN port is different. Please refer

to the chapter “Accessing the Internet”. If you want to use the mobile network to connect to the

Internet or use your home phone, you need insert your (U)SIM card first.

IMPORTANT:

Your device does not support the Micro/Nano SIM card or any other nonstandard SIM cards. To

avoid damaging the device, do not use those cards or any card holders

Put your device at least 2 meters away from the connected phone, TV sets, radio and other electronic

devices to avoid electromagnetic interference.

Indicators:

Indicator State Description

POWER

Blue ON Power is on and external power

supply is working normally.

OFF Power is off or external power

supply is working abnormally.

WIFI

Blue ON WLAN works normally with no data

transmission.

Blue Blinking WLAN works normally with data

transmission.

OFF WLAN works abnormally or the

WLAN function is disabled.

Indicator State Description

PHONE

OFF The phone is not in use.

Blue Blinking The phone is ringing.

Blue ON The phone is in calling.

SIG

Blue ON Signal strength is very good or good.

Blue Blinking Signal strength is weak.

OFF There is no signal.

3G/4G

Red The device is turned on but not

registered to the mobile network.

Blue Blinking The device is connected to the LTE

network and data is being transferred.

Blue Solid The device is registered to the LTE

network.

Green Blinking The device is connected to the 3G

network and data is being transferred.

Green Solid The device is registered to the 3G

network.

LAN

Green ON The LAN port is connected.

Green Blinking The LAN port is connected with data

transmission.

OFF The network cable is not connected.

NOTE:

The phone function needs the network support.

Configuring Your PC

Follow the following steps and figures for Windows XP to configure the Internet Protocol for

your connection.

NOTES:

Wireless Network Connection is used for Wi-Fi connection.

Local Area Connection is used for network cable connection.

1. Right-click My Network Places, and then select Properties.

2. Right-click the icon for Connection, and then select Properties.

3. Select Internet Protocol (TCP/IP), and then click Properties.

4. Select the two items indicated in the following figures, and then click OK to finish the

configuration.

Accessing the Internet

Before accessing the Internet, please make sure that the following operations are finished.

Your device is connected via a network cable or Wi-Fi.

Your PC is configured.

To access the Internet:

1. Log in the 4G CPE Page.

1) Launch the Internet browser and enter http://192.168.0.1 in the address bar. The login

page appears.

2) Input the password and then click Login. The default password is admin.

2. View the current mode on the left top of the 4G CPE page, and then click Change.

3. Select an operation mode which you want to use and then click Apply.

NOTE: If you change the operation mode, the device will be restarted automatically.

4. Set the detail parameters for the operation mode.

For Bridge

You need to connect the WAN to the LAN port via Ethernet cable and set the clients to

obtain the IP address automatically. Your clients can obtain the IP address from the WAN

DHCP host and connect to the Internet directly.

NOTE:

If you want to change the operation mode, you need to set the client a fixed IP address between

192.168.0.100 and 192.168.0.200, and then log in the 4G CPE page to change it.

For Cable Broadband

You need to connect the WAN to the LAN port via Ethernet cable and select the WAN

Connection Mode. There are three WAN Connection Modes: PPPoE, Static and DHCP.

Please contact with your service provider to confirm which mode is fit for you.

Select Settings > Network Settings to change the WAN connection mode and set the detail

parameters.

PPPoE mode

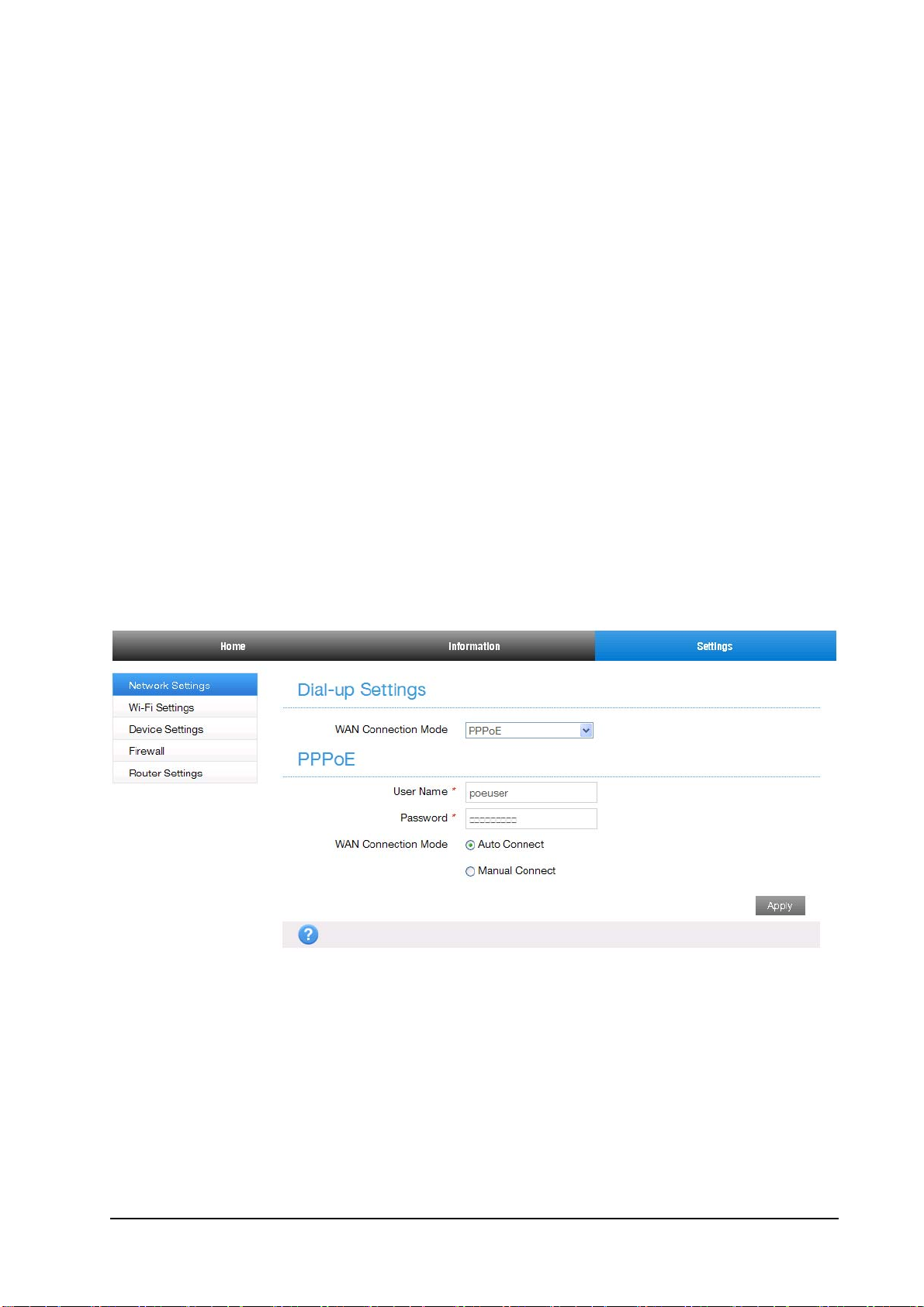

Select PPPoE, input the User Name and Password and then set the WAN Connection

Mode.

NOTE：Your service provider gives you the User Name and Password.

Static mode

Select Static, input all the parameters and then click Apply.

NOTE：Your service provider gives you the static address information.

DHCP mode

Please select DHCP and then click Apply.

NOTE：Your service provider does not give you any parameters.

For Wireless Broadband

If you want to use your PC to connect to the Internet, please connect your PC to the LAN port

via Ethernet cable.

Select Settings > Network Settings > Dial-up Settings to change the WAN connection mode.

The default WAN Connection Mode is Automatic.

5. Begin to enjoy your Internet service.

Voice Function

Making a Call

You can make a call through (U)SIM card.

To make a call:

1. Pick up the handset.

2. Key in the telephone number.

3. You can either press # key on the telephone to send the call, or wait 4～8 seconds for the call to be

connected automatically.

4. The call will be connected.

NOTE: If there is no 3G indication, the RF signal is unavailable. Change the location of the router and

make sure nothing is blocking it.

Answering a Call

When the phone rings, pick up the handset to answer it. If the telephone has hands-free function you

also can answer the call by pressing the Hands-free button. Press the Hands-free button again to end

the call.

WPS Function

Your device supports WPS function. You can use this function to connect the client to your

device.

1. Power on your device, and enable the Wi-Fi function on your device.

2. Enable WPS function. Please check the WPS Setting on the 4G CPE page.

3. Press the WPS button on your device to start Wi-Fi Protected Setup authentication process.

4. Enable the WPS function on your client to respond this authentication process.

5. Follow the system prompts on your client to finish the connection.

USB Function

Your USB storage device will be used as a storage server.

1. Plug the storage’s USB connector into the USB port and make sure that it is tightly inserted.

2. Select Start > Run in the Windows Operating System.

3. Input \\192.168.0.1\admin, and then click OK.

4. Input the user name”admin” and password which is the 4G CPE page login password, and then click

OK.

5. After login the USB storage device successfully, you can manage the files in the storage.

NOTE: If you change the 4G CPE page login password after using USB function, you need to run this

command “net use * /delete” to delete the old password.

Wireless Connection

If you want to use Wi-Fi to connect your router, please refer to the following steps.

1. Make sure that the WLAN works normal. Please check the Wi-Fi Setting on the 4G CPE page or

check the WIFI indicator.

2. Use your normal Wi-Fi application on the client to search for the available wireless network.
