ZOSI SD12 Manual de usuario
Quick Start Guide
Wireless LCD NVR System
Please set a password and keep it in mind.
Default password is blank.
Password (Write down after setup) __________________________
Please keep this guide properly for future use when logging in to the device and remote viewing.
Zosi Smart App (IOS/Android)
1.1 NVR
1.2 Camera
Screen Power Switch
Antenna
Lens
1Gallery & Specs
2System Connection
2.1 Connect NVR to the Internet
(1) Connect NVR to router using a network cable.
(2) Connect the included USB mouse to the USB port of NVR.
(3) Connect NVR to 12V power supply.
(4) Press down the screen power switch. After the system starts, pair camera to the system (maximum
support 8 channels).
(5) The monitor will show the real-time monitoring picture of the camera.
A: Camera Installation Diagram
B: How to test the network status of NVR?
(1) Right click Mouse > Go to Main Menu > Setting > Network
(2) Tick 'Obtain an IP Adress Automatically'
(3) Click 'Test', if 'OK' is displayed, tick ‘DHCP’ and apply, the device will automatically assign
the corresponding network segment and IP address. After clicking Test, if the page is displayed
successfully, it is successfully connected to network.
NOTE: Please make sure that the DHCP of the connected router is enabled at the same time.
Mounting Hole Template
Intall wall plugs Mount the screws
No need of wall plug if it's wooden wall
1
2 3
C: WiFi Setup
Right-click the main interface - Main Menu - Setup - Network - Wireless Network, default setting and
apply.
2.2 Download ZOSI Smart App
Zosi Smart App (IOS/Android)
2.3 Run the App
A: Install the free ZOSI Smart App.
B: Click Register and enter your email box to get verification code, click next to set up password and
save it, registration completed.
C: Login the App, get into the main interface (My Device), tap “+”in the upper right corner to add
devices.
D: Select ‘DVR’ - ‘Wireless recorder’
E: Scan QR code on the NVR.
Open the App Register Tap “+”to add devices
Scan QR code on the device Add device Select channel to view live
'Device ID'
F: Go back to the Device list > Tap the device > Tap “+” to select channel (all selected) > Tap Confirm
to start live streaming.
3AVSS PC Client
3.1 Install AVSS on PC
Get the AVSS software from www.zositech.com or
from your agent.
Double-click the icon AVSS to open, select the
language and click Login.
Note: The user name is the account and password
registered on the App in 2.3.
3.2 Device Management
Click the Add Device button in the device list to add/edit/configure/search for the device.

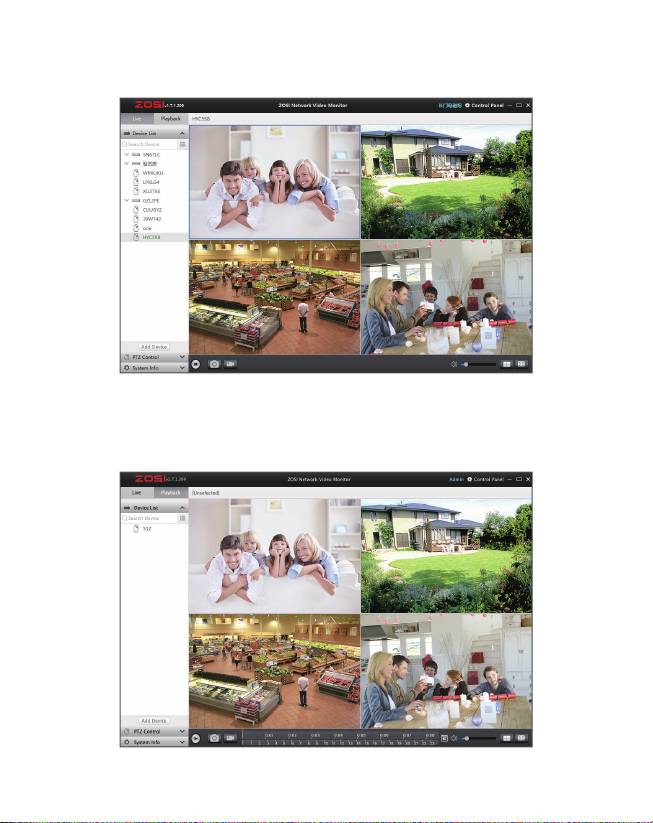

3.3 Live View
3.4 Remote Video Playback
Select channel on ‘Live’ page, right click to watch live streaming.
Select ‘Playback’, select device, channel, date, time, click the play button to start replaying recorded
video.
4Device Rematch
4.1 Camera Setup
Note: The system is already paired by default before leaving the factory. Please do not perform the
following operations unless you have special needs.
(1) Enter the NVR interface and right click the mouse to open the main menu, as shown in 4.1.
(2) Select "IPC Channel Configuration" in the main menu to enter the configuration interface, as
shown in 4.2.
Figure 4.1
Figure 4.2
Figure 4.4
(4) Click "Add All" on the interface to complete the camera configuration, as shown in Figure 4.4.
(3) Click 'Search', the system will automatically pair the camera as shown in Figure 4.3.
Figure 4.3
