ZKTeco FHT2300 Manual de usuario

Installation Guide

Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the

actual product and the written information in this manual.

Full Height Turnstile Series

Applicable Models: FHT2300 Series, FHT2300D Series,

FHT2400 Series, FHT2400D Series

Doc Version: 1.1

Date: July 2022

English

It is recommended that the device must be installed on a horizontal solid platform with a height of

50mm to 100mm.

After installation, check if the connection has been done correctly at the connecting points of the

ground wire, at the connector assemblies and wiring points of the circuits, as well as at each movable

part of the device. Any loose nuts, screws and other fasteners should be tightened in time to avoid any

failures caused by long-time operations.

1 Installation Requirements

3. Make sure the ground wire of the system is reliably connected to avoid personal injuries or other

accidents.

2. It is also recommended that the device should not be used in the corrosive environment.

2 Preparation

To install the device you must have:

A Screwdriver: To remove or install the screw on the device.

A Pencil: To mark the device size and the screw hole.

A Electric Drill: To drill holes in accordance to the marked screw holes.

A Wrench: To secure the M12 expansion screw on the device.

A Tapeline: To measure the dimensions that need to be measured during the installation of the device.

A Hex Wrench: To remove or install the screw on the device.

Except for the hex wrench, all other tools should be prepared on your own.

Note:

The FHT2300 series, FHT2300D series, FHT2400 series and FHT2400D series have only slight diﬀerences

in appearance, but the installation, wiring and use are the same, and the following is an example of

FHT2300 series.

3 Installation

Place the frame to the installation site, and mark the ﬂoor following the periphery of the legs.

① ②

②

Below is a drawing of the Full Height Turnstile Series mounting hole locations and dimensions in millimeters. There

may be errors, please refer to the actual product.

FHT2300Series

FHT2300DSeries

92.00

142.00

92.00

146.00

70.00

182.00

274.64 410.29 575.00

596.44

1242.89

594.44

576.44

92.00

146.00

142.00

92.00

274.64 416.40 197.50 155.00 197.50 416.40 274.64

142.00

97.44

596.44

594.44

1237.44

1242.89

FHT2400Series

8.00

47.63 682.39 146.00 164.00 146.00 682.39

8.02

47.63

91.65

142.00

91.65 66.07

565.07

1180.49

1206.07

FHT2400DSeries

629.31 575.00 70.00

91.65

564.37

562.37

142.00

91.65

1179.10

146.00

47.60

Take the frame aside and use the electric drill according to the drawn screw and wiring holes.

3. Clean up the fragments and dust after drilling, then place the frame on the installation site again. Check

whether the drilled holes corresponds to the mark on the device.

4. User must pull the power cable and Ethernet from the machines and put them into the wire slot.

① ②

φ25mm

PVC pipe

Tether Cable

Power Cable

Ethernet

The input voltage for this full height turnstile is AC100-120V/200-240V. The PVC conduits are buried 100mm below

the ground, with the height of the exposed part not less than 100mm. To prevent water leakage to the conduit, the

conduit mouth needs to be bent back.

Note:

5. Align the frame with the drilled holes. Then, insert the bolts accordingly and ﬁx them with a wrench.

Finally, insert the washer and nut, tighten it with a wrench.

6. Put the mainframe box on the frame, after connect the power cable, Ethernet and Tether Cable, ﬁx up

with M12 screws.

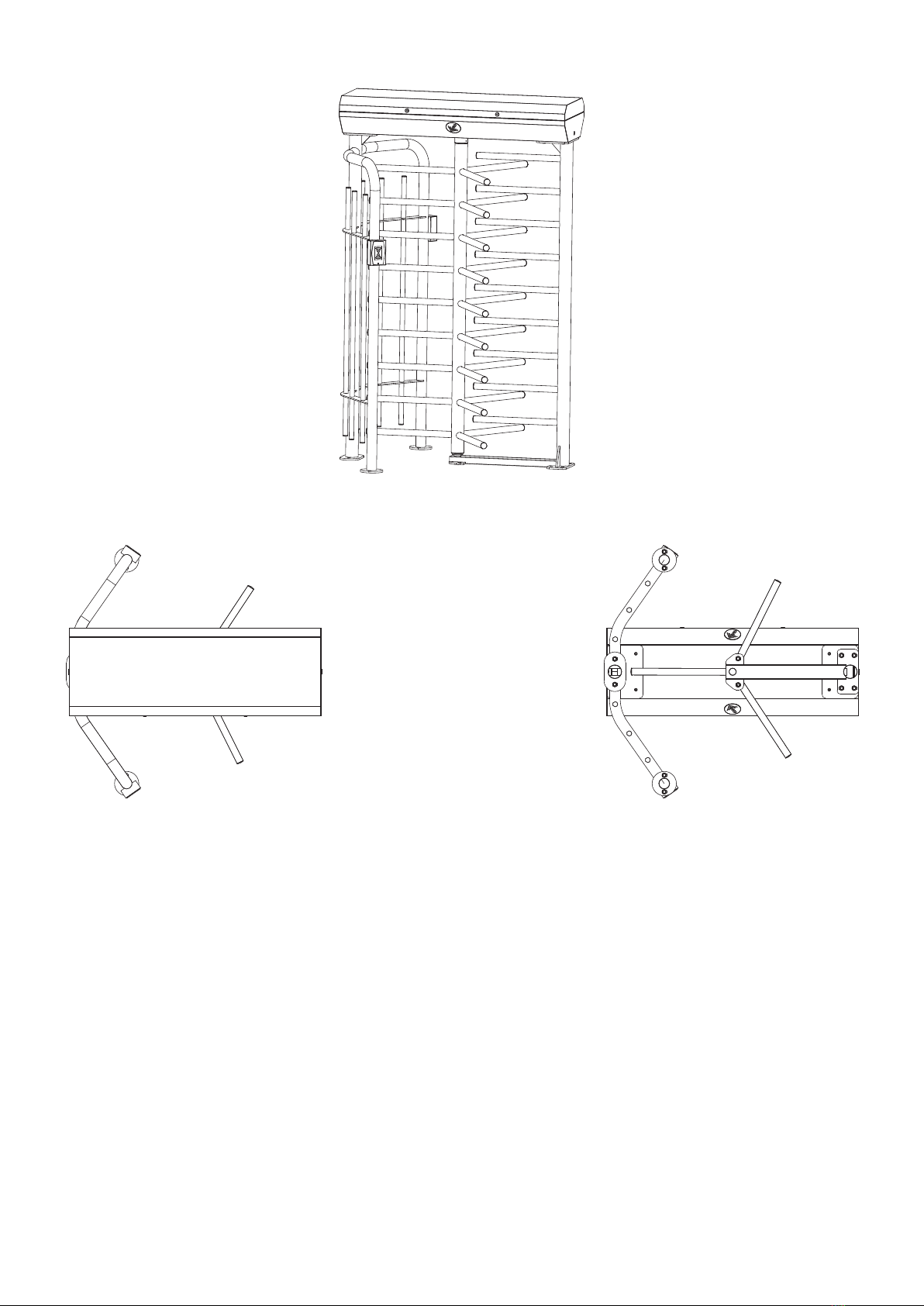

Upward view

Note: Pay attention to the details in green circle, both of them should be in vertical direction.

The rotor direction should be place like this.

Planview of rotor of three arm

barrier (120°) position and

direction before installation

7. Put the whole rotating part in the middle of the frame and mainframe box and then ﬁx up with screws

and connection block.

②

③ ④

①

BottomTop

Front
