ZKTeco ProFace X Manual de usuario
Quick Start Guide
ProFace X
Version: 1.0
Date: May 2019
1

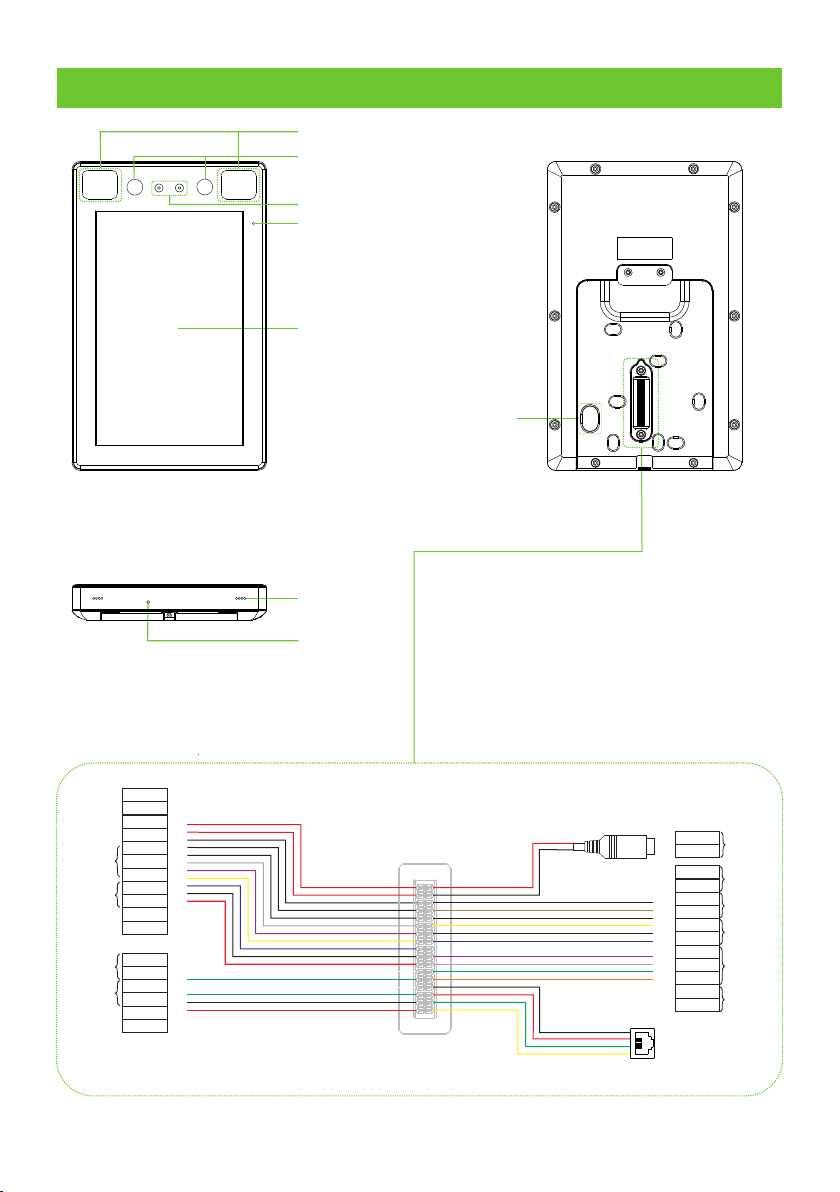

1Overview
8-inch touchscreen
Camera
Speaker
Microphone
Reset button
Flash
Exit
button
Auxiliary
input
AUX
AL+
AL-
NC
COM
NO
BUT
GND
SEN
GND
Alarm
Lock
Sensor
GND
+12V Power
GND
INWD0
INWD1
Wiegand
In
Wiegand
Out
12V
GND
WD0
WD1
Networkinterface
RS232
RS485
12V
485B
485A
GND
TXD1
RXD1
GND
GND
GND
12V
12V
Power
interface
Tamper switch
Near-infrared flash
2
2 Device Installation
①Attach the mounting template sticker to the wall, and drill holes according to the mounting
paper.
②Fix the back plate on the wall using wall mounting screws.
③Attach the device to the back plate.
④Fasten the device to the back plate with a security screw.
Install on the wall
1 2
4
①
②
1.5m
3
Install on the barrier gate
1
2
①
②
Please thread the wire through the bracket before installation.
①Drill a hole on the barrier gate, insert the bracket into the hole and fix it with a nut.
②Adjust the angle of the device.
3
2Device Installation
38mm
4
3Standalone Installation
Alarm Smoke
detector
Lock TCP/IP
Exit button
Door sensor
Reader
PC
4Door Sensor, Exit Button & Alarm Connection
Door sensor
Alarm power
Alarm
-
+
-+
-+
-+
Detector power
Smokedetector
Exitbutton
AUX
AL+
AL-
NC
COM
NO
BUT
GND
SEN
GND
GND
5

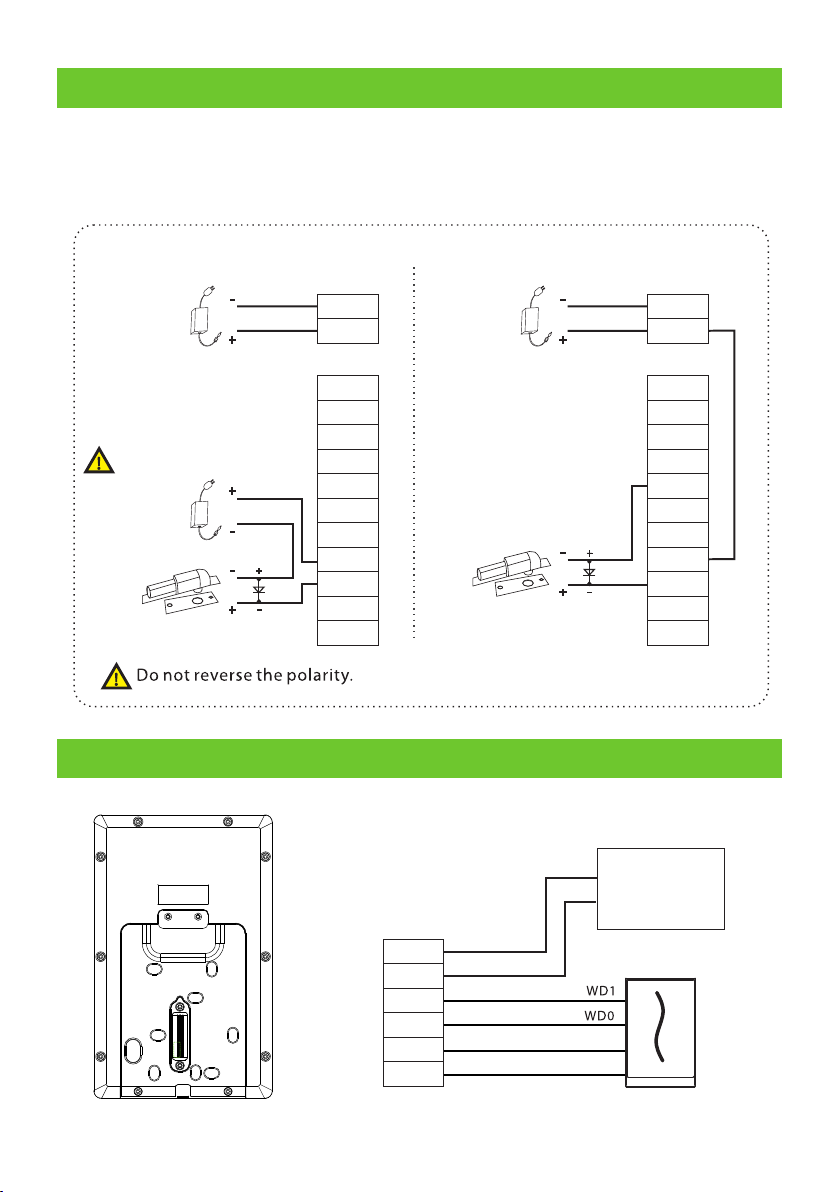

5Lock Relay Connection
The system supports Normally Opened Lock and Normally Closed Lock.
The NO LOCK (normally unlocked when power-on) is connected with 'NO' and 'COM' terminals,
and the NC LOCK (normally locked when power-on) is connected with 'NC' and 'COM' terminals.
Take NC Lock as an example below:
1)Device not sharing power with the lock
Normally Closed Lock
DC12V
DC12V
2)Device sharing power with the lock
+12V
GND
FR107
FR107
Normally Closed Lock
GND
AUX
GND
SEN
GND
BUT
NO
COM
NC
AL-
AL+
DC12V +12V
GND
GND
AUX
GND
SEN
GND
BUT
NO
COM
NC
AL-
AL+
6Wiegand Reader Connection
Access controller
+12V
GND
Wiegand reader
INWD0
INWD1
12V
GND
WD0
WD1
Maximum 30V 3A input.
6
7 Barrier Connection
8RS485Connection
Barrier gate
+12V
GND
GND
485+
485-
12V
485B
485A
GND
TXD1
RXD1
GND
GND
GND
12V
12V
485 reader
12V
485B
485A
GND
TXD1
RXD1
GND
GND
GND
12V
12V
Note: 485A and 485B can be connected to the barrier gate or the 485 reader, but cannot be
connected to the gate and the reader at the same time.
10Ethernet Connection
Connect the device and computer software over an Ethernet cable. An example is shown below:
: 192.168.1.201Default IP address
: 255.255.255.0 Subnet mask
: 192.168.1.130IP address
: 255.255.255.0 Subnet mask
Note: In LAN, IP addresses of the server (PC) and the device must be in the same network segment
when connecting to ZKBioSecurity software.
Click on [Comm.] > [Ethernet] > [IP Address], input the IP address and click on [OK].
9Power Connection
12V3ADC
Recommended power supply: 12V - 3A
To share the power with other devices, use a power supply with higher current ratings.
7
11 UserRegistration
8
Clickon> [User Mgt.] > [New User] to register a new user. Settings include entering user ID and
name, registering a face, password and user photo, setting user role and access control role.
Method1: Register on the device
Method3: Register on ZKBioSecurity software
Click on [Personnel] > [Person] > [New] to register users on the software.
For specific operation, please refer to the ‘ZKBioSecurity User Manual’.
When there is no super administrator set in the device, click on to enter the menu. After setting the
super administrator, the system will request for the administrator’s verification before entering the menu.
For the security purpose, it is recommended to register a super administrator at the first time you use
the device.
LL
L
Method2: Register on the phone
Login in to http://X.X.X.X:XX/app/v1/adreg with a mobile phone to register users.
Cloud server IP address
Server port
Clickon > [Comm.] > [Ethernet]to set the network parameters. If the TCP/IP communication of the
device is successful, the icon will be displayed in the upper right corner of the standby interface.
Clickon that is, the IP > [Comm.] > [Cloud Server Setting] to set the server address and server port,
address and port number of the server after the software is installed. If the device communicates with
the server successfully, the icon will be displayed in the upper right corner of the standby interface.
12AccessControlSettings
13Ethernet and Cloud Server Settings
9
Clickon to enter the access control management interface and set relevant > [Access Control]
parameters of access control.
L
L
