Quick Guide

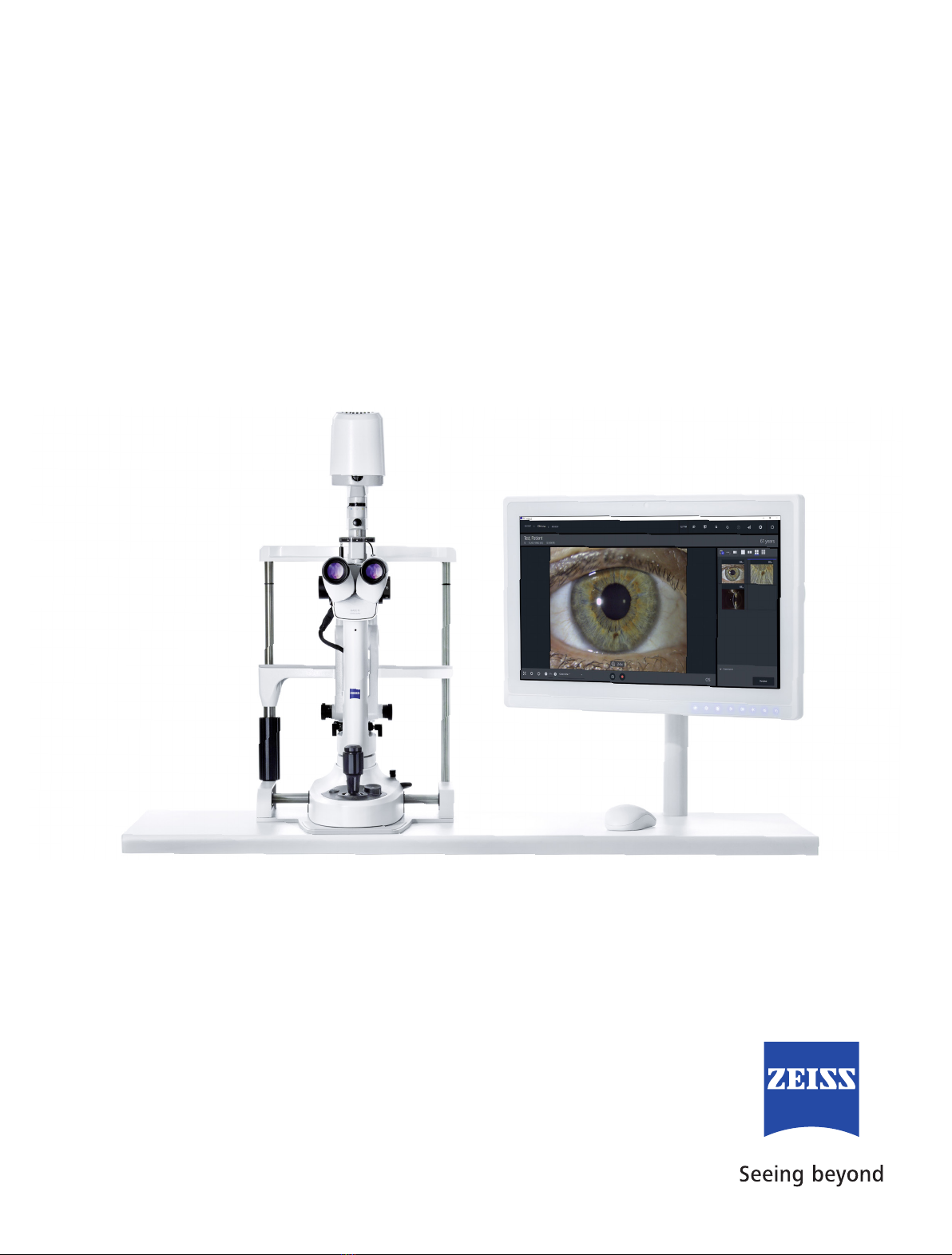

ZEISS SL Imaging Solution

Capturing and editing quality images and video

2 of 6

ZEISS SL Imaging Solution Quick Guide

1. Access patient data

a. Search for existing patient

b. Enter new patient data

c. Choose from FORUM®modality worklist

2. Review data from previous visits

3. Click "Capture" to switch to the capture screen

(for exam documentation)

ZEISS SL Imaging Solution screen overview

Patient screen

3 of 6

ZEISS SL Imaging Solution Quick Guide

Capture images and videos using:

• ZEISS SL800 joystick trigger

– Short press to capture images

(likewise during recording)

– Long press (>1s) to start and stop

the video recording

– Rotate to change the predened

camera parameter

• Other ZEISS slit lamps

– Capture images using the footswitch

or keyboard spacebar, or click the

camera button (3)

– Click the record button (3) to start

and stop the video recording

Capture screen / Documentation examination

Review screen

1. Camera settings

2. Camera proles: Use predened camera proles for dierent

illumination conditions

3. Camera and record buttons

4. Layout templates: Choose a layout template to automatically create reports

during image acquisition for easy, streamlined documentation

a. Counter for capturedimages and videos

b. Create a new layout byselecting boxes

c. Last created layout

d. Quick access for favorite layouts with drag-and-drop placement feature

5. Review: Automatically creates a report using the selected layout

Capture screen Review screen

Review screen

Control mechanism for image

• Zoom: Use the mouse wheel

• Rotation: CTRL + mouse wheel

• Movement: CTRL + hold left mouse bar

Tools

Edit images and videos

Use Flicker to observe dierences

Export reports, videos and images to

FORUM/DICOM archive or share on a

predened network drive

Save data locally

Create a single image from a video

ab c d

1 3

4 of 6

ZEISS SL Imaging Solution Quick Guide

Adjust the white balance for more natural looking images

Camera settings

Without white balance adjustment With white balance adjustment

How to get quality images using the software

Override the default white balance by following the steps below:

• Hold a white sheet of paper in front of the slit lamp

• Swivel in the diuser for a homogeneous illumination

• Reduce illumination to a minimum (the test paper should appear grey on the screen)

• Make sure there is no glare

• Click the White balance button (each prole requires a separate white balance)

Image quality – Best: lower resolution, but higher frame rate

Automatic adaption of gain and exposure time – Increase illumination

on SL (may cause noise)

Exposure time – Dependent upon the movement of patient and SL; low

exposure time for videos and moving patients

Gain – Electronic amplication of the signal. The darker the output signal,

the higher the basic noise. Keep Gain as low as possible. Instead, increase

illumination at the SL.

Gamma – Changes black/white appearance without changing color

temperature (keep at 100%)

Fine setting – Color information; 100% = maximum color information,

0% = black/white image

Coarse setting saturation – Leave at 0% for the most natural impression.

Higher value will amplify the given color information.

5 of 6

ZEISS SL Imaging Solution Quick Guide

Option 1: Eyepiece with crosshair (recommended)

This method applies to all types of slit lamps

1. Insert the eyepiece with crosshair into the right side of the

binocular tube (this is where the camera is located).

2. Close the left eye and turn the diopter ring of the eyepiece

until the crosshair appears sharp. Start from maximum "+"

to avoid accommodation.

3. Ensure the crosshair and observed object are both in focus.

4. Check the monitor image; it should now be in focus.

Good image

Crosshair and image in focus

Poor image

Crosshair in focus, but view out

of focus » Focus slit lamp

Poor image

View in focus, but crosshair out

of focus » Focus eyepieces

Issue: Observer can compensate a misalignment of the instrument, the camera cannot

How to align the slit lamp and camera correctly

Option 2: Monitor focus (no crosshair eyepiece

or focus rod)

This method applies to all types of slit lamps

1. Attach an object (e.g., a business card) to the headrest.

2. Focus on that object using the highest magnication while

looking only at the monitor.

3. Block the slit lamp by activating the quick action break.

4. Looking through the microscope, without moving the slit

lamp, adjust your eyepieces (monocular).

Tips:

• Keep in mind which beam path is recorded to avoid

shadows and reexes

• Use the aperture to increase the depth of eld

• Use the optimal type of illumination

• Big illumination angle for 3D information

• For people who wear glasses, it is necessary to slide

in eyecups

• Reduce ambient light for better results

• Accommodation is more pronounced among younger

people (that’s why adjusting correctly, and Option 1,

is important)

en-INT_31_011_0021I Printed in the Germany. CZ-VII/2023 International edition: Only for sale in selected countries.

The contents of this brochure may differ from the current status of approval of the product or service offering in your country. Please contact our regional

representatives for more information. Subject to changes in design and scope of delivery and due to ongoing technical development. FORUM is a either a

trademark or registered trademark of Carl Zeiss Meditec AG or other companies of the ZEISS Group in Germany and/or other countries.

Carl Zeiss Meditec AG

Goeschwitzer Strasse 51–52

07745 Jena

Germany

www.zeiss.com/SLImaging

Carl Zeiss Meditec, Inc.

5300 Central Parkway

Dublin, CA 94568

USA

www.zeiss.com/us/med
