Zavio D4320 Manual de usuario

/ B5210

ZAVIO Outdoor IR Mini Dome

Quick Installation Guide

Please follow the installation steps below to set up your IP Camera.

Check the package contents with the list below. See P.1

Physical overview. See P.2

I/O Terminal Block Circuit. See P.3

I/O Terminal Block Pin Definition. See P.3

LED Indicator Definition. See P.4

Power mode. See P.4

Installation of hardware and connection of all cables. See P.4

Windows: Go to Zavio website and download Camera Installation Tool. See P.9

Access the IP Camera using Camera Installation Tool. See P.10

MAC OS: using Safari Browser. See P.13

Lighting environment. See P.15

Change language of the web interface. See P.15

Application of IP Camera. See P.16

Package Contents

Camera

IP Camera

Quick Installation Guide

Brief product information and quick installation

Accessory

Alignment Sticker, L-type hex key wrench,

Screw pack for wall and ceiling mounting,

Plastic plate for wall and ceiling mounting,

2 pin terminal block DC connector, 6 pin cable for

DI/DO and audio, Focus adjustment tool

Software

The following software and information are available online:

-Video Management Software

-Camera Installation Tool

-User manuals

-Camera Language Packs

You may download the above at http://www.zavio.com/downloads.php or you

may scan the below QR-Code.

To activate Video Management Software, please enter the license key below.

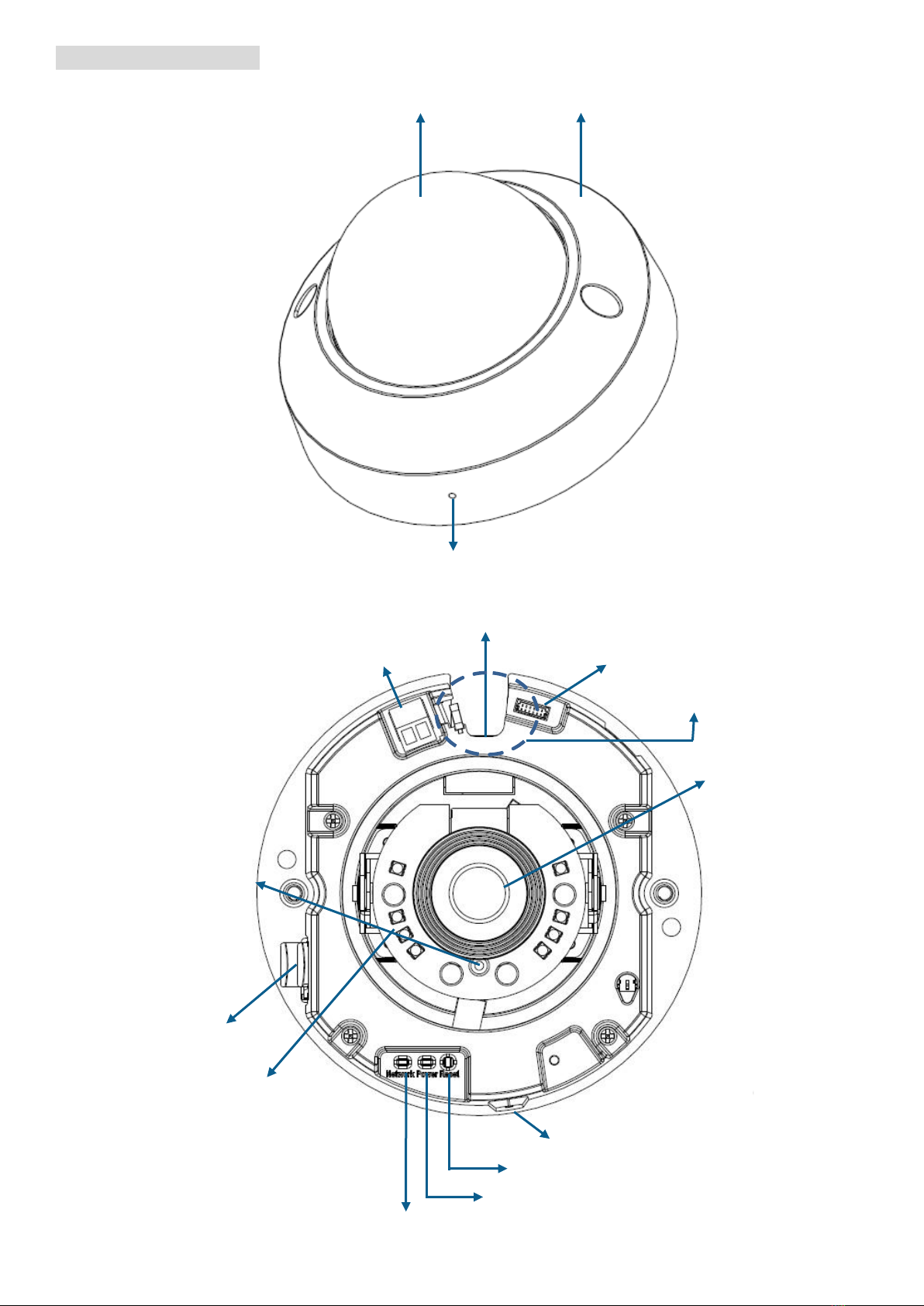

Physical overview

Built-in Microphone

Dome bubble

Top cover

Ethernet Socket

Lens

MicroSD/SDHC/SDXC

Reset

Power LED Indicator

Network LED Indicator

External I/O connector

DC 12V/1A

Internal microphone

Light Sensor

IR LEDs

Routing hole

I/O Terminal Block Circuit

Note: Please use the supplied waterproof RJ45 connector and seal all connectors tightly to avoid moisture.

I/O Terminal Block Pin Definition

Pin Color

Definition

Description

Max. V/A

Red

+ 12VDC

12V DC

1.2W

Black

Digital

Output 1

Uses an NPN transistor with the emitter connected to the

GND pin. If used with an external relay, a diode must be

connected in parallel with the load for protection against

voltage transients.

100 mA

24V

Y+B

Yellow+Black

Audio

Line In

Connect the wires of the audio input device to GND (Pin 4)

and AUDIO.IN (Pin 1).

W+B

White+Black

Audio

Line Out

Connect the wires of the audio output device to GND (Pin 4)

and AUDIO.OUT (Pin 2).

G+B

Grey+Black

Digital

Input 1

Connected to GND to activate, or leave floating

(or unconnected) to deactivate.

30V DC

Brown+B

Brown+Black

Ground

LED Indicator

LED

Color

Indication

Network

Blue

Solid blue when network is established.

Blink blue when there is network activity.

Power

Red

Solid red for booting up process

Blue

Solid blue for booting up completion

Purple

Blink purple during: (a) firmware upgrade, (b) reset

button pressed for at least 5 sec to factory default.

Unlit

When reset button is pressed or when power off.

Power Mode

PoE Mode

Power Requirement

PoE (IEEE802.3af) with Class 3

Power Consumption

4.19 W

Adaptor Mode

Power Requirement

12V/1A Adaptor

Power Consumption

4.24 W

Install the hardware and connect all cables

A. Hardware installation

1) Loosen the tamper-proof screws using supplied L-type hex key wrench and

remove the dome cover. Be careful not to scratch the dome cover.

2) You may feed the cables through the upper conduit hole or the side conduit

hole. Please use the supplied blind pug to seal the unused conduit hole.

3) Side conduit hole installation: Disassemble the cable gland first and feed the

network and I/O cable through the sealing nut, claw and cable gland. Connect

the cables to the camera. Attach the cable gland to the conduit hole. Push the

claw into the cable gland and tighten the sealing nut to secure the cables.

B. Wall and ceiling mounting

1) Attach the alignment sticker to the wall/ceiling. Drill three holes into the wall -

two for screws and one for cable.

2) Align the screw holes on the plastic base to the two plastic anchors on the

wall/ceiling, insert the supplied screws to the hole and secure them.

3) Secure the camera to the plastic plate with the screws (M2.5x6 * 2pcs)

C. Wall mounting with L-type bracket (optional)

1) Drill two holes and hammer the supplied screw anchors on the desired

installation location.

2) Align L-type bracket to the two plastic anchors on the wall/ceiling, insert the

supplied screws to the corresponding hole and secure them.

3) Secure the plastic plate to the L-type bracket with screws (M4x10 * 2pcs)

4) Secure the camera to the plastic plate with screws(M2.5x6 * 2pcs)

D. Outdoor wall mount kit with L-type bracket (optional)

1) Drill two holes and hammer the supplied screw anchors on the desired

installation location.

2) Align L-type bracket to the two plastic anchors on the wall/ceiling, insert the

supplied screws to the corresponding hole and secure them.

3) Assemble the silicone rubber and outdoor kit together.

4) Put O-ring on the screws (M4x10); secure the outdoor kit to L-Type bracket.

5) Secure the camera to the plastic plate with screws(M2.5x6 * 2pcs)

6) Paste the waterproof-tape at microphone hole on the top cover.

Conduit

hole B

Conduit

hole A

Note: Once waterproof sticker is

pasted on top cover for outdoor

used, microphone reception will be

affected.

E. Connect all cables

E1. Without Power over Ethernet (PoE) connection

1. Connect the power adaptor to the IP Camera.

2. Use a standard RJ-45 network cable and connect the IP Camera to a

hub/switch/router.

E2. Power over Ethernet (PoE)

1. Use a standard RJ-45 network cable and connect the IP Camera to a

PoE-enabled hub/switch/router.

F. To adjust the view angle- 3 axis mechanism design

1) Turn the lens module right and left to your desired pan position.

2) Turn the lens module up and down to your desired tilt position.

3) Turn the lens module to adjust the image orientation to satisfied angle.

Important:

Make sure the IR LEDs are not blocked by the housing as it will affect the IR performance.

If the image is upside down, please use the image rotate function in Video Setting.

G. Completion

Fix the tamper-proof screws using supplied special hex. Be careful do not scratch

the cover glass. Clean the dome bubble to remove the dust and finger print.

Windows: Go to Zavio Website and download Camera Installation Tool

Please go http://www.zavio.com/softwaredownloads.php download “Camera

Installation Tool”. And follow the installation process to complete the

installation.
