Zagg ZAGGkeys MINI 7 Guía de instalación

NEED MORE HELP? PLEASE SEE OUR FAQ SECTION AT:

www.ZAGG.com/faq

*WARRANTY REGISTRATION

Your ZAGGkeys™ MINI 7 comes with a one year manufacturer’s warranty.

You must register it and keep your receipt of purchase to activate

the warranty. If you purchased it on ZAGG.com, ZAGG® has already

registered your ZAGGkeys MINI 7 and has your proof of purchase.

INSERTING/REMOVING YOUR iPAD

POSITIONING AND POWERING ON

To insert the iPad® MINI, have keyboard closest to you

with iPad home button on the right and snap the iPad

into the grooves, making sure it is ﬁrmly set in place.

To remove the iPad, snap it gently out of the casing.

To power on your keyboard, press the power button. The

LED status light with illuminate red for 5 seconds, and

To position, pull out the kickstand and lean back.

PAIRING YOUR ZAGGkeys MINI 7

CHARGING

CHARGING PORT

Your keyboard comes with a charging cable that plugs into

the side of the device. You can plug the other end of the

charging cable into any USB outlet, including: a computer,

your iPad charger, A ZAGGsparq™, etc. A complete charge

takes 2 - 4 hours. LED status light will illuminate green while

The Bluetooth® keyboard should only need to pair to

your iPad once as follows:

1. On the iPad select: Settings > General > Bluetooth > On.

2. Press the pair button on the keyboard. The LED

status light will ﬂash blue until the device is paired.

3. The iPad will display “ZAGGkeys MINI 7” as an available

device. Select this option to complete pairing.

Your keyboard has been designed with special

function keys to give you more control of your iPad.

SPECIAL FUNCTION KEYS

Home Displays the iPad® home screen

Search Displays the iPad® search screen

Keyboard Hide/Show Hides or shows iPad® on-screen

keyboard

Copy Copies selected text to clipboard

Paste Pastes clipboard content in selected ﬁeld

Previous Track Skips to previous track on current playlist

Play/Pause Starts or stops current playlist

Next Track Skips to the next track on the current playlist

Mute Mutes iPad® audio

Volume Down Decreases iPad® volume

Volume Up Increases iPad® volume

Lock Activates and deactivates sleep mode on iPad®

The keyboard’s long-life battery lasts for several months

of normal use. The keyboard will go into sleep mode if

left on and not being used; press any key and wait 1 - 2

seconds to bring it out of sleep mode. The lithium-polymer

whenever you wish. When not in use for a prolonged

to lengthen battery life.

Battery indicator: When FN + the battery indicator key is

pressed, the LED status light will blink to indicate the battery

level; green for 50-100%, yellow for 20-50%, red when less

than 20%. Once red you should have about two weeks of

normal use left. normal use left. The LED status light will

Power light: Light will illuminate red for 5 seconds, and

Pairing light: Remains solid blue when caps lock is active,

ﬂashes blue when pairing.

Function key (FN): Used to access the blue symbols on the

keyboard. If two blue symbols are on one key, hold SHIFT

and FN simultaneously to access the top blue symbol.

LIGHTS AND BUTTONS

BATTERY

SHIFT

DEFAULT

SHIFT + FN

What to do if the iPad does not respond to the keyboard.

A few things can cause this problem:

-Dead battery

-Need to pair the keyboard to the iPad again

-Problem with the keyboard

Please follow the steps below to ﬁnd out the problem

and appropriate solution.

1. Restart your iPad by holding down the home and

power button simultaneously until it resets. Let go

of the buttons when you see the Apple® logo.

should see the LED light shine red brieﬂy. If not,

charge your keyboard.

3. After charging, turn the keyboard on. If the LED light

does not illuminate for a few seconds and then go dim, you

may have a problem with it. Please contact customer

support at ZAGG.com to resolve this problem.

4. On the iPad, Select: Settings > General > Bluetooth > On.

TROUBLESHOOTING

5. If you see ZAGGkeys MINI 7 listed as an “available

device” on your iPad, click on the arrow to the right

and choose to have your iPad “forget the device.”

6. Push the pair button on the keyboard and watch

for the LED light to ﬂash blue.

7. If you see ZAGGkeys MINI 7 listed as an “available

device,” select it.

8. Your keyboard should now be paired.

9. If your iPa d g i v e s y o u a n e rror message, rep e a t

process again.

10. If you still can’t get your keyboard to pair, it is

possible your iPad needs to have its software updated

To update your iPad software, follow these steps:

A. Plug your iPad into your computer

B. Open iTunes

C. Select your iPad in the left hand column

D. Choose the button in the middle of the screen to

check for software updates

E. If an update is available, please install it. This will

take a few minutes to download from Apple®.

PATENT PENDING | NASDAQ: ZAGG | MADE IN CHINA

iPad® MINI and Apple® are registered trademarks of Apple, Inc.

ZAGG®, invisibleSHIELD®, invisibleSHIELD with design, and ZAGGkeys™ MINI 7

are trademarks or registered trademarks of ZAGG Inc.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1: This device may not cause harmful interference, and

2: This device must accept any interference received, including

interference that may cause undesired operation

For unparalleled scratch protection we recommend

ZAGG’s invisibleSHIELD®or ZAGGskins™.

F. After installation is complete, repeat troubleshooting

process.

* * * I f y o u r e c e i v e t h e s a m e e r r o r m e s s a g e d u r i n g

pairing, you may have a problem with your keyboard.

Please contact customer support at ZAGG.com to

resolve the problem.

NEED MORE HELP? PLEASE SEE OUR FAQ

SECTION AT: www.ZAGG.com/faq

Tabla de contenidos

Otros manuales de Teclado de Zagg

Zagg

Zagg ID6BSF Manual de usuario

Zagg

Zagg Messenger Folio Manual de usuario

Zagg

Zagg Basic 7in Manual de usuario

Zagg

Zagg messenger folio 2 Guía de configuración

Zagg

Zagg Slim Book Manual de usuario

Zagg

Zagg ZAGGkeys PROFILE Manual de usuario

Zagg

Zagg auto-fit 7" Manual de usuario

Zagg

Zagg pro keys Guía de configuración

Zagg

Zagg Messenger Universal Manual de usuario

Zagg

Zagg slim book go Manual de usuario

Zagg

Zagg Cover-Fit Manual de usuario

Zagg

Zagg ZAGGkeys MINI 9 Manual de usuario

Zagg

Zagg Slim Book Pro Manual de usuario

Zagg

Zagg Limitless Manual de usuario

Zagg

Zagg messenger folio 2 Manual de usuario

Zagg

Zagg ZG07880 Manual de usuario

Zagg

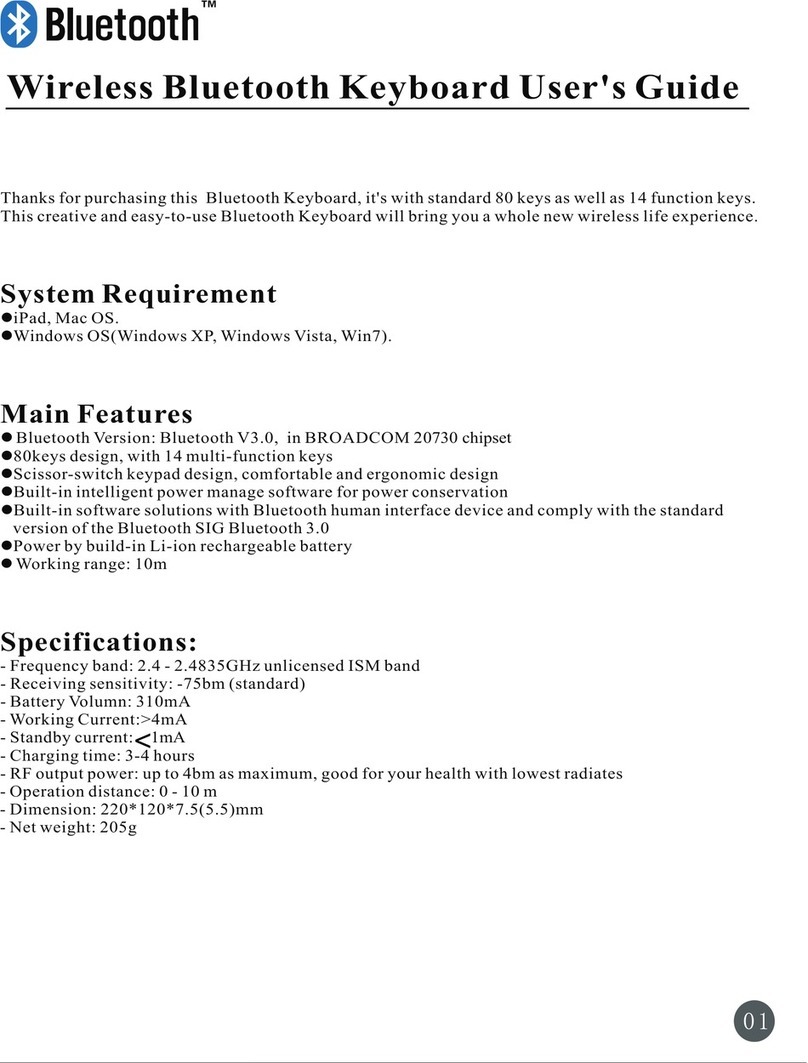

Zagg VYVPA-BK04 Manual de usuario
