YOKOGAWA UTAdvanced UT32A Manual
Setup Procedure
UTAdvanced Quick Setting
(Controlling Tank Temperature)
TI 04L01L01-08EN
Foreword
The contents of this document are subject to change without prior notice as a result of improvements in performance or functionality.
Copying or reproduction by any means of all or any part of the contents of this document without permission is strictly prohibited.
Use of this document is at the users risk.
Technical
Information
This document is subject to change without notice. TI04L01L01-08EN
2011.12.16 1st Edition (YK)
■Overview
This is an example of wiring and settings using the UTAdvanced Quick Setting function for "tank
temperature control." For more details, see the user's manual.
■Relevant models
Heating/cooling models of the UT32A, UT35A, UT52A, and UT55A
■System
■Wiring
Power
supply
A
PV b
B
RTD (Pt100) applicable
standard: RTD (ITS-90:
JIS '97)
Solenoid valve,
heater side
Solenoid valve,
refri
g
erator
For the UT32A, UT35A, and UT52A
Power
supply
A
PV b
B
RTD (Pt100) applicable
standard: RTD (ITS-90:
JIS '97)
Solenoid valve,
heater side
Solenoid valve,
refri
g
erator side
For the UT55A
～
Hot
Cold
Pt100 0
–
100℃
Time-proportional PID relay control output
Cycle time
2/3
This document is subject to change without notice. TI 04L01L01-08EN 2011.12.16-00
■Settings
To set heating/cooling control, input signal (Pt100 range 0.0 to 100.0°C), and time proportional control
output (relay output), set the following parameters.
(1) Select the desired parameter with the UP or DOWN key
(2) Press SET/ENTER (the setting value blinks)
(3) Change the setting with the UP or DOWN key
(4) Press SET/ENTER to set the new value (the setting value stops blinking but
remains bright)
●Redoing the Quick Setting
Once functions are configured with the Quick Setting, the Quick Setting function
will not appear after you restart. However, you can redo the Quick Setting by
following the procedure below.
(1) Set the Quick Setting parameter QSM to ON, and re-engage power
(2) Set the PV input type parameter IN to OFF, and re-engage power
Press SET/ENTER to accept the "YES" option.
Quick Setting starts
First, the control type parameter CNT appears.
Set CNT (control type) to H/C (initial value).
OFF is displayed for IN (the PV input type).
Set IN (PV input type) to RTD: Pt1.
(Pt1 applicable standard: RTD (ITS-90: JIS'97 -200 to 850°C))
Set UNIT (PV input unit) to :C (initial value).
CONTRＯＬ ＴYPE
ＳＴＡＲＴ ＱＵＩＣＫ
ＳＥＴＴＩＮＧ

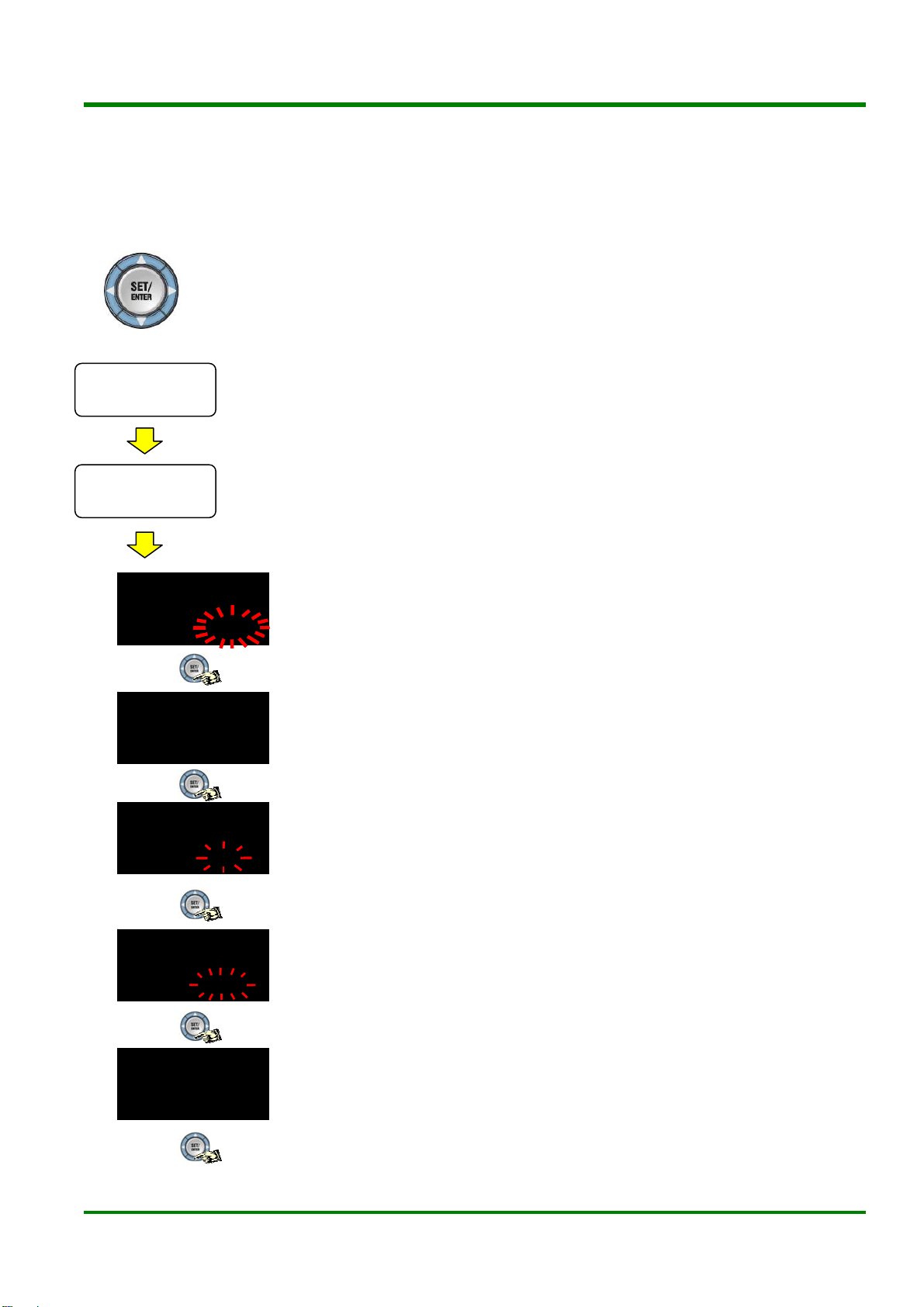

1.
QSM YES
2.
CNｔH/C
PV INPUT TYPE
3.
IN OFF
PV INPUT TYPE
4.
IN Pt1
PV INPUT UNIT
5.
UNIｔC
CONTRＯＬ ＴYPE
ＳＴＡＲＴ ＱＵＩＣＫ
ＳＥＴＴＩＮＧ
1.
QSM YES
2.
CNｔH/C
PV INPUT TYPE
3.
IN OFF
PV INPUT TYPE
4.
IN Pt1
PV INPUT UNIT
5.
UNIｔC
Power
Quick Setting
start
3/3
This document is subject to change without notice. TI 04L01L01-08EN 2011.12.16-00
Set RH (maximum value of PV input range) to = 100.00°C.
Set RL (minimum value of PV input range) to 0.0°C (the initial value).
Set OT (output type selection) to 06 03 (initial value).
06: OUT2 terminal: Select cooling side relay output
03: OUT terminal: Select heating side relay output
Set heating side cycle time CT=30 seconds (initial value)
Tuning may be necessary under certain conditions.
Set cooling side cycle time CTc=30 seconds (initial value)
Tuning may be necessary under certain conditions.
Finally, EXIT is displayed. Select YES and press SET/ENTER to complete the
basic function setup and return to the operating screen. Or, you can select NO
to continue with the Quick Setting.
Revision Information
Document name: Setup Procedure: UTAdvanced Quick Setting (Controlling Tank Temperature)
Document number: TI 04L01L01-08EN
First edition: December, 2011
Newly released
MAXIMUM
VALUE OF PV
INPUT RANGE
6.
RH 100.0
7.
11. FINISH
EXIｔYES
MINIMUM
VALUE OF PV
INPUT RANGE
RL 0.0
CONTROL OUTPUT
CYCLE TIME
9.
Cｔ30.0
OUTPUT TYPE
SELECTION
0ｔ06.03
Cooling-side control
output cycle time
10.
Cｔｃ 30.0
8.
MAXIMUM
VALUE OF PV
INPUT RANGE
6.
RH 100.0
7.
11. FINISH
EXIｔYES
MINIMUM
VALUE OF PV
INPUT RANGE
RL 0.0
CONTROL OUTPUT
CYCLE TIME
9.
Cｔ30.0
OUTPUT TYPE
SELECTION
0ｔ06.03
Cooling-side control
output cycle time
10.
Cｔｃ 30.0
8.
