Yard force Compact 300RB Manual de usuario

CLOUDHAWK

GB Read this manual carefully prior to operating the

robotic lawnmower. Keep this manual in a safe

place and have it ready for future reference.

About CloudHawk

CloudHawk is an APP which is used across the Yard Force robotic

lawnmower product range.

CloudHawk supports multiple connection methods, including bluetooth,

WIFI, and 4G. Before you try to connect your device with CloudHawk,

make sure you follow the below instructions:

1. If you use a bluetooth supported device, please make sure that you are

close to the mower when you try to connect.

2. If you use a WiFi supported device, before you set up the connection,

please double check your house router transmit frequency, our WiFi chip

only supports 2.4G, if you house router running with 5G, please check if

your house router supports 2.4G, if so please check your house router

manual and change the setting to 2.4G.

3. If you use a WiFi supported device, before you set up the connection,

please check your docking station location, we recommend that the

docking station should be well covered with your house router signal,

reference diagram below:

CLOUDHAWK

Explore as Guest

Before you sign in to your account, you can also explore our application as a

guest, there are three options available within guest mode:

FAQ: Select the model you purchased and view the related questions and

answers.

Online store: Select the country and view the connected products available.

Product video: Find the YouTube tuition video from this segment.

CLOUDHAWK

You can login using your mobile number or email address, for email

registration you will receive the verification code to the chosen email

account, remember to check your spam folder.

Your password should be more than 6 digits, and it should contain one

Account Registration

Create account/login

CloudHawk supports third party social media login, for android version, it

supports Facebook and Google ID, for iOS device, it supports Facebook Apple

ID and Google ID.

uppercase letter and one number.

CLOUDHAWK

NOTE: please au thorize th e applicat ion "location" , to a ll ow the

location and weather information.

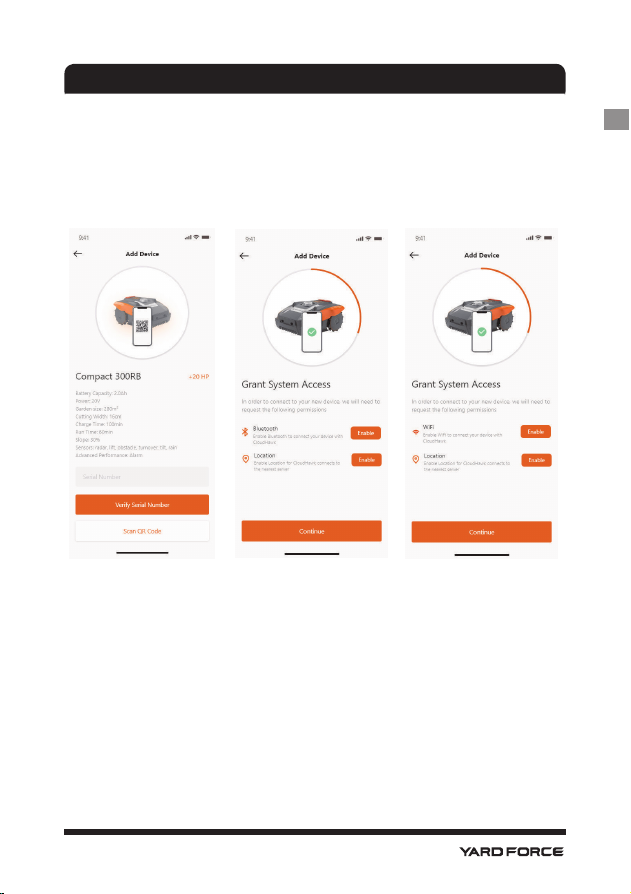

Add device

Use the”+” button at the right lower corner of homepage to add the

device.

1. Use the search box, input the product and search it directly.

2. Select according to product series and find the name of the

purchased product.

3. Input (or scan) the product series number (SN and related QR code

can be found on the mower main nameplate), then you can find and

add the device.

CLOUDHAWK

Series number verification

After the series number has been installed into the APP, the system will

search and fetch the data from the service side, meanwhile the system will

also detect if the series number is already registered by another user.

Grant System Access

Before configuring the mower, the APP need access permission to

complete the process.

1. For bluetooth device, the application needs your mobile phone

“Bluetooth” and “Location” authorization.

2. For WiFi device, the application needs your mobile phone “WiFi”

and “Location” authorization.

CLOUDHAWK

Enter Configuration Mode

Each model has different connection pathways, see which one you should

use below:

Bluetooth device

After you grant the Bluetooth and location access, then follow page:

Awill display. Please press the Bluetooth symbol button, make sure that

the below BLUE LEDis lighting on (for Easymow, Mowbest, SA650B,

SA900B, Bluetooth is always activated).

NOTE Bluetooth is enabled by default for following models: MB400,

MB800, Compact 300RB, SA650B, SA900B, Classic 500B, Classic 600B,

XPower 400, XPower 800.

WiFi device (Compact 400R series)

After you grant the WiFi and location access, then follow page:

Bwill display. Before your enter configuration process, normally the

WiFi LED should flash slowly (one flash per second).

To configure the WiFi, the user need press the WiFi button and hold for 5

seconds, until the LED is lit continuously, this means the device has been

configuring.

LED flashing quickly(four times per second): Internet connected.

LED flashing slowing (one time per second): Connection failed, please repeat above

process LED is lit continuously: Device has been configuring.

CLOUDHAWK

WiFi device(NX series)

After you grant the WiFi and location, then follow page:

Cwill display. Before your enter configuration process, normally the WiFi LED

should flash slowly (one time per second).

To configure the WiFi, follow the below process:

1. Power on the device and enter device control interface with PIN code.

2. Press the WiFi button.

3. Use the numeral key “1” to select the “WiFi configure”.

4. Then the device is under WiFi configuration process, follow the rest of

the APP instructions.

LED flashing quickly(four times per second): Internet connected.

LED flashing slowing (one time per second): Connection failed, please repeat above process.

LED is lit continuously: Device has been configuring mode, not connected with internet.

CLOUDHAWK

Assistant configuration with AP mode

For WiFi devices, due to the different configuration conditions, sometimes the

device may fail to complete the internet configuration process within smart

configure, for this situation we suggest to follow our below instructions:

1. When the smart configure has failed, the upcmoing page will show up (D),

click OK button to proceed on the follow process.

2. The following page (E) will display, currently the mobile phone is connected

to your house router, you need change the WiFi and select the WiFi which

created by our robotic mower, please click “Setup WiFi” button to enter the

WiFi select page.

3. In the mobile phone WiFi Selection page (F), please select the WiFi whose

name is start with “WIFI-SNxxxxxxxxxxx”, please kind in mind that this

WiFi does not have internet access but please give the authorization to

connect.

D E F
