Studio Manager for DM1000—Owner’s Manual
Important Information
Special Notices
• The software and this owner’s manual are the exclusive copyrights of Yamaha Corporation.
• Copying of the software or reproduction of this manual in whole or in part by any means is
expressly forbidden without the written consent of the manufacturer.
• Yamaha makes no representations or warranties with regard to the use of the software and
documentation and cannot be held responsible for the results of the use of this manual and
the software.
• This disc is a CD ROM. Do not attempt to play the disc on an audio CD player. Doing so
may result in irreparable damage to your audio CD player.
• Copying of the commercially available music sequence data and/or digital audio files is
strictly prohibited except for your personal use.
• The screen displays as illustrated in this owner’s manual are for instructional purposes, and
may appear somewhat different from the screens which appear on your computer.
• Future upgrades of application and system software and any changes in specifications and
functions will be announced separately.
Trademarks
Adobe, Acrobat, and Reader are registered trademarks of Adobe Systems Incorporated.
Apple, AppleTalk, and Macintosh are registered trademarks of Apple Computer, Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation. OMS is a reg
istered trademark of Opcode Systems, Inc. PowerPC is a registered trademark of Interna
tional Business Machines Corporation. All other trademarks are the property of their
respective holders and are hereby acknowledged.
Copyright
No part of the Studio Manager software or its documentation may be reproduced or dis
tributed in any form or by any means without the prior written authorization of Yamaha
Corporation.
© 2003 Yamaha Corporation. All rights reserved.
Yamaha Web Site
Information about Studio Manager, related products, and other Yamaha professional audio
equipment is available on the Yamaha Professional Audio Web site at:
http://www.yamahaproaudio.com/
Specifications and external appearance subject to change without notice.
3
Studio Manager for DM1000—Owner’s Manual
Contents
1 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Starting Studio Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Quitting Studio Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Specifying the MIDI Port (Windows only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Configuring Studio Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Synchronizing Studio Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Working with Sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Console Windo . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Input Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Master Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Output Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Remote Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3 Selected Channel Windo . . . . . . . . . . . . . . . . . . 14
Input Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Bus Outs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Aux Sends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Stereo Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Remote Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4 Library Windo . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5 Patch Editor Windo . . . . . . . . . . . . . . . . . . . . . . 23
INPUT PATCH Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
OUTPUT PATCH Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
INSERT PATCH Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
EFFECT PATCH Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
DIRECT OUT PATCH Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6 Surround Editor Windo . . . . . . . . . . . . . . . . . . . 28
7 Timecode Counter Windo . . . . . . . . . . . . . . . . . 29
8 Effect Editor Windo . . . . . . . . . . . . . . . . . . . . . . 30
9 Keyboard Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . 31
File Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Windows Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
4
Chapter 1—Getting Started
Studio Manager for DM1000—Owner’s Manual
1 Getting Started
Starting Studio Manager
Windows:
Click the Start button and then click Programs–>YAMAHA OPT
Tools–>YAMAHA Studio Manager for DM1000–>Studio Manager for DM1000.
Macintosh:
Open the Studio Manager for DM1000 folder and double click “SM_DM1K.”
If a DM1000 is detected while Studio Manager starts up, the Synchronization dialog box
appears, from which you can choose to transfer the settings of the DM1000 to Studio Man
ager or vice versa. See “Synchronizing Studio Manager” on page 7 for more information. If
no DM1000 is detected, a new Console window opens.
The ONLINE indicator is displayed while Studio Manager is connected to a
DM1000. When no DM1000 is detected, the OFFLINE indicator is displayed.
Quitting Studio Manager
Choose Exit (Quit on the Macintosh) from the File menu.
If there are no unsaved changes, all windows close and Studio Manager quits. If there are
unsaved changes, a message asking whether or not you want to save the changes appears.
Click Yes to save the changes and quit, click No to quit, or click Cancel to cancel the opera
tion. Studio Manager can also be quit by clicking the Console window’s Close button.
Specifying the MIDI Port (Windo s only)
Before selecting a MIDI port in Studio Manager (page 5), you must specify which MIDI
port is connected to your DM1000.

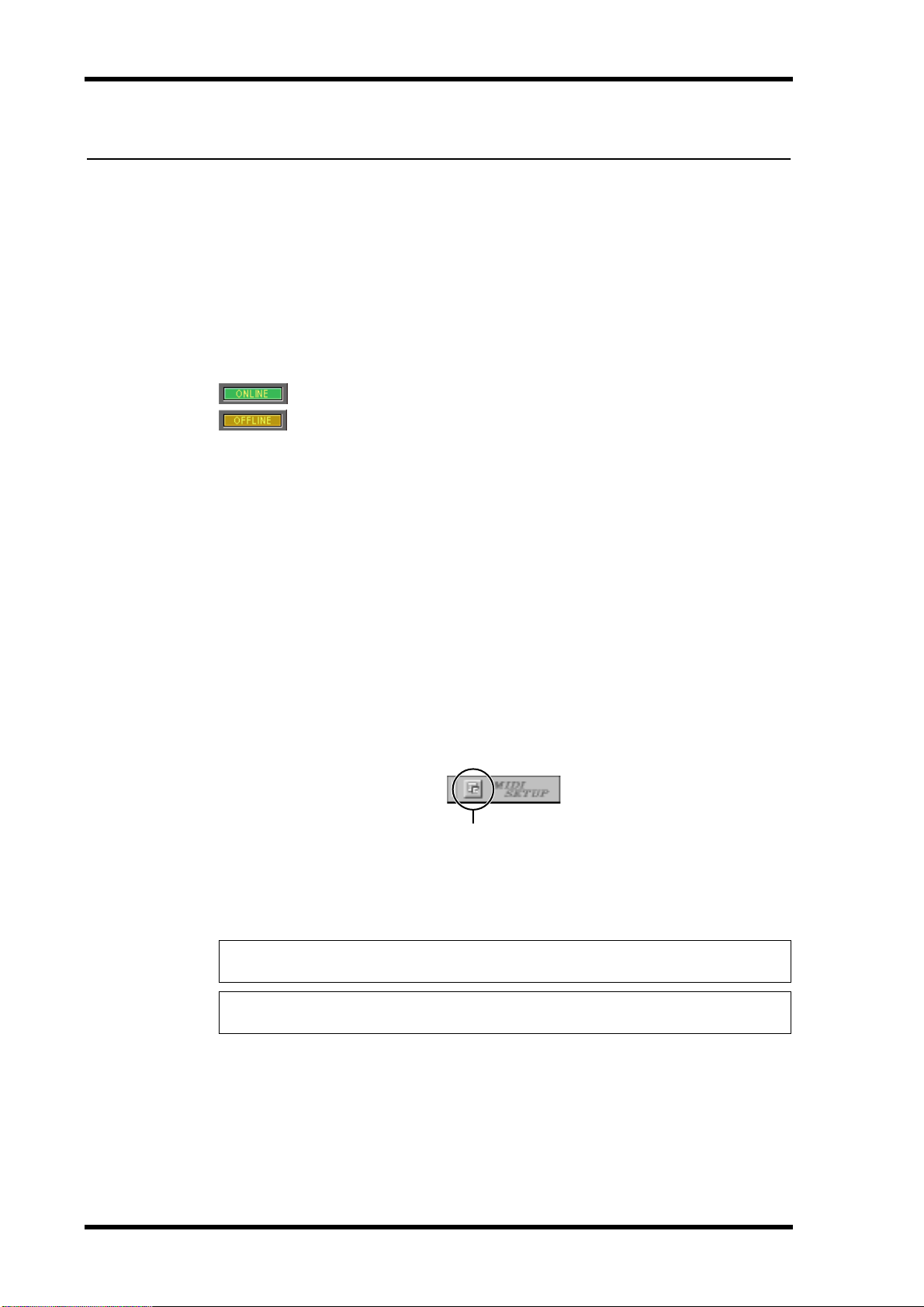

1
Start Studio Manager.
2
Click the MIDI Setup button on the MIDI SETUP toolbar, as sho n belo .
The MIDI Setup dialog box appears.
3
Select the MIDI port to hich your DM1000 is connected (e.g., MIDI In, Out,
or Thru).
Note: To use a MIDI port with Studio Manager, you must select it on the MIDI Setup dialog
box (as explained above and on the System Setup dialog box, as explained on page 5.
Warning: Studio Manager does not yet support OPT (Open Plug-in Technology , so even if
it appears in the menu of an OPT compatible program, do not start it in this way.
MIDI Setup
Configuring Studio Manager
5
Studio Manager for DM1000—Owner’s Manual
Configuring Studio Manager
Selecting Ports
In order to use Studio Manager, you must specify the input and output ports that Studio
Manager should use to communicate with the DM1000.
Windows:
Choose System Setup from the File menu, and specify the input and output ports
on the Setup dialog box, as shown below.
Macintosh:
Choose Select OMS Ports from the File menu, and specify the input and output
ports (device names set in OMS Studio Setup) on the Setup dialog box, as shown below.
OMS Studio Setup can be opened directly from Studio Manager by selecting OMS Studio
Setup from the File menu.
System Setup
To open the Setup window, choose System Setup from the File menu.
This is the Windows Setup window.
Note: Choose OMS MIDI Setup from the File menu, and make sure that the “Run MIDI in
Background” option is on.
6
Chapter 1—Getting Started
Studio Manager for DM1000—Owner’s Manual
This is the Macintosh Setup window
Input Port/Output Port:
(Windows only) These pop up menus are used to select the
ports with which Studio Manager communicates with the DM1000.
Console Device ID:
Studio Manager can control any one of up to eight DM1000s, each
with its own exclusive ID. Select the ID of the DM1000 that you want to control.
Channel Select:
These options determine whether or not channel selection is linked.
When the PC–>Console option is on, selecting a channel on Studio Manager selects the
same channel on the DM1000. When the Console–>PC option is on, selecting a channel on
the DM1000 selects the same channel on Studio Manager.
Confirmation:
These options determine whether or not a confirmation dialog box
appears when storing, recalling, or patching.
Layer Select:
These options determine whether or not Layer selection is linked. When the
PC–>Console option is on, selecting a Layer on Studio Manager selects the same Layer on
the DM1000. When the Console–>PC option is on, selecting a Layer on the DM1000 selects
the same Layer on Studio Manager.
Synchronizing Studio Manager
7
Studio Manager for DM1000—Owner’s Manual
Synchronizing Studio Manager
If a DM1000 is detected while Studio Manager starts up, or while Studio Manager is up and
running, the Synchronization dialog box shown below appears.
All Lib:
This option determines whether or not Scene and Library data is synchronized.
Console–>PC:
Click this button to transfer the settings of the DM1000 to the current Stu
dio Manager Session.
PC–>Console:
Click this button to transfer the settings of current Studio Manager Ses
sion to the DM1000.
Cancel:
Click this button to leave the DM1000 and current Studio Manager Session
unsynchronized.
You can resynchronize the system at any time by choosing Re synchronize from the Syn
chronization menu.
Working ith Sessions
A Studio Manager Session consists of all DM1000 mix settings, including Scene and library
data.
• To create a new Session, choose New Session from the File menu.
• To open a previously saved Session, choose Open Session from the File menu.
• To save the current Session, choose Save Session from the File menu.
• To save the current Session with a new name, choose Save Session as from the File menu.
Only one Session can be open at a time, so when you create a new Session, or open a previ
ously saved Session, the message “This operation will purge current session” appears. If
there are no unsaved changes, or you do not want to save, click OK. If Studio Manager is
offline, the Session is loaded. If Studio Manager is online, the Session is loaded and the syn
chronization dialog box appears.
Note: Do not operate the DM1000 while synchronization is in progress.
Note: In order to save the current Automix, or the settings of an optional Y56K card, in a Ses-
sion, you must resynchronize Studio Manager beforehand (Console–>PC .
Note: In order to protect the communication port used by Studio Manager, DM1000 commu-
nication settings (e.g., MIDI, Remote Layer, Machine Control are not affected by PC–>Con-
sole synchronization operations.
8
Chapter 2—Console Window
Studio Manager for DM1000—Owner’s Manual
2 Console Windo
Studio Manager’s Console window displays 16 channel strips and a master section. When
an Input Channel Layer is selected, 16 Input Channels are displayed. When the Master Layer
is selected, the Bus Out and Aux Send channels are displayed. And when the Remote layer
is selected, Remote Channels are displayed.
Many functions can be operated from here by clicking and dragging the various controls
and parameters. This is explained in the following sections.
Channels can be viewed in more detail on the Selected Channel window. See page 14 for
more information.
Input Channels
9
Studio Manager for DM1000—Owner’s Manual
Input Channels
A
SOURCE parameter
This parameter is used to select an Input source. To select an
Input source, click the parameter and choose from the list that
appears.
B
Routing buttons
These buttons are used to route the Input Channel to the Bus
Outs.
C
STEREO button
This button is used to route the Input Channel’s signal to the
Stereo Out.
D
DIRECT button
This button turns on and off the Input Channel’s routing to its
Direct Out.
E
Direct Out parameter
This parameter is used to select the Direct Out destination. To
select a destination, click the parameter and choose from the list
that appears.
F
PHASE button
This button is used to reverse the signal phase of the channel.
G
INSERT button
This button is used to turn on and off the Input Channel’s
Insert.
H
GATE button
This button is used to turn on and off the Input Channel’s Gate.
I
Gate open/close indicators
These indicators display whether the Gate is open (green) or
closed (red).
J
Gate threshold
This displays the Gate Threshold, which can be set by dragging.
K
COMP button
This button is used to turn on and off the Input Channel’s Com
pressor.
L
Compressor curve
This display shows the Compressor’s curve.
M
EQ button
This button is used to turn on and off the Input Channel’s EQ.
N
EQ curve
This display shows the Equalizer’s curve, which can be set by
dragging.
O
DELAY button
This button is used to turn on and off the Input Channel’s Delay
function.
B
C
D
6
7
9
K
J
L
M
N
O
P
Q
R
W
X
Y
Z
8
5
a
b
1
VU
S
10
Chapter 2—Console Window
Studio Manager for DM1000—Owner’s Manual
P
Delay parameter
This parameter is used to set the delay time of the Delay function. Delay times can be set by
dragging.
Q
Channel number
This is the channel number.
R
AUX section
These controls are used to set the levels of the Aux Sends. To set an Aux Send level,
drag its bar or click a point along the length of the bar. To turn an Aux Send on or
off, click its number.
The following table shows how the Aux Send controls appear depending on the
Aux Send On/Off and Pre/Post settings. Aux Sends can be set to pre fader or
post fader on the Selected Channel window (see “AUX SEND section” on
page 15).
S
Pan/Aux Send display
This display shows the stereo or surround pan position or, while setting an Aux Send, the
Aux Send level in dB.
PAN control
This control is used to set the Input Channel’s stereo or surround pan position. When the
PAN CONTROL in the Master Section is set to “STEREO,” the Pan control appears as a
rotary control, and when set to “SURR,” the control appears as dot on a pan graph. The sur
round pan position can be set by dragging the dot. If you click on the pan graph while hold
ing down the Shift key, the pan immediately jumps to the new position.
U
LFE control
When 5.1 or 6.1 Surround mode is selected, this control is used to set the sur
round LFE Channel level. It appears when the PAN CONTROL in the Master
Section is set to “SURR.” To set the LFE level, drag the end of its bar or click a
point along the length of the bar.
V AUTO button
This button displays the Automix status of the Input Channel.
W SELECT button
This button is used to select the Input Channel.
X SOLO button
This button solos the Input Channel. It appears orange while the channel is soloed.
Y ON button
This button turns the Input Channel on and off. It appears orange while the channel is on.
Z Short channel name
This is the channel’s short name. To edit the name, click it and type.
a Channel fader
This is the Input Channel’s fader.
b Channel meter
This meter displays the signal level of the Input Channel.
Aux Send status Appearance
On or off but no le el set Dark blue bar
Off, pre-fader Green bar outline displays le el
On, pre-fader Green bar displays le el
Off, post-fader Orange bar outline displays le el
On, post-fader Orange bar displays le el
Otros manuales para DM 1000
8
Tabla de contenidos
Otros manuales de Software de Yamaha
Yamaha
Yamaha S08 Voice Editor Manual de usuario
Yamaha
Yamaha Add-On Effects Manual de usuario
Yamaha
Yamaha Studio Manager v.2 Manual de usuario
Yamaha
Yamaha Sound Editor ver. 2.10 Manual de usuario
Yamaha
Yamaha FIRESTATION MLAN PATCHBAY Manual de usuario
Yamaha
Yamaha DM2000 V2.1 Instrucciones y recetas
Yamaha
Yamaha MOTIF XS6 Manual de usuario
Yamaha
Yamaha mLAN Driver Manual de usuario
Yamaha
Yamaha M7CL-32 Manual de usuario
Yamaha
Yamaha mLAN Driver Manual de usuario
Yamaha
Yamaha A3000 Manual de usuario
Yamaha
Yamaha PM1D Manager V2 Manual de usuario
Yamaha
Yamaha Audio Manual de usuario
Yamaha
Yamaha HUB Manual de usuario
Yamaha
Yamaha PM1D Manager V2 Instrucciones y recetas
Yamaha
Yamaha Add-On Effects Manual de usuario
Yamaha
Yamaha ASIO DirectKS Manual de usuario
Yamaha
Yamaha DM 1000 Manual de usuario
Yamaha
Yamaha Loopfactory DX200 Manual de usuario
Yamaha
Yamaha MOTIF RACK ES Manual
Manuales populares de Software de otras marcas
PS Audio
PS Audio PowerPlay Manual del propietario
Brady
Brady LOCKOUT PRO 3.0 Manual de servicio
Avaya
Avaya Interaction Center Manual de usuario
Texas Instruments
Texas Instruments TI-83 Plus Silver Edition Manual
Novell
Novell GROUPWISE 8 - INTERNET AGENT Manual de usuario
Oracle
Oracle Application 9i Manual de usuario
Acer
Acer RDM Manual de usuario
Canon
Canon Vixia HF21 Manual de usuario
Canon
Canon ZR950 Manual de usuario
Samsung
Samsung Auto Backup Manual de usuario
Polycom
Polycom Vortex EF2201 Instrucciones de instalación y funcionamiento
Brocade Communications Systems
Brocade Communications Systems Brocade 8/12c Manual de usuario
