Yale Keyless Connected Manual de usuario
User Guide
Keyless
Connected
D-01-CON-UG Rev. 001
DO NOT FIT KE LESS UNTIL DOOR INSTALLATION IS COMPLETE.
PLEASE READ THE INSTRUCTIONS BEFORE USING KE LESS.
INTRODUCTION
2
Keyless Helpline:
01902 364606
Email:
smartlocks@yale.co.uk
Website:
www.yale.co.uk
Thank you for choosing the Yale Keyless Connected product.
This new Smart Lock uses the latest technology to make your life easier
This user manual enables you to operate the product safely and to its full
potential.
Please ensure you read it completely before using the Yale Keyless
Connected Smart Lock
CONTENTS
Safety Precautions 4
Product Features 5
Lock Overview 7
Set/Change Master Code 8
Set/Delete User Code 9
Set One Day Codes 12
Register/Delete ey Fobs 15
Change Re-lock Time 16
Volume setting 18
Connecting to a Home Automation System 20
Intrusion Alarm
23
Incorrect PIN Lockout
24
Emergency Power
25
User Code Log 29
ey Fob log
30
Introduction
Getting Started
Extra Features
Smart Home
13
OperatingthelockUnlocking the door 22
Register/Delete RFID Cards/Tags
Auto Re-lock on/off
User RFID Card/Tag Log
17
31
4
Safety recautions
Make sure to follow the above instructions to avoid any injuries or damage to the product .
Caution
lease read this carefully
roduct Features
5
Electronic PIN Code System
You can open the door conveniently with up 20 configurable PIN codes, allowing eyless access.
ey Fob Entry (Optional)
Up to 5Yale key fobs can be assigned to allow the lock to be unlocked remotely.
RFID Card/Tag Entry
The door can be unlocked using aMifare(TM) RFID Card
Introduction
1.
2.
Smart Home Connectivity (Optional)
By adding the corresponding module, your eyless lock can be integrated with your home automation
system.
3.
Emergency Backup
In the event of power failure in the lock, a 9 volt battery (PP3) can be connected to the front of the
lock to provide backup power
4.
5.
Alarmed Unit
The eyfree lock has a built in damage alarm, if the outer unit is seperated from
the inner area a 50dB alarm will sound
6.
6
Front (Front Body)
ey Fob
(Optional)
Back (Battery Pack)Handing Plate
KFCON-UG Rev. 001
DO NOT FIT KE FREE UNTIL DOOR INSTALLATION IS COMPLETE.
PLEASE READ THE INSTRUCTIONS BEFORE USING KE FREE.
User Guide
Lock Overview
¨Basic Contents
¨Optional Accessories
The contents of this product may be subject to change without notice for performance or quality improvement.
Basic Contents
Home Automation
Module (Optional)
Yale Nightlatch
RFID Card &Tag
Screws
Batteries
Self adhesive pad
Accessories
Installation Guide
Getting Started
7
1eypad (10- ey)
2* Button
3Thumb Turn
4
5
Emergency Power Supply
Terminal
6
Reset Button
1
Battery Cover
2Slot for RF Module(Optional)
3 R Button
4 4 x 1.5V AA Alkaline Batteries
5Fixing Plate
6Cover release buttons,
Press both to release
Lock Overview
(Front Body, install on the outside of the door)
Front
Back (Back Body, installed on the inside of the door)
(Front Body, installed on the outside of the door)
#Button
7
Low Battery indicator
8
Changing Master Code
The master code is the main password to the lock. As well as allowing entry through the door, it is also used to
configure the lock including adding and removing users.
Registration
Step Icon Expected Feedback Description
Touch the eypad with the
palm of your hand
Touch the eypad to
begin
Enter the master code, 2 tone beep
If you are setting the code
followed by # key for the first time the default is
123456.
Select the [1] button 2 tone beep after each
button pressed
You are now in the lock’s menu,
followed by # key choose option number 1 to
change the master code.
Enter a new master code The master code must be 6
digits
Press the # button
3tone ascending beep
Followed by your new
code being illuminated
This completes the master
code setup.
eypad will illuminate
followed by 2 tone beep
Getting Started

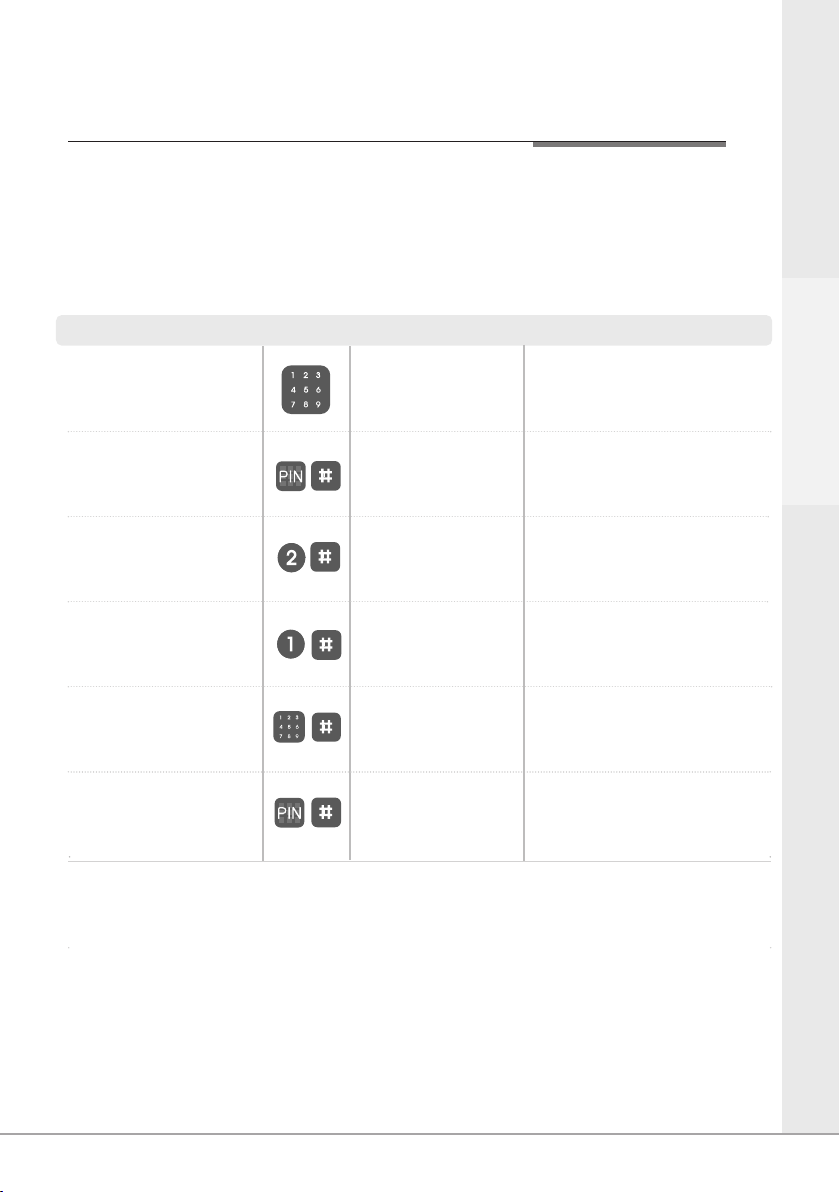

Setting a User Code
9
Enter the master code,
followed by # key
You are now in the lock’s menu, choose option
number 2 to select the user code setup.
If you have forgotten the master code please
see the resetting the lock section of the
manual.
Select the [2] button followed
by # key
Option number 1 adds or modifies a user
code
Press the [1] button and then #
This is the number of the slot in memory
where the code will be saved (1-20)
The lock can hold up to 20 unique user codes, each one has a slot in the locks memory from 1 to 20. If a new code is
written to a slot that already holds a code it will overwrite it. Because of this it is important to record which codes are stored
in each slot. Please use the section in the back of the book to record this.
Step
Icon Expected Feedback Description
2 tone beep
Enter the slot number for the
user code followed by # key
The user code can be between 4-10 digits
Enter the new user code
followed by # key
To add multiple codes please complete the above instructions, record that the memory slot has been filled in the user
code log at the back of this guide, then repeat this process.
Touch the eypad with the
palm of your hand
Touch the eypad to begin
2 tone beep after each
button pressed
2 tone beep after each
button pressed
2 tone beep
3tone ascending beep
Followed by your new
code being illuminated
Step Icon
eypad will illuminate
followed by 2 tone beep
10
Deleting a User Code
Enter the master code,
followed by # key
You are now in the lock’s menu, choose option
number 2 to select the user code setup.
If you have forgotten the master code please
see the resetting the lock section of the
manual.
Select the [2] button followed
by # key
Option number 3 deletes a user code
Press the [3] button and then #
This is the number of the slot in memory
where the code will be saved (1-20)
To stop a user having access their code will need to be deleted. Before doing this you will first need to know which slot in
the locks memory their code is in. Please see the user code log at the back of the guide.
Description
2 tone beep
Enter the slot number for the
user code followed by # key 3 tone ascending beep
Touch the eypad with the
palm of your hand
Touch the eypad to begin
2 tone beep after each
button pressed
2 tone beep after each
button pressed
Step Icon
eypad will illuminate
followed by 2 tone beep
Expected Feedback
