Yale Assure Lock YRC256 Especificaciones técnicas

P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A

Retroﬁtting or modifying this product may impact ﬁre rating, safety features and warranty.

Consult with code speciﬁcations to ensure compliance with all codes and ratings.

Before you begin

for step-by-step installation

instructions & to register

your product

DOWNLOAD

THE BILT APP

4" Shown - 5.5" Available

Inside

of Door

Outside

of Door

Yale® Assure Lock®

Interconnected Key Free Touchscreen

Installation and Programming Instructions

(YRC256/YRC652)

Smart Module

(Optional)

P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A

Before You Begin

1-3/8" (35mm) Min to

1-3/4" (44.5mm) Max

4-1/2"

(114) Min

x2 x8

Smart Module

(Optional)

3/32"

1/8" #2

1/8" 2-1/8"

1" x2 Black

M6x44mm

PPHMS

(Standard 1-3/4" - 2")

x2 Gold

M6x36mm

PPHMS

(1-3/8")

Template

Door Thickness

FOLD HERE

Door Edge

Recommended Centerline

36" (91 cm) From Floor.

Backset

5/32"

(3.96mm)

Caution: Copy machines

may change the size of the

template and make it

inaccurate.

263006837 (01-16)

1" (25mm)1" (25mm)

2-1/8" (54mm)

2-3/4" (70mm)

2-3/8" (60mm)

4" (101mm)

5-1/2" (139.7mm)

1" (25mm)

2-1/8" (54mm)

"Backset" is the distance

from the door edge to the

center of the mounting

hole for the lever.

1-3/8"

(35mm)

1-3/4"

(45mm)

Caution: Although a door

can be prepared by an

untrained person, Yale

recommends that

measurements and drilling

be done by a skilled

carpenter or locksmith.

Yale® is a registered trademark of Yale

Security Inc., an ASSA ABLOY Group

company.

whole or in part without the express

written permission of Yale Security Inc.

is prohibited.

www.yalelocks.com

1-800-438-1951

Interconnected

Lockset

An ASSA ABLOY Group brand

2-3/8" (60mm)

P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A

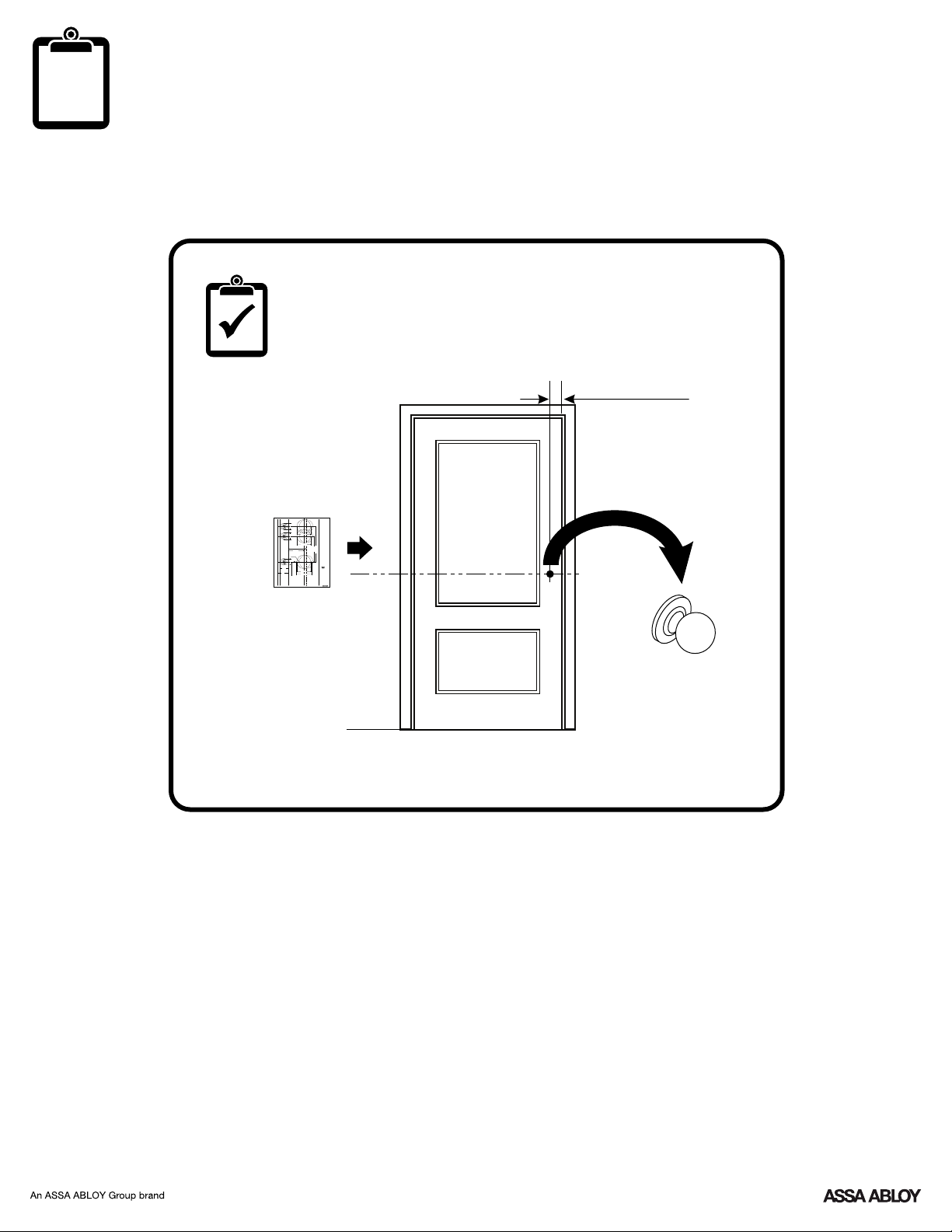

Mark Door Reference Lines

EXISTING

2-3/8" or 2-3/4"

Backset

Template

Door Thickness

FOLD HERE

Door Edge

Recommended Centerline

36" (91 cm) From Floor.

Backset

5/32"

(3.96mm)

Caution: Copy machines

may change the size of the

template and make it

inaccurate.

263006837 (01-16)

1" (25mm)1" (25mm)

2-1/8" (54mm)

2-3/4" (70mm)

2-3/8" (60mm)

4" (101mm)

5-1/2" (139.7mm)

1" (25mm)

2-1/8" (54mm)

"Backset" is the distance

from the door edge to the

center of the mounting

hole for the lever.

1-3/8"

(35mm)

1-3/4"

(45mm)

Caution: Although a door

can be prepared by an

untrained person, Yale

recommends that

measurements and drilling

be done by a skilled

carpenter or locksmith.

Yale® is a registered trademark of Yale

Security Inc., an ASSA ABLOY Group

company.

whole or in part without the express

written permission of Yale Security Inc.

is prohibited.

www.yalelocks.com

1-800-438-1951

Interconnected

Lockset

An ASSA ABLOY Group brand

2-3/8" (60mm)

P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A

1Preparing Door (if necessary)

Drill holes 1/2 way thru

door then complete

from other side to

prevent splitting.

Ø2-1/8" 2-3/8"

2-3/4"

Ø1"

5.5"

Template

Door Thickness

FOLD HERE

Door Edge

Recommended Centerline

36" (91 cm) From Floor.

Backset

5/32"

(3.96mm)

Caution: Copy machines

may change the size of the

template and make it

inaccurate.

263006837 (01-16)

1" (25mm)1" (25mm)

2-1/8" (54mm)

2-3/4" (70mm)

2-3/8" (60mm)

4" (101mm)

5-1/2" (139.7mm)

1" (25mm)

2-1/8" (54mm)

"Backset" is the distance

from the door edge to the

center of the mounting

hole for the lever.

1-3/8"

(35mm)

1-3/4"

(45mm)

Caution: Although a door

can be prepared by an

untrained person, Yale

recommends that

measurements and drilling

be done by a skilled

carpenter or locksmith.

Yale® is a registered trademark of Yale

Security Inc., an ASSA ABLOY Group

company.

whole or in part without the express

written permission of Yale Security Inc.

is prohibited.

www.yalelocks.com

1-800-438-1951

Interconnected

Lockset

An ASSA ABLOY Group brand

2-3/8" (60mm)

P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A

2Installing Strike Plates

Door Frame

Inside

of Door

Frame

1" Dia. x

1"Deep

1" Dia. x

1/2"Deep

Frame

7-16 / 8-32 x 1" UNCWS

Left Hand “LH”, Hinges Left.

Open Inward.

Left Hand Reverse "LHR", Hinges Left.

Open Outward.

Right Hand "RH", Hinges Right.

Open Inward.

Right Hand Reverse "RHR", Hinges Right.

Open Outward.

The hand of a door is determined from the secure side of the

door. The term "secure" means the side from which you initially

unlock and enter.

Determining Handing

P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A

3Changing Handing (if necessary)

4-24 x 1/4" PPHMS

4" Left Hand to 4" Right Hand Shown

DO NOT TAMPER

WITH OR LOOSEN

E-CLIP AND ITS

ASSEMBLY

DO NOT LOOSEN

THESE 6 SCREWS

OR REMOVE

COVER

Changing Handing (if necessary)

continued

P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A

Lockset Handing Conﬁgurations

4" Left Hand

For 5.5"

For 4"

4" Right Hand

For 5.5"

For 4"

After handing is changed, check that lever and thumbturn rotate freely.

Test Lever and Thumbturn

Conﬁrm RH is

visible thru RH hole

as shown for

right hand installation.

Conﬁrm LH is

visible thru LH hole

as shown for

left hand installation.

P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A

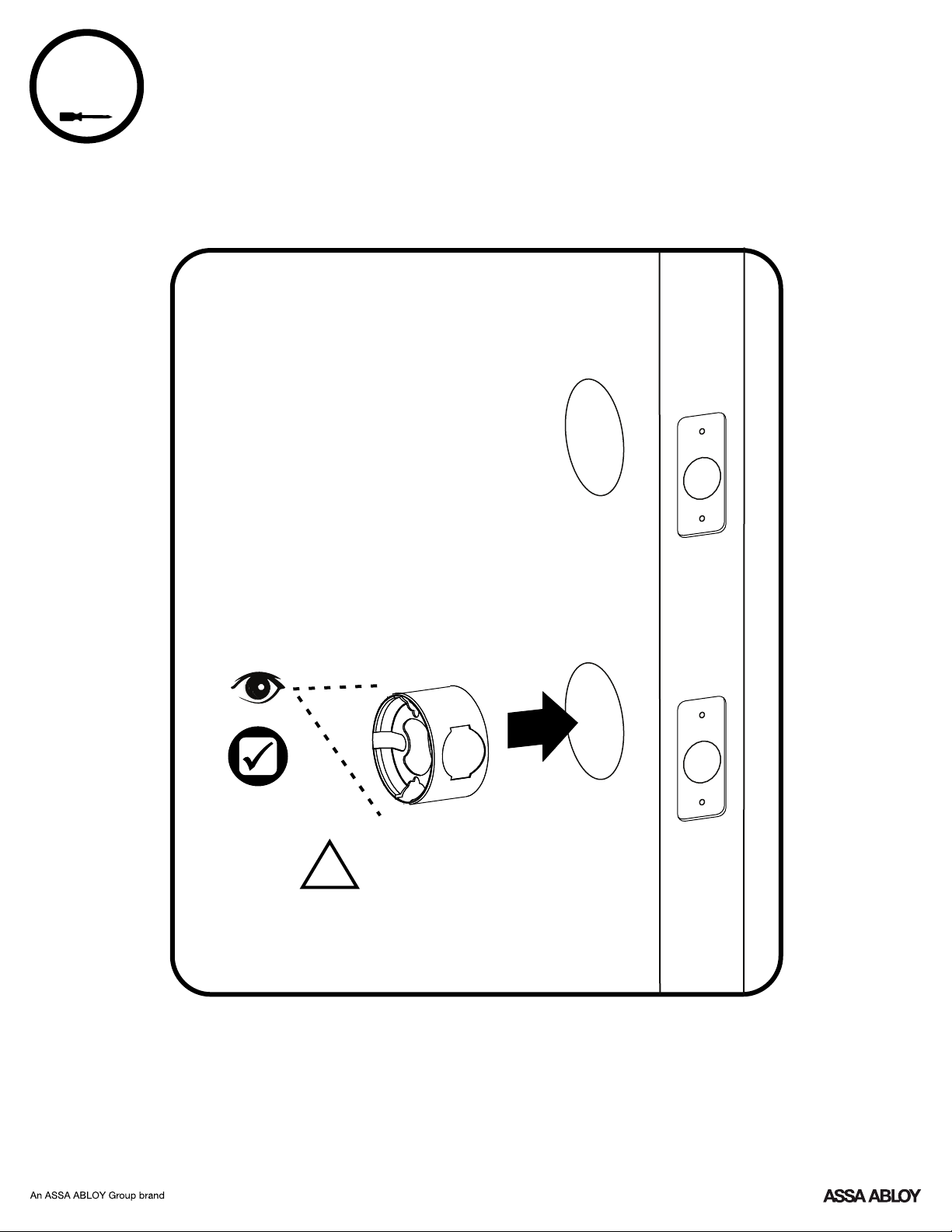

4Installing Fire Cup

Inside of Door

Fire Cup and a UL marked

Latchbolt must be used to

qualify for UL listing.
