Yakima DryDock Manual de usuario
1034191B-1/27
IMPORTANT WARNING
IT IS CRITICAL THAT ALL YAKIMA RACKS AND ACCESSORIES BE PROPERLY AND SECURELY ATTACHED TO YOUR VEHICLE. IMPROPER
ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH TO YOU OR
TO OTHERS. YOU ARE RESPONSIBLE FOR SECURING THE RACKS AND ACCESSORIES TO YOUR CAR, CHECKING THE ATTACHMENTS
PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR, AND DAMAGE. THEREFORE, YOU MUST READ AND
UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS SUPPLIED WITH YOUR YAKIMA PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU
DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER.
PIVOT SLEAVE (1X)
PIVOT BOLT (1X)
PIVOT NUT (1X)
LONG BOLT (2X)
WASHER (4X)
NUT (2X)
END CAP (2X)
ARM (2X)
MAST (1X) HITCH (1X)
HITCHBOLT (1X)
LOCK WASHER (1X)
SQUARE NUT (1X)
SAFETY PIN (1X)
CROSSBAR (1X)
(sold separately)
This carrier is designed for
touring kayaks or canoes.
RECOMMENDED TOOLS:
Part# 1034191 REV.B
M2
M2
M4
+
1034191B-2/27
• Use M1 and M2
measurements from the
list in Clip box.
• Measure from top of
windshield where paint
ends, to front of Towers.
TO INSTALL FRONT TOWERS:
Follow Q Tower instructions to assemble rack.
• Follow M3 measurement from list in Clip box for
distance between towers on crossbar.
• Use combination of M2 and M4 for tower location.
• Measure from top of windshield where paint ends, to
front of rear Tower.
Follow Q Tower instructions to assemble rack.
TO INSTALL REAR TOWERS ONLY:
+ +
For ExamplE:
OR
1034191B-3/27
Do not fully tighten.
Leave bolt slightly
loose so that the
tongue can still move.
1034191B-4/27
2X
1034191B-5/27
1034191B-6/27
2X
1034191B-7/27
1034191B-8/27
Secure front and rear of long loads
to ends of vehicle for safe transport.
Failure to do so could result in property
damage, personal injury, or death.

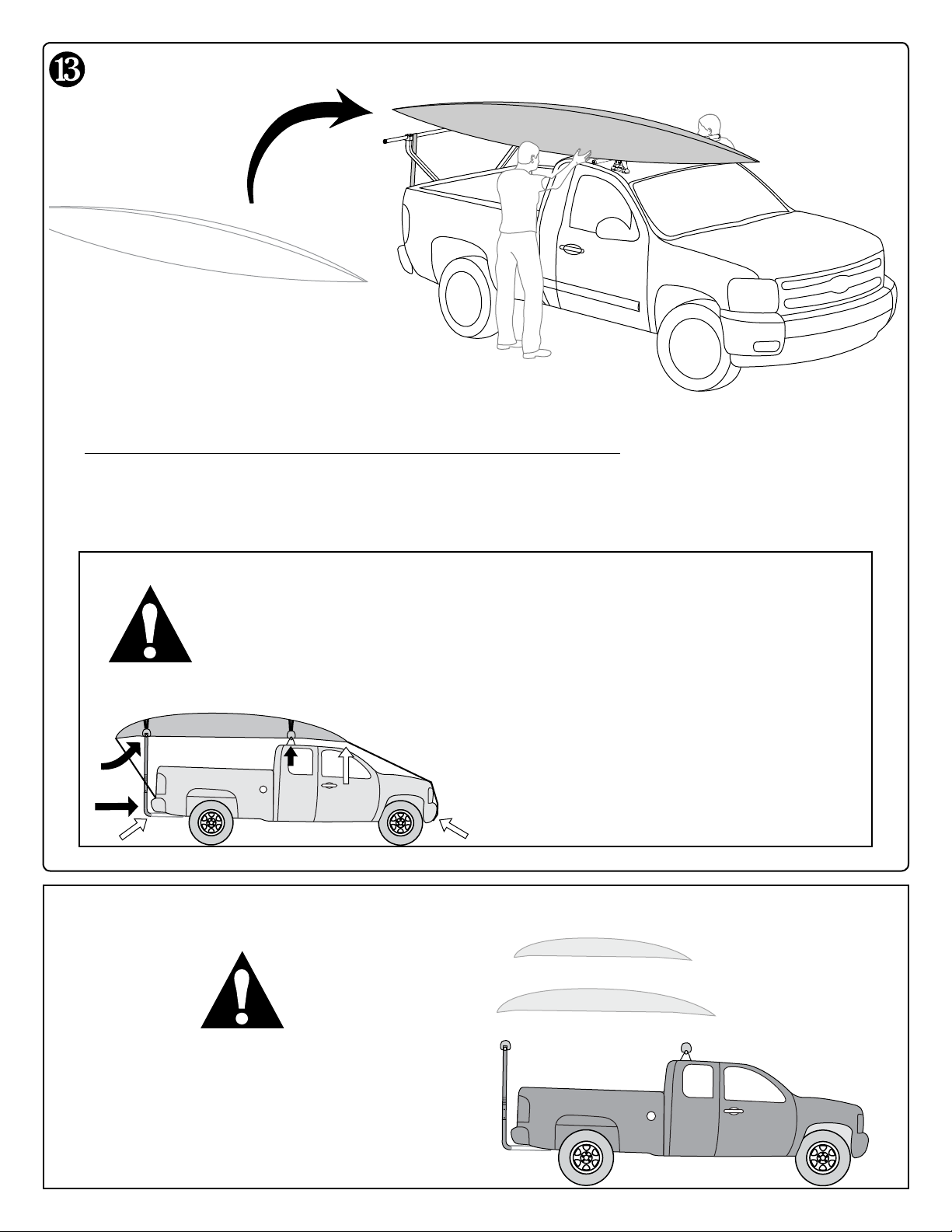

LOAD YOUR BOAT,
Follow accessory instructions to secure the boat to the crossbars.
NOTE: Some shorter boats will prevent accessories from working properly.
This carrier is designed for touring kayaks or canoes.
BOAT AccessORy
fIT WARNING:
1034191B-9/27
KeeP THese INsTRUcTIONs!
WeIGHT LIMITs
ReAD THese WARNINGs
ATTACHMENT HARDWARE CAN
LOOSEN OVER TIME. BEFORE EACH USE,
CHECK AND TIGHTEN IF NECESSARY.
HARDWARe MAINTeNANce
sAfeTy cHecKs
IMPORTANT!
Adhere to your vehicle’s listed weight limit. For additional info
reference your vehicle’s owner’s manual, or visit Yakima.com.
Welcome
to the
CAR
WASH
1034191B-10/27
AVeRTIsseMeNT IMPORTANT:
VÉHICULE. UN MONTAGE MAL RÉALISÉ POURRAIT PROVOQUER UN ACCIDENT D’AUTOMOBILE, QUI POURRAIT ENTRAÎNER DES
BLESSURES GRAVES OU MÊME LA MORT, À VOUS OU À D’AUTRES PERSONNES. VOUS ÊTES RESPONSABLE DE L’INSTALLATION DU
LES INSPECTER RÉGULIÈREMENT POUR EN CONTRÔLER L’ÉTAT, L’AJUSTEMENT ET L’USURE. VOUS DEVEZ DONC LIRE ATTENTIVEMENT TOUTES LES
INSTRUCTIONS ET TOUS LES AVERTISSEMENTS ACCOMPAGNANT VOTRE PRODUIT YAKIMA AVANT DE L’INSTALLER ET DE L’UTILISER. SI VOUS NE
COMPRENEZ PAS TOUTES LES INSTRUCTIONS ET TOUS LES AVERTISSEMENTS, OU SI VOUS N’AVEZ PAS DE COMPÉTENCES EN MÉCANIQUE ET NE
COMPRENEZ PAS PARFAITEMENT LA MÉTHODE DE MONTAGE, VOUS DEVRIEZ FAIRE INSTALLER LE PRODUIT PAR UN PROFESSIONNEL DU DOMAINE.
MANCHON DU PIVOT (x 1)
BOULON DU PIVOT (x 1)
ÉCROU DU PIVOT (x 1)
LONG BOULON (x 2)
RONDELLE (x 4)
ÉCROU (x 2)
BOUCHON
D’EXTRÉMITÉ (x 2)
BRAS (x 2)
POTENCE (x 1) COUDE (x 1)
BOULON D’ATTELAGE (x 1)
RONDELLE DE SÉCURITÉ (x 1)
ÉCROU CARRÉ (x 1)
BROCHE DE SÛRETÉ (x 1)
BARRE TRANSVERSALE (x 1)
(vendue à part)
Ce porte-embarcation est
conçu pour les kayaks de
mer et les canots.
OUTILS RECOMMANDÉS:
