OPERATING MANUAL

ba75803e08 10/2017

Cond 3310

CONDUCTIVITY METER

2ba75803e08 10/2017

Cond 3310

Printed in Germany.

Cond 3310 Contents

ba75803e08 10/2017

Cond 3310 - Contents

1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.1 Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.2 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.3 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.1 Authorized use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . 11

3 Commissioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.1 Scope of delivery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.2 Initial commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.2.1 Inserting the batteries. . . . . . . . . . . . . . . . . . . . . 13

3.2.2 Switching on the meter. . . . . . . . . . . . . . . . . . . . 14

3.2.3 Setting the date and time . . . . . . . . . . . . . . . . . . 14

4 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.1 Switching on the meter . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.2 General operating principles . . . . . . . . . . . . . . . . . . . . . . 16

4.2.1 Operating modes . . . . . . . . . . . . . . . . . . . . . . . . 16

4.2.2 Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.2.3 Navigation example 1:Setting the language. . . . 18

4.2.4 Example 2 on navigation: Setting the date and

time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.3 Sensor-independent settings . . . . . . . . . . . . . . . . . . . . . 23

4.3.1 System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.3.2 Data storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.3.3 Automatic Stability control . . . . . . . . . . . . . . . . . 24

4.4 Conductivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.4.1 General information . . . . . . . . . . . . . . . . . . . . . . 26

4.4.2 Measuring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4.4.3 Temperature compensation . . . . . . . . . . . . . . . . 28

4.4.4 Settings for conductivity measuring cells . . . . . . 29

4.4.5 Determining the cell constant (calibration in

control standard) . . . . . . . . . . . . . . . . . . . . . . . . 32

4.4.6 Displaying calibration records . . . . . . . . . . . . . . 34

4.5 Data memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

4.5.1 Manual storage . . . . . . . . . . . . . . . . . . . . . . . . . 36

4.5.2 Automatic storing at intervals . . . . . . . . . . . . 38

Contents Cond 3310

4ba75803e08 10/2017

4.5.3 Displaying and editing the measurement data

memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

4.5.4 Erasing the measurement data memory. . . . . . . 42

4.6 Transmitting data (USB interface) . . . . . . . . . . . . . . . . . . 42

4.6.1 Options for data transmission . . . . . . . . . . . . . . . 42

4.6.2 Connecting a PC . . . . . . . . . . . . . . . . . . . . . . . . 43

4.7 MultiLab Importer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

4.8 Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

4.8.1 Resetting the measurement settings . . . . . . . . . 44

4.8.2 Resetting the system settings. . . . . . . . . . . . . . . 45

5 Maintenance, cleaning, disposal . . . . . . . . . . . . . . . . . 46

5.1 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

5.1.1 Replacing the batteries . . . . . . . . . . . . . . . . . . . . 46

5.2 Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

5.3 Packing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

5.4 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

6 What to do if... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

7 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

7.1 General data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

7.2 Measuring ranges, resolution, accuracy . . . . . . . . . . . . . 50

8 Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

9 Firmware update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Cond 3310 Contents

ba75803e08 10/2017

Overview Cond 3310

6ba75803e08 10/2017

1 Overview

The Cond 3310 compact precision conductivity meter enables you to

perform conductivity measurements quickly and reliably.

The Cond 3310 provides the maximum degree of operating comfort,

reliability and measuring certainty for all applications.

The proven procedures for determining or adjusting the cell constant

support your work with the conductivity meter.

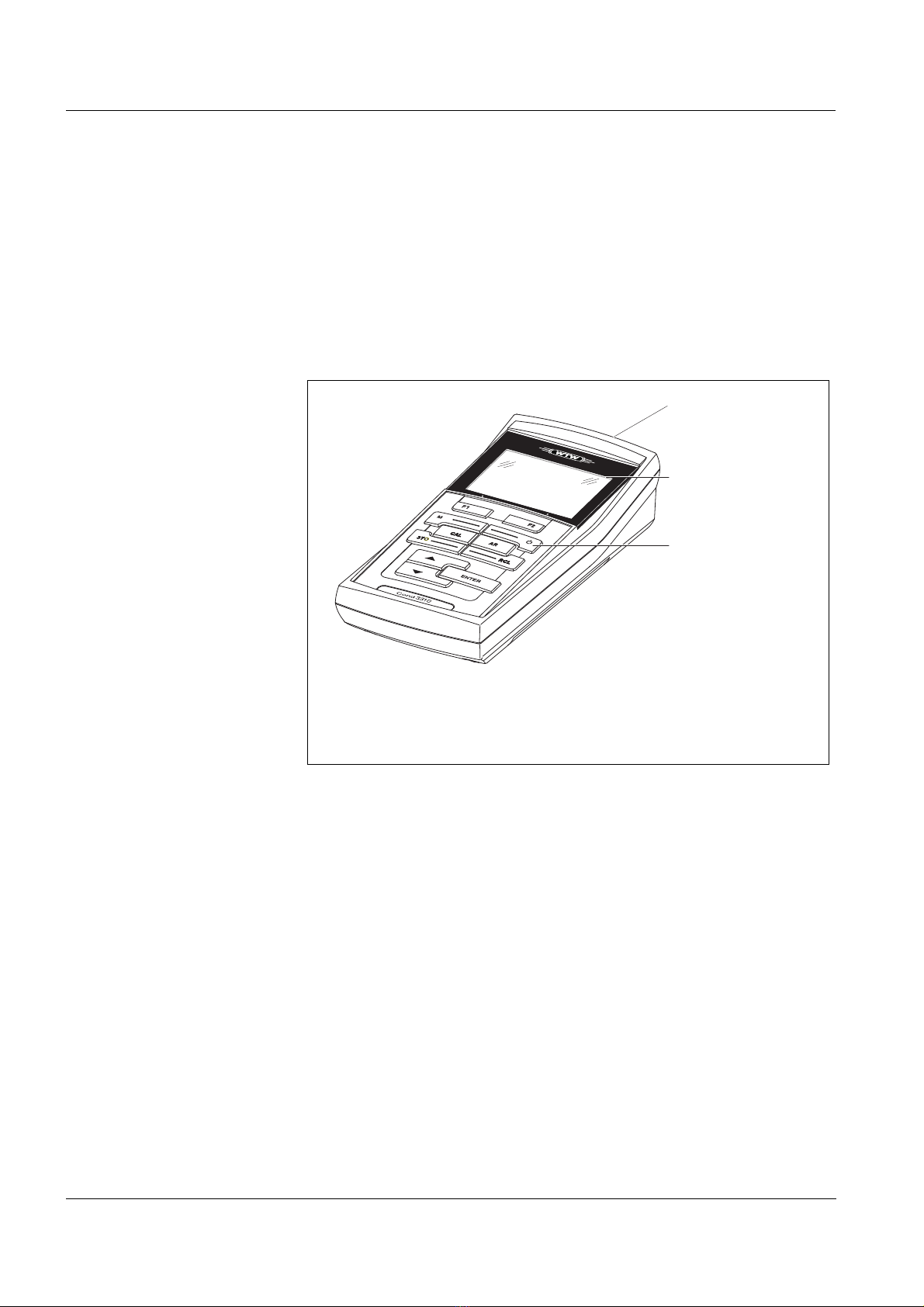

1 Keypad

2 Display

3 Connectors

Cond 3310 Overview

ba75803e08 10/2017

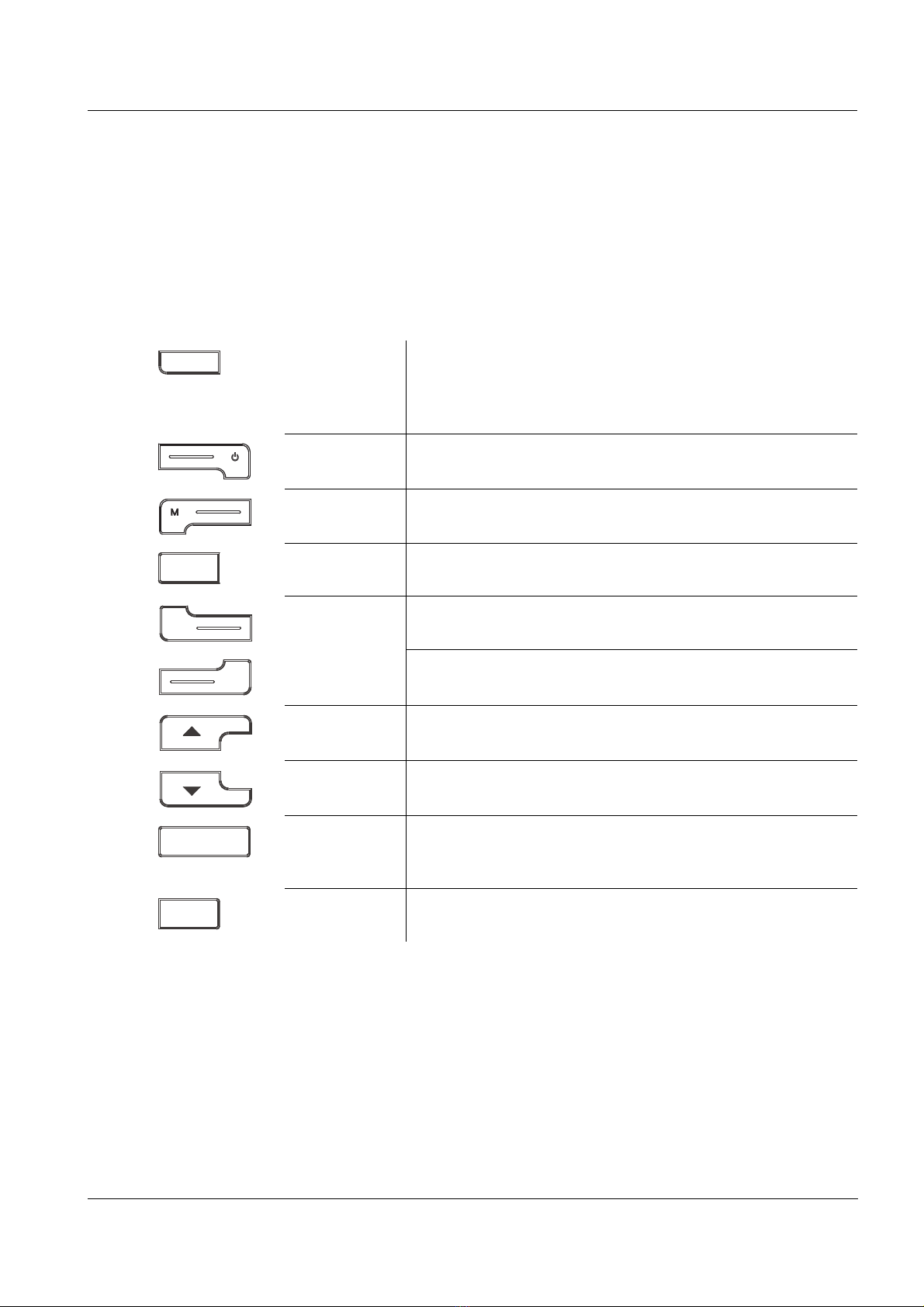

1.1 Keypad

In this operating manual, keys are indicated by brackets <..> .

The key symbol (e.g. <ENTER>) generally indicates a short keystroke

(under 2 sec) in this operating manual. A long keystroke (approx.

2 sec) is indicated by the underscore behind the key symbol (e.g.

<ENTER_>).

<F1>:

<F1_>:

<F2>:

<F1>/[Menu]: Opens the menu for measurement settings

<F1_>/[Menu]: Opens the menu for system settings

<On/Off>: Switches the meter on or off

<M>: Selects the measured parameter

<CAL>:

<CAL_>:

Calls up the calibration procedure

Displays the calibration data

<STO>: Saves a measured value manually

<RCL>: Displays the manually stored measured values

<>: Increments values, scrolls

<>: Decrements values, scrolls

<ENTER>:

<ENTER_>:

Opens the menu for measurement settings / confirms

entries

Opens the menu for system settings

<AR> Freezes the measured value (HOLD function)

Switches the AutoRead measurement on or off

CAL

STO

RCL

ENTER

Overview Cond 3310

8ba75803e08 10/2017

1.2 Display

Function display

indicators

1 Status information

2 Measured value (with unit)

3 Measured parameter

4 Sensor symbol (calibration evaluation, calibration interval)

5 Measured temperature (with unit)

6 Status line

7 Softkeys and date + time

HOLD AR

25.0

1417

°C

µS/cm

[Tr25][nLF][ 0.475 1/cm]

22.09.2008

08:00

Menu USB output

Error An error occurred during calibration

AR Stability control (AutoRead) is active

HOLD Measured value is frozen (<AR> key)

Batteries are almost empty

Cond 3310 Overview

ba75803e08 10/2017

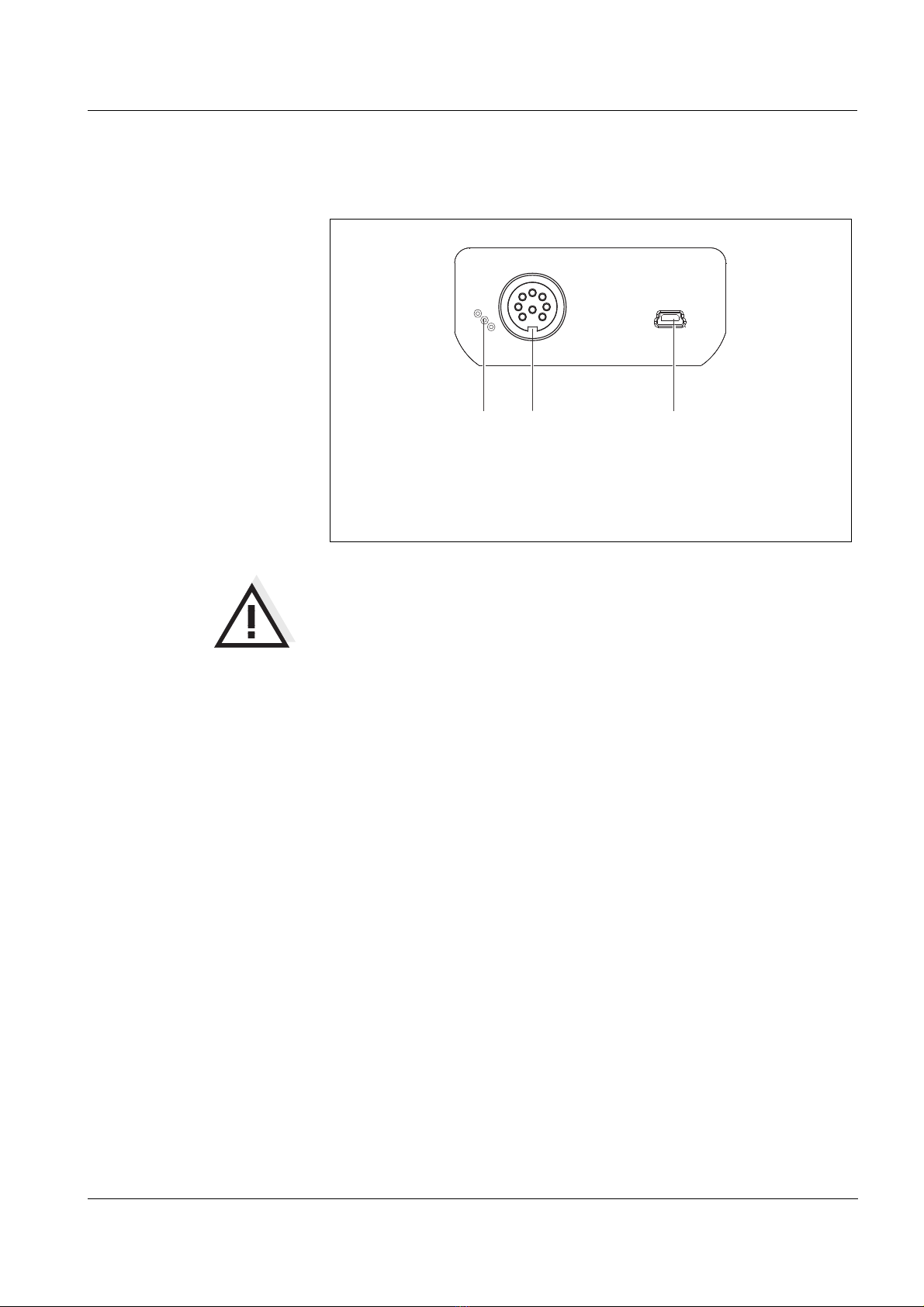

1.3 Connectors

Caution

Only connect measuring cells to the meter that cannot return any

voltages or currents that are not allowed (> SELV and > current

circuit with current limiting).

Almost all customary measuring cells fulfill these conditions.

1 Conductivity measuring cell

2 USB B (device) interface

3 Service interface

312

Safety Cond 3310

10 ba75803e08 10/2017

2Safety

This operating manual contains basic instructions that you must follow

during the commissioning, operation and maintenance of the meter.

Consequently, all responsible personnel must read this operating man-

ual before working with the meter.

The operating manual must always be available within the vicinity of the

meter.

Target group The meter was developed for work in the field and in the laboratory.

Thus, we assume that, as a result of their professional training and

experience, the operators will know the necessary safety precautions

to take when handling chemicals.

Safety instructions Safety instructions in this operating manual are indicated by the warn-

ing symbol (triangle) in the left column. The signal word (e.g. "Caution")

indicates the level of danger:

Warning

indicates instructions that must be followed precisely in order to

avoid possibly great dangers to personnel.

Caution

indicates instructions that must be followed precisely in order to

avoid the possibility of slight injuries or damage to the instrument

or the environment.

Further notes

Note

indicates notes that draw your attention to special features.

Note

indicates cross-references to other documents, e.g. operating manu-

als.
