Xilinx XTP194 Manual de usuario

December 2013

AC701 Built-In Self Test

Flash Application

XTP194

XILINX, the Xilinx logo, the Brand Window and other designated brands included herein are trademarks of Xilinx, Inc. All other trademarks are the property of

their respective owners.

NOTICE OF DISCLAIMER: The information disclosed to you hereunder (the “Information”) is provided “AS-IS” with no warranty of any kind, express or implied.

Xilinx does not assume any liability arising from your use of the Information. You are responsible for obtaining any rights you may require for your use of this

Information. Xilinx reserves the right to make changes, at any time, to the Information without notice and at its sole discretion. Xilinx assumes no obligation to

correct any errors contained in the Information or to advise you of any corrections or updates. Xilinx expressly disclaims any liability in connection with technical

support or assistance that may be provided to you in connection with the Information. XILINX MAKES NO OTHER WARRANTIES, WHETHER EXPRESS,

IMPLIED, OR STATUTORY, REGARDING THE INFORMATION, INCLUDING ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE, OR NONINFRINGEMENT OF THIRD-PARTY RIGHTS.

Revision History

Date Version Description

12/18/13 6.0 Recompiled for 2013.4.

10/23/13 5.0 Recompiled for 2013.3. Converted to IPI, added RGMII interface and LwIP.

06/19/13 4.0 Recompiled for 2013.2. AR55431, AR55531 and AR55738 fixed.

04/03/13 3.0 Recompiled for 2013.1. Added AR55431, AR55531 and AR55738. AR53420 Fixed.

02/04/13 2.1 As per AR54044, added 2012.4 device pack. Added AR53420 and AR54223.

12/18/12 2.0 Recompiled for 2012.4

10/23/12 1.0 Initial Version.

Overview

Xilinx AC701 Board

Software Requirements

AC701 Setup

AC701 BIST (Built-In Self Test)

Compile AC701 BIST Design

Program AC701 with BIST Design

Run the LwIP Ethernet Design

References

–IP Release Notes Guide XTP025

Note: This presentation applies to the AC701

AC701 BIST Design Description

Description

–The Built-In System Test (BIST) application uses an IPI MicroBlaze system to

verify board functionality. A UART based terminal program interface offers

users a menu of tests to run.

Block Design Source

–RDF0220 - AC701 BIST Design Files (2013.4 C) zip file

–Available through http://www.xilinx.com/ac701

Note: Presentation applies to the AC701

AC701 BIST Design Description

Block Design IP

–Processor and Subsystems: MicroBlaze, MicroBlaze Debug Module (MDM),

Local Memory Bus, LMB BRAM Controller, Block Memory Generator, Proc Sys

Reset, AXI Interrupt Controller

–AXI Bus: AXI Interconnect, AXI Timer

–Memory: AXI BRAM Controller, MIG 7 Series, AXI DMA

–Peripherals: AXI Ethernet, AXI IIC, AXI GPIO, AXI UART 16550, XADC Wizard

–Other IP: Clocking Wizard, Constant, Concat, gte2_top

•Vivado Design Suite Tcl Command Reference Guide (UG835)

•Designing IP Subsystems Using IP Integrator (UG994)

Note: Presentation applies to the AC701

Xilinx AC701 Board

Vivado Software Requirements

Xilinx Vivado Design Suite 2013.4, Design Edition + SDK

–Combined installer

Note: Presentation applies to the AC701

AC701 Setup

Connect a USB Type-A to Micro-B cable to the USB JTAG (Digilent)

connector on the AC701 board

–Connect this cable to your PC

AC701 Setup

Connect a USB Type-A to Mini-B cable to the USB UART connector

on the AC701 board

–Connect this cable to your PC

–Power on the AC701 board for UART Drivers Installation

AC701 Setup

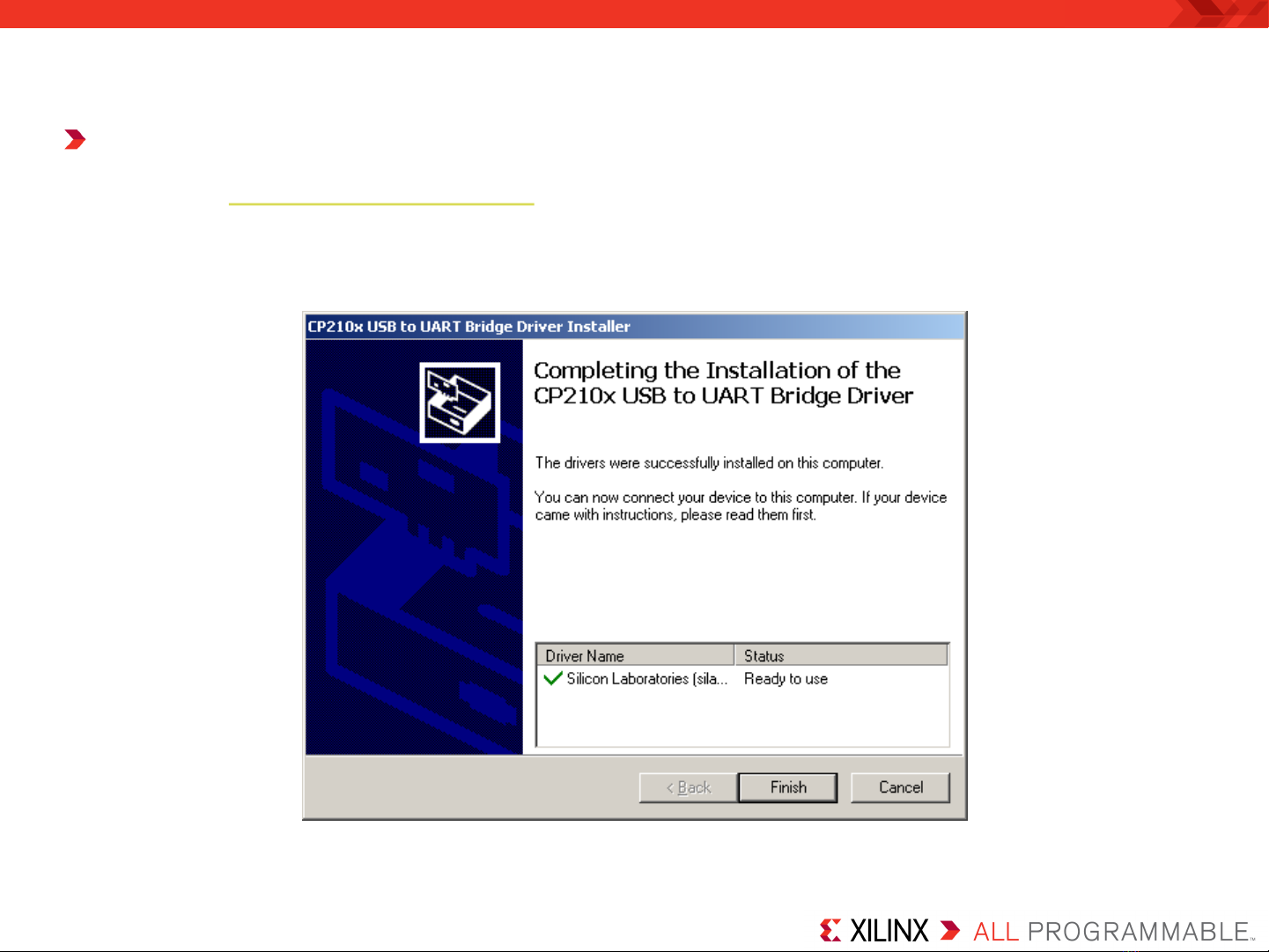

Install USB UART Drivers

–Go to http://www.silabs.com

–Search for Virtual port drivers

Note: Presentation applies to the AC701
