Xerox DocuPrint N24 Instrucciones de funcionamiento originales
The Xerox
DocuPrint N24, N32, and N40
2,000 Sheet Finisher
Quick Installation/
Removal Guide
2 ❖Xerox DocuPrint N24, N32, and N40 Finisher
Before You Begin
If you are installing a printer at the same time as you are installing a finisher, install the
printer and 2,500 Sheet Feeder first, using the instructions that came with them. Then install
the finisher.
IMPORTANT: Installation of the finisher requires two people.
CAUTION: Use caution when moving the printer console and finisher to ensure that they
do not tip over.
CAUTION: Be careful of metal plate edges when installing the finisher.
To operate this finishing device, your DocuPrint N24, N32, or N40 must be at software
release 1.2 or higher. To verify your release, print a software configuration sheet from the
printer. If you do not have this release, you may obtain it from customer support or by
downloading it from: http://xerox.networkprinters.com/products/N40, or from
http://xerox.networkprinters.com/products/N32, or from
http://xerox.networkprinters.com/products/N24. Print Drivers and Finisher User
Documentation may also be obtained from these Web sites.
The finisher installation instructions are organized in the following sequence:
• Preparation and Unpacking
• Install the Transport Cover
• Install the Emissions Bracket Assembly
• Install the Guide Rail
• Install the Finisher
• Install the Staple Cartridge
• Complete the Installation
Quick Installation/Removal Guide ❖3
Preparation and Unpacking
1Power OFF the printer. 2Disconnect the printer GFI power cord.
3Unpack and remove the finisher from its
box according to the instructions on the
finisher box. Be sure to slide it off the
bottom of the box.
CAUTION: This operation should be
done by two people.
Remove any tape and packing material.
Save the carton and packing materials
for later use in case you ever need to
ship the finisher back to Xerox.
4Unpack the installation kit. You should
have these three items:
(1) Transport Cover and thumb screw
(2) Emissions Bracket Assembly and two
thumb screws
(3) Guide Rail with docking brackets.
(4) Staple Cartridge
4 ❖Xerox DocuPrint N24, N32, and N40 Finisher

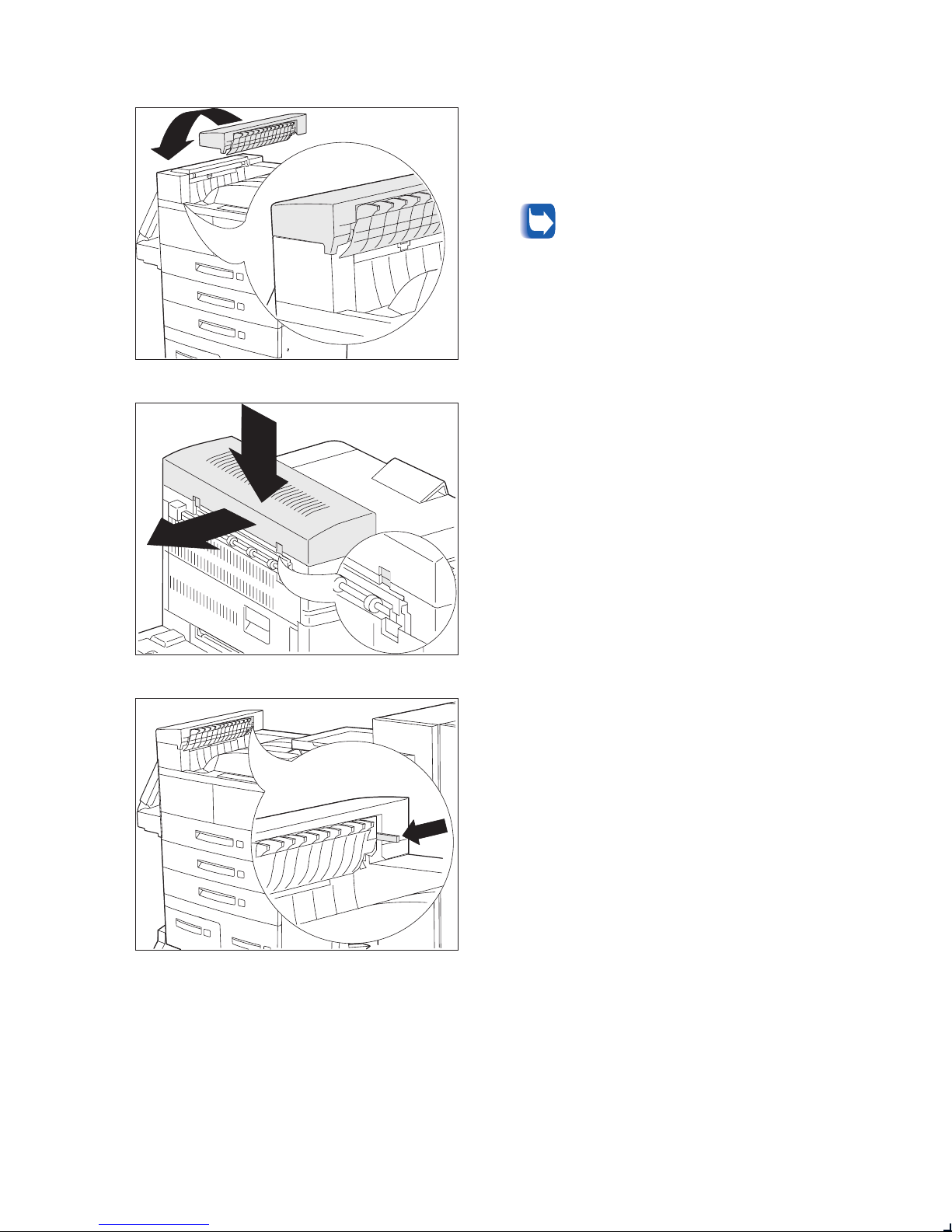

Install the Transport Cover
1Face the front of the printer and place the
Transport Cover on the top left side of the
printer. Make sure the lip on the bottom
right side of the transport cover is placed
under the connecting edge of the printer.
If your printer has the Duplex Module
installed, you do not need to remove
it in order to install the Transport
Cover.
2Align the tabs on the Transport Cover with
the appropriate slots on the edge of the
printer as shown.
Then gently pull the Transport Cover
towards the left edge of the printer until it
snaps into place.
3Make sure the black switch interlock is
exposed and parallel to the floor as shown.
Quick Installation/Removal Guide ❖5
Install the Emissions Bracket Assembly
1Make sure you install the Emissions
Bracket Assembly with the “V” shaped
edge of the bracket seal facing up. Attach
the Emissions Bracket Assembly to the
printer inserting the two thumb screws into
the holes as shown and screwing them in.
Install the Guide Rail
1Pass the Guide Rail under the center of the
printer from left to right as shown. The left
side bracket (#1) should be at the left side
of the printer, while the right side
bracket (#2) should be at the right side of
the printer.
Make sure the Guide Rail is parallel to the
front of the printer.
CAUTION: Do not tip the printer
when you attach the Guide Rail
brackets.
2At the left side of the printer,align the #1
bracket with the third hole from the front,
lift it over the printer’s plastic cover panel
and hook its tab in the hole.
3At the right side of the printer, align the #2
bracket with the third hole from the front
and slide it upwards between the printer’s
plastic cover panel and frame until it snaps
firmly into place.
6 ❖Xerox DocuPrint N24, N32, and N40 Finisher
Install the Finisher
1Hold the Paper Transport parallel to the
ground and unfold the two brackets under
the Paper Transport edge nearest to the
printer by pulling on the green tabs. Rotate
them into place by turning them down and
to the side as shown and push them snugly
against the retainers.
CAUTION: Use caution when moving
the finisher to ensure that it does not
tip over.
2Slide the finisher towards the printer until
its GFI power cord and connector cable can
easily reach the printer.
3Fully extend the Guide Rail that is attached
underneath the printer and align it with the
Guide Rail slot under the finisher. Make
sure the Guide Rail is completely inserted
into the guide rail slot under the finisher
and is aligned with the plate and hole
underneath the right hand side of the
finisher.
4Pass the finisher GFI power cord behind
the Emissions BracketAssembly and plug it
into the printer, as shown.
5Attach the finisher connector cable to the
rear of the printer as shown.
Quick Installation/Removal Guide ❖7
6Align the finisher with the printer so they
can be connected together. Align the pins
on the left hand edge of the Paper
Transport with the holes on the top edge of
the Transport Cover.
CAUTION: Be careful of metal plate
edges at the base of the finisher as
you complete the installation.
7Insert the thumb screw into the hole at the
end of the Guide Rail at the base of the
finisher and hand tighten it as shown.
Then push the finisher against the printer.
Make sure the pins on the Paper Transport
are firmly seated into the Transport Cover.
8Lock the rear wheels on the finisher.
Install the Staple Cartridge
CAUTION: For the finisher to operate correctly, the Staple Cartridge must be properly
installed.
1Open the access door on the side of the
finisher. 2Slide the Staple Cartridge into the finisher
until it snaps into place. Then close the
access door.
8 ❖Xerox DocuPrint N24, N32, and N40 Finisher
Complete the Installation
1Reattach the printer’s GFI power cord and power ON the printer.
2Print a Configuration Sheet (see Chapter 1 of the printer’s User Guide) and confirm that the
finisher appears in the “Installed Options” section of the sheet.
If the finisher does not appear on the Configuration Sheet, perform steps 1 through 5 of the
next section, “Removing the Finisher,” then reinstall the finisher and print another
Configuration Sheet. If the finisher still does not appear on the sheet, contact the dealer
from which you bought your printer and/or finisher, or contact Xerox.
3Install the printer drivers from the CD. The CD also contains the Finisher User Guide and the
Finisher Install/Removal instructions.
Quick Installation/Removal Guide ❖9
Removing the Finisher
This section includes instructions for removing the finisher from the printer.
1Power OFF the printer. Be sure to save all
the loose parts from the finisher and the
printer.
2Disconnect the printer GFI power cord
from the Printer and unplug the finisher
connecting cable from the printer.
3Remove the thumb screw from the base of
the finisher.
4Unlock the wheels on the finisher.
5Remove the finisher GFI power cord from
the printer and slowly pull the finisher
away from the printer.
10 ❖Xerox DocuPrint N24, N32, and N40 Finisher
6Release the two brackets under the Paper
Transport and rotate them up into place at
the edge of the Paper Transport.
7Lower the Paper Transport so that it hangs
against the side of the finisher.
8Free the Guide Rail from the base of the
printer console by pushing in the two tabs
on the #2 bracket while pushing down on
the Guide Rail.
9Remove the Guide Rail from under the
printer.
10 Remove the Emissions Bracket Assembly
from the printer console by removing the
two thumb screws.
11 Remove the Transport Cover. Begin by
lifting the roller guard and rotating the
Transport Cover away from the edge of the
printer until the connecting tabs pull free.
12 Reattach the GFI power cord to the Printer.
Power ON the Printer.
13 Print a Configuration Sheet and confirm
that the finisher no longer appears in the
upper right section of the sheet.
CAUTION: If you plan to ship the
finisher, remove the Staple Cartridge
before shipping.
