X-Vision PCC422E Manual de usuario
•Please unpack the box carefully and identify that all the parts are
present.
•Do not open the camera housing. This will void the warranty and
break the warranty seal inside the camera.
•Make sure you use only the recommended power supply. Damage
caused to the camera by incorrect voltage or wiring is not covered
by the warranty.
Model: PCC422E
Colour Digital CCD
22x Zoom Camera
CCTV
Model:
PCC422E
Colour Digital CCD
22x Zoom Camera
Before you begin
Connections
Package Contents
PCC422E Camera complete with 2° to 60° Lens
Back of PCC422E showing connections
2
WARNING
WARNING: Thank you for buying the colour video camera. Before
operating, please be sure of camera model and that you
have the recommended Xvision power supply.
To prevent shock and fire hazard, do not expose the unit
to rain or moisture.
Please take notice of the ‘dangerous voltage’ symbol to
avoid serious accident or injury.
Warning: This equipment has been tested and found to comply with
the guidelines for a Class A digital device, pursuant to part 15 of the
FCC rules. These guidelines are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates
radio frequency energy and, if not installed and used in accordance
with the manual, may cause harmful interference to radio
communications. Take care when operating this equipment in a
residential area as it may cause interference with other electrical
equipment.
Caution: Any unauthorised changes or modifications in construction
of this device could void the warranty.
3
Function Control
1. Button Functions
a) TELE-This button allows you to ‘zoom in’ on the picture;
use the arrow
b) WIDE-This button allows you to ‘zoom out’ on the picture;
use the arrow
c) NEAR, FAR-These buttons are used for manual focusing;
use the arrow for ‘NEAR’ and the arrow for ‘FAR’
d) MENU-This button displays the menu;
please refer to pages 7-16 for details
2. Video Signal Output terminal (BNC, VOUT)
The output of this port is 1.0Vp-p, 75Ohms standard video level
3. Lamp for power supply
When the power is on, the lamp will illuminate.
TELE
MENU FARNEAR
WIDE
4
Function Control
4. Function for line control (hard wired controller)
5. RS485 connection terminal
Use the RS485 port to connect the camera to a keyboard controller
and control it. The camera is compatible with eight different
protocols.
The protocol and baud rate can be changed by using the dip switches
on the rear of the camera. See the following examples to change the
protocol settings:
5
Function Control
NOTE: The only way to change the camera ID is by using the camera
menu. To ensure that the new setting is correct you should power off
and on after this operation.
The following camera operations can be controlled:
(WIDE) Zoom is adjusted to a wide angle view
(TELE) Zoom is adjusted to a telescopic picture
(FAR) Focus is adjusted for far distance
(NEAR) Focus is adjusted for near distance
(OPEN) Opens the cameras Iris
(CLOSE) Closes the cameras Iris
When using the camera with a controller, you can browse the menu.
You can move the joystick to UP, DOWN, LEFT and RIGHT. The
operation is similar to the buttons on the back of the camera.
6. Input connection terminal
This terminal can be connected with a regulated DC power supply
with more than 800mA rating.
6
How to set up functions
Functions can be set up using the 5 buttons on the camera rear panel
Press ‘MENU’ button to enter options in the menu control screen.
Press 'MENU'’ button to return.
Under main menu mode, press ‘TELE’ ‘ ‘ ‘WIDE’ ‘ ‘ for each sub
menu; press ‘NEAR’ ‘ ‘ ‘FAR’ ‘ ‘ to enter sub menu mode.
Under sub menu mode press ‘TELE’ ‘ ‘ ‘WIDE’ ‘ ‘ to choose the
the required settings; press ‘NEAR’ ‘ ‘ ‘FAR’ ‘ ‘ to change the
value.
In the sub menu press the ‘MENU’ key to return to the main menu at
any time.
Press ‘MENU’ button for about 3 seconds to enter.
Menus and Operation
TELE
MENU FARNEAR
WIDE
7
Menus and Operation
The menu contains the MAIN MENU and sub menus.
The MAIN MENU displays 10 camera settings which can be selected.
The selected category will blink.
MAIN MENU > INITIAL SET
Reset the current general settings to the default settings.
MAIN MENU > LENS INITIALISE
Calibrates the lens.
MAIN MENU > LENS AUTO INIT
Calibrates the lens automatically for 5m, 10m, 15m and 20m.
MAIN MENU
INITIAL SET
LENS INITIALISE EXEC
LENS AUTO INIT 5K
GENERAL SEL
FOCUS MODE ZMTR
BACKLIGHT OFF
PRIVACY OFF
WBC MODE AUTO
AE MODE AI
ANTI COLOUR ROLLING OFF
FLICKERLESS OFF
8
Menus and Operation
MAIN MENU > GENERAL
The GENERAL menu includes the following sub options:
MAIN MENU > GENERAL > CAMERA ID
Displays the camera ID. The camera ID can be set from 001 to 255 by
using the ‘NEAR/FAR’ buttons.

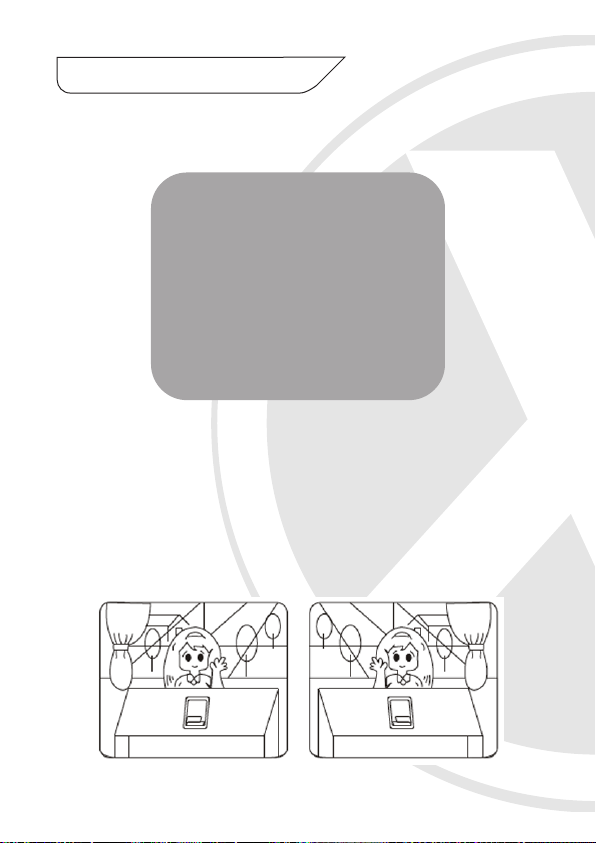

MAIN MENU > GENERAL > MIRROR
The video out put from the camera can be reversed (mirror image)
using this function.
GENERAL
CAMERA ID 001
MIRROR OFF
HI RESOLUTION OFF
SHARPNESS OFF
COLOUR SUPPRESS OFF
LUX LEVEL LOW
APERTURE SUPPRESS OFF
BACK TO MENU <--
9
Menus and Operation
MAIN MENU > GENERAL > HI-RESOLUTION
Improve the resolution of the image
MAIN MENU > GENERAL > SHARPNESS
Improve the sharpness of edges
MAIN MENU > GENERAL > COLOUR SUPPRESS
Under some special conditions the mode can make the colour picture
change to black and white and improve the S/N level.
MAIN MENU > GENERAL > LUX LEVEL
Use the ‘NEAR/FAR’ to set the cameras level to high/middle/low
MAIN MENU > GENERAL > APERTURE SUPPRESS
Under some special conditions this mode can reduce the noise and
improve the S/N level.
MAIN MENU > GENERAL > BACK TO MENU
Returns you to the MAIN MENU
In the main menu the next option is FOCUS MODE
10
