Mounting instructions for the Monarch Pass Saddle Bags #M321 to Wolfman side racks

Thank you for purchasing the Monarch Pass Saddle Bags

**READ THROUGHLY BEFORE ATTACHING TO WOLFMAN RACKS**

*For best results take a test ride before putting your Monarch Saddle Bags to use*

*Helpful hint: Before you begin stuff each bag with a sleeping bag or quilt to give it body*

*The mounting is the same for both left and right bags*

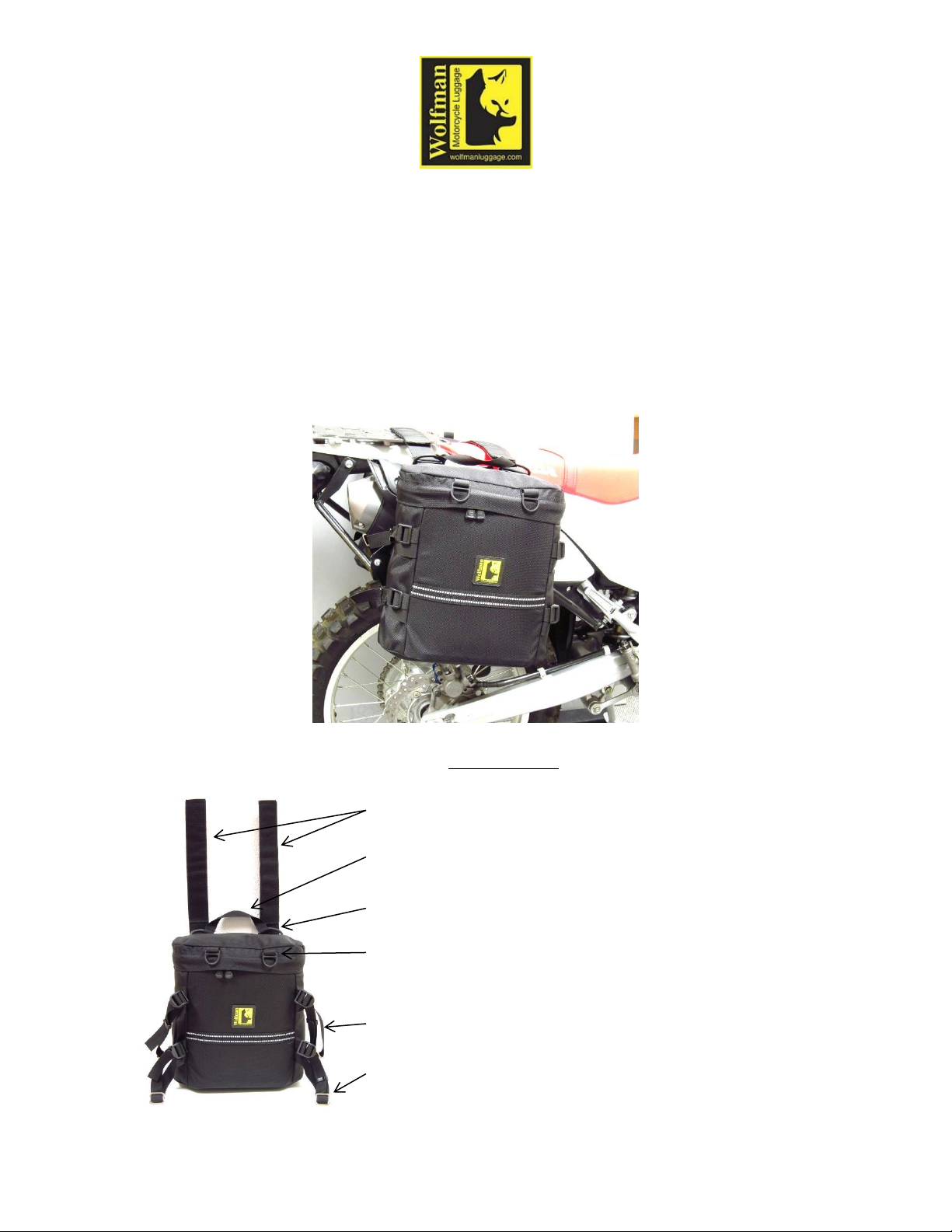

A properly mounted set of Monarch Pass Saddle Bags. Fig.1

Fig.1

Bag orientation

*Please note the various parts of the Monarch Saddle Bag. Since left and right are identical one is shown. Fig.2

Hook & loop seat straps

Handle

2” D-Rings (2)

1” D-Rings (2)

Side mounting straps (2 on each side)

1” Chrome slide (4)

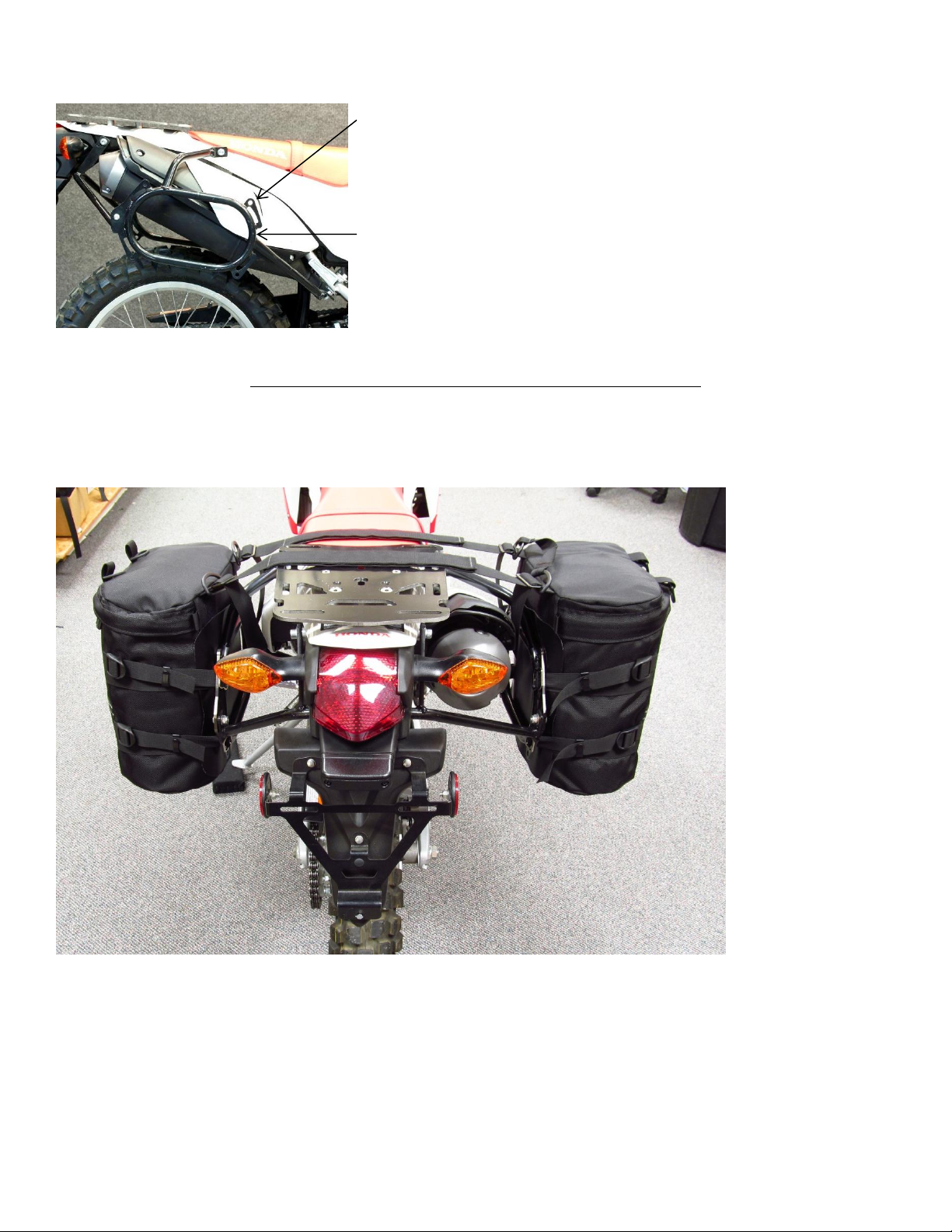

The Wolfman side racks have four rectangular slots around the perimeter of the hoop. Fig.3

Fig. 3

Rectangular slots (4 per side)

Hoop

Mounting Monarch Pass Saddle Bags to the Wolfman side racks

1- Loosen all eight side mounting straps (four on each bag).

2- Place the bags over the seat and rear of bike. A properly adjusted set of Monarch Pass Saddle Bags Fig.4

Fig.4

3- Insert the chrome slide on the side mounting straps into the rectangular slots on the side rack (4 per Bag). Fig.5

4- Pull the side mounting strap webbing so the chrome slide is captured on the rectangular slot on the side rack and

cannot slip through. Repeat this on all four slots on each rack. Fig.6

Fig.5 Fig.6

5- Adjust the hook and loop seat straps so the bags sit almost level with the seat. Fig. 4

6- Adjust the seat straps at the black metal slides on the bags. Fig.8

Fig.8

Fine tune with the seat straps: Remember to keep as much of the hook and loop on the seat straps connected as

possible.

7- Tighten the side mounting straps snug. Thread excess webbing through strap keeper. Fig.7

Fig.7

8- Make sure ALL straps are snug and the bags are secure. Make adjustments as necessary.

To remove the Monarch Pass Saddle Bags

You can remove the bags as a pair or individually.

9- Loosen all the side mounting straps (4per bag).

10- Pass the chrome slides back through the side rack slots to free straps. (Reverse steps 3 and 4)

11- Lift bags off. If you want to take them off separately separate the 2” hook and loop seat straps.

MAXIMUM WEIGHT LIMIT: 13lbs (5.9 kg) per bag.

Helpful hints

The Monarch Pass Saddle Bags have 1 and 2 inch D-Rings incorporated into the bags. Fig.2

These are for attaching additional Wolfman products, like a small or medium Rolie Bag (Fig.8) or our Bottle Holster

(Fig.9) for additional fuel or water.

Fig.8 Fig.9

To make packing easier, the EXT Stuff Sacks make loading, un-loading, and organization a breeze. Fig.10

Fig.10

If you have any questions please contact us at 800/535-8131 or info@wolfmanluggage.com

Enjoy.
