Wisenet SHP-1680FW Manual de usuario
In-ceiling Housing
Installation Manual
SHP-1680F(IVORY)
SHP-1680FW(WHITE)
2_ English
Overview 3
What’s Included 3
Installation Instructions 4
How to install (XNP-6120/HCP-6120 SERIES) 4
How to install (XNV-6120 SERIES/XNV-6085 SERIES)
9
How to install (XND-6085/XND-6085V SERIES)
14
Product Specifications 18
TABLE OF CONTENTS
English _3
ENG
OVERVIEW
This In-CEILING HOUSING is a mounting ADAPTOR that is designed to mount the smart
dome camera in built-in style on a double-layer ceiling.
WHAT’S INCLUDED
HOUSING
SAFETY BRACKET (1EA) SAFETY WIRE (1SET)
TEMPLATE (1EA) SCREW (3EA)
LOWER BRACKET
(for XNV-6120/XNV-6085/
XND-6085/XND-6085V) (1EA)
INSTALLATION MANUAL
4_ English
INSTALLATION INSTRUCTIONS
1. Select an installation position or place that can endure more than 4 times of the total
weight of the installation structure.
2. At least 250mm or more of spare height is required above the CEILING BOARD.
3. CEILING BOARD’s thickness should be less than 40mm.
4. Be sure to secure the SAFETY WIRE to avoid a product fall.
5. If you want to attach the camera to the ADAPTOR, use the only provided SCREWS.
HOW TO INSTALL (XNP-6120/HCP-6120 SERIES)

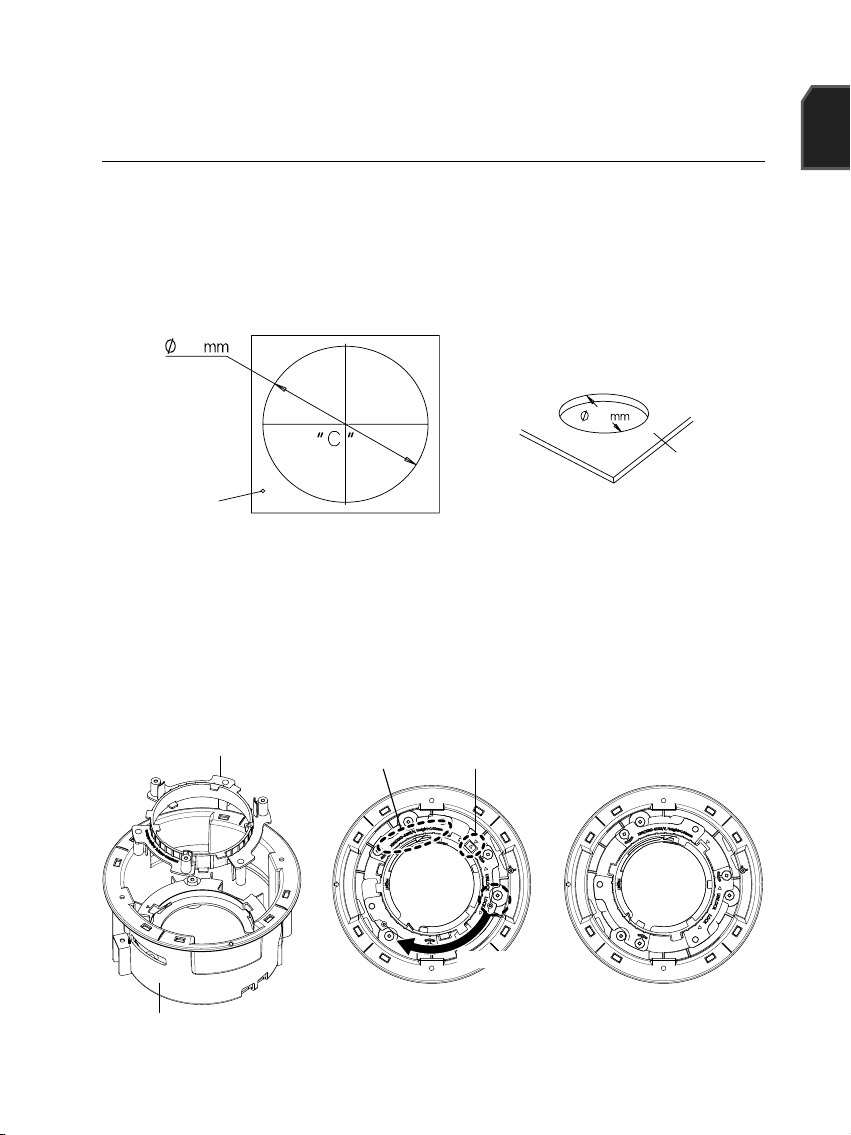

1. Place the TEMPLATE on the CEILING BOARD and drill a guided hole.
1 Remove the round filling (“C”) from the TEMPLATE.
2 Place TEMPLATE A onto the CEILING BOARD to which you will attach the ceiling
mount ADAPTOR and drill a hole of Ø213mm in diameter.
See the figure below for the hole shape.
More than 250mm
CEILING BOARD Less than 40mm
213
213
TEMPLATE
CEILING BOARD
English _5
ENG

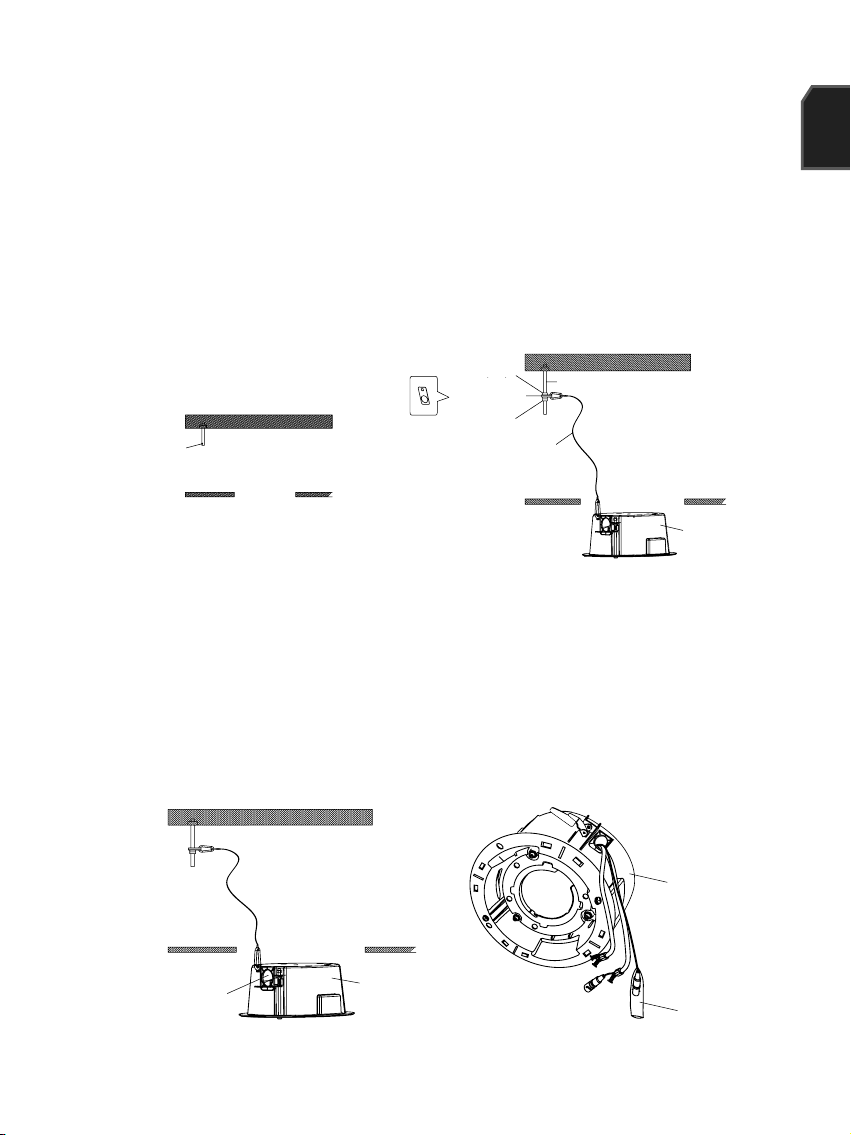

2. Fix the ANCHOR BOLT onto the concrete CEILING, and secure the SAFETY WIRE to
the ANCHOR BOLT as below:
1 Tighten the nut (“N1”) on the ANCHOR BOLT.
2 Insert the provided SAFETY BRACKET into the ANCHOR BOLT.
3 Tighten two nuts (“N2”,”N3”) onto the ANCHOR BOLT.
4 Hook and fix one end of the SAFETY WIRE onto the SAFETY BRACKET.
5 Hook and fix the other end of SAFETY WIRE onto the HOUSING as shown below.
3. To connect to the camera, insert the external cable through the side hole on the housing
to the inside of the housing as shown in the figure.
M
`Refer to the installation manual of the camera that you want to install, and prepare necessary
cables for camera connection.
The ANCHOR BOLTs and nuts are optional and not included in the product package.
ANCHOR BOLT
Nut (N1)
Safety BRACKET
Nut (N2,N3)
SAFETY WIRE
ANCHOR BOLT
HOUSING
CEILING
CEILING
CEILING
Hole HOUSING
HOUSING
External Cable
6_ English

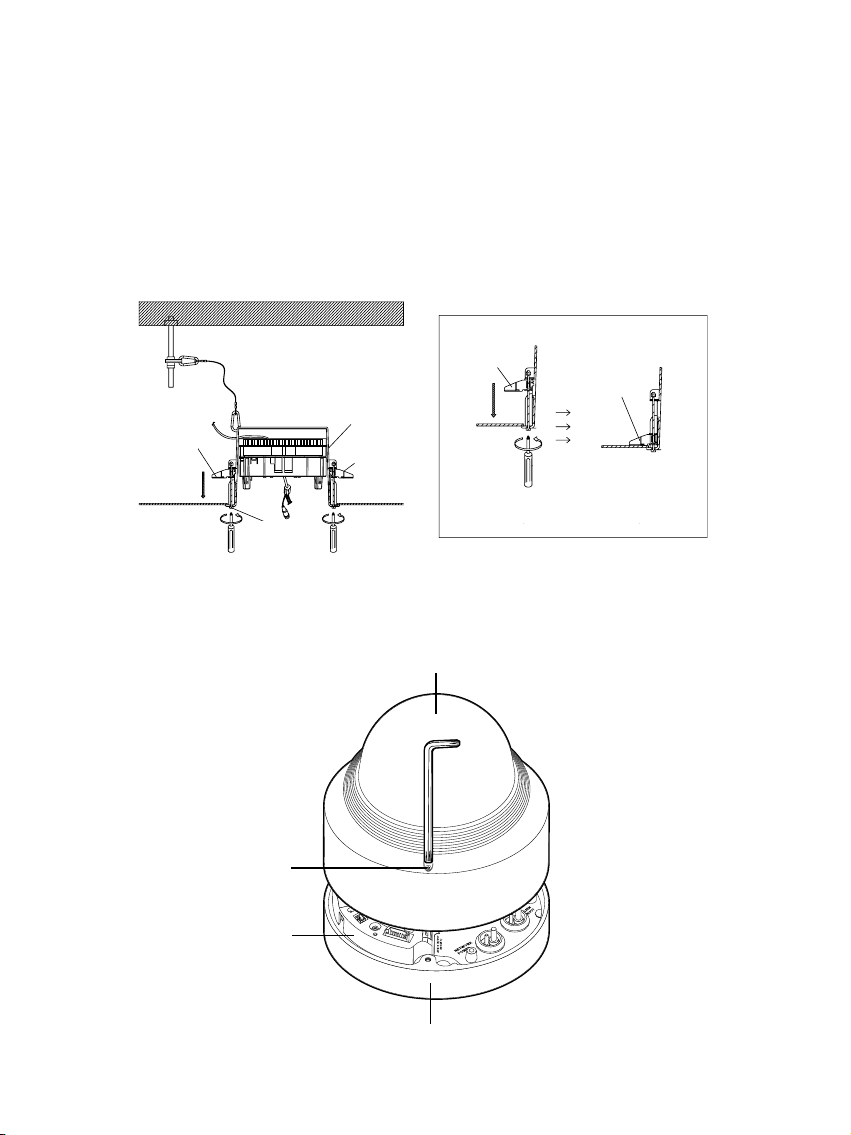

4. Push the HOUSING inside the CEILING through the CEILING hole, and tighten the
SCREWs (x2) clockwise to fix the HOUSING on the CEILING.
(The BRACKET will be positioned from <A> to <B> as shown.)
M
`Ensure that the HOUSING is firmly secured to the CEILING BOARD.
5. Remove the dome cover after loosening the three bolts by turning them
counterclockwise using an L wrench.
BRACKET
SCREW
Turn clockwise
HOUSING
BRACKET
BRACKET
BRACKET
<A> <B>
VIDEO
DC 12VDC 12V
RESET
ALARM IN/OUT
1
2
USB
Bolts for connection
Dome cover
Camera case
Camera body
English _7
ENG
6. Remove the safety wire that is connected to the dome cover and camera body, and
connect it inside of the dome cover as shown in the picture.
7. Connect the required cable to the terminal on the camera. Please refer to the installation
guide for details on camera installation.
J
`Connect and organize the cable to ensure that it is not damaged or trapped when the PTZ rotation
part is rotated.
PURPLE: ALM_IN
BLACK: GND
GRAY:ALM_NO
YELLOW: ALM_NC
BLUE: ALM_COM
VIDEO
DC12VDC12V
RESET
ALARM IN/OUT
1
2
PURPLE: ALM_IN
BLACK: GND
GRAY:ALM_NO
YELLOW: ALM_NC
BLUE: ALM_COM
USB
USB
VIDEO
DC 12VDC 12V
RESET
ALARM IN/OUT
1
2
USB
Driver Camera body
Safety wireDome cover
DriverSafety wire
Dome cover
➔
8_ English

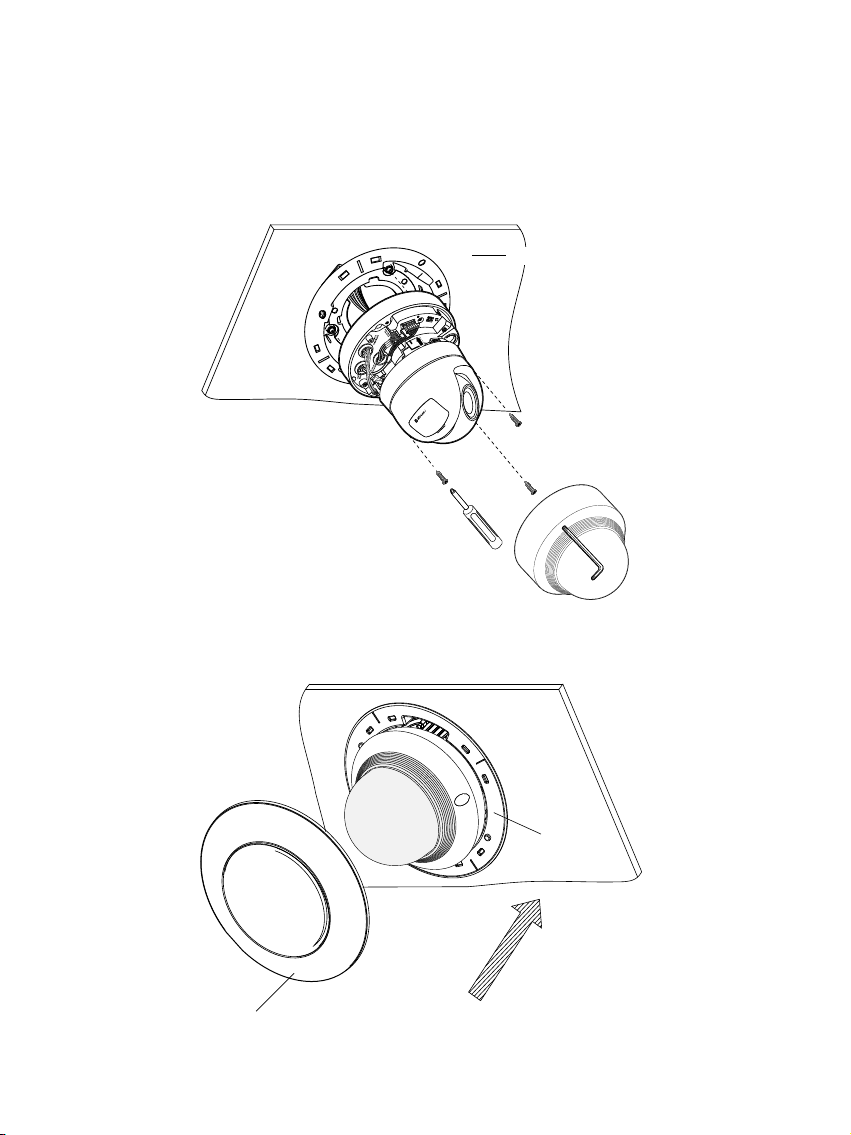

8. Connect the camera to the bracket placed in the housing using the screws (3 EA).
Reconnect the cover by turning the three bolts on the dome cover clockwise using the L wrench.
VIDEO
DC12VDC12V
RESET
ALARM IN/OUT
1
2
USB
USB
CEILING HOUSING
9. Attach the COVER to the HOUSING.
HOUSING
COVER
English _9
ENG
HOW TO INSTALL (XNV-6120 SERIES/
XNV-6085 SERIES)
1. Place the TEMPLATE on the CEILING BOARD and drill a guided hole.
1 Remove the round filling (“C”) from the TEMPLATE.
2 Place the TEMPLATE A onto the CEILING BOARD to which you will attach the
CEILING mount ADAPTOR and drill a Ø213mm hole.
See the figure below for the hole shape.
2. Insert the lower bracket into the housing and turn it in the [LOCK] direction to fix it.
Check the model name in the lower bracket and mount it on the surface corresponding to the model.
If the LOCKING structure is locked in as shown in the image, it is fixed.
J
`Be sure to check whether LOCKING is in normal state and not being rotated in the opposite
direction.
213
213
CEILING BOARD
TEMPLATE
Fixed state
Housing
Lower bracket Align it in the
arrow direction
Check the
model name
Rotation
10_ English
3. Fix the ANCHOR BOLT onto the concrete CEILING, and secure the SAFETY WIRE to
the ANCHOR BOLT as below:
1 Tighten the NUT (“N1”) on the ANCHOR BOLT.
2 Insert the provided SAFETY BRACKET into the ANCHOR BOLT.
3 Tighten two NUTs (“N2”,”N3”) onto the ANCHOR BOLT.
4 Hook and fix one end of the SAFETY WIRE onto the SAFETY BRACKET.
5 Hook and fix the other end of SAFETY WIRE onto the HOUSING as shown below:
The ANCHOR BOLTs and nuts are optional and not included in the product package.
ANCHOR BOLT
CEILING
Nut (N1)
Safety BRACKET
Nut (N2,N3)
SAFETY WIRE
ANCHOR BOLT
HOUSING
CEILING
