TNO-3010T/TNO-3020T/TNO-3030T/

TNO-3040T/TNO-3050T

THERMAL

NETWORK CAMERA

Quick Guide

2

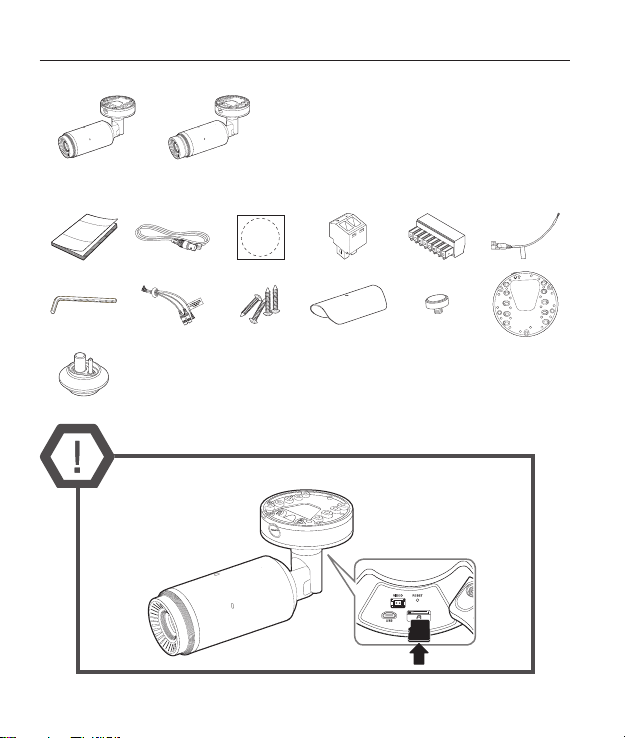

COMPONENT

As for each sales country, accessories are not the same.

TNO-3010T/ TNO-3020T/

TNO-3030T/ TNO-3040T TNO-3050T

CAUTION: Be ware of th e

RatedVol tage and Po larity

ofthe pow er connec tion.

CONDUIT

~Not Included : SD CARD

12345678

1:LINE IN

2:GND

3:AUDIO OUT R

4:AUDIO OUT L

5:GND

6:ALARM IN

7:ALARM OUT

8:ALARM OUT2

INSTALLATION

3

INSTALLATION

4

1

2

CONDUIT

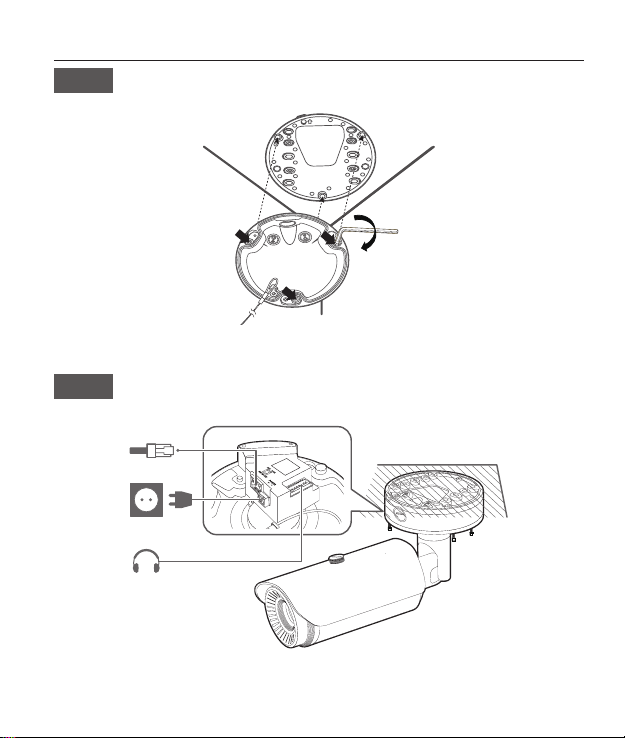

INSTALLATION

5

3

4

CONDUIT

12345678

1:LINE IN

2:GND

3:AUDIO OUT R

4:AUDIO OUT L

5:GND

6:ALARM IN

7:ALARM OUT

8:ALARM OUT2

INSTALLATION

6

6

Installation

5

~Not Included : WiFi dongle, OTG adapter

micro USB

OR

INSTALLATION

7

7

INSTALLATION

8

8

INSTALLATION

9

9

10

10

English

PASSWORD SETTING

When you access the product for the first time, you

must register the login password.

J

`For a new password with 8 to 9 digits, you

must use at least 3 of the following: uppercase/

lowercase letters, numbers and special

characters. For a password with 10 to 15

digits, you must use at least 2 types of those

mentioned.

-Special characters that are allowed. :

~`!@#$%^*()_-+=|{}[].?/

`For higher security, you are not recommended

to repeat the same characters or consecutive

keyboard inputs for your passwords.

`If you lost your password, you can press the

[RESET] button to initialize the product. So,

don’t lose your password by using a memo pad

or memorizing it.

LOGIN

Whenever you access the camera, the login

window appears.

Enter the User ID and password to access the

camera.

aEnter “admin” in the <User Name> input

box.

bEnter the password in the <Password>

input field.

cClick [OK].

CONNECTING TO WiFi

Camera setting

aConnect OTG adapter (5-pin) and WiFi

dongle to the micro USB terminal.

Smartphone setting

aInstall the Wisenet Installation application.

bSelect the camera SSID after turning on

the WiFi.

cRun the Wisenet Installation application.

dWhen you log in to the camera, the video

will be connected.

`The video will be played without being logged in

during the initial connection.

eYou can adjust angle of view while

watching the video through smartphone.
