Winix ZERO-N Manual de usuario

ˍPlease read and follow all safety rules and instructions

in this manual before operating.

ˍThe product warranty is printed on the back of this

guide, so please keep it in a safe place for future use.

WINIX AIR PURIFIER

ZERO-N (AZNU230-HWE)

User Manual

Model

Use & Care

Guide

ZERO-N.indb 1 2018-04-26 오후 5:38:44



ZERO-NEnglish

CONTENTS

▶This product is suitable for 220 - 240V~, 50/60Hz only.

3-STAGE AIR PURIFICATION3

CONTROLS4

WHERE TO USE5

INSTALLING FILTERS6

SAFETY AND CAUTIONS10

INITIAL OPERATION11

AUTO & SLEEP12

MANUAL & AIR QUALITY INDICATOR13

FILTER CARE14

PARTICLE SENSOR CARE16

CLEANING CARE17

FREQUENTLY ASKED QUESTIONS18

UNIT SPECIFICATIONS20

PRODUCT WARRANTY 21

French 23

Spanish 45

German 67

Italian  89

Dutch111

Polish133

ZERO-N.indb 2 2018-04-26 오후 5:38:44



English ZERO-N

3-STAGE AIR PURIFICATION

Power cord with plug

(This product is suitable

for 220V ~ 240V only.)

Light sensor

Control Panel

/ Display Panel

Particle sensor

True HEPA lter

Carbon lter

1Fabric Pre-lter

User Manual

ㆍPleaseread and follow all safety rules and instructions

inthis manual before operating.

ㆍTheproduct warranty is printed on the back of this

guide,so please keep it in a safe place for future use.

WINIX AIR PURIFIER

ZERO-N (AZNU230-HWE)

UserManual

Model

Use&Care

Guide

Unit (2) Fabric Pre-lter

(4) Carbon Filter

(1) True HEPA Filter

ZERO-N.indb 3 2018-04-26 오후 5:38:46



English ZERO-N

CONTROLS

Air

Outlet

Vent

4 5 6

1 2

① Fan Speed Indicator

Indicates the current fan speed.

② Change Filter Indicator

LED light indicates when it is time to change the filter.

③ Reset Button

After replacing a filter, press the RESET button for at least 5 seconds.

④ Air Quality Indicator

Color-coded LED indicates one of three levels of air quality.

⑤ Power Button

Turns the unit on or off .

⑥ Fan Speed Button (UP/DOWN)

Enables Manual operation of the unit. Press to cycle through and set the desired

fan speed (Low, Medium, High).

⑦ Light Sensor

Detects the amount of ambient light within the environment, to adjust the

brightness of the LED indicators.

ZERO-N.indb 4 2018-04-26 오후 5:38:47



English ZERO-N

WHERE TO USE

Allow 30 - 45cm. of space between TVs, radios, and other electronic products

electromagnetic interference from certain electronics may cause product malfunction.

Place indoors away from direct sun light

direct exposure may cause product malfunction or failure.

Only place on hard, flat surfaces

flimsy or slanted surfaces may result in abnormal noise and vibrations.

30~45 cm 10 cm

WARNING Follow these instructions to reduce the risk of serious injury

or death and to reduce risk of damaging the unit.

Do not use around mist or fumes from

industrial oil or around large quantities of

metallic dust.

Do not place around heating elements.

Do not install in any sort of motor or

transport vehicle (trucks, boats, ships, etc).

Do not place in an area with excessive

amounts of noxious gases.

Do not place near any flammable

materials (aerosols, fuel, gases etc).

Do not have unit facing into wind or draft.

Do not place below any electrical outlet. Do not place in excessively humid areas

where unit may become wet.

※This unit is not intended to be used to preserve documents or in art conservation.

ZERO-N.indb 5 2018-04-26 오후 5:38:47



English ZERO-N

This product comes with all required filters. The protective plastic wrap must be

removed from the filter before use.

※Operating the unit without removing the plastic wrap may result in product

failure.

※Unplug and make sure the unit is turned off before installing filter.

① Remove the front panel by pressing down

on both edges of the front and gently

pulling it toward the front.

② Press on the Pre-filter tabs near the top of

the filter, release and remove.

③ Remove the carbon filter from the filter case.

INSTALLING FILTERS

ZERO-N.indb 6 2018-04-26 오후 5:38:50



English ZERO-N

INSTALLING FILTERS

④ Remove filters from protective plastic wrap.

ˍOperating the unit without removing

filters from plastic wrap may cause

abnormal noise, deformation, or fire as a

result of overheating.

⑤ After removing the packing vinyl of the

filter, insert the carbon filter into the filter

case.

⑥ Pull out the True HEPA filter.

⑦ Remove the filter case, then remove the

True HEPA filter.

ZERO-N.indb 7 2018-04-26 오후 5:38:51



English ZERO-N

INSTALLING FILTERS

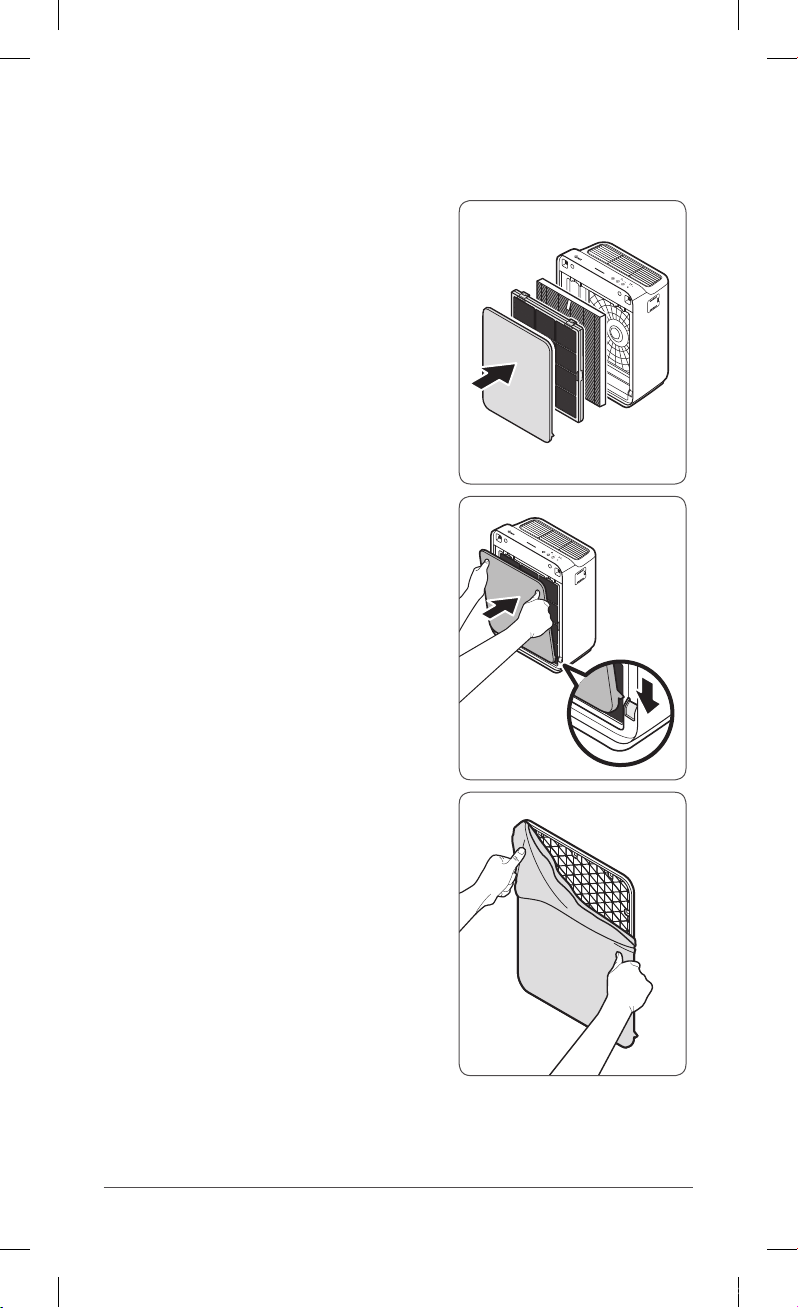

⑧ Ture HEPA filter →Filter case in order,

pushing it in close to the back of the

product.

⑨ After inserting both ends of the fabric pre

filter, press both sides of the top to close it.

⑩ Remove the fabric pre filter that is fastened

to the front panel.

ˍThe fabric pre filter is secured by the

12 hooks on the back of the front panel.

ZERO-N.indb 8 2018-04-26 오후 5:38:54



English ZERO-N

INSTALLING FILTERS

When to service and replace filter:

Filter Indicator Light When to

service When to replace

1 Fabric filter none Clean once every

14days Permanent

2 Carbon filter none

Can NOT be

WASHED

Replace every

3 months

3 True HEPA filter Lasts up to

6~12 months

※Intervals between filter replacement may vary depending on environment.

※For optimal use, Fabric filter can be cleaned once every 14days which can

extend the life of other filters.

To purchase replacement

Winix filters:

contact your local dealer

Filter R:

Carbon filter and Ture HEPA filter

this unit

is compatible

with this

ﬁlter

FILTER

item : 1712-0088-00

ZERO-N.indb 9 2018-04-26 오후 5:38:54



English ZERO-N

SAFETY AND CAUTIONS

Before operating this equipment, carefully read and follow these safety cautions

Ensure filters are inserted before running unit

running unit without filters can shorten the units life and cause electric shock or injury.

Be sure foreign objects are NOT inserted into the vents on the unit

objects can include pins, rods, and coins.

Do not touch any part of the interior of the unit with wet hands

the high voltage may cause electric shock.

Ensure unit intake and outlet vents do not become blocked

blockage may lead to increased internal termperatures causing product failure and

derformation.

Do not use the unit as a step stool or place heavy objects on it

personal injury may occur or product failure and deformation.

WARNING Follow these instructions to reduce the risk of serious

injury or death and to reduce risk of damaging the unit.

Do not pull on the power cord when

unplugging the unit

Do not tie or knot power cord when unit

is in operation

If the unit becomes submerged in water,

unplug it and contact customer service

Do not unplug or move the unit while in

operation

Do not plug additional appliances into

the same outlet or power supply

Do not touch the plug with wet hands

Unplug unit when not in operation for

extended periods of time

Cord can become damaged by forcefully

bending, pulling, twisting, bundling,

pinching or placing heavy objects on it

Do not allow foreign objects such as

pins, rods and coins to be inserted into

the vents on the unit.

※If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

※This appliance is not intended for use by a person (including children) with reduced

physical sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by

a person responsible for their safety.

※Children should be supervised to ensure that they do not play with the appliance.

ZERO-N.indb 10 2018-04-26 오후 5:38:54
