Wildgame C8B5 Manual de usuario

Invisible Infrared Digital

Cellular Scouting Camera

User’s Manual Model # c8b5

Includes

USB Cable 2 - Bungee Cords User Manual

Flextime Player

Software

Camera Unit Antenna

NOTE: Flextime Player Software is optional. Flextime files can

be played by using most media players

page 1

RESOLUTION

FLASH

FLASH RANGE

SENSOR

SENSOR RANGE

IMAGE FORMAT

MEMORY

USB

IMAGE RESOLUTION

POWER SUPPLY

AUXILIARY POWER

ONBOARD POWER

HOUSING

MOUNTING

CELLULAR TYPE

SIM CARD

MAX: 8 MP

60 High Intensity Invisible IR LED’s

up to 70 feet

Passive Infrared Sensor (PIR) Motion and Heat

up to 60 feet

JPEG - Digital Still / AVI - Digital Video

up to 32GB SD Card (not included and required)

Class 4 and above recommended

5-PIN Mini USB style - included

High (8MP)

Medium (6MP)

Low (4MP)

4 D batteries (not included and required)

Alkaline recommended

External power port

Capacitor to retain Time and Settings

Weather resistant with rubber gaskets

2 Bungee cords - included

2G(GSM) and 3G(WCDMA), CDMA and CDMA2000 not supported

Mini-SIM (2FF) required

Note: Battery life will vary depending on camera settings as well as environ-

mental conditions. Camera settings such as shorter delay periods or even using

Flextime mode are examples of settings that can reduce overall battery life.

Environmental conditions such as extreme cold can also influence battery life.

page 2

Features

Setup

With the camera facing up, open

the battery compartment at the

bottom of the camera by turning

them to the left.

With the bottom of the camera

towards you, load 2 D batteries

with the positive ends towards you

in each chamber.

Close battery compartment cover

by turning them to the right.

Open the door at the bottom of

the camera by unlatching the

locking tabs.

page 3

NOTE:

Do not mix old and new batteries. Do not mix

alkaline, standard (carbon-zinc) or rechargable

(ni-cad, ni-mh, etc.) batteries.

To attach the antenna, place the

bottom of the antenna into the

screw hole at the top of the

camera. Then turn the antenna

clockwise until it is secure. Do

not over tighten.

5. Load SD memory card (up to 32GB

not included) into the SD card slot

with the connectors facing down.

Load Mini-SIM (2FF) card into the

SIM card slot with the connectors

facing down.

IMPORTANT:

Make sure the camera is powered off before

removing or installing an SD card.

If you are using an SD card from other cameras,

please make sure to format the SD card in your

computer prior to use in your camera. New cards are

ok to use straight from the package.

page 4

Power On

Check the battery level icon to

ensure the batteries just installed

contain the proper charge level. If

so, you are ok to proceed with

camera use.

Note: When Powered on or Woken

up, the camera takes 5-10

seconds to check SIM card and/or

Network settings. The buttons

are locked during this period.

To turn the unit ON, press and

release the power button.

page 5

Test Mode

PIR LED Status Light: During the

first 2 minutes of Ready Mode, the

red light will illuminate when a

PIR event is triggered. The red

light will blink for 2-3 seconds

when photo is taken during this

first 2 minutes. After 2 minutes

all indicator lights will turn off

until a button is pressed.

1. LCD Ready Mode: The camera will

automatically enter Ready Mode if

a button is not pressed for greater

than 30 seconds. The status lights

will illuminate for a total of 2

minutes.

Power Save Date/Time

1. To change Date & Time, enter

MENU and press the UP,DN,L or R

buttons to navigate to the DATE &

TIME icon and press OK.

2. Press the UP or DN navigation

button to go up or down in

sequence. Press L or R to move to

the next digit.

3. When the Time & Date are set,

press OK to save and press OK

again to go back to the MENU.

page 6

After 30 seconds without any

buttons being pushed, the LCD

will turn off and camera enters

into Power Save or Ready Mode.

The LCD screen can be awakened

by pressing the Power button

briefly.

Note: The LCD will not “wake up” when

camera is writing to memory.

ACTIVE TIME

LOCATION TRIGGER

DELAY

PIR SENSITIVITY FLEXTIME

™

DATE & TIME

PLAY BACK

IMAGE TYPE

VIEW ASSIST

DATE & TIME

__:__

__/__/__

TIME/DATE

MONTH DAY YEAR

BACK

11 01 12

200

__:__

__/__/__

TIME/DATE

MONTH DAY YEAR

BACK

11 01 12

200

page 7

Location

1. To change Location, enter MENU

and press the UP,DN,L or R

buttons to navigate to the LOCA-

TION icon and press OK.

2.Press the UP or DN navigation

button to go up or down in

sequence. Press L or R to move to

the next digit.

3.When the Location is set, press

OK to save and press OK again to

go back to the MENU.

BACK

ACTIVE TIME

LOCATION TRIGGER

DELAY

PIR SENSITIVITY FLEXTIME

™

DATE & TIME

PLAY BACK

IMAGE TYPE

VIEW ASSIST

LOCATION

BACK

LOCATION

________

BACK

LOCATION

________

ABCD

Image Type:Still

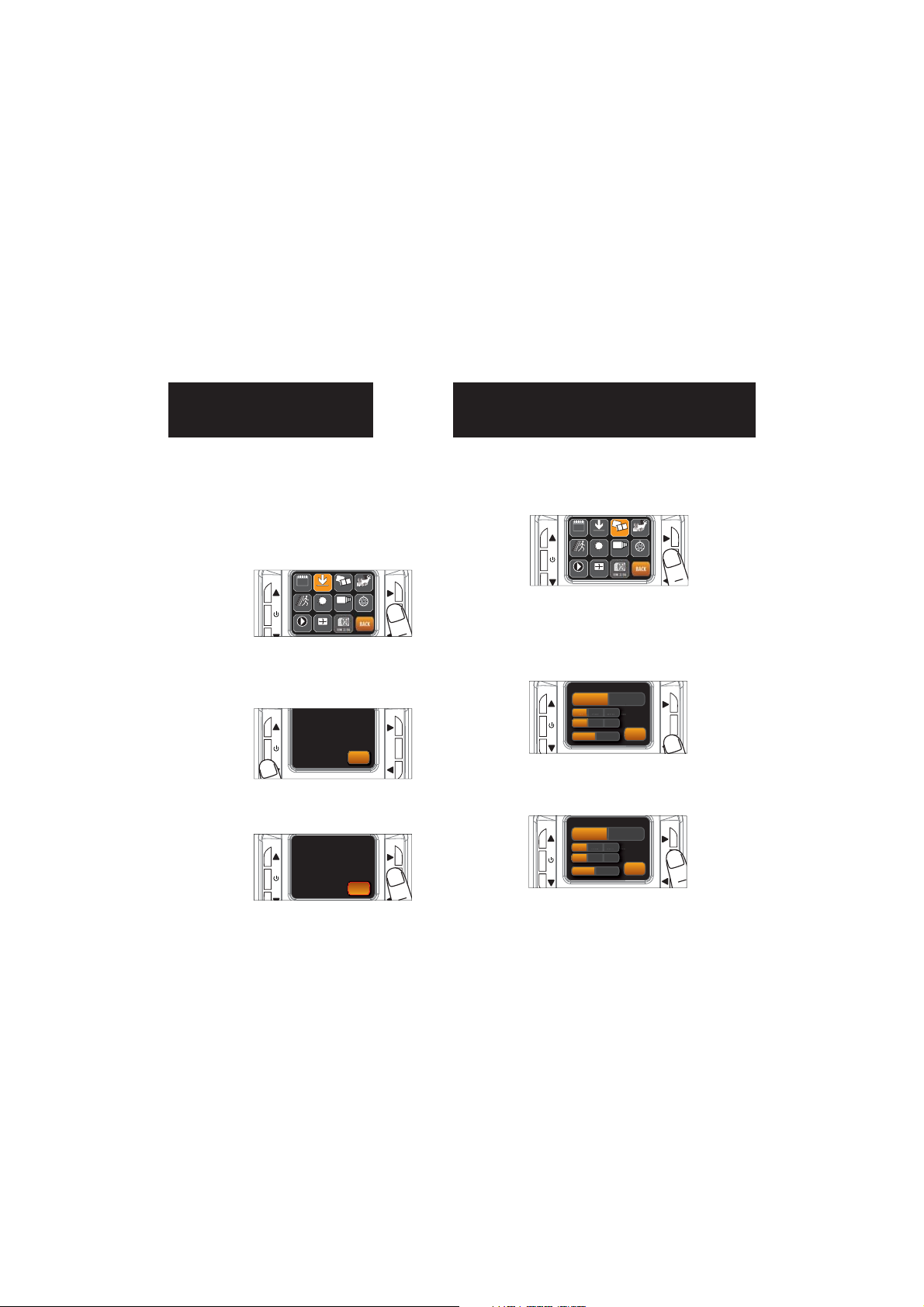

1. To change Image Type, enter

MENU and press the UP,DN,L or R

buttons to navigate to the Image

Type icon and press OK.

Press the L, R button to select STILL

and press OK. Then select the Resolu-

tion and press OK. Select the

Exposure and press OK. Then select

the aspect and press OK.

3. When the Image Type is set, press

OK to save and press OK again to

go back to the MENU.

BACK

ACTIVE TIME

LOCATION TRIGGER

DELAY

PIR SENSITIVITY FLEXTIME

™

DATE & TIME

PLAY BACK

IMAGE TYPE

VIEW ASSIST

IMAGE TYPE

BACK

STILL VIDEO

HI MED LOW

REGULAR WIDE ANGLE

RESOLUTION

HI MED LOW EXP CONTROL

IMAGE TYPE

Save the location of the area the camera was

installed. This is for your reference and is

optional. If you do not wish to name your

location skip to the next step.

BACK

STILL VIDEO

HI MED LOW

REGULAR WIDE ANGLE

RESOLUTION

HI MED LOW EXP CONTROL

IMAGE TYPE

Trigger

page 8

TRIGGER:

PIR MODE: Takes a photo or video only when

the PIR sensor is triggered.

FLEXTIME (Time Lapse): Takes time lapse

images at set intervals during the key

movement periods of the day, depending on

your Flextime settings.

BOTH: Both PIR and Flextime are active.

This setting allows you to choose the mode in

which the camera will be capturing images.

1. To change Trigger, enter MENU

and press the UP,DN,L or R

buttons to navigate to the Trigger

icon and press OK.

2.Press the L, R button to select

Trigger Mode. Then select the OK

to save. If PIR is selected press OK

again to go back to the MENU.

Image Type:Video

1. To change Image Type, enter

MENU and press the UP,DN,L or R

buttons to navigate to the Image

Type icon and press OK.

2. Press the L, R button to select

VIDEO and press OK. Then select

the Resolution and press OK. Then

select the length and press OK.

3. When the Image Type is set, press

OK to save and press OK again to

go back to the MENU.

BACK

ACTIVE TIME

LOCATION TRIGGER

DELAY

PIR SENSITIVITY FLEXTIME

™

DATE & TIME

PLAY BACK

IMAGE TYPE

VIEW ASSIST

IMAGE TYPE

BACK

STILL VIDEO

HD REGULAR

15s 30s 1m 2m VIDEO LENGTH

IMAGE TYPE

BACK

STILL VIDEO

HD REGULAR

15s 30s 1m 2m VIDEO LENGTH

IMAGE TYPE

BACK

ACTIVE TIME

LOCATION TRIGGER

DELAY

PIR SENSITIVITY FLEXTIME

™

DATE & TIME

PLAY BACK

IMAGE TYPE

VIEW ASSIST

TRIGGER

BACK

PIR FlexTime BOTH

TRIGGER

PIR ACTIVE:

24 HR: The PIR can be active at all times.

DAY: The PIR can be active in daylight

hours only.

NIGHT: The PIR can be active in

nighttime hours only.

page 9

PIR Sensitivity

1. To change PIR Sensitivity, enter

MENU and press the UP,DN,L or

R buttons to navigate to the PIR

Sensitivity icon and press OK.

2. Press the L, R button to select

the sensitivity and press OK to

save. Then press OK again to go

back to the MENU.

PIR SENSE:

HI: The PIR detects the smallest

movement.

MED: (Default) The PIR detects most

common size movements.

LOW: The PIR detects only larger

movements.

BACK

ACTIVE TIME

LOCATION TRIGGER

DELAY

PIR SENSITIVITY FLEXTIME

™

DATE & TIME

PLAY BACK

IMAGE TYPE

VIEW ASSIST

BACK

HI MED LOW

PIR SENSITIVITY

Active Time

1. To change the Active Time, enter

MENU and press the UP,DN,L or R

buttons to navigate to the Active

Time icon and press OK.

2. Press the L, R button to select the

active time and press OK to save.

Then press OK again to go back to

the MENU.

BACK

ACTIVE TIME

LOCATION TRIGGER

DELAY

PIR SENSITIVITY FLEXTIME

™

DATE & TIME

PLAY BACK

IMAGE TYPE

VIEW ASSIST

BACK

24 HR DAY NIGHT

ACTIVE TIME

PIR SENSITIVITY ACTIVE TIME
