Wild Land Drivers Lite Cruiser Manual de usuario
QZ2023V01
Lite Cruiser Roof Top Tent
Carpa plegable de Lite Cruiser
Lite Cruiser Faltdachzelt
Tente de toit Lite Cruiser
경주 접이식 천장 텐트
轻舟折叠车顶帐篷
EN
CN
ES
DE
FR
JP
KR
ボート折り畳み式ルーフテント
CONTENTS
Products Brief Instruction:
1.Product Brief Instruction---------------------1
2.Product Specification-------------------------1
3.Product Frame---------------------------------1
Installation
1.Installing Your Roof Tent---------------------2
2.Setting up----------------------------------------4
3.Folding down------------------------------------6

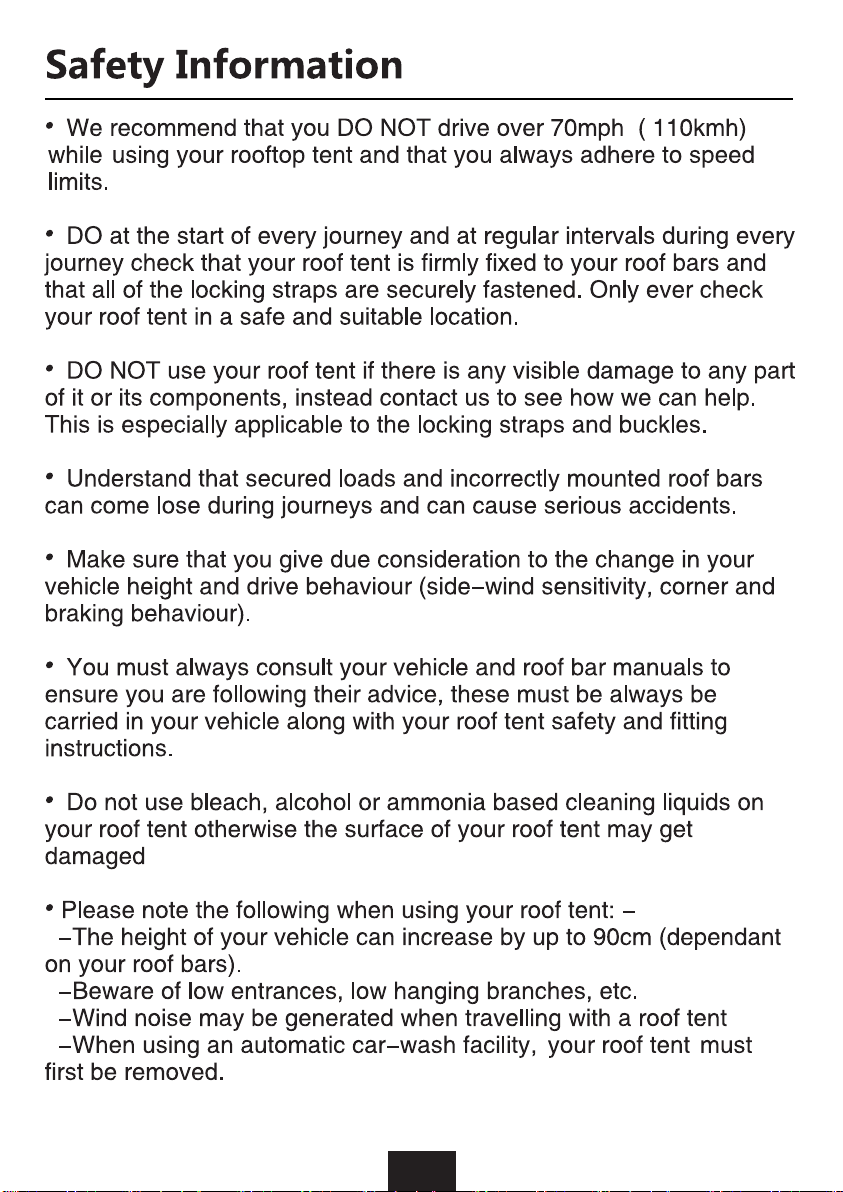

Safety Infomation---------------------------------8
Before using this product, please follow the
instruction manual to ensure proper use.
U shaped pole
Base
U shaped pole
U shaped pole
Front door
telescopic pole
Structure:
Size 120
Inner tent size: 212x125x95cm
Pack size: 137x121x37cm
Net weight: 35kg for the tent, 6.5kg for ladder
Gross weight: 50kg
This Lite Cruiser roof tent could be set up easily by 1 person, set up and fold down in seconds by telescopic
ladder. keep you safe and comfortable, enjoy the outdoors where your vehicles arrive in different weather.
3” foam mattress provides comfortable sleep exerience
Cover: Durable 600D oxford with PVC coating, PU5000mm
Durable 600D rip-stop oxford PU2000mm

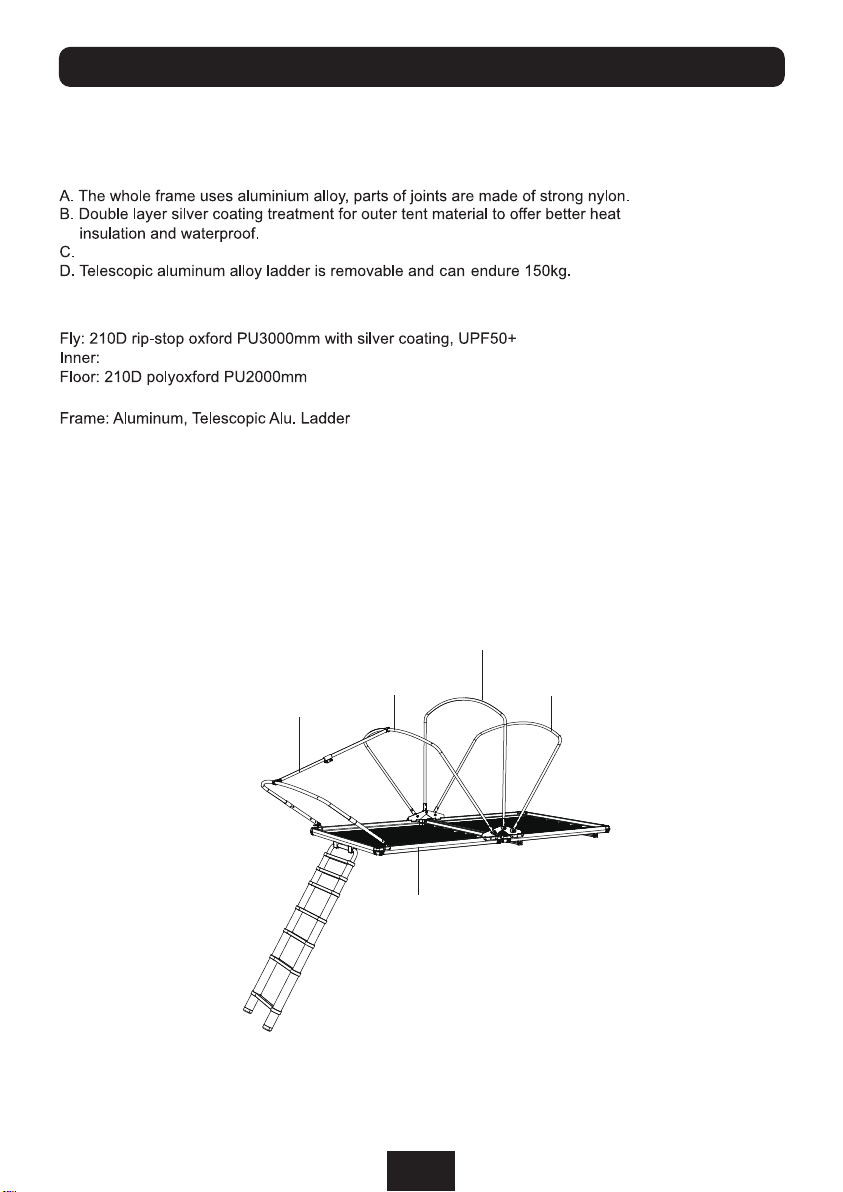

Products brief instruction:
Products specification:
Material:
Product frame:
-1-
EN
Easy handling, by simply pulling & pushing the ladder, the tent can be set up and folded down in
few second.
Main properties and characteristics
P3

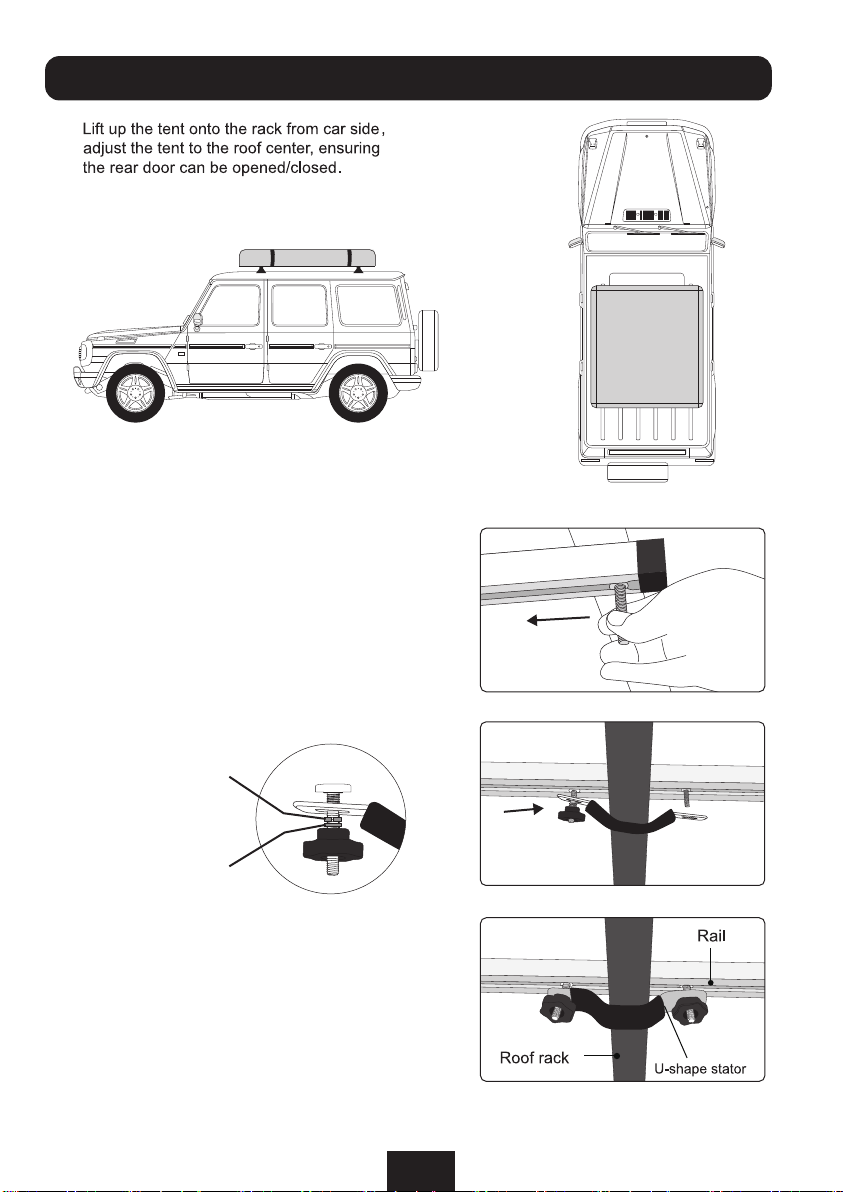

Installation:
⑥Slide T shape bolts into the middle hole of rail,
with U-Shape Stator, M8 Arc Washer, M8 Flat
Washer, and Plastic Nut lightly screwed in
advance.(as P2)
⑦Screw the other side of U Shaped Stator with
component in order as above, and ensure Stator
tightened(as P3, same operation for rest).
⑤Slide the T shape bolts into the rails from
two sides(as P1).
M8 Arc Washer
M8 Flat Washer
④
P1
P2
-2-
EN

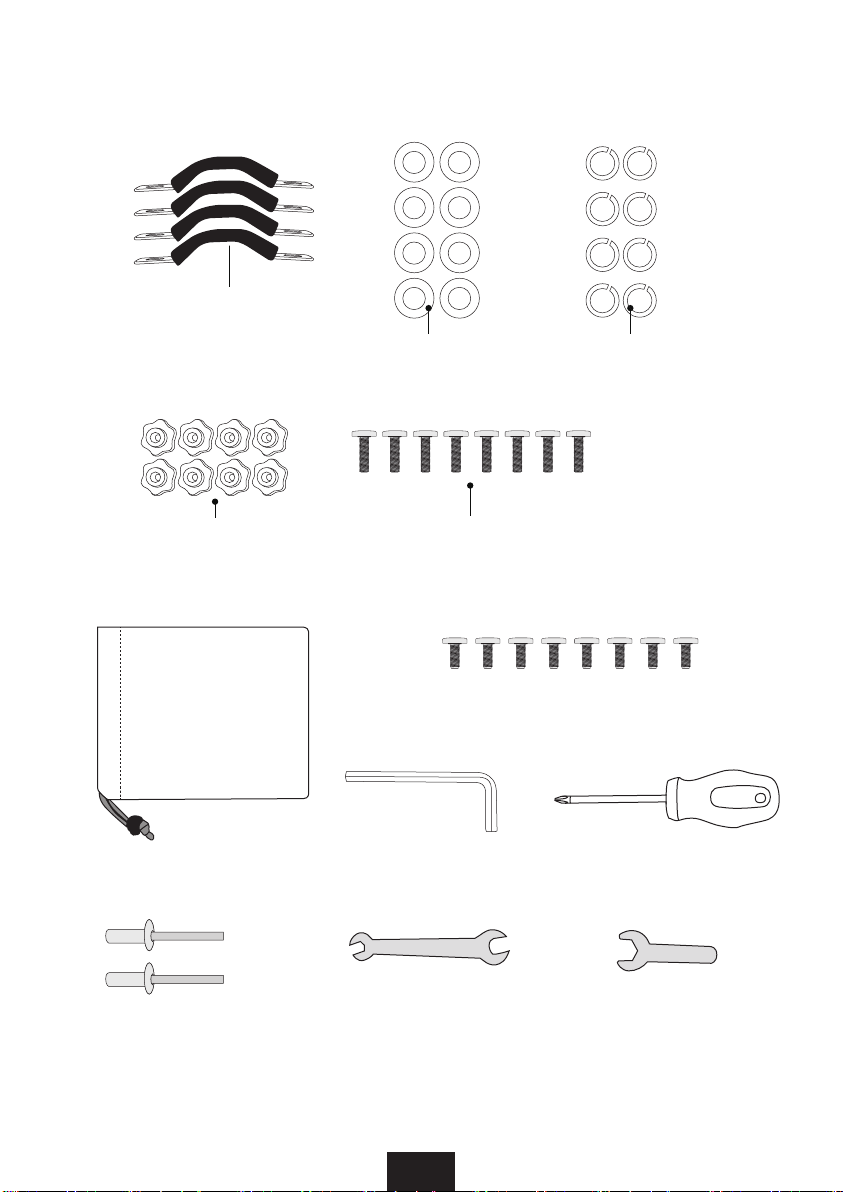

Cross Screwdriver(1pc)
INCLUDED TOOLS:
Tool Bag 6mm Hex Key(1pc)
Aluminum Rivet(2pcs)
U Shape Stator(4pcs)
M8 Flat Washer(8pcs) M8 Arc Washer(8pcs)
Plastic Nut(8pcs) T shape bolts(8pcs)
-3-
EN
8-10mm open end wrench(1pc) 14mm open end wrench(1pc)
M8*35mm
T shape bolts(8pcs)

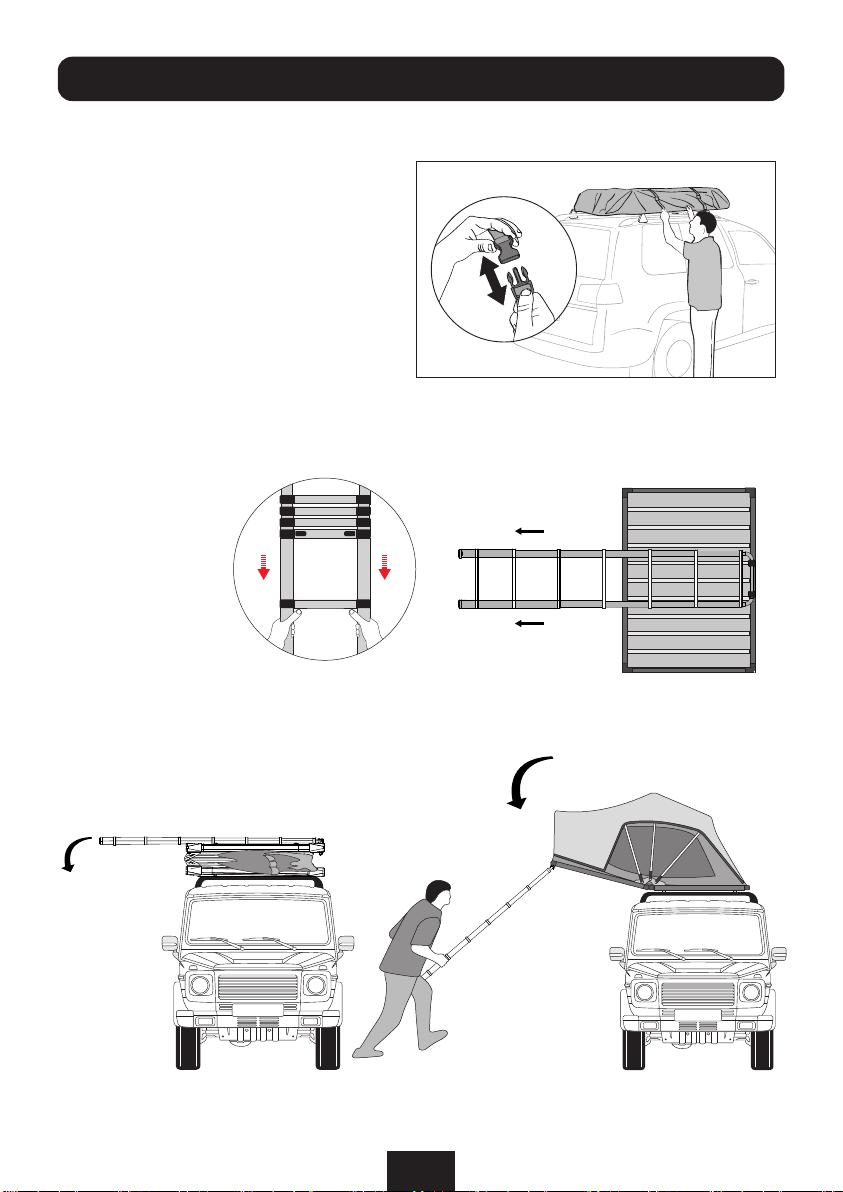

Setting up:
①Release all buckles around the
cover then remove it.
②Release the buckle of ladder,
then fully extend the ladder.
③Hold the bottom of the ladder
as a lever to press down and turn
over the tent, then adjust the
length of ladder.
-4-
EN
Setting up:
④Press the porch buttons on both
sides, pull out the telescopic pole
on two sides of the porch.
⑤Lock the pole inside the top of
porch, then set up finished.
-5-
EN
Press

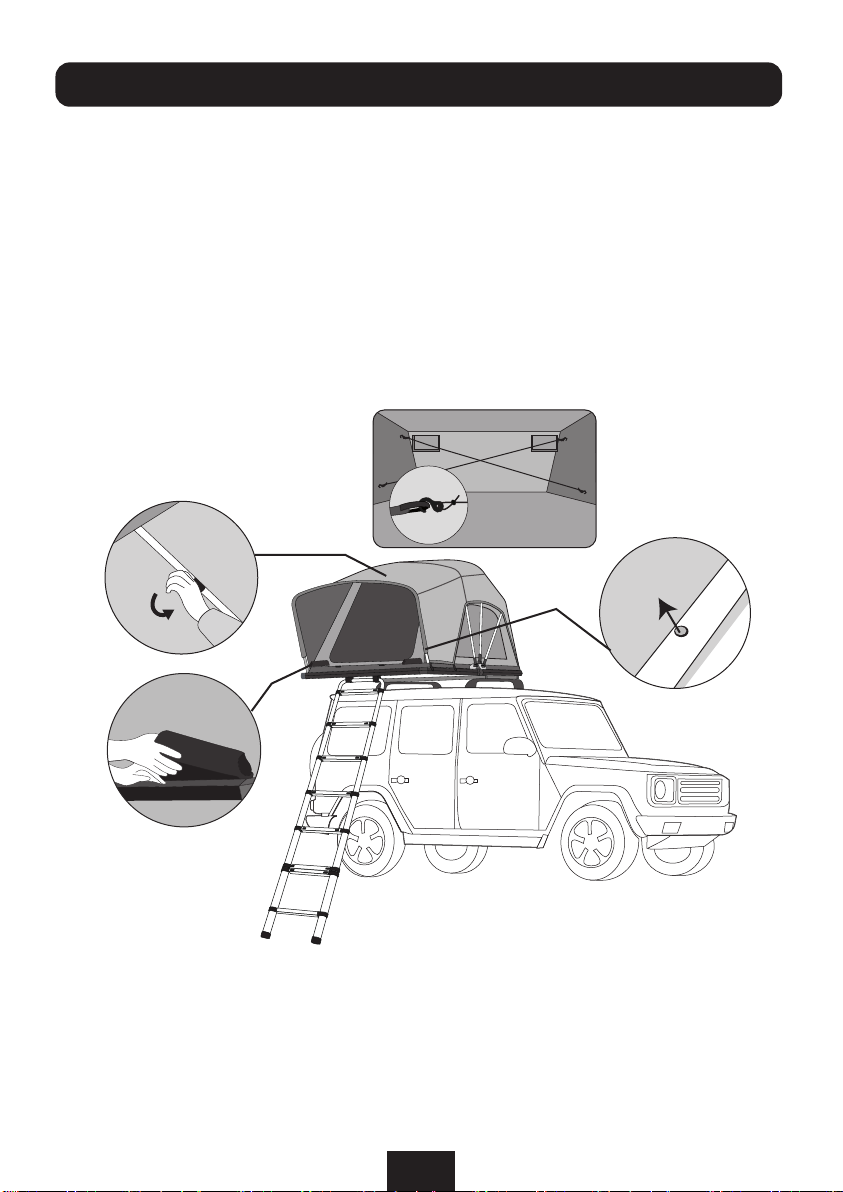

Folding down:
②
① Close all windows. Hook the elastic ropes inside the tent(as P1).
Unlock the pole inside the top of porch(as P2). Zip up the front door to
two thirds position. Then push down the porch.
Press the button on two sides of porch to shorten the front door
telescopic pole(as P3). Tuck shoes bags(as P4).
-6-
EN
Press
P1
P2
P3
P4

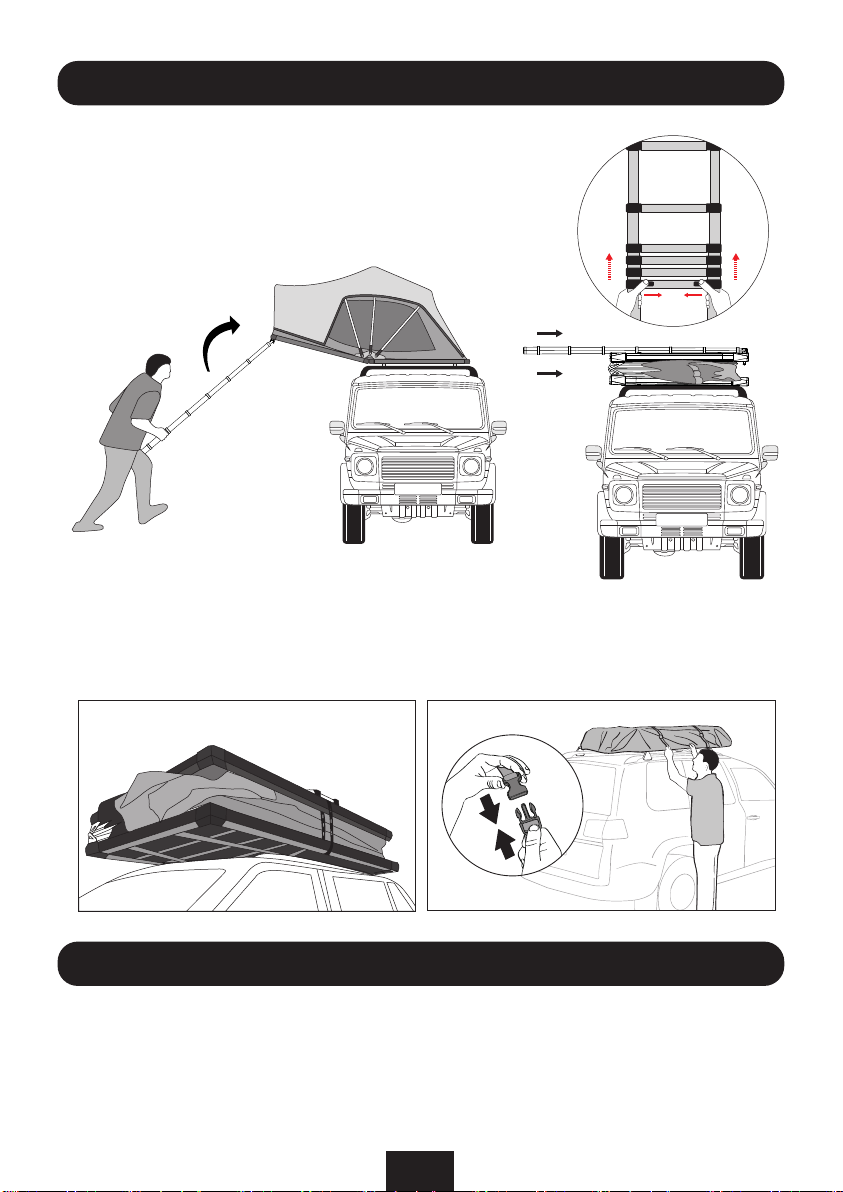

Folding down:
Trouble shooting:
③Lift the ladder upward to fold the tent. Ensure no fabric is exposed
outside. Press the bottom button of ladder and push forward to
shorten the ladder.
④Secure the strap of tent, put cover on and fasten the buckles all
around, then fold down finished.
If meet malfunction when roof tent setting up or folding down, please check:
A. Whether bolts on pole screw tightly
B. Whether the pole get stuck by fabric
-7-
EN
-8-
EN
