Whispbar S42W Manual de usuario

S42W

WHISPBAR RAIL BAR

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema de transporte.

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de transporte.

RU Установочные Инструкции для Поперечных Балок

x 1 x 2 x 1

Revision No: 2C 1

WHISPBAR RAIL BAR EN

S42W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●Ensure the roof rack face towards the front

of vehicle.

●Use keys to remove covers.

●While holding the key in the vertical

position, pull the cover towards you to

remove the cover.

●Repeat for all legs.

WHISPBAR RAIL BAR EN

S42W

●Locate the Hex Key in one of the roof rack

legs.

●Extend the leg out.

●Remove Hex Key by lifting and sliding out.

●Using Hex Key, reverse the leg screw 10

turns.

WHISPBAR RAIL BAR EN

S42W

Fitment

●Position one end of crossbar on the

opposite roof rail and swing the free end so

that the clamp is under the rail and the

rubber gasket sits on top.

●Repeat on other crossbar.

●Crossbars should be parallel to each other

and sit perpendicular to the roof rails.

●Pull legs out evenly until both rubber

gasket seal on roof rail.

●Ensure each end of the crossbar is

adjusted equally.

●Note that legs can pivot slightly to

accommodate for roof rail taper.

●Once crossbars are in position, tighten

screw to 5 Nm (3.7 ft lb).

●Repeat for all legs.

WHISPBAR RAIL BAR EN

S42W

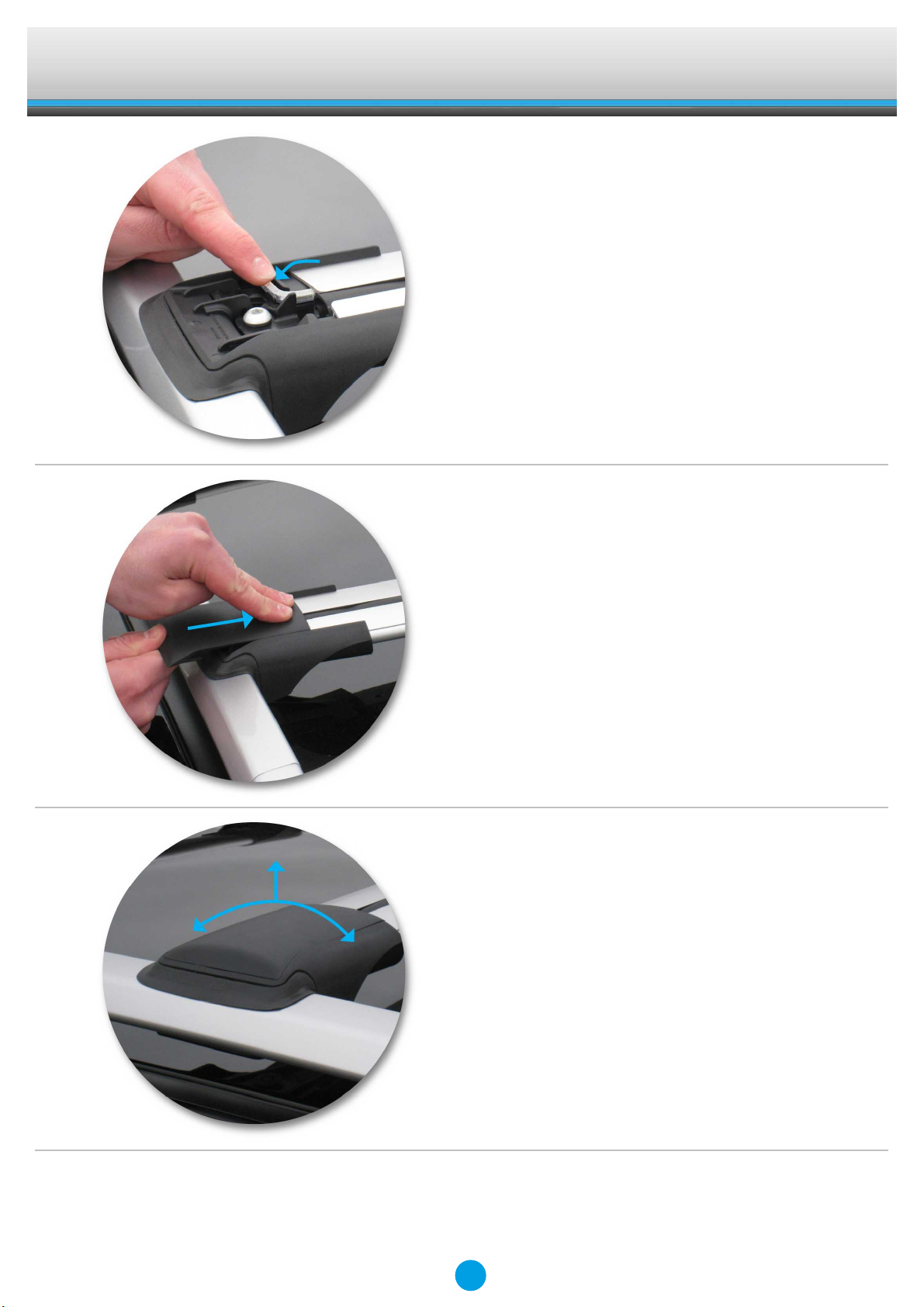

●Slide Hex Key back into position into one of

the roof rack legs.

●Ensure the locks on the legs are in the

locked position (horizontal).

●Slide cover into the leg, You will hear a

'click' when the cover is securely locked.

●Repeat for all four positions.

●Check crossbar is securely attached to the

vehicle.

WHISPBAR RAIL BAR EN

S42W

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.

WHISPBAR RAIL BAR EN

S42W

Maintenance

●Long loads should be secured with non-

elastic straps to the front and rear of the

vehicle.

●Objects with pointed ends (e.g. ski poles)

should be carried with the pointed ends to

the rear of the vehicle.

●Remove all loose or removable objects

from the load prior to loading.

●Make sure all loads are securely fastened

with non-elastic straps. Check regularly

during longer journeys.

●A loaded roof rack system can alter the

performance of your vehicle. Be especially

aware of the effects of side winds,

changing of direction, and braking

performance. Avoid rapid acceleration and

deceleration. Drive carefully.

●Note that the total height of the vehicle

increases when upright loads are carried.

●Products should be locked during transport

if they have locks fitted.

●Check and replace worn out or defective

parts.

●Keep the product clean and maintained.

●Never drive into a car wash with the roof

rack system fitted.

●Lubricate locks and adjusting screws at

regular intervals.

●Remove the products from the vehicle

when not in use. Make sure all loose parts

are stored safely.

●Clean the car roof and surfaces of the

product that will be in contact with the car

roof.

●Follow the fitting instructions for fitting the

product to your vehicle. Make sure all steps

are carried out in order.

●Set crossbars a minimum distance of

700mm (27 1/2") apart where no other

distance is specified in the fitting

instructions. This is especially important

when carrying long loads.

●Check unit is securely attached whenever

you refit it to the vehicle. If the unit feels

loose, refer to the fitting instructions and

readjust.

WHISPBAR RAIL BAR EN

S42W

●Some glass/panoramic roofs and radio

antennae may not be able to be used when

the product is fitted.

●Do not modify this product.

●Refer to the maximum permitted load

capacity specified in the fitting instructions.

Do not exceed the vehicle manufacturers

roof load rating if it is lower than the

maximum load capacity specified in the

fitting instructions.

●Loads should not overhang the sides of the

product and be evenly distributed with the

lowest possible centre of gravity.

Accessories Available for this Product:

●Roof Box

●Ski, Snowboard Carrier

●Canoe, Kayak Carrier

●Bicycle Carrier

●For more accessories please see our

product catalogue.

●Yakima Products, Inc.

15025 SW Koll Pkwy.

Beaverton, OR 97006-6056

USA

www.whispbar.com

www.whispbar.ca

www.whispbar.eu

www.whispbar.co.uk

www.whispbar.co.za

WHISPBAR RAIL BAR D

S42W

Erstinstallation

●Komponenten aus der Verpackung

nehmen und überprüfen. Setzen Sie sich

mit Ihrem Händler in Verbindung, sollten

Teile fehlen oder beschädigt sein!

●Sicherstellen, dass der Dachträger in

Fahrtrichtung zeigt (s. Abb.).

●Abdeckungen mit Schlüsseln abnehmen.

●Um die Abdeckung zu entfernen, halten Sie

den Schlüssel in vertikaler Position und

ziehen Sie die Abdeckung ab.

●Montage bei allen Beinen wiederholen.

WHISPBAR RAIL BAR D

S42W

●Entnehmen Sie den

Innensechskantschlüssel aus einem der

Dachträgerbeine.

●Ziehen Sie das Bein heraus.

●Entfernen Sie den

Innensechskantschlüssel durch Anheben

und Herausziehen.

●Drehen Sie das Bein mittels

Innensechskantschlüssel 10 Umdrehungen

heraus.
