Whispbar K325W Manual de usuario

K325W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema de transporte.

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de transporte.

RU Установочные Инструкции для Поперечных Балок

x 8 x 4 x 1 x 4

x 4 x 4 x 4 x 4

x 4 x 4

Revision No: 5C 1

Fitting Kit EN

K325W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K325W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment.

●Ensure each end of the crossbar is

adjusted equally.

●Please check the rear of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K325W

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Remove both pins from each leg. Use

tapered end of spanner located inside left

hand cover to assist.

●Detach foot from leg. Store loose parts in a

safe place.

●Repeat for all legs.

Fitting Kit EN

K325W

●Assemble metal loadplate and rubber pad

from the fitting kit.

●Repeat for all four items.

●Assemble metal loadplate into leg. Ensure

loadplate interlocks with the leg.

●Using short capscrew and washer, secure

assembly onto leg (use Hex Screwdriver

supplied with crossbar to assist)

●Repeat for all legs.

Fitting Kit EN

K325W

●Pull rubber pad back slightly and insert

location peg into the rear position on the

metal loadplate. Peg will click into place.

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Crossbar can be positioned anywhere

along the roof rail.

●Make sure there is no interference between

what you intend to carry with aerials,

sunroof or tailgate.

●Ensure location peg engages the inner side

of the rails.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Ensure that the crossbar is adjusted evenly

at both ends.

Fitting Kit EN

K325W

●Tighten adjusting screw to 5 Nm (3.7 ft lb).

●Temporarily mark with masking tape or

pencil the position of crossbars on the rail.

●Remove crossbar off vehicle and turn

upside down. Select metal clamp and fit

small tongue into position 2 marked on the

leg.

Fitting Kit EN

K325W

●Swing clamp towards metal loadplate and

check clamp tongue is engaged into

position.

●Select coach bolt and insert through metal

clamp slot.

●While holding clamp and coach bolt, turn

crossbar over to upright position and

loosely assemble red plastic knob to the

coach bolt. Do not start to tighten.

●Repeat for all legs.

Fitting Kit EN

K325W

Fitment

●Place crossbars back onto vehicle roof by

placing one end of crossbar on the rail and

swing the other into previously marked

position.

●Ensure the clamp engages correctly on

inside of roof rail.

●Tighten the red plastic knob. Large Hex

Key can be used to help tightening knob.

●Do not over tighten.

●Ensure plastic red knob is vertical when

fully tightened.

Fitting Kit EN

K325W

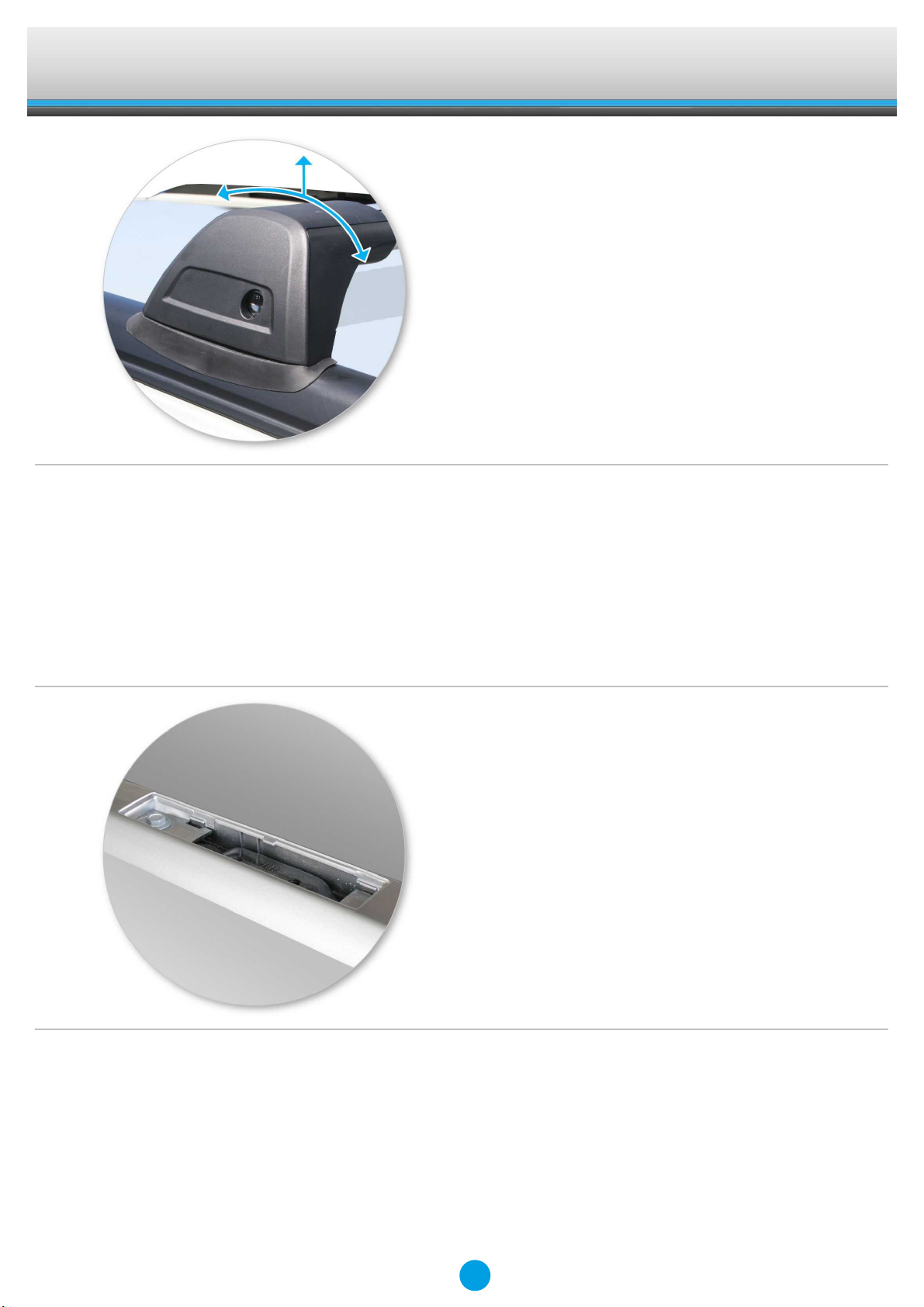

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

Fitment to Subaru Legacy or Liberty Wagon Sep

03+ ONLY

●Open or remove fixed-point covers.
