Whispbar K716W Manual de usuario

K716W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema

de transporte

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de

transporte.

RU Установочные Инструкции для

Поперечных Балок

x 1 x 1 x 1 x 1

x 2 x 1 x 1 x 2

x 2 x 2 x 1 x 1

Revision No: 1A 1

Fitting Kit K716W

MAX kgs (lbs)

W/P WHD

Toyota

Rav 4 , 5dr SUV Jan 13-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Rav 4 , 5dr SUV Jan 13-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Rav 4 , 5dr SUV Jan 13-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Rav 4 , 5dr SUV Jan 13-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K716W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K716W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (revert to rear of these

instructions).

●Please check the rear of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K716W

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

Fitting Kit EN

K716W

Fitment

●Open or remove fixed-point covers.

●Store items away in a safe place.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 239A

B = 241A

●Hook clamps into the fixed points on the

vehicle.

Fitting Kit EN

K716W

●Place ditch mould insert over the clamp.

●Repeat at other end.

●Refer to the underside of the pad for the

part number.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 296

B = 297

Fitting Kit EN

K716W

●Place pads on roof as per diagram. Screw

thread should be vertically through square

hole in pad.

●Place crossbar foot over clamp bolt.

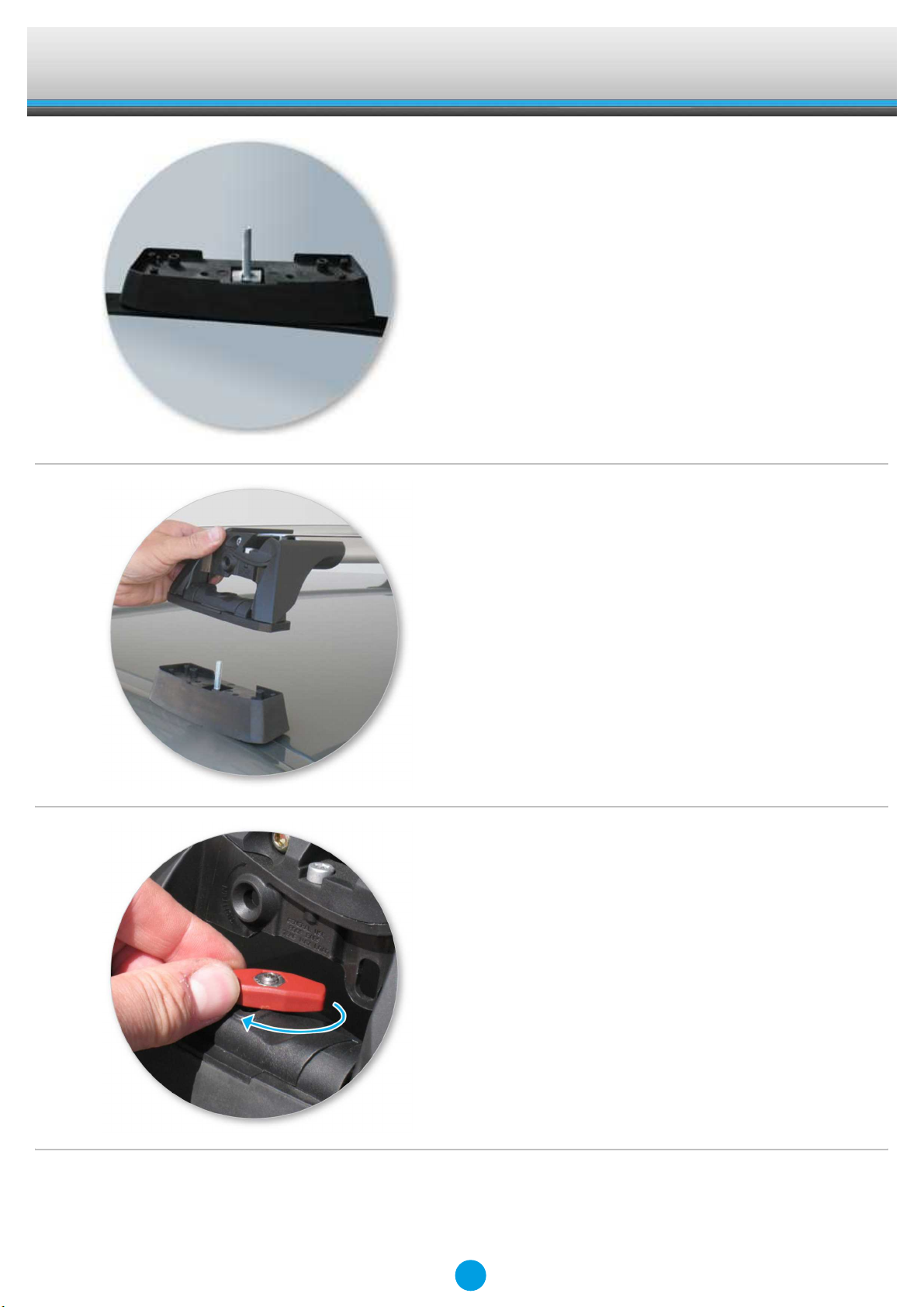

●Tighten the plastic knob. The side with the

nut showing should be facing up.

Fitting Kit EN

K716W

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat at other end.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

●Use keys to remove covers.

Fitting Kit EN

K716W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Remove locking screw.
