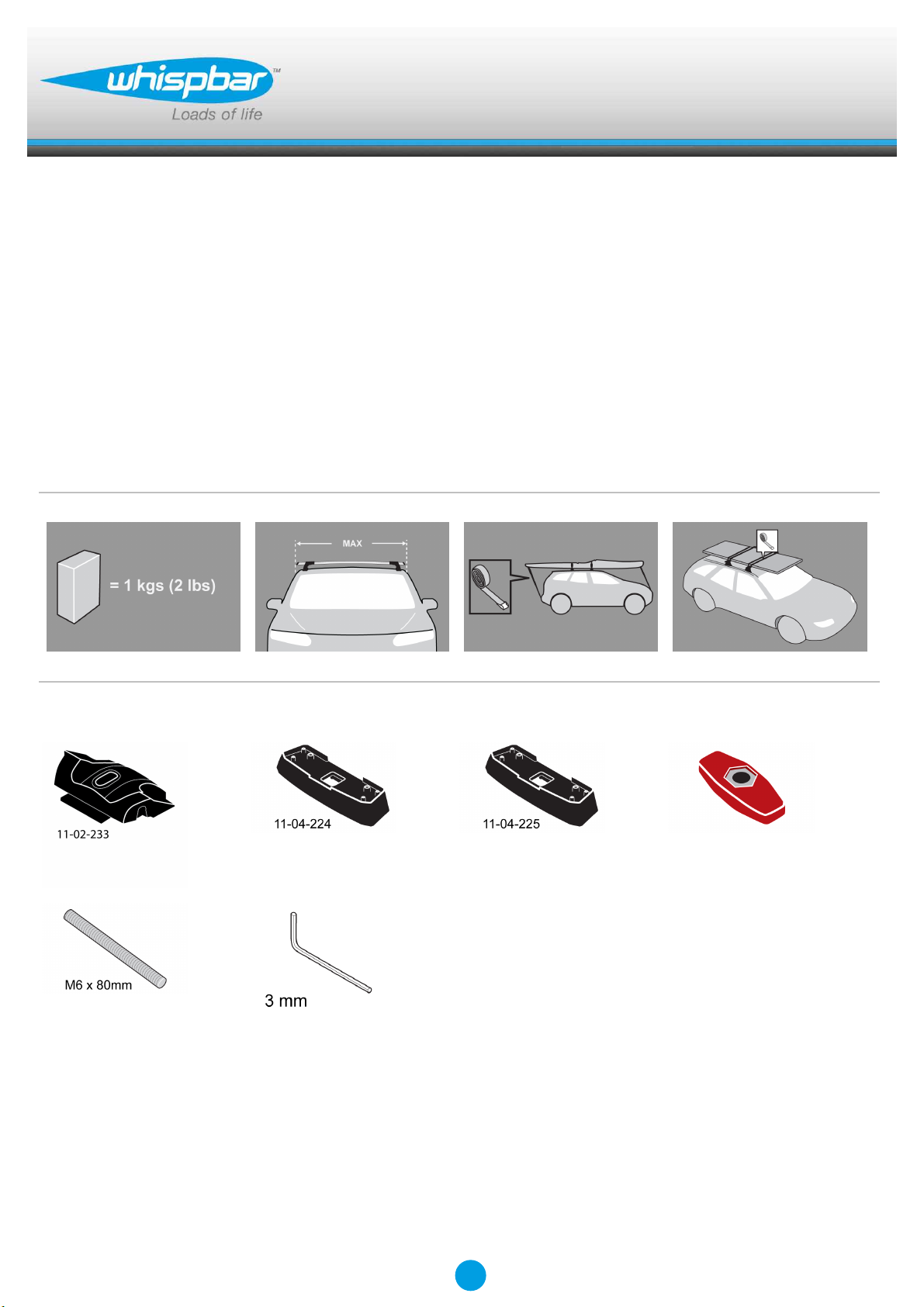

K412W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 2 x 2 x 4

x 4 x 1

Revision No: 7D 1

Fitting Kit K412W

MAX kgs (lbs)

W/P WHD

Citroen

C4 Grand Picasso, 5dr MPV 07-13 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

C4 Picasso, 5dr MPV 07-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

C4 Picasso, 5dr MPV 07-12 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

C4, 3dr Hatch 04-10 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

C4, 3dr Hatch 06-09 CN 75 kgs (165 lbs) 75 kgs (165 lbs)

C4, 5dr Hatch 04-10 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

C4, 5dr Hatch 04-10 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

C4, 5dr Hatch 04-10 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

C4, 5dr Hatch 05-10 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

C4, 5dr Hatch 06-09 CN 75 kgs (165 lbs) 75 kgs (165 lbs)

Ford

Focus, 3dr Hatch 08-11 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Focus, 3dr Hatch 08-11 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Focus, 3dr Hatch 08-11 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Focus, 3dr Hatch 08-11 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

2

Fitting Kit K412W

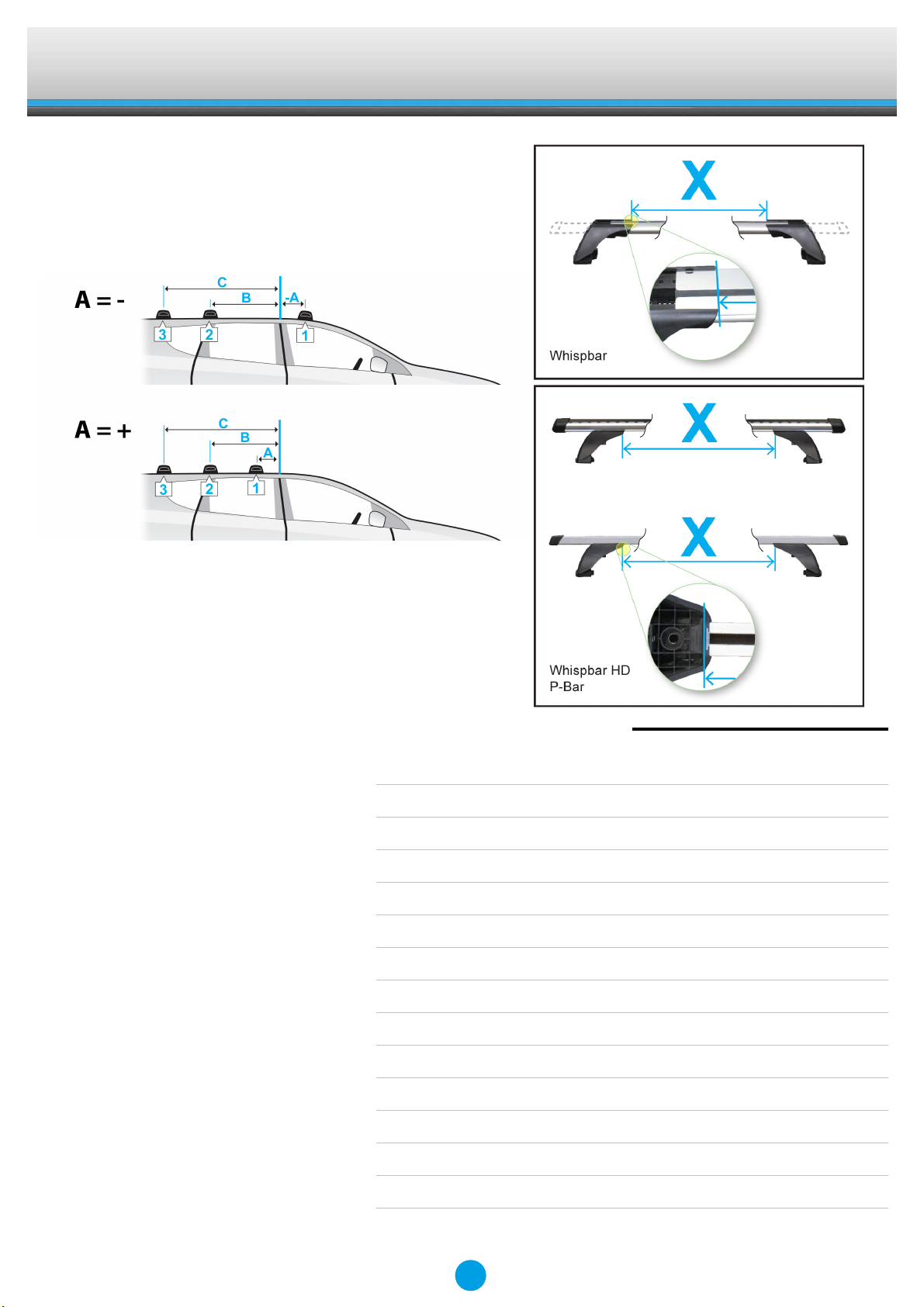

X

A B C 1 2 3

C4 Grand Picasso, 5dr MPV 07-13 (ZA) 240mm 470mm - 838mm 881mm -

9 7/16ths" 18 1/2ths" - 33" 34 11/16ths" -

C4 Picasso, 5dr MPV 07-+ (ZA) -240mm 470mm - 938mm 881mm -

-9 -7/16ths" 18 1/2ths" - 36 15/16ths" 34 11/16ths" -

C4 Picasso, 5dr MPV 07-12 (EU) -240mm 470mm - 938mm 881mm -

-9 -7/16ths" 18 1/2ths" - 36 15/16ths" 34 11/16ths" -

C4, 3dr Hatch 04-10 (EU) -300mm 400mm - 824mm 756mm -

-11 -13/16ths" 15 3/4ths" - 32 7/16ths" 29 3/4ths" -

C4, 3dr Hatch 06-09 (CN) -300mm 400mm - 824mm 756mm -

-11 -13/16ths" 15 3/4ths" - 32 7/16ths" 29 3/4ths" -

C4, 5dr Hatch 04-10 (AU) -300mm 400mm - 824mm 756mm -

-11 -13/16ths" 15 3/4ths" - 32 7/16ths" 29 3/4ths" -

C4, 5dr Hatch 04-10 (EU) -300mm 400mm - 824mm 756mm -

-11 -13/16ths" 15 3/4ths" - 32 7/16ths" 29 3/4ths" -

C4, 5dr Hatch 04-10 (NZ) -300mm 400mm - 824mm 756mm -

-11 -13/16ths" 15 3/4ths" - 32 7/16ths" 29 3/4ths" -

C4, 5dr Hatch 05-10 (ZA) -300mm 400mm - 824mm 756mm -

-11 -13/16ths" 15 3/4ths" - 32 7/16ths" 29 3/4ths" -

C4, 5dr Hatch 06-09 (CN) -300mm 400mm - 824mm 756mm -

-11 -13/16ths" 15 3/4ths" - 32 7/16ths" 29 3/4ths" -

Focus, 3dr Hatch 08-11 (NZ) -410mm 280mm - 875mm 850mm -

-16 -1/8ths" 11" - 34 7/16ths" 33 7/16ths" -

Focus, 3dr Hatch 08-11 (AU) -410mm 280mm - 875mm 850mm -

-16 -1/8ths" 11" - 34 7/16ths" 33 7/16ths" -

Focus, 3dr Hatch 08-11 (EU) -410mm 280mm - 875mm 850mm -

-16 -1/8ths" 11" - 34 7/16ths" 33 7/16ths" -

Focus, 3dr Hatch 08-11 (ZA) -410mm 280mm - 875mm 850mm -

-16 -1/8ths" 11" - 34 7/16ths" 33 7/16ths" -

3

Fitting Kit EN

K412W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

4

Fitting Kit EN

K412W

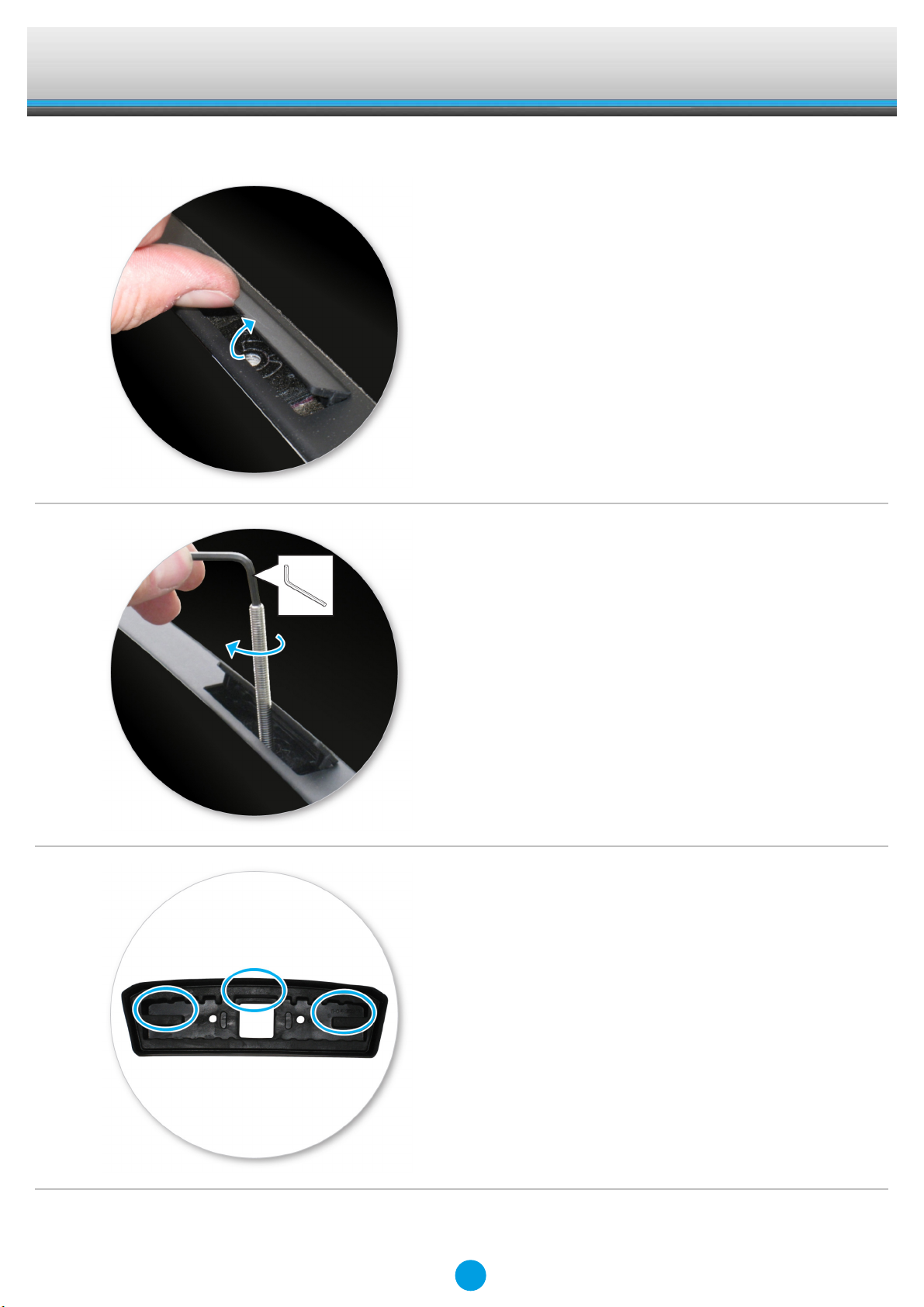

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Attaches to factory-fitted mounting points

●Please check the front of this manual for

information relating specifically to your

vehicle.

5

Fitting Kit EN

K412W

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

6

Fitting Kit EN

K412W

Fitment

●Open or remove fixed-point covers.

●Select grubscrews and screw into the

vehicle's fixed points.

●Do not over tighten.

●Repeat for all four positions.

●Refer to the underside of the pad for the

part number.

7

Fitting Kit EN

K412W

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 11-04-224

B = 11-04-225

●Ensure the fixed-point covers sit vertically

in the recess in the pads.

●NOTE: Citroen C4 Picasso only

●This product has two different bar

lengths.The longer bar should be used on

the front of the vehicle and the shorter bar

used on the rear.

8

Fitting Kit EN

K412W

●Place crossbars on pads ensuring the pads

fit into the holes underneath the foot and

the grubscrew passes through the hole in

the foot.

●Repeat for all four positions.

●Tighten the plastic knob. The side with the

nut showing should be facing up.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all legs.

9

Fitting Kit EN

K412W

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
