Whispbar K377 Manual de usuario

K377

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4

Revision No: 6F 1

Fitting Kit K377

MAX kgs (lbs)

W/P WHD

Audi

A4, 4dr Sedan 01-07 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

A4, 4dr Sedan 01-08 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

A4, 4dr Sedan 01-08 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

A4, 4dr Sedan 01-08 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

A4, 4dr Sedan 01-08 CN 75 kgs (165 lbs) 75 kgs (165 lbs)

A4, 4dr Sedan 02-08 US 75 kgs (165 lbs) 75 kgs (165 lbs)

S4, 4dr Sedan 04-05 US 75 kgs (165 lbs) 75 kgs (165 lbs)

S4, 4dr Sedan 06-08 US 75 kgs (165 lbs) 75 kgs (165 lbs)

S4, 4dr Sedan 06-08 US 75 kgs (165 lbs) 75 kgs (165 lbs)

Seat

Exeo, 4dr Sedan 08-13 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

2

Fitting Kit K377

X

A B C 1 2 3

A4, 4dr Sedan 01-07 (ZA) -335mm 360mm - 855mm 820mm -

-13 -3/16ths" 14 3/16ths" - 33 11/16ths" 32 5/16ths" -

A4, 4dr Sedan 01-08 (EU) -335mm 360mm - 855mm 820mm -

-13 -3/16ths" 14 3/16ths" - 33 11/16ths" 32 5/16ths" -

A4, 4dr Sedan 01-08 (AU) -335mm 360mm - 855mm 820mm -

-13 -3/16ths" 14 3/16ths" - 33 11/16ths" 32 5/16ths" -

A4, 4dr Sedan 01-08 (NZ) -335mm 360mm - 855mm 820mm -

-13 -3/16ths" 14 3/16ths" - 33 11/16ths" 32 5/16ths" -

A4, 4dr Sedan 01-08 (CN) -335mm 360mm - 855mm 820mm -

-13 -3/16ths" 14 3/16ths" - 33 11/16ths" 32 5/16ths" -

A4, 4dr Sedan 02-08 (US) -335mm 360mm - 855mm 820mm -

-13 -3/16ths" 14 3/16ths" - 33 11/16ths" 32 5/16ths" -

Exeo, 4dr Sedan 08-13 (EU) -335mm 355mm - 840mm 810mm -

-13 -3/16ths" 14" - 33 1/16ths" 31 7/8ths" -

S4, 4dr Sedan 04-05 (US) -335mm 360mm - 850mm 820mm -

-13 -3/16ths" 14 3/16ths" - 33 7/16ths" 32 5/16ths" -

S4, 4dr Sedan 06-08 (US) -335mm 360mm - 850mm 820mm -

-13 -3/16ths" 14 3/16ths" - 33 7/16ths" 32 5/16ths" -

S4, 4dr Sedan 06-08 (US) -335mm 360mm - 880mm 855mm -

-13 -3/16ths" 14 3/16ths" - 34 5/8ths" 33 11/16ths" -

3

Fitting Kit EN

K377

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

4

Fitting Kit EN

K377

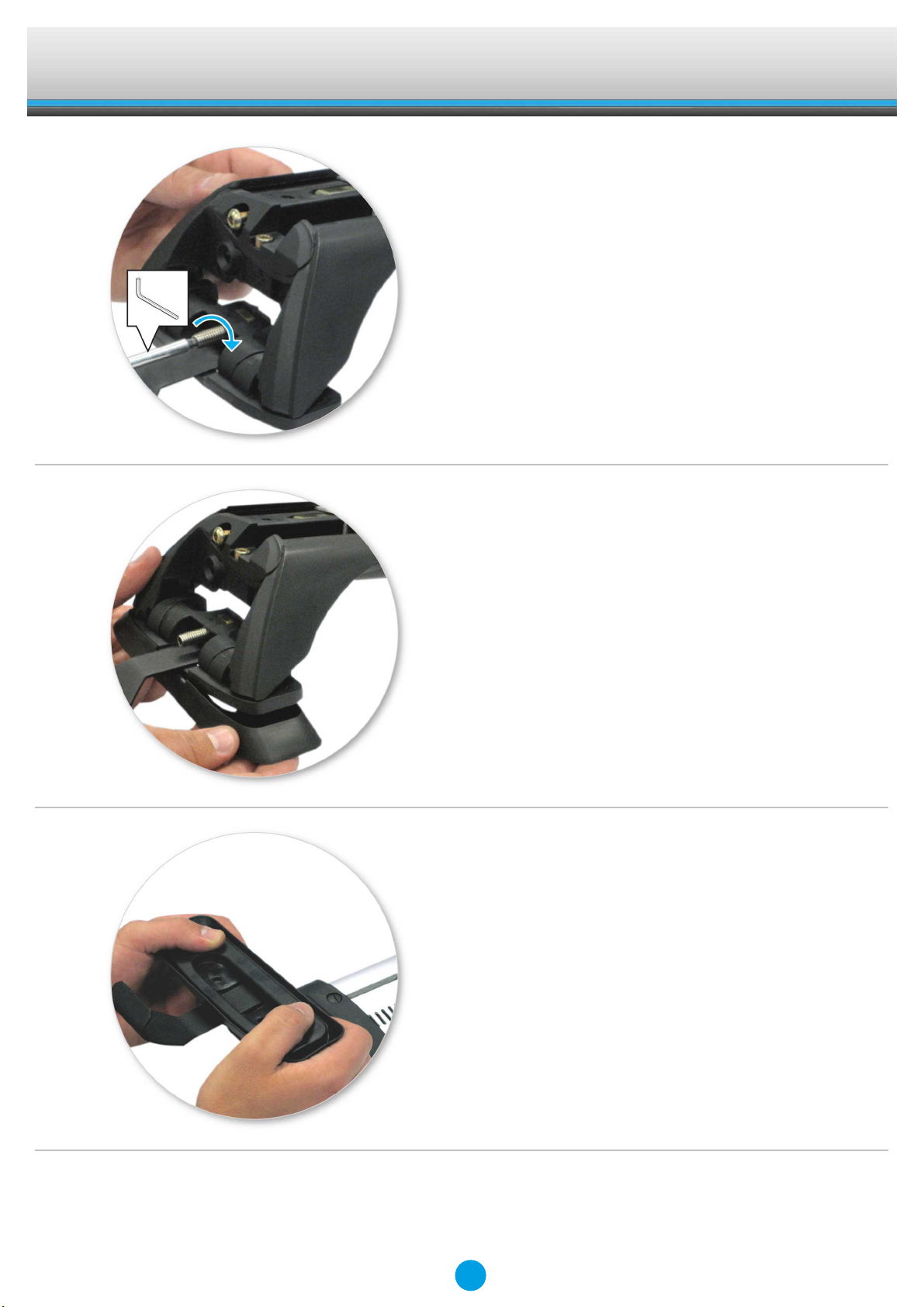

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

5

Fitting Kit EN

K377

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

6

Fitting Kit EN

K377

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pad (supplied with crossbar) to

foot.

●Make sure the pad fits into the holes

underneath the foot.

7

Fitting Kit EN

K377

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Locate vehicle's fixed points.

●Clamps directly to edge of roof under the

doors, pin locates in hole on vehicle

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

8

Fitting Kit EN

K377

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

9

Fitting Kit EN

K377

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
