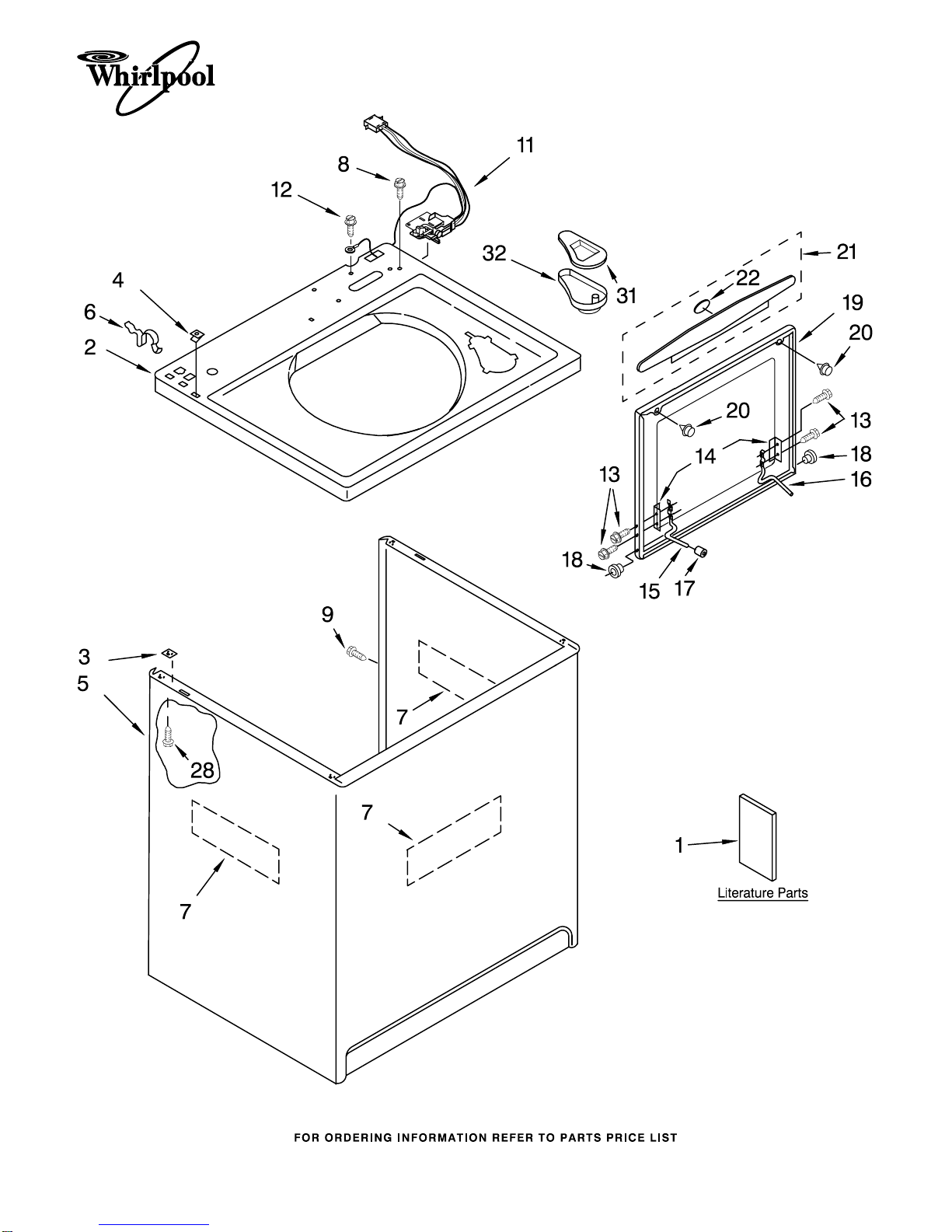

TOP AND CABINET PARTS

For Models: GST9679PW0, GST9679PG0, GST9679PB0

(White/Grey) (Biscuit/Gold) (Black/Grey)

4−04 Litho in U.S.A.(drd) Part No. 8180284

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Models: GST9679PW0, GST9679PG0, GST9679PB0

(White/Grey) (Biscuit/Gold) (Black/Grey)

8180284

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT3956025

Installation

Instructions

LIT3955869

Use & Care Guide

LIT3955903

Feature Sheet

LIT3956331

Energy Guide

LIT8542482

Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT4313896

Manual, Washer

2 Top

3955789 White

3955790 Biscuit

3957076 Black

3 62750 Spacer, Cabinet To

Top (4)

4 357213 Nut, Push−In (2)

5 Cabinet

63424 White

3954357 Biscuit

3954788 Black

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

7 3976348 Cabinet−Sound

Damper

8 3400611 Screw,

Lid Switch (2)

9 3357011 Screw, 10−16 x 1/2

11 8054980 Switch, Lid

12 3351614 Screw, Ground

13 355274 Screw, Lid Hinge

Mounting (4)

14 21097 Pad, Lid Hinge (2)

15 8055257 Hinge, Lid (L.H.)

16 8055256 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 8319539 Bearing, Lid

Hinge (2)

19 Lid

8558401 White

8558402 Biscuit

8558403 Black

20 9724509 Bumper, Lid (2)

21 Handle, Lid

3956012 (For GST9679PW0)

3956011 (For GST9679PG0)

22 3956010 Insert, Handle

28 3390631 Screw,

10−16 x 3/8 (4)

31 3956079 Cover, Dispenser

32 8519517 Dispenser, Bleach

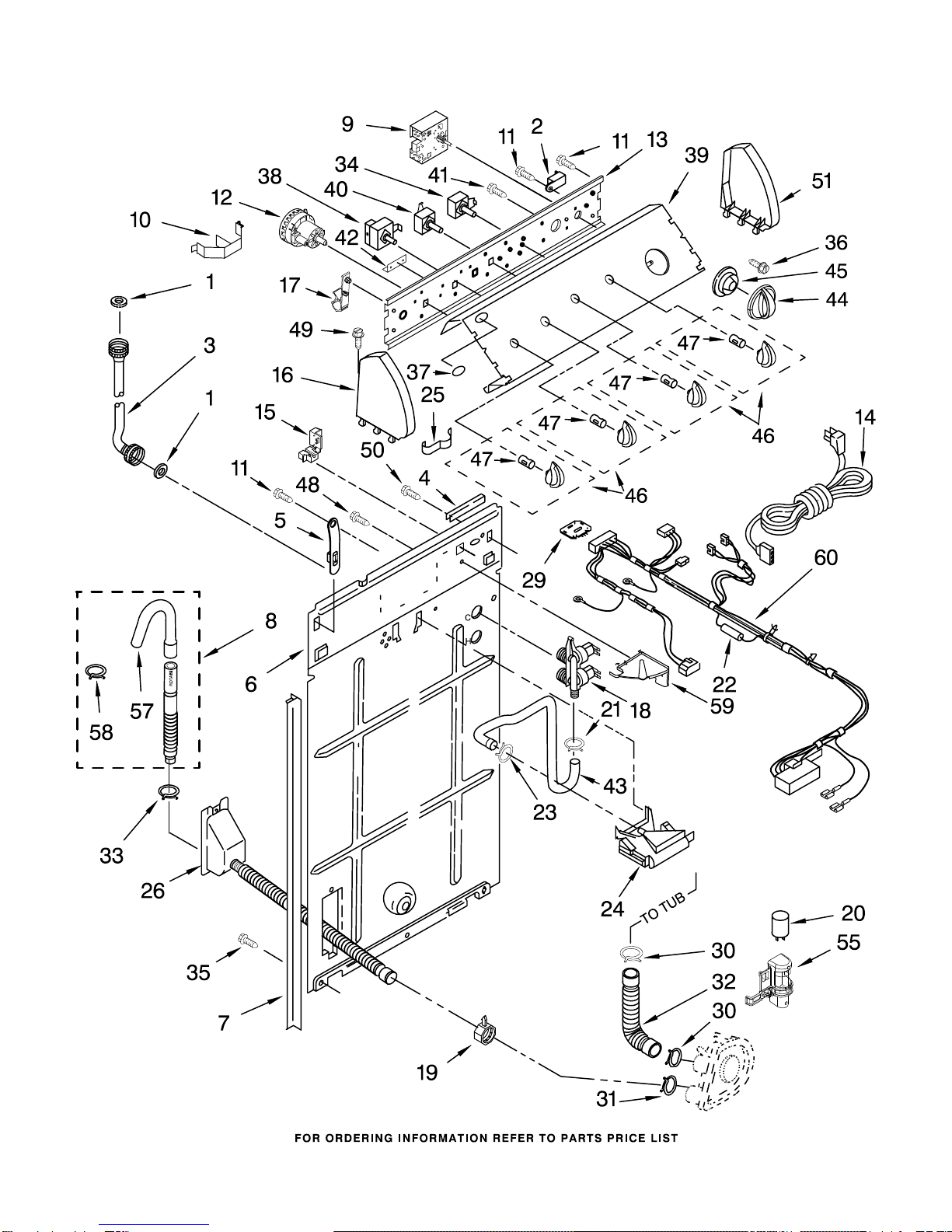

CONTROLS AND REAR PANEL PARTS

For Models: GST9679PW0, GST9679PG0, GST9679PB0

(White/Grey) (Biscuit/Gold) (Black/Grey)

8180284

CONTROLS AND REAR PANEL PARTS

For Models: GST9679PW0, GST9679PG0, GST9679PB0

(White/Grey) (Biscuit/Gold) (Black/Grey)

8180284

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3976300 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

2 694419 Mini, Buzzer

3 Hose, Water

Inlet (2)

3949374 Blue Coupler

3949375 Red Coupler

4 303294 Edge Protector

5 8318255 Strap, Console (2)

6 3357978 Panel, Rear

7 62747 Pad, Rear Panel

8 3951609 Hose, Drain

(4 ft.)

661577 Hose, Drain

(9 ft.)

(Not Included)

3357090 Extension

Drain Hose

(21 Inches)

(Not Included)

9 3955765 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 8055003 Clip, Harness

& Pressure Hose

11 90767 Screw, 8−18 x 3/8

12 3366845 Switch,

Water Level

13 8544893 Bracket, Control

14 661661 Cord, Power

(Includes Item 15)

15 3952821 Strain Relief,

Power Cord

16 Cap, End (L.H.)

8271365 White

8271368 Biscuit

8271367 Black

17 8317975 Retainer, Harness

18 3979347 Valve, Water Inlet

& Thermistor Assy.

19 3976395 Clamp, Hose

20 661605 Capacitor

21 301958 Clamp, Hose

Break

22 8317387 Fuse

(In Harness)

23 370450 Clamp, Hose

24 387606 Break, Vacuum

25 3347812 Clip, Harness

26 8317940 Assembly,

Drain Hose

29 8539879 Control, ATC

30 3363366 Clamp, Hose

31 8317496 Clamp, Hose

32 3951449 Hose, Pump To Tub

(Includes #30)

33 3366912 Clamp, Hose

34 3956080 Switch, Rotary

35 62863 Screw, 10−16 x 3/8

36 3400818 Screw, Timer

Mounting

37 8533990 Medallion

38 3956646 Switch,

Temperature

39 Panel, Console

(Includes Item 37)

3956604 Silver

3956605 Gold

40 3950356 Switch, Rotary

41 3400073 Screw, Ground

42 8316039 Shield, ATC

43 8317974 Hose, Vacuum

Break

44 Knob, Timer

8544945 Silver

8544946 Biscuit

45 Dial, Timer

8544947 White

8544948 Biscuit

46 Knob, Control

8544937 Silver

8544938 Biscuit

47 8536939 Clip, Knob

48 9740848 Screw, 8−18 x 1/2

49 388326 Screw, 8−18 x 1.25

(Panel to Top)

50 3351614 Screw, Ground

51 Cap, End (R.H.)

8271359 White

8271362 Biscuit

8271361 Black

55 8318046 Clip, Capacitor

57 3357027 Nozzle, Hose

Drain

58 3366913 Clamp, Drain

Hose

59 8539874 Shield, Suds

60 3956278 Harness, Wiring

(For Detail See

Pages 9 & 10)

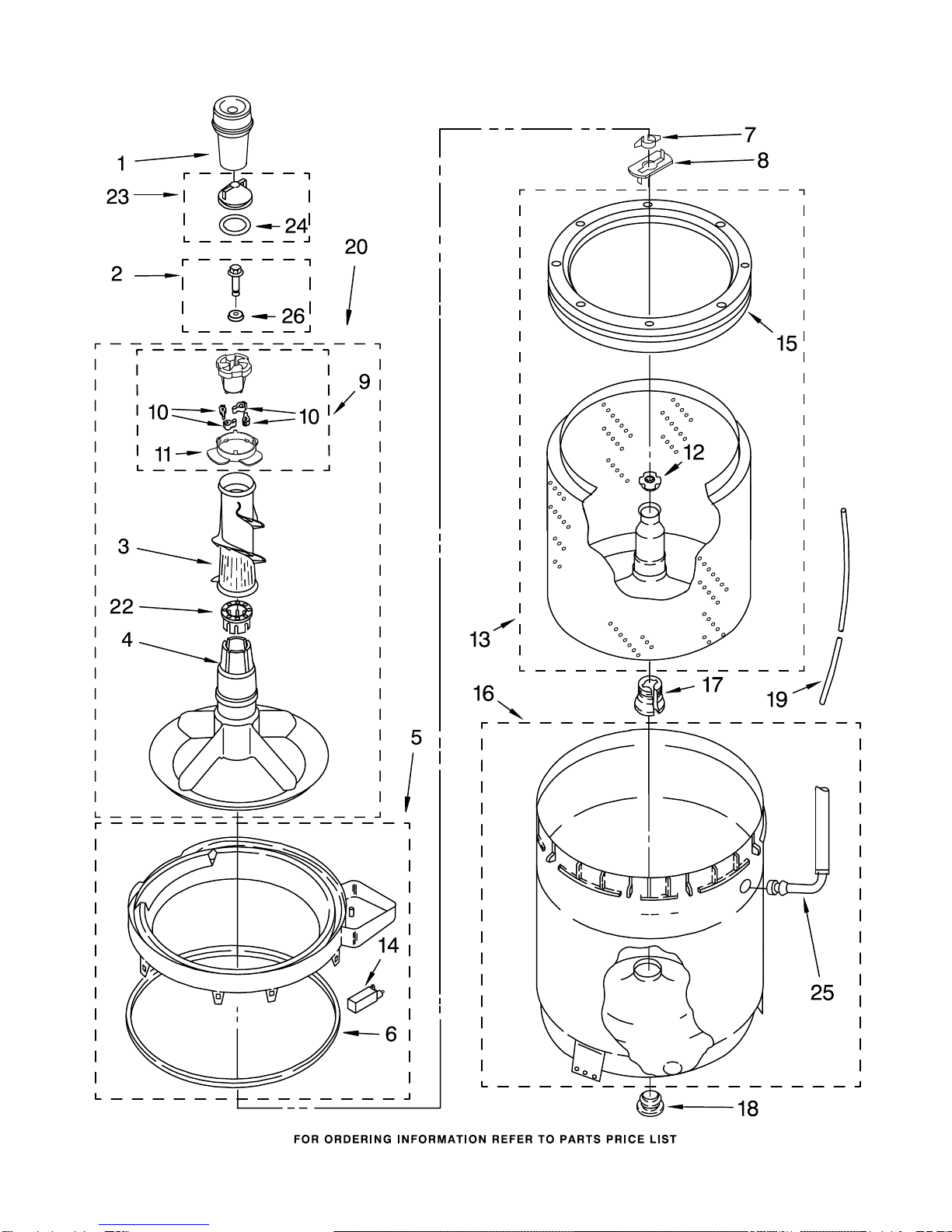

AGITATOR, BASKET AND TUB PARTS

For Models: GST9679PW0, GST9679PG0, GST9679PB0

(White/Grey) (Biscuit/Gold) (Black/Grey)

8180284

AGITATOR, BASKET AND TUB PARTS

For Models: GST9679PW0, GST9679PG0, GST9679PB0

(White/Grey) (Biscuit/Gold) (Black/Grey)

8180284

Illus. Part

No. No. DESCRIPTION

1 63580 Dispenser Asy.

2 358237 Screw & Washer

(5/16−24 x 1)

3 3363003 Clothes Mover

4 3951632 Agitator

5 3954507 Tub Ring & Gasket

6 3359585 Seal, Tub Ring

7 3354845 Clip, Agitator

8 3355921 Washer, Agitator

9 3951682 Cam Driven

10 3366877 Dog, Agitator

Clutch

11 3952374 Bearing−Driven

Cam

12 21366 Nut, Spanner

13 8526016 Basket & Balance

Ring

14 8318246 Wax Motor

15 8519788 Balance Ring

16 8283125 Tub

(Includes Item 25)

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

20 3951744 Agitator

(Complete Asy.)

22 3951608 Spacer, Thrust

23 3354733 Cap, Barrier

24 3348855 Seal, Inner Cap

25 3948705 Hose, Bleach

26 3949550 Washer

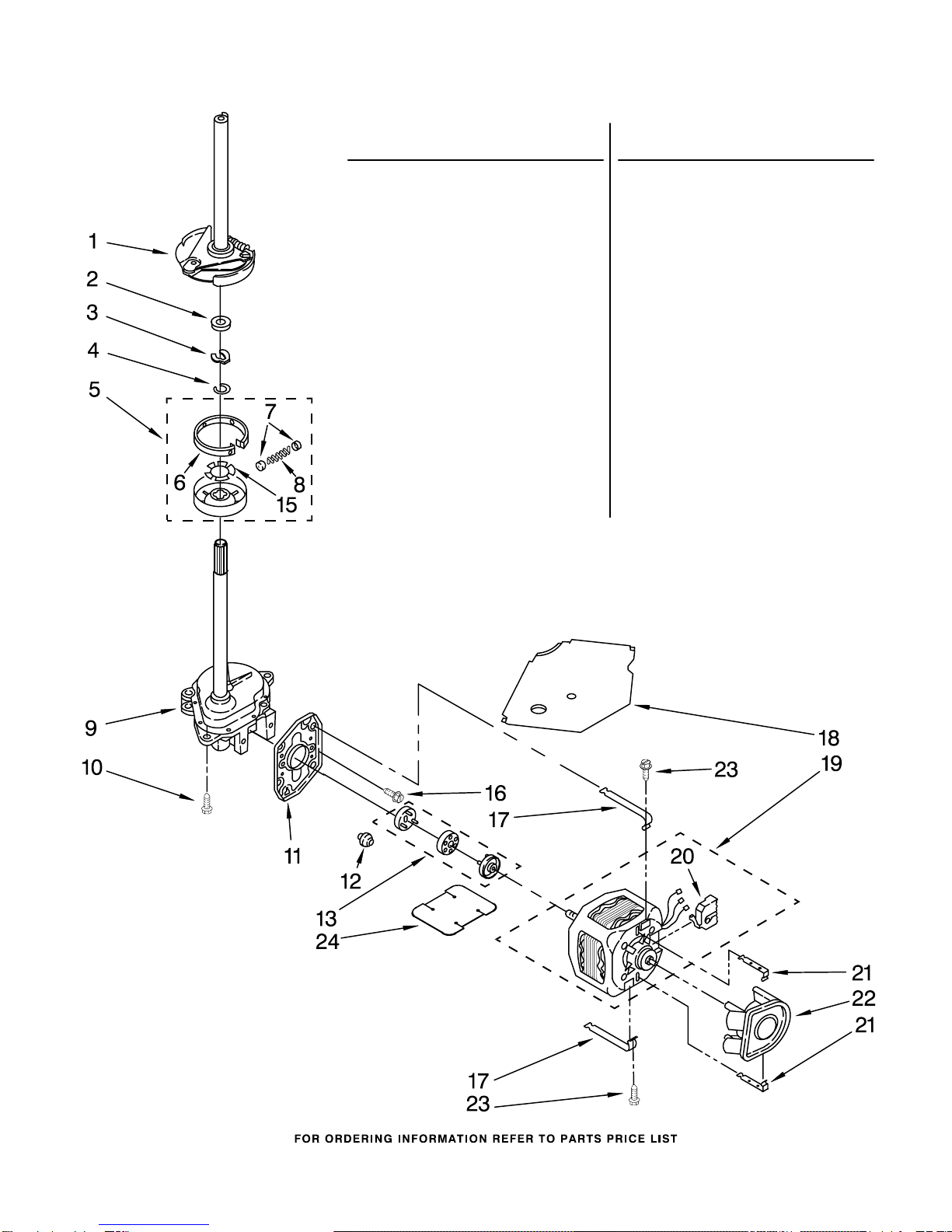

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Models: GST9679PW0, GST9679PG0, GST9679PB0

(White/Grey) (Biscuit/Gold) (Black/Grey)

8180284

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 285753 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 8529935 Motor, Main

Drive

20 8529896 Switch, Main

Drive Motor

21 8546127 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3946532 Shield, Motor

MACHINE BASE PARTS

For Models: GST9679PW0, GST9679PG0, GST9679PB0

(White/Grey) (Biscuit/Gold) (Black/Grey)

8180284

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 3362087 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 8318050 Spring,

Counterweight

16 62568 Pad, Plate

17 3946509 Plate, Suspension

(Includes Illus. 16)

18 3363660 Pad, Base

19 3946512 Base Assembly

(Includes Illus, 6,

7, 8, 9,16,17,18,

& 26.)

20 8544816 Sound Absorber

21 3359452 Nut, Lock (2)

(3/8−16)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

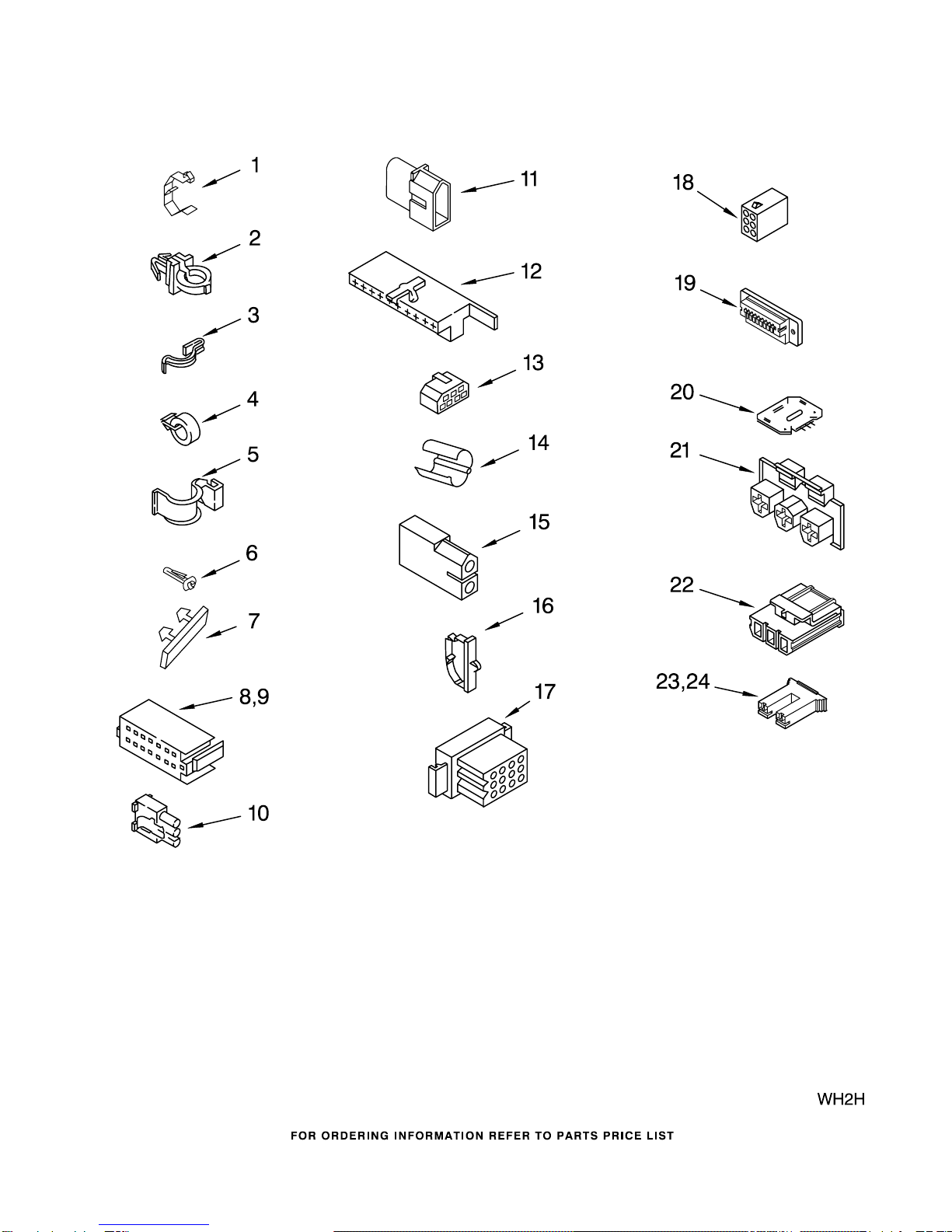

WIRING HARNESS PARTS

For Models: GST9679PW0, GST9679PG0, GST9679PB0

(White/Grey) (Biscuit/Gold) (Black/Grey)

8180284

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 3948614 Timer, Block

Disconnect

(White)

9 352089 Timer, Block

Disconnect

(Black)

10 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term.94613)

Or 94614.)

11 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term.94613)

12 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term.352088)

13 3347243 Block, Disconnect

(Use Term. 352088)

14 63523 Protector

15 717252 Connector

(2−Way)

(Use Term.94614)

16 3352944 Clip, Harness

17 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

18 3347730 Receptacle

(6−Way)

(Use Term. 94613)

19 3349494 Connector, Etc

20 3407125 E.T.C. Control

21 3948617 Connector (T.P.A.)

(3−Circuit)

(Lid Switch)

22 3360056 Connector (T.P.A)

(3−Circuit)

(Pressure Switch)

23 3354925 Block, Connector

(Cold Valve)

24 3354926 Block, Connector

(Hot Valve)

For Models: GST9679PW0, GST9679PG0, GST9679PB0

(White/Grey) (Biscuit/Gold) (Black/Grey)

8180284
