TOP AND CABINET PARTS
1
1−04 Printed In U.S.A. (awm) Part No. 8180206
AUTOMATIC
WASHER
For Models: GHW9100LW2, GHW9100LQ2
(White/Platinum) (White/Blue)
TOP AND CABINET PARTS
28180206
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT8182199
Use & Care Guide
LIT8181790
Tech Sheet
LIT8182197
Energy Guide
LIT8182196
Quick Start Guide
LIT8182198
Dispenser Guide
LIT8182193
DVD−Instruction
2 8181799 Top
3 8181630 Cabinet
4 8181838 Panel, Front
5 8181643 Toe Panel
6 8181636 Foot, Leveling
7 8181763 Bracket, Spring
8 8181634 Brace, Side Panel
9 8181635 Pan, Bottom
10 8182118 Panel, Rear
11 8182117 Brace, Transport
12 Bolt, Shipping
8182124 Upper
8182125 Lower
13 Hose, Water Inlet
8181706 Blue Coupler
8181707 Red Coupler
14 8182120 Cord, Power
15 8181690 Strain Relief
16 8182116 Brace, Rear
17 8181749 Clamp, Tube
Transportation
18 8181737 Outer Drain Hose
19 8181738 Connector,
Hose Outlet
20 8181752 Clamp, Hose
22 8181683 Filter,
Interference
23 8181695 Switch, Pressure
24 8181739 Hose, Pressure
Switch
25 8181691 Screw
26 8181767 Cover, Transport
27 8181768 Storage, Hose
28 8181828 Screw
29 8181930 Microswitch (2)
Following Parts Not Illustrated
8182109 Harness Channel
For Models: GHW9100LW2, GHW9100LQ2
(White/Platinum) (White/Blue)

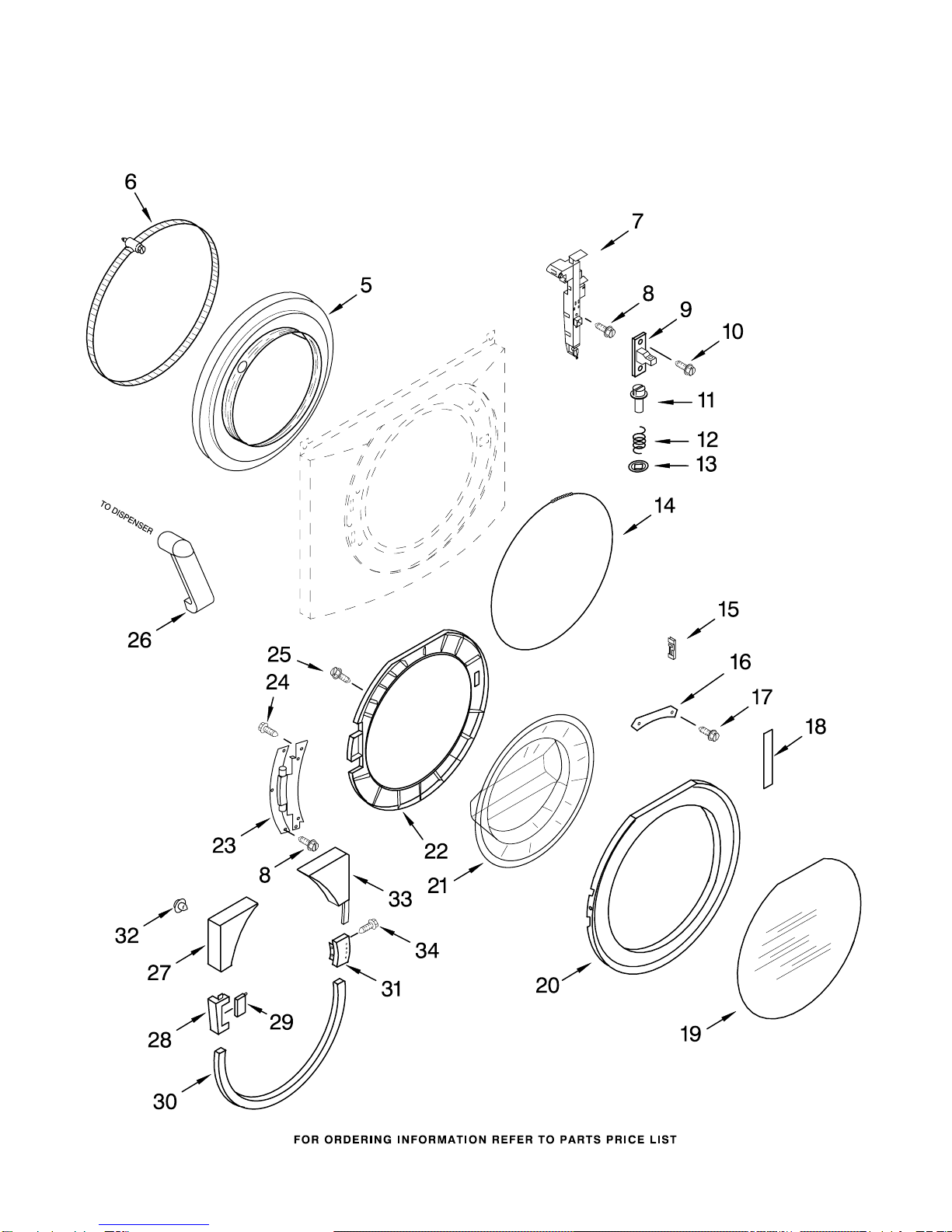

DOOR AND LATCH PARTS
3
8180206
For Models: GHW9100LW2, GHW9100LQ2
(White/Platinum) (White/Blue)
DOOR AND LATCH PARTS
48180206
Illus. Part
No. No. DESCRIPTION
5 8182119 Bellow
6 8181663 Clamp, Bellow
7 8181700 Lock, Door
8 8181760 Screw
9 8181651 Hook, Door
10 8181758 Screw
11 8181652 Pin, Safety
12 8181653 Spring
13 8181654 Washer
14 8181664 Clamp,
Bellow Front
15 8181659 Clamp, Support
16 8181650 Clamp, Glass
17 8181785 Screw
18 8181845 Foam, Door Handle
19 8181847 Screen, Door
20 Door Frame
8181848 Platinum
8181878 Blue
21 8181655 Glass, Door
22 8181849 Door,
Back Support
23 8181843 Hinge, Door
24 8181660 Screw
25 8181661 Screw
26 8181718 Tube, Dispenser
to Bellow
27 Trim, Upper Left
8181842 Platinum
8181875 Blue
28 Cover, Hinge
(Outer)
8181841 Platinum
8181874 Blue
29 Cover, Hinge
(Inner)
8181844 Platinum
8181876 Blue
30 Trim, Lower
8181840 Platinum
8181873 Blue
31 Handle, Door
8181846 Platinum
8181877 Blue
32 8181929 Clip, Trim
33 Trim, Upper Right
8181839 Platinum
8181872 Blue
34 8181759 Screw
For Models: GHW9100LW2, GHW9100LQ2
(White/Platinum) (White/Blue)
CONTROL PANEL PARTS
5
8180206
For Models: GHW9100LW2, GHW9100LQ2
(White/Platinum) (White/Blue)
CONTROL PANEL PARTS
68180206
Illus. Part
No. No. DESCRIPTION
1 Panel, Control
8181885 Platinum
8181886 Blue
2 8181905 User Interface
3 8181860 Button, Power
4 8181861 Button, Start
5 Button Set,
Soil Level
8181863 Platinum
8181882 Blue
6 8181862 Button,
Pause/Cancel
7 Button Set,
Options
8181889 Platinum
8181892 Blue
8 Button Set,
Spin/Temperature
8181865 Platinum
8181884 Blue
9 8181868 Light, Indicator
(Status)
10 8181856 Window, Display
11 8181908 Light, Indicator
(7 Lights)
12 8181871 Light, Indicator
(3 Lights)
13 8181639 Brace, Front Top
14 8181640 Channel, Water
15 8181923 Microcomputer,
Machine Control
16 8181756 Screw
17 8181783 Harness, Wire
18 8181906 Light, Indicator
(Program)
19 8181907 Light, Indicator
(2 Lights)
20 8181855 Bezel, Knob
21 8181857 Overlay, Door
22 8181858 Medallion
23 Knob, Control
8181859 Platinum
8181881 Blue
24 8181852 Endcap, Left
25 8181853 Endcap, Right
For Models: GHW9100LW2, GHW9100LQ2
(White/Platinum) (White/Blue)
DISPENSER PARTS
7
8180206
For Models: GHW9100LW2, GHW9100LQ2
(White/Platinum) (White/Blue)
DISPENSER PARTS
88180206
Illus. Part
No. No. DESCRIPTION
1 8181694 Valve, Inlet
2 8181710 Hose, Flowmeter
(L−Shaped)
3 8181751 Clamp
4 8181696 Flowmeter
6 8181708 Hose, Flowmeter
7 8181713 Nozzle, Inlet
9 8181714 O−Ring
11 8181726 Cam, Actuator
12 8181725 Lever, Water
Distribution
13 8181723 Actuator
14 8181759 Screw,
Self−Cutting
15 8181727 Spring, Lever
16 8181724 Connection, Lever
17 8182122 Dispenser
18 8181712 Nozzle,
Distribution
19 8181747 Seal
20 Handle, Drawer
8181887 Platinum
8181888 Blue
21 8181720 Drawer,
Detergent
22 8181722 Container,
Detergent
23 8181729 Siphon,
Bleach/Softener
24 8182131 Separator
25 8181721 Hook, Drawer
26 8182123 Cap
27 8181781 Harness, Wiring
(Inlet Valve)
28 8181898 Cover, Pre−Wash
For Models: GHW9100LW2, GHW9100LQ2
(White/Platinum) (White/Blue)
TUB AND BASKET PARTS
9
8180206
For Models: GHW9100LW2, GHW9100LQ2
(White/Platinum) (White/Blue)
TUB AND BASKET PARTS
10 8180206
Illus. Part
No. No. DESCRIPTION
1 8182132 Nut, Pulley
2 8181671 Pulley
3 8181670 Belt
4 8181745 Grid, Ventilation
5 8181744 Pipe, Ventilation
6 8181746 Clamp
7 8181743 Hose, Exhaust
8 8181912 Tub, Rear
9 8181913 Counterweight,
Rear
10 8181673 Gasket, Tub
11 8181914 Basket
12 8181669 Baffle, Tub
13 8181748 O−Ring
14 8181731 Airtrap
15 8181645 Counterweight,
Front
16 8181762 Spring,
Suspension
17 8181647 Bolt
18 8181742 Clamp
19 8181794 Hose, Tub to
Dispenser
20 8181667 Clamp
21 8181825 Tub, Front
22 8181648 Nut, Push−In
23 8181646 Shock Absorber
24 8181705 NTC
25 8181829 Seal, Rubber
Following Parts Not Illustrated
8182126 Screw, Baffle
For Models: GHW9100LW2, GHW9100LQ2
(White/Platinum) (White/Blue)
