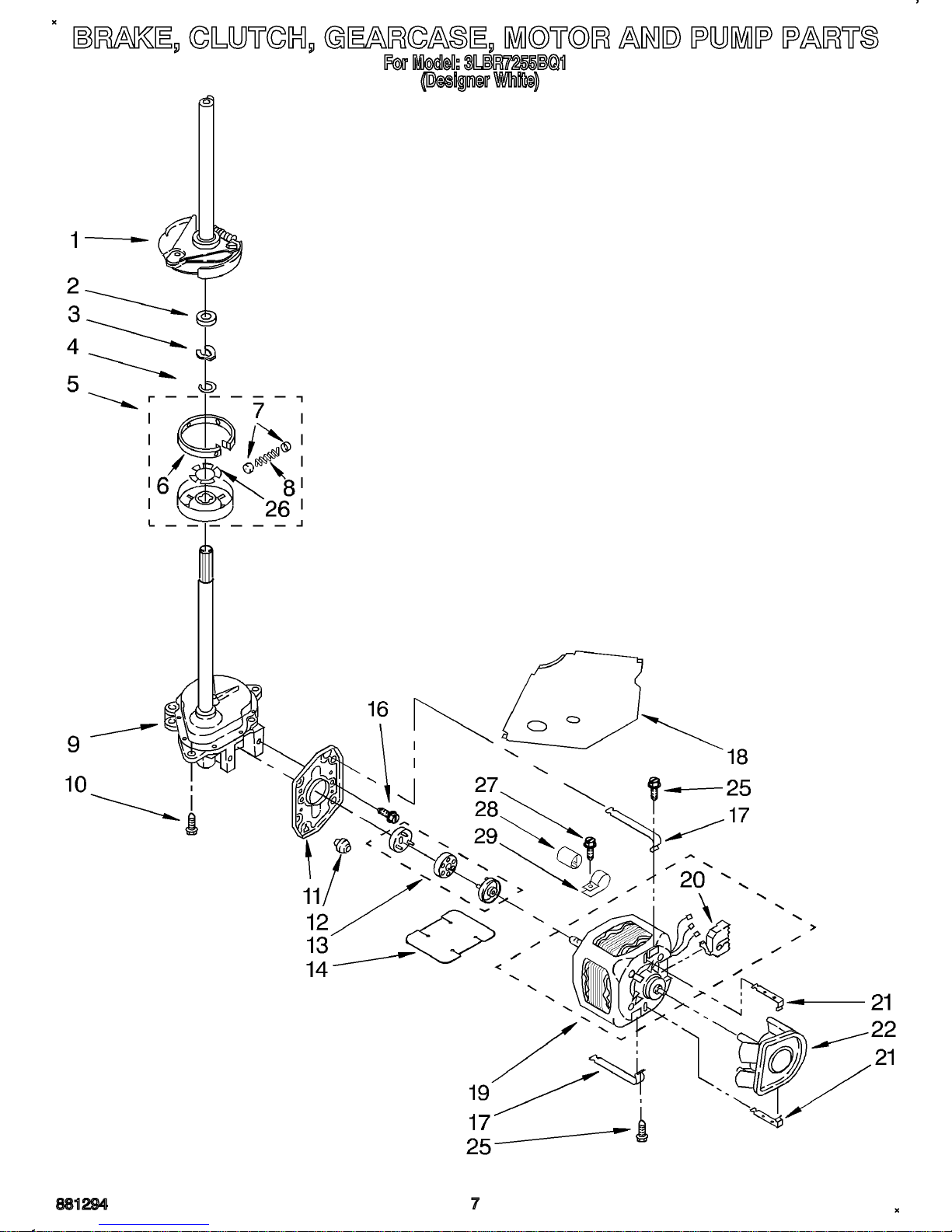

Whirlpool 3LBR7255BQ1 Manual de usuario

1 357213 Nut, Push-In

2 Top

3358226 For Designer White Model

3 62750 Spacer, Cabinet To Top (4)

5 Cabinet

63128 For Designer White Model

6 62780 Clip, Top & Cabinet & Rear Panel (2)

8 3356311 Screw & Washer, Lid Switch (2)

11 3352631 Switch, Lid

13 3351355 Screw, Lid Hinge Mounting (4)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid Hinge (2)

19 Lid

3947509 For Designer White Model

20 358684 Strike, Lid Switch

22 93770 Bumper, Lid (2)

23 3362952 Dispenser, Bleach

28 384435 Screw, 10-16 x 1/2 (4)

31 90016 Clip, Harness

LITERATURE PARTS

LIT3363122 Sheet, Installation Instructions

LIT3360469 Guide, Use and Care

LIT3947785 Label, Wiring Diagram

LIT4313896 Manual, (Washer) Do-It-Yourself

LIT881294 List, Repair Parts

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH-UP (1/2oz.)

72017 White

72107 Almond

72110 Golden Harvest

PAINT, PRESSURIZED SPRAY (13 oz.)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest (Uncut)

OIL 350572 Oil, Gearcase (16 Oz.)

LUBRICANT

285208 Lubricant (Use Only in Brake Shoe Assembly On Roller and Pin)

SEALER285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675 Shipping Kit

ACCESSORY PARTS

89121 Stand-Pipe Kit

367031 Drain Protector

285320 Siphon Break Kit

1 16123 Washer, Water Inlet Hose (4) (1-1/16 x 5/8)

3 3354858 Hose, Water Inlet (2)

4 3357027 Nozzle-Drain Hose

5 387402 Hinge, Console (2)

6 3361167 Panel, Rear

7 62747 Pad, Rear Panel

8 661575 Hose, Drain (4'-8")

661577 Hose, Drain (9'-9") (Not Included)

3357090 Extension, Drain Hose (21 Inches) (Not Included)

9 3947783 Timer, Control (50 Hz.) (Motor Not A Service Part)

11 90767 Screw, 8A x 3/8

12 3356465 Switch, Water Level

13 3358897 Bracket, Control

14 3361035 Cord, Power

15 63848 Strain Relief, Power Cord

16 Cap, End (L.H.)

3358528 For Designer White Model

17 96160 Screen, Filter (2)

18 3360393 Valve, Water Mixing

19 90864 Screw, 10-24 x 3/8 (2)

20 3359816 Hose, Pump To Drain

21 370451 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 62662 Hose, Vacuum Break

23 371503 Clamp, Hose

24 3347034 Break, Vacuum

25 63290 Support, Rear Panel

26 3355497 Connector, Drain Hose

27 356138 Clamp, Hose

30 371502 Clamp, Hose

31 371507 Clamp, Hose

32 62731 Hose, Pump To Tub

35 661536 Switch, Water Temperature

36 96435 Screw, Timer Mounting (10-32 x 1) (2)

39 Panel, Console

3360380 For Designer White Model

44 Knob, Timer

3364291 For Designer White Model

45 Dial, Timer

3946261 For Designer White Model

47 Knob, Control

3358435 For Designer White Model

49 388326 Screw, 8-18 (Panel to Top)

50 62863 Screw, 10-16 x 3/8

51 Cap, End (R.H.)

3358513 For Designer White Model

55 3357331 Clamp, Drain Hose

59 3357011 Screw, 10-16 X 1/2

60 3357451 Hose Adapter Assembly

61 3361102 Harness, Wiring (For Detail see Wiring Harness Parts Page.)

Also See Clips.

1 63580 Dispenser

2 358237 Screw & Washer (5-16-24 x 1)

3 3349019 Clothes Mover

4 3350830 Agitator

5 3360611 Tub Ring

6 3359586 Gasket, Tub Ring

7 387867 Clip, Balance Ring (8)

8 387868 Balance Ring

9 3361948 Filter, Plate

10 3363661 Bearing-Driven Cam

11 3363663 Cam Driven Short

12 21366 Nut, Spanner

13 3357245 Basket

14 63039 Tub (Includes Item 23)

15 389140 Block, Basket Drive

16 383727 Gasket, Centerpost

17 3347780 Hose, Pressure Switch

18 387091 Dog, Agitator Clutch

19 3350829 Agitator-Assy. (Complete)

20 3350389 Spacer, Thrust

21 3347290 Cap, Barrier

22 3348855 Seal, Inner Cap

23 3358198 Hose, Bleach

24 3354845 Clip, Agitator

25 3355921 Washer, Agitator

1 3356711 Miscellaneous Parts Bag

2 16123 Washer, Inlet Hose (1-1/16 x 5/8) (4)

4 62739 Nut, Lock (2) (3/8-16)

5 389102 Foot, Front (2)

7 356138 Clamp, Hose
