Whirlpool ED22PF Manual de usuario

UseAndCare

A Note To You

Important Safety

lnsttuctions 3

Parts And Features 4

Before Using Your

Refrigerator 5

Using Your

Refrigerator 7

Caring For Your

Refrigerator 21

Food Storage Guide 24

If You Need

Warranty 28

I-800-253-1 301

Call our Consumer Assistance Center

with questions or comments.

NO-FROST REFRIGERATOR-FREEZER

MODEL ED22PF

A Note To You

Thank you for buying a Whirlpool@ appliance.

You have purchased a quality, worldclass home appliance. Years of engineering experience

went into its manufacturing. To ensure that you enjoy many years of trouble-free operation,

we developed this Use and Care Guide. It is full of valuable information on how to operate

and maintain your appliance properly and safely. Please read it carefully. Also, please com-

plete and mail the Ownership Registration Card provided with your appliance. This will help

us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

This symbol will help alert you to such

dangers as personal injury, burns, fire

1 and electrical shock.

This symbol will help you avoid actions

which could cause product damage

’ 1 1

Our Consumer Assistance Center number, l-800-253-1301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “If You Need Assistance Or Service” on page 26. If you need further help, feel free to call

our Consumer Assistance Center. When calling, you will need to know your appliance’s

complete model number and serial number. You can find this information on the model and

serial number label (see diagram on page 4). For your convenience, we have included a

handy place below for you to record these numbers, the purchase date from the sales slip,

and your dealer’s name and telephone number. Keep this book and the sales slip together in

a safe place for future reference.

Model Number

Serial

Number

Purchase Date

Dealer Name

Dealer Phone

l Read all instructions before using the

refrigerator.

Child entrapment and suffocation are

not problems of the past. Junked or

abandoned refrigerators are still danger-

ous ... even if they will “just sit in the

garage a few days.”

If you are getting rid of your old refrig-

erator, do it safely.

l Never allow children to operate, play

with, or crawl inside the refrigerator.

l Never clean refrigerator parts with

flammable fluids. The fumes can create a

fire hazard or explosion.

l FOR YOUR SAFETY l

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

l Install and level the refrigerator on a floor

that will hold the weight and in an area

suitable for its size and use.

l Do not install the refrigerator near an oven,

radiator, or other heat source.

l Do not use the refrigerator in an area

where the room temperature will fall below

55°F (13°C).

l Keep the refrigerator out of the weather.

l Connect the refrigerator only to the proper

kind of outlet, with the correct electrical

supply and grounding.

l Do not load the refrigerator with food

before it has time to get properly cold.

l Use the refrigerator only for the uses

described in this manual.

l Properly maintain the refrigerator.

l Be sure the refrigerator is not used by

anyone unable to operate it properly.

Parts And Features

This section contains captioned illustrations. Use them to become familiar with where all parts

and features are located and what they look like.

Automatic ice

maker --

Icebin\

Light

(below ice bin)’

Freezer shelves .

Snack bin

Meat

drawer

temperature

Freezer bin

Removable

shelf front

Leveling rollers .

(behind base

grille)

Model and

serial number

Control panel Light

111

’

7F ‘111111

Crisper

% Meat drawer

Base grille

Control panel

Freezer control Refrigeraior control

Before Using Your

Refrigerator

In This Section

Page Page

Cleaning it ...........................................5 Installing it properly ...........................6

Plugging it in .......................................5 Leveling it ............................................6

It is important to prepare your refrigerator for use. This section tells you how to clean it,

connect it to a power source, install it, and level it.

Cleaning it

Removing packaging materials

Remove tape and any inside labels (except

the model and serial number label) before

using the refrigerator.

To remove any remaining glue:

l Rub briskly with thumb to make a ball, then

remove.

l Soak area with liquid hand-dishwashing

detergent before removing glue as

described above. Do not use sharp

instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners. These can

damage the material. See “Important

Safety Instructions” on page 3.

NOTE: Do not remove any permanent

instruction labels inside your refrigerator. Do

not remove the Tech Sheet fastened under

the refrigerator at the front.

Cleaning it before use

After removing all packaging materials,

clean your refrigerator before using it, if

necessary. See cleaning instructions on

pages 21-22.

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere

fused and properly grounded electrical

supply is required. It is recommended that a

separate circuit serving only this appliance

be provided. Use a receptacle which cannot

be turned off with a switch or pull chain. Do

not use an extension cord.

See Electrical Requirements and Ground-

ing Instructions Sheet in your Literature

Package.

Sprang grounding

type wall receptacle

Refrigerator

power cord

grounding

P’W

Installing it properly

1. Allow % inch

(1.25

cm) space on each

side and at the top of the refrigerator for

ease of installation.

2. If the refrigerator is to be against a wall,

you might want to leave extra space on

the hinge side closest to the wall so the

door can be opened wider.

3. The refrigerator can be flush against the

wall.

4. Make sure ice maker water supply has

been connected. Refer to Installation

Instructions.

Leveling it

Your refrigerator has 2 front leveling

screws-one on the right and one on the left.

To adjust one or both of these, follow the

directions below.

Remove base grille. (See page 18.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclock-

wise.

4. Check with level.

5. Replace base grille. (See page 18.)

Right to raise;

left to lower

Use a screw-

driver to adjust

Using Your Refrigerator

In This Section

Page Page

Setting the controls ............................ 7 Removing the freezer shelves.. ...... .I3

Changing the control settings.. ........ .8 Removing the freezer bin.. .............. .I3

Removlng the door shelf fronts.. ......... .9 Using the ice and water

......................................... 13

Adjusting the door bins .................... .9 dispensers

Using the automatic ice maker.. ..... .15

Adjusting the door bin glides.. ......... .9

Removing the tall-bottle retainer ....I0 Removing the ice maker

storage bin ........................................ 16

Adjusting the refrigerator shelves ..I 0 Solving common ice maker/

Using the egg bin 11 dispenser problems ........................ .I7

.............................

Removing the crisper and crisper Removing the base grille ................ .I8

cover .................................................. 11 Changing the light bulbs ................. 18

Removing the meat drawer

and cover Understanding the sounds you

........................................... 12 may hear ............................................ 20

Adjusting the meat drawer ................................... 20

temperature Saving energy

....................................... 12

Removing the snack bin ................. .12

To obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section tells you how to set the controls, remove and adjust some of the fea-

tures in your refrigerator, and how to save energy.

Setting the controls

Controls for the refrigerator and freezer are in

the refrigerator. When you plug in the refrigerator

for the first time:

1. Set the Refrigerator Control to 3.

Refrigerator Control adjustments range from

1 (warmest) to 5 (coldest).

2. Set the Freezer Control to B.

Freezer Control adjustments range from

A (warmest) to C (coldest).

3. Give the refrigerator time to cool down

completely before adding food. This may

take several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls are set correctly

when milk or juice is as cold as you like

and when ice cream is firm. If you need to

adjust these settings, see “Changing the

control settings” below.

NOTE: The Automatic Exterior Moisture

control continuously guards against moisture

build-up on the outside of your refrigerator

cabinet. This control does not have to be set

or adjusted.

Changing the control settings

If you need to adjust temperatures in

Adjust the Refrigerator Control first.

refrigerator or freezer, use the settings listed

Wait at least 24 hours between adiustments.

in the chart below as a guide. If you have

questions, call our Consumer Assistance

ienter number, 1-800-253-l 301.

Then adjust the Freezer Control if needed.

RECOMMENDED

CONDITION: REASON: CONTROL SETTINGS:

Refrigerator

section

too warm

Door opened often

Large amount of food added

Room temperature too warm

Refrigerator 4

Freezer A

Freezer

section

too warm

Door opened often

Large amount of food added

Very cold room temperature

(can’t cycle often enough)

Refrigerator 3

Freezer C

Refrigerator

section

too cold

Controls not set correctly

for your conditions Refrigerator 2

Freezer 6

Ice not

made fast

enough

Both

sections

too warm

Heavy ice usage

Very cold room temperature

(can’t cycle often enough)

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator 3

Freezer C

Refrigerator 4

Freezer I3

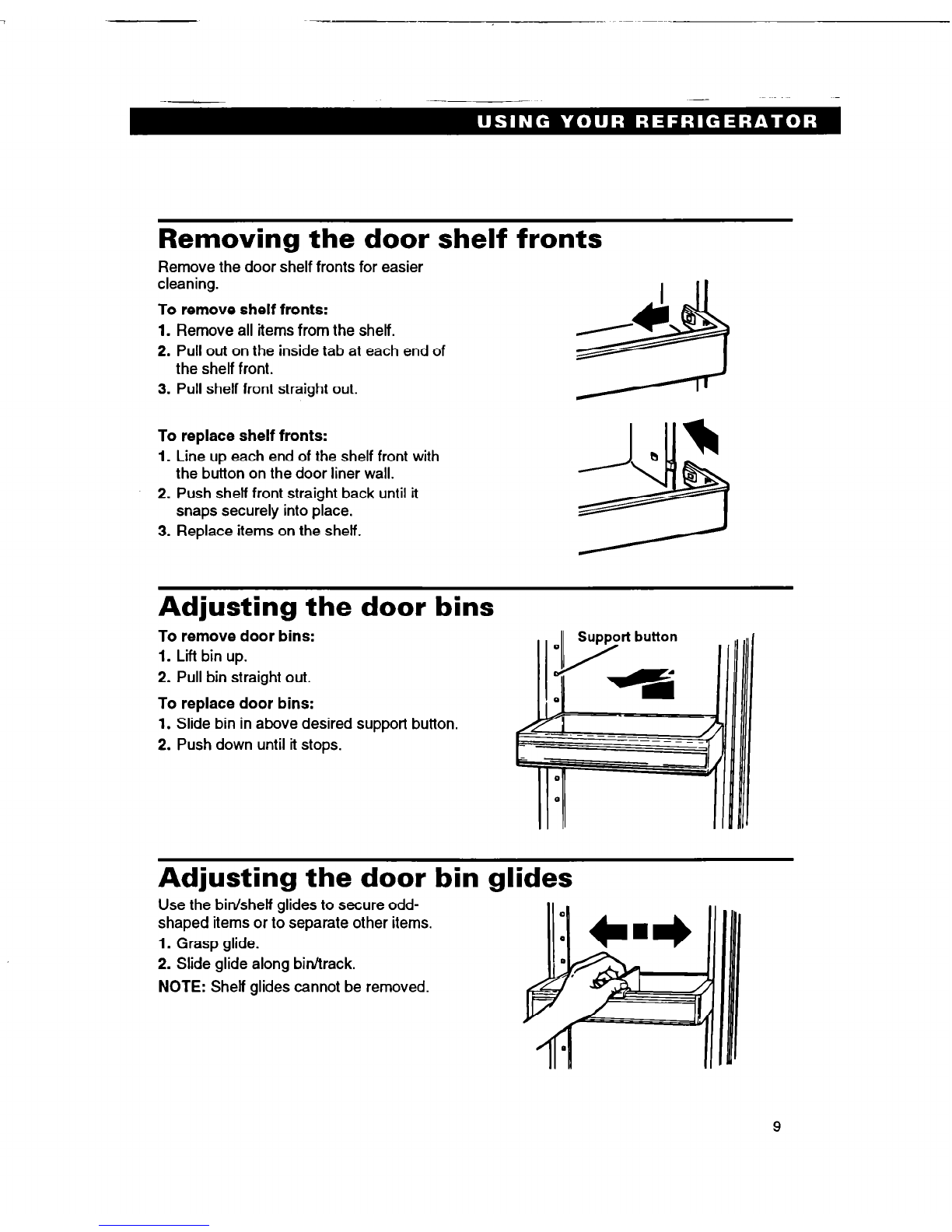

Removing the door shelf fronts

Remove the door shelf fronts for easier

cleaning.

To remove shelf fronts:

1. Remove all items from the shelf.

2. Pull out on the inside tab at each end of

the shelf front.

3. Pull shelf front straight out.

To replace shelf fronts:

1. Line up each end of the shelf front with

the button on the door liner wall.

2. Push shelf front straight back until it

snaps securely into place.

3. Replace items on the shelf.

Adjusting the door bins

To remove door bins:

1. Lift bin up.

2. Pull bin straight out.

To replace door bins:

1. Slide bin in above desired support button.

2. Push down until it stops.

Adjusting the door bin glides

Use the bin/shelf glides to secure odd-

shaped items or to separate other items.

1. Grasp glide.

2. Slide glide along bin/track.

NOTE: Shelf glides cannot be removed.

Removing the tall-bottle retainer

The tall-bottle retainer fits onto any door bin

in your refrigerator. The retainer helps to

hold tall-bottles in place when opening and

closing the refrigerator door.

To remove tall-bottle retainer:

1. Grasp center of retainer.

2. Pull up and off of bin.

To replace tall-bottle retainer:

1. Position retainer above desired door bin.

2. Gently push retainer down onto bin.

3. Make sure both side notches sit firmly

against bin.

Notch

Adjusting the refrigerator shelves

Adjust shelves to match the way you use

your refrigerator. Glass shelves are strong

enough to hold bottles, milk, and other

heavy food items.

To remove the shelves:

1. Remove items from the shelf.

2. Tilt shelf up at front.

3. Lift shelf up at back.

4. Pull shelf straight out.

To replace the shelves:

1. Guide the rear shelf hooks into the slots

in the shelf supports on the back liner

wall.

2. Tilt front of shelf up until hooks drop into

slots.

3. Lower front of shelf to a level position.

Be careful when

handling glass items.

Tabla de contenidos

Otros manuales de Refrigerador de Whirlpool

Whirlpool

Whirlpool W10305235A Manual de usuario

Whirlpool

Whirlpool ET14JM Manual de usuario

Whirlpool

Whirlpool ADN 140W Manual de usuario

Whirlpool

Whirlpool ET8MHKXMT00 Guía de solución de problemas

Whirlpool

Whirlpool ER8AHMXRB00 Manual de usuario

Whirlpool

Whirlpool WUR50X24EM Manual de usuario

Whirlpool

Whirlpool S20B RSB21-A Manual de usuario

Whirlpool

Whirlpool GF6NFEXTY Manual de usuario

Whirlpool

Whirlpool W8TXEWFYB Instrucciones de montaje

Whirlpool

Whirlpool WRF954CIHZ03 Manual de usuario

Whirlpool

Whirlpool ET20MK Manual de usuario

Whirlpool

Whirlpool ED22MK Manual de usuario

Whirlpool

Whirlpool Gold GI0FSAXV Manual de lista de piezas

Whirlpool

Whirlpool WRT5L1SMYB Instrucciones de montaje

Whirlpool

Whirlpool GS2KVAXVS03 Manual de usuario

Whirlpool

Whirlpool ET22DKXDB00 Manual de usuario

Whirlpool

Whirlpool ET18NKXSW08 Manual de usuario

Whirlpool

Whirlpool W8RXNGMWB Instrucciones de montaje

Whirlpool

Whirlpool ED22EK Manual de usuario

Whirlpool

Whirlpool WRT311FZDW Guía de inicio rápido

Whirlpool

Whirlpool 2318584 Manual de usuario

Whirlpool

Whirlpool ET1MHKXM Manual de usuario

Whirlpool

Whirlpool W2RXEMMWS - 22 cu. Ft. Qualified ADA Instrucciones de montaje

Whirlpool

Whirlpool Gladiator Garageworks Freezerator... Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
