Whirlpool B2lDK Manual de usuario

A Note To You

Important Safety

Instructions

Parts

And Features

Before Using Your

Refrigerator 5

Using Your

Refrigerator

Ci71$;eFspr

Food Storage Guide 20

If Yqu Need

es: 22

Warranty

1-800-253-1301

Cdl us w’kh questhns of comments.

NO-FROST REFRIGERATOR-FREEZER

MODEL EB2lDK

A Note To You

Thank you for buying a WhirlpooP appliance.

You have purchased a quality, worMclass home appliance. Years of engineering experience

went into its manufacturing. To ensure that you enjoy many years of trouble-free operation,

we developed this Use and Care Guide. It is full of valuable infonnation on how to operate

and maintain your appliance properfy

and

safely. Please read it carefully. Also, please com-

plete and mail the Ownership Registration Card provided with your appliance. This will help

us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is

brief explanation of the use of each

symbol.

This symbol will help alert you to such This symbol will help you

avoid actions

dangers as personal injury, bums, fire which could cause product damage

and electrical shock. (scratches, dents, etc.) and damage to

your personal property.

Our Consumer Assistance Center number, l-800-253-1301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “If You Need Assistance Or Service” on page 22. If you need further help, feel free to call

our Consumer Assistance Center. When calling, you will need to know your appliance’s

complete model number and serial number. You can find this information on the model and

serial number label (see diagram on page 4). For your convenience, we have included a

handy place below for you to record these numbers, the purchase date from the sales slip

and your dealer’s name and telephone number. Keep this book and the sales slip together in

a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury when

using your refrigerator, follow these basic precautions:

Read all instructions before using the

refrigerator.

*Child entrapment and suffocation are

not problems of the past. Junked or

abandoned refrigerators are still danger-

ous ... even if they will “just sit in the

garage

a few

days.”

If you are getting rid of your old refrig-

erator, do it safely. Please read the

enclosed safety booklet from the Asso-

&ion of Home Appliance Manufactur-

ers. Help prevent accidents.

Never allow children to operate, play with,

or crawl inside the refrigerator.

*Never clean refrigerator parts with

flammable fluids. The fumes can create a

fire hazard or explosion.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on a floor

that will hold the weight and in an area

suitable for its size and use.

Do not install the refrigerator near an oven,

radiator or other heat source.

Do not use the refrigerator in an area

where the room temperature will fall below

55°F (13°C).

Keep the refrigerator out of the weather.

Connect the refrigerator only to the proper

kind of outlet, with the correct electrical

supply and grounding. (Refer to the

Electrical Requirements and Grounding

Instructions Sheet.)

Do not load the refrigerator with food

before it has time to get properly cold.

Use the refrigerator only for the uses

described in this manual.

Properly maintain the refrigerator.

Be sure the refrigerator is not used by

anyone unable to operate it properly.

Parts And Features

This section contains

captioned illustrations of your appliance. Use them to become familiar

with where all parts and features are located and what they look like.

Control Light

panel I Egg Utility Butter

bin compartment compartment

Crisper II

cover >

I II

Adjustable

, door bins

Tall-bottle

, retainer

adjuatebie

- door bins

U-l 1111

- 11111- Shelf glide

Light

rollerr Y

(behind base

grille)

Control panel

Refrigerator

control

Exterior moisture

control Freezer

control

Before Using Your

Refrigerator

In This Section

Page Page

Cleaning it ...........................................5 installing it properly ...........................6

Plugging it in .......................................5 Leveling it ............................................

It is important to prepare your refrigerator for use. This section tells you how to clean it,

connect it to a power source, install it and level it.

Cleaning it

Removing packaging materials

Remove tape and any inside labels (except

the model and serial number label) before

using the refrigerator.

To remove any remaining glue:

Rub briskly with your thumb to make a ball,

then remove.

Soak area with liquid handdishwashing

detergent before removing glue as de-

scribed above. Do not use sharp instru-

ments, rubbing alcohol, flammable fluids or

abrasive cleaners. These can damage the

material. See “Important Safety Instruc-

tions” on page 3.

NOTE:

Do not remove any permanent

instruction labels inside your refrigerator. Do

not remove the Tech Sheet fastened under

the refrigerator at the front.

Cleaning it before use

After removing all packaging materials,

clean your refrigerator before using it, if

necessary. See cleaning instructions on

pages 17 and 18.

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere

fused and properly grounded electrical

supply is required. It is recommended that a

separate circuit serving only this appliance

be provided. Use a receptacle which cannot

be turned off with a switch or pull chain. Do

not use an extension cord.

See Electrical Requirements and Ground-

ing Instructions Sheet in your Literature

Package.

3-prong grounding

type wall receptacle

Refrigerato

power cord

grounding plug

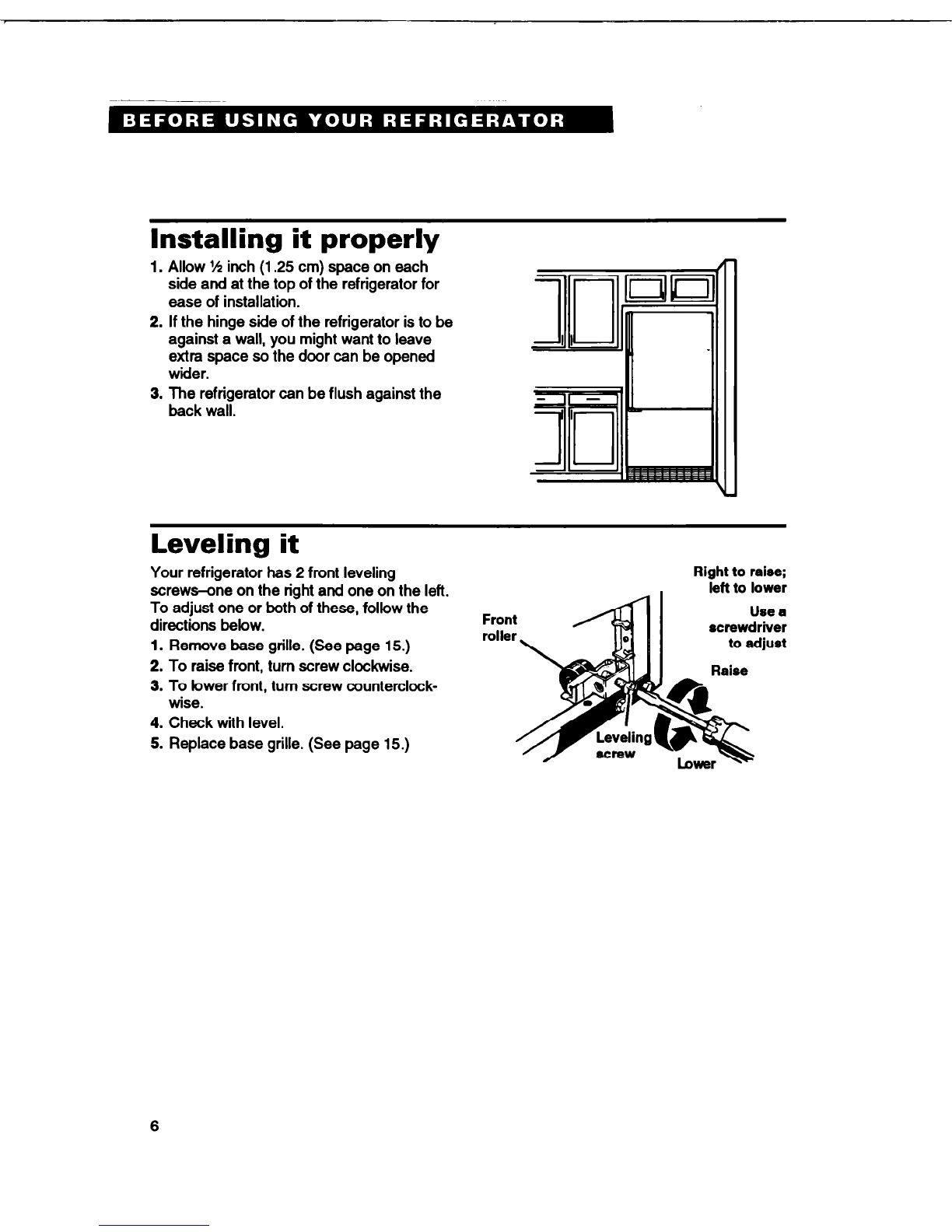

Installing it properly

1. Allow I%inch (1.25 cm) space on each

side and at the top of the refrigerator for

ease of installation.

2. If the hinge side of the refrigerator is to be

against a wall, you might want to leave

extra space so the door can be opened

wider.

3. The refrigerator can be flush against the

back wall.

Leveling it

Your refrigerator has 2 front leveling

screws-one on the right and one on the left.

To adjust one or both of these, follow the

directions below.

1. Remove base grille. (See page 15.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclock-

Right to raise;

left to lower

screwdriver

wise.

4. Check with level.

5. Replace base grille. (See page 15.)

Using Your Refrigerator

In This Section

Page Page

Setting the controls ............................ 7 Adjusting the crisper

Changing the control settings.. .6 humidity control ............................... 13

........

Adjusting the door bins .9 Removing the freezer baskets.. .......13

....................

Adjusting the bin/shelf glides .9 Using the ice cube trays ................. .13

..........

Removing the tail-bottle retainer ....... Using the optional automatic

ice maker ........................................... 14

Adjusting the lateral-adjust shelf.. ..lO Changing the light bulbs ................ .15

Adjusting the cantilever

refrigerator shelves .......................... 11 Removing the base grille ................ .15

Using the egg bin 11 Reversing the door swing.. ..............16

.............................

Removing the meat drawer and Understanding the sounds you

cover 12 may hear ............................................ 16

..................................................

Removing the crispers and Saving energy ................................... 16

crisper cover ..................................... 12

To obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section tells you how to set the controls, remove and adjust some of the

features in your refrigerator, and how to save energy.

Setting the controls

Temperature controls

Controls for the refrigerator and freezer are in

the refrigerator. When you plug in the refriger-

ator for the first time:

1. Set the Refrigerator Control to 3.

Refrigerator Control adjustments range from

(warmest) to 5 (coldest).

2. Set the Freezer Control to B.

Freezer Control adjustments range from

A (coldest) to C (warmest).

3. Give the refrigerator time to cool down completely

before adding food. This may take several hours.

The settings indicated above should be correct

for normal, household refrigerator usage. The

controls are set correctly when milk or juice is as

cold as you like and when ice cream is firm. lf you

need to adjust these settings, see “Changing the

control settings” on page 8.

REFRIGERATOR

Exterior moisture control

The Exterior Moisture Control operates

electric heaters around the door openings.

These heaters help keep moisture from

forming on the outside of the refrigerator

cabinet.

Use the OFF setting when humidity is low.

Use the ON setting if moisture forms on

the outside of the refrigerator cabinet.

OFF 011

EmERlOR

MOISTURE

CONTROL

Changing the control settings

If you need to adjust temperatures in

Adjust the Refrigerator Control first.

refrigerator or freezer, use the settings listed

in the chart below as

guide. If you have

Wait at least 24 hours between adjust-

ments.

questions, call our Consumer Assistance

Center number, l-800-253-1301.

Then adjust the Freezer Control if needed.

CONDITION:

Refrigerator

section

too warm

Freezer

section

too warm

Refrigerator

section

too cold

ice not

made fast

enough

Both

sections

too warm

REASON:

Door opened often

Large amount of food added

Room temperature too warm

Door opened often

Large amount of food added

Very cold room temperature

(can’t cycle often enough)

Controls not set correctly

for your conditions

RECOMMENDED

CONTROL SElTiNGS:

Refrigerator 4

Freezer B

Refrigerator 3

Freezer Between

B and C

Refrigerator 2

Freezer B

Heavy ice usage

Very cold room temperature

(can’t cycle often enough)

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator 3

Freezer Between

BandC

Refrigerator 4

Freezer Between

BandC

Adjusting the door bins

To remove door bins:

Lii bin up.

2. Pull bin straight out.

To replace door bins:

Slide bin in above desired support button.

2. Push down until it stops.

SUDDOI~ button

Adjusting the bin/shelf glides

Use the binlshelf glides to secure odd-

shaped items or to separate other items.

GrasD alide.

2. Slide glide along bin/track.

NOTE: Shelf glides cannot be removed.

Removing the tall-bottle retainer

The tall-bottle retainer fits onto any door bin

in your refrigerator. The retainer helps hold

tall bottles in place when opening and

closing the refrigerator door.

To remove tail-bottle retainer:

Grasp center of retainer.

2. Pull up and off of bin.

To replace tall-bottle retainer:

Position retainer above desired door bin.

2. Gently push retainer down onto bin.

3. Make sure both side notches sit firmly

against bin.

Adjusting the lateral-adjust shelf

To slide shelf side-to-side:

Lift slightly on shelf front.

2. Slide to desired location.

3. Lower shelf front to level position.

NOTE: You do not have to remove small

items from the shelf before moving it side-to-

side. You may need to remove larger items.

To remove the shelf:

Remove all items from the shelf.

2. Hold back of shelf with one hand.

3. Lift front of shelf to 45” angle.

4. Lower shelf slightly to release shelf from

upper channel of track. Then pull shelf

straight out.

NOTE: Sheff is heavy. Make sure you use

both hands when removing shelf.

Lii front alightly.

Then slide to new location.

Upper

Hold with both

and lift front to 45’ angle.

To remove shelf track:

Lii both sides of track slightly.

2. Pull track straight out.

Hold both sides and

lift up and out.

To replace shelf track:

Guide track hooks into the shelf support

slots on the back wall of the cabinet.

NOTE: Make sure all three track hooks

are in slots and that the slots are parallel

to each other.

2. Push track backward and down.

3. Check that track is completely seated in

the shelf supports.

Make

8ure all

3 sets of

hooks

are in

support

Shelf

\ mlpport

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Whirlpool

Whirlpool

Whirlpool GB9SHDXPB12 Manual de usuario

Whirlpool

Whirlpool Gladiator Garageworks Freezerator... Manual de usuario

Whirlpool

Whirlpool GD5DHAXVQ - 25 Cubic Foot 2008 Approved Sid Manual de usuario

Whirlpool

Whirlpool ET6WSKXSQ00 Manual de usuario

Whirlpool

Whirlpool ET14JM Manual de usuario

Whirlpool

Whirlpool Gold GR2FHTXVS Manual de usuario

Whirlpool

Whirlpool WRS311SDHT Manual de usuario

Whirlpool

Whirlpool WBA 3399 NFC IX Manual de usuario

Whirlpool

Whirlpool ET18VK Manual de usuario

Whirlpool

Whirlpool 3XRA700-JWARG480PW01 Instrucciones de funcionamiento

Whirlpool

Whirlpool 3XARG458GD00 Instrucciones de funcionamiento

Whirlpool

Whirlpool ET8WTEXVQ Instrucciones de montaje

Whirlpool

Whirlpool ARG 645 A Manual de usuario

Whirlpool

Whirlpool NWT8501Q Manual de usuario

Whirlpool

Whirlpool BLF 8001 Guía de configuración

Whirlpool

Whirlpool KDDC24RVS Manual de usuario

Whirlpool

Whirlpool EWT8002Q Manual de usuario

Whirlpool

Whirlpool WRS970CI Guía de inicio rápido

Whirlpool

Whirlpool Inglis IT21AMXRQ01 Manual de usuario

Whirlpool

Whirlpool EL87TRRRQ - on 35.3 Cu. Ft. SideKicks Manual de usuario

Whirlpool

Whirlpool 2300234-D-WH Instrucciones de uso

Whirlpool

Whirlpool Gold GS5DHAXVY Manual de usuario

Whirlpool

Whirlpool Gold GSC25C6EY Instrucciones de uso

Whirlpool

Whirlpool ET8MTKXKQ01 Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
