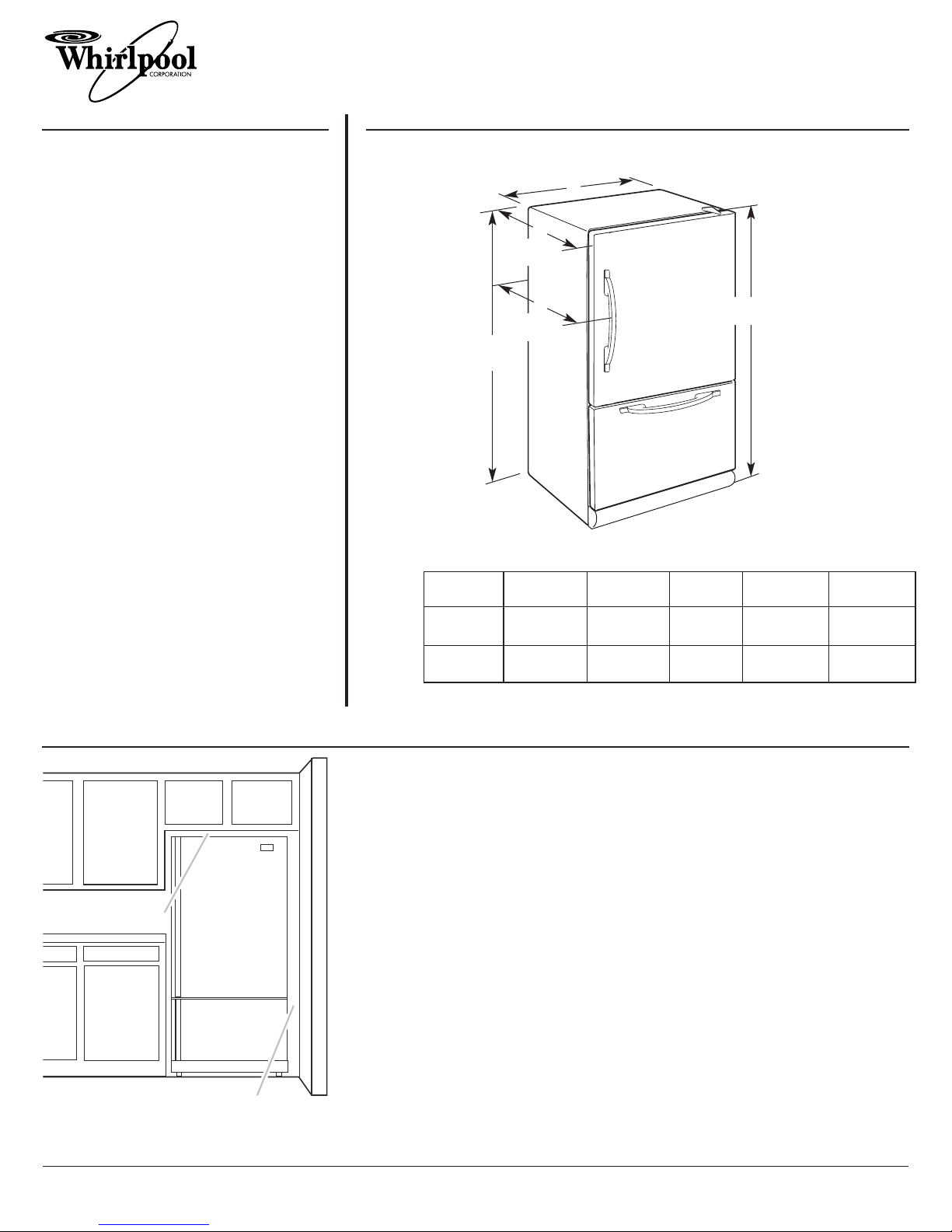

PRODUCT MODEL NUMBER PRODUCT DIMENSIONS

LOCATION REQUIREMENTS

GB9SHDXV

GB2FHDXW

GB9FHDXW

Electrical Requirements: A 115-volt, 60-Hz,

AC-only, 15- or 20-amp fused, grounded electrical

supply is required. It is recommended that a

separate circuit serving only your refrigerator be

provided. Use an outlet that cannot be turned

off by a switch. Do not use an extension cord.

Water Supply Requirements: A cold water supply

with water pressure of between 35 and 120 psi

(241 and 827 kPa) is required to operate the water

dispenser and ice maker. If you have questions

about your water pressure, call a licensed,

qualified plumber.

IMPORTANT: The pressure of the water supply

coming out of a reverse osmosis system going to

the water inlet valve of the refrigerator needs to be

between 35 and 120 psi (241 and 827 kPa).

If a reverse osmosis water filtration system is

connected to your cold water supply, the water

pressure to the reverse osmosis system needs to

be a minimum of 40 to 60 psi (276 to 414 kPa).

Because Whirlpool Corporation policy includes a continuous commitment to improve our

products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. W10208431-D-WH

07/27/09

2¹⁄₂" (6.3 cm)

¹⁄₂" (1.25 cm)

To ensure proper ventilation for your refrigerator,

allow for a 1⁄2" (1.25 cm) space at the top and behind

the refrigerator. If your refrigerator has an ice maker,

allow extra space at the back for the water line

connections. When installing your refrigerator next to

a fixed wall, leave 21⁄2" (6.3 cm) minimum on the hinge

side (some models require more) to allow for the door

to swing open.

NOTE: It is recommended that you do not install the

refrigerator near an oven, radiator, or other heat

source. Do not install the refrigerator in a location

where the temperature will fall below 55°F (13°C).

Bottom Mount Refrigerator

Model #

Depth

“A”

Cab. Width

“B”

Cab. Height

“C”

Overall Height

“D”

Depth

“E”

GB9SHDXV

GB9FHDXW

307⁄8"

(78.4 cm)

295⁄8"

(75.2 cm)

651⁄2"

(166.4 cm)

6615⁄16"

(170 cm)

333⁄8"

(84.8 cm)

GB2FHDXW 307⁄8 "

(78.4 cm)

325⁄8"

(82.9 cm)

681⁄2"

(174.0 cm)

6915⁄16"

(177.6 cm)

333⁄8"

(84.8 cm)

overall

top of

cabinet

not incl.

handle

incl.

handle
