Whirlpool RM978BXS Manual de usuario

UPPER

MICROWAVE

OVEN

Eye-Level Models

RM978BXS

RM973BXS

SM988PES

SM958PES

Built-In Model

RM278BXS

Microwave Ovens. Trash Compactors, Room Air Condltloners, Dehumldlfiers, Automallc Washers, Clothes byers.

Freezers.RefrlgeralOr-1

Contents

Parts and Features .........................

Before You Use Your Microwave Oven ......

Precautions to Avoid Possible Exposure to

Excessive Microwave Energy. ..............

Important Safety Instructions ..............

Using Your Microwave Oven. ...............

Microwave Oven Controls ................

Programming Tone .......................

Setting the Clock .........................

Using the Minute Timer ....................

Cooking in Your Microwave Oven .........

Cooking at High Power ...................

Cooking at Lower Cook Powers ...........

Cooking in More Than One Cycle .........

Using AUTOSET............................

Auto SetTIME ...........................

Auto SetTEMP...........................

Defrosting ................................

Cooking Automatically After Defrosting ...

Cooking with the Temperature Probe ......

Using STARTTIME ..........................

Using KEEPWARM .........................

OtherOperating Hints .....................

Bi-Level Cooking Rack ....................

Optional Bi-Level Cooking Rack Kit ........

Caring for Your Microwave Oven ...........

Cleaning the Microwave Oven ...........

Replacing the Light Bulb ..................

How Your Microwave Oven Works ..........

Operating Safety Precautions .............

If You Need Service or Assistance .........

Microwave Oven Warranty. ................ .

Page

01987 Whirlpool Corporation

Fill out and return the Wlcrowave Reglstratton Card” Included wHh

your mlcrowave oven. Ifthe card is missing, please send the model and

serial number of your Microwave Range, with your name and address to...

Whirlpool Corporation

Microwave Registration Department

Administrative Center

2000 M-63

Benton Harbor, Michigan 49022

This information will help us reach you if there isever a need to pass along

informatlon about your microwave range.

Remove the Consumer Buy Gulde label before using your mlcrowave

range.

I I’

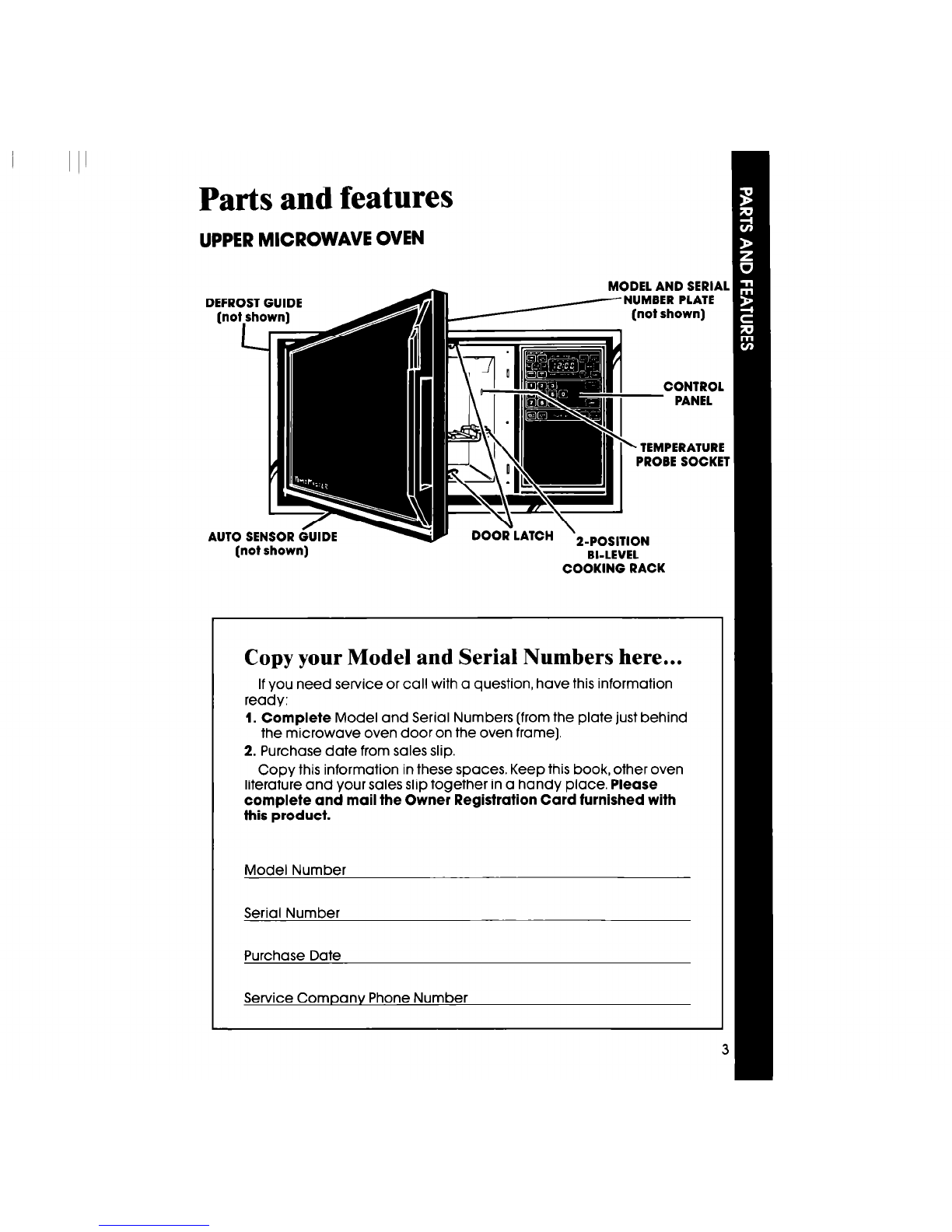

Parts and features

UPPERMICROWAVE OVEN

CONTROL

PANEL

\ TEMPERATURE

I PROBE SOCKEl

AUTO SENSOR &IDE

(not

shown) DOOR-MCH ‘2-pOSITION

BI-LEVEL

COOKING RACK

Copy your Model and Serial Numbers here...

If you need service or call with a question, have this information

ready:

1. Complete Model and Serial Numbers (from the plate just behind

the microwave oven door on the oven frame).

2. Purchase date from sales slip.

Copy this information in these spaces. Keep this book, other oven

literature and your sales slip together in a handy place. Please

complete and mail the Owner Registration Card furnished with

this product.

Serial Number

Service Company Phone Number

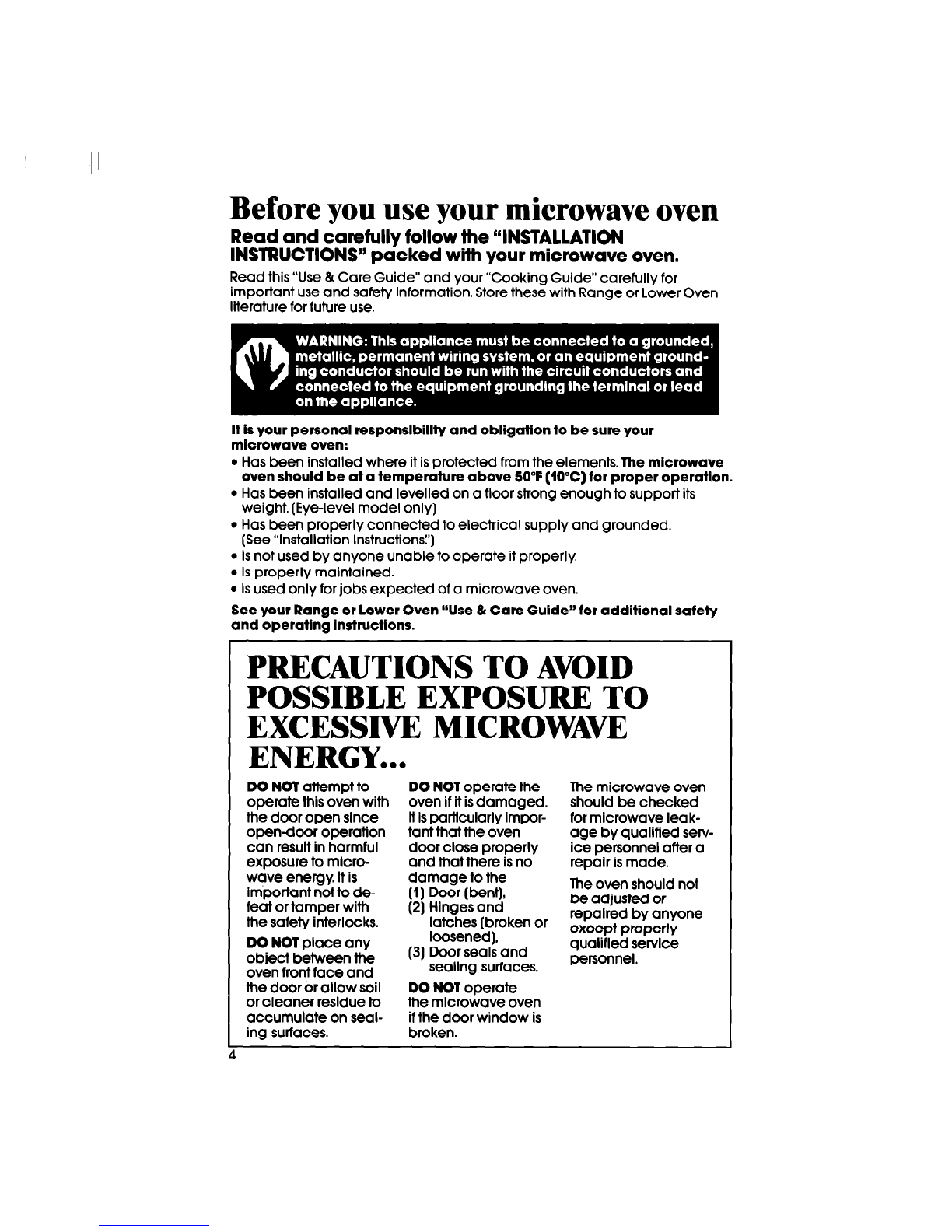

Before you use your microwave oven

Read and carefully follow the “INSTALLATION

INSTRUCTIONS” packed with your microwave oven.

Read this “Use 11.Care Guide” and your “Cooking Guide” carefully for

important use and safety information. Store these with Range or Lower Oven

literature for future use.

It Is your personal responslbillty and obligation to be sure your

mlcrowave oven:

l Has been installed where it is protected from the elements. The microwave

oven should be at a temperature above 50°F (10°C) for proper operation.

l Has been installed and levelled on a floor strong enough to support its

weight. (Eye-level model only]

l Has been properly connected to electrical supply and grounded.

(See “Installation Instructions:‘)

l Isnot used by anyone unable to operate it properly.

l Is properly maintained.

l Isused only for jobs expected of a microwave oven.

See your Range or lower Oven “Use 81Care Guide” for additional safety

and operatlng Instructlons.

PRECAUTIONS TO AVOID

POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAW

ENERGY...

DO NOT attempt to

operate this oven with

the door open since

open-door operation

can result in harmful

exposure to micro-

wave energy. lt Is

Important not to de-

feat or tamper with

the safety interlocks.

DO NOT place any

object between the

oven front face and

the door or allow soil

or cleaner residue to

accumulate on seal-

ing surfaces.

DO NOT operate the

oven if it isdamaged.

it isparticularly impor-

tant that the oven

door close properly

and that there is no

damage to the

(I] Door (bent],

(2) Hlnges and

latches (broken or

loosened],

(3) Dear seals and

seallng surfaces.

DO NOT operate

the microwave oven

if the door window is

broken.

The microwave oven

should be checked

for microwave leak-

age by qualified serv-

ice personnel after a

repalr is made.

The oven should not

be adjusted or

repalred by anyone

except properly

qualified service

personnel.

I”

IMPORTANT

SAFETY INSTRUCTIONS

For Use of Microwave Upper Oven

Microwave ovens have been used successfully in homes for

a number of years. They are thoroughly tested for safe and

efficient operation. However, as with any appliance, there are

special installation and safety precautions which must be

followed to ensure safe and satisfactory operation and pre-

vent damage to the unit.

Read all instructions before

using appliance.

2. Read and follow the

specific “PRECAUTIONS TO

AVOID POSSIBLEEXPOSURETO

EXCESSIVE MICROWAVE EN-

ERGY found on page 4.

3. This appliance must be

installed and properly

grounded in accordance with

the separately provided “ln-

stailation Instructions:’

4. Some products such as

whole eggs and sealed con-

tainers - for example, closed

glass jars - may explode and

should not be heated in this

oven.

5. Use this appliance only for

its intended use as described

in this manual.

6. As with any appliance,

close supervision is necessary

when used by children.

7. Do not operate this

appliance if it has a

damaged cord or plug, if it is

not working properly, or ifit has

been damaged or dropped.

Electric shock, fire or other haz-

ards may result.

This appliance should be

serviced only by qualified

service personnel. Call a

Whirlpool authorized TECH-

CARE@Service Company for

examination, repair or

adjustment.

9. Do not cover or block any

opening in the appliance,

because fire may result.

10.

Do not use outdoors

because damage to the oven

or electric shock may result.

11.

See door surface cleaning

instructions on page 37.

continued on next page.

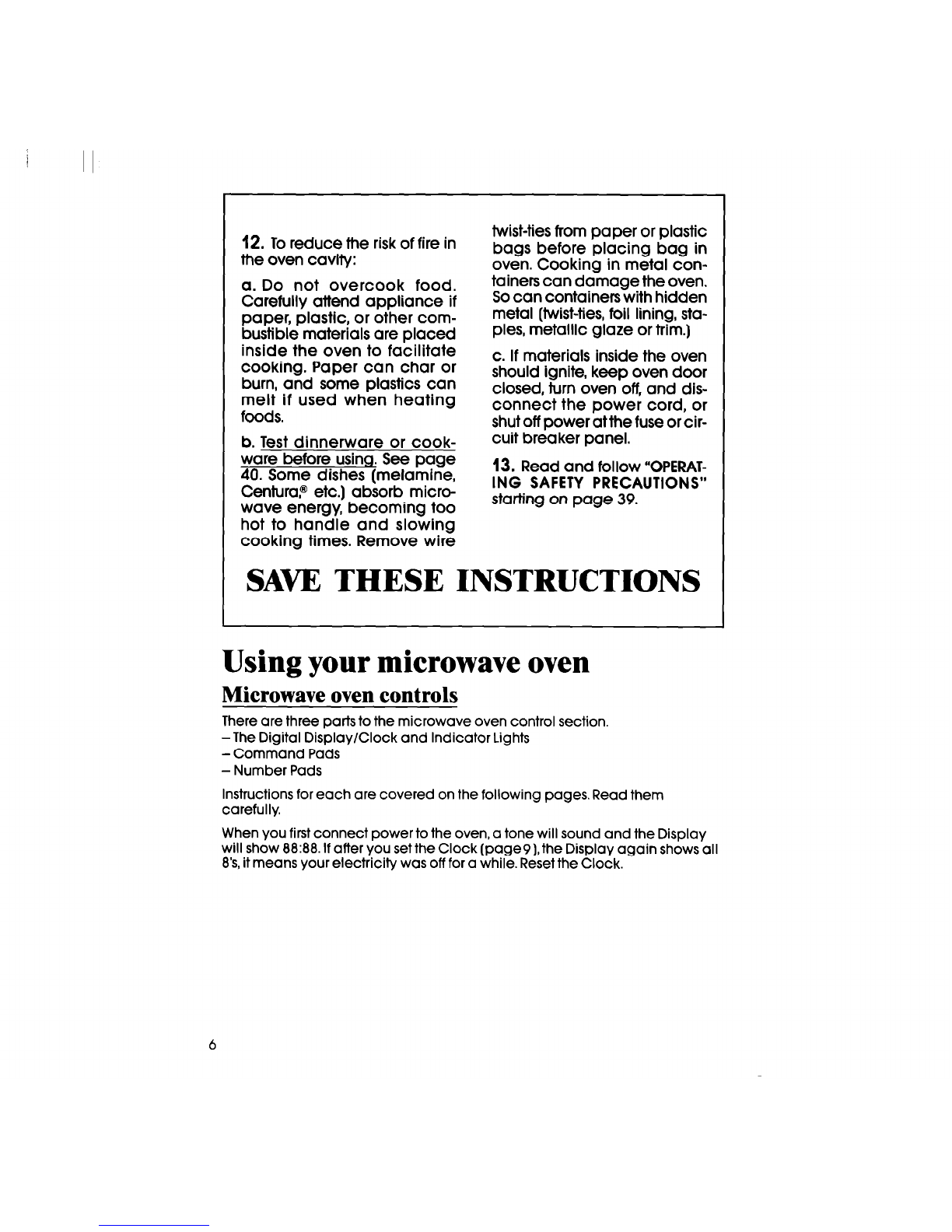

12. Toreduce the risk of fire in

the oven cavity:

a. Do not overcook food.

Carefully attend appliance if

paper, plastic, or other com-

bustible materials are placed

inside the oven to facilitate

cooking. Paper can char or

burn, and some plastics can

melt if used when heating

foods.

b. Test dinnerware or cook-

ware before using. See page

40. Some dishes (melamine,

Centura,@ etc.) absorb micro-

wave energy, becoming too

hot to handle and slowing

cooking times. Remove wire

twist-ties from paper or plastic

bags before placing bag in

oven. Cooking in metal con-

tainers can damage the oven,

Socan containers with hidden

metal (twist-ties, foil lining, sta-

ples, metallic glaze or trim.)

c. If materials inside the oven

should ignite, keep oven door

closed, turn oven off, and dis-

connect the power cord, or

shut off power at the fuse or cir-

cuit breaker panel.

13. Read and follow “OPERAT-

ING SAFETY PRECAUTIONS”

starting on page 39.

SAVE THESE INSTRUCTIONS

Using your microwave oven

Microwave oven controls

There are three parts to the microwave oven control section.

-The Digital Display/Clock and Indicator Lights

- Command Pads

- Number Pads

Instructions for each are covered on the following pages. Read them

carefully.

When you first connect power to the oven, a tone will sound and the Display

will show 88:88. If after you set the Clock (page9), the Display again shows all

8’s,it means your electricity was off for a while. Reset the Clock.

Di ital display/clock and

in icator lights8

When you are not using the microwave

oven, this isan accurate digital clock.

When you are using the microwave oven, it

displays time settings, indicator lights and

shows what number pads you touched.

While the oven is running, an indicator light

(or lights) will be on to show what the oven

is doing.

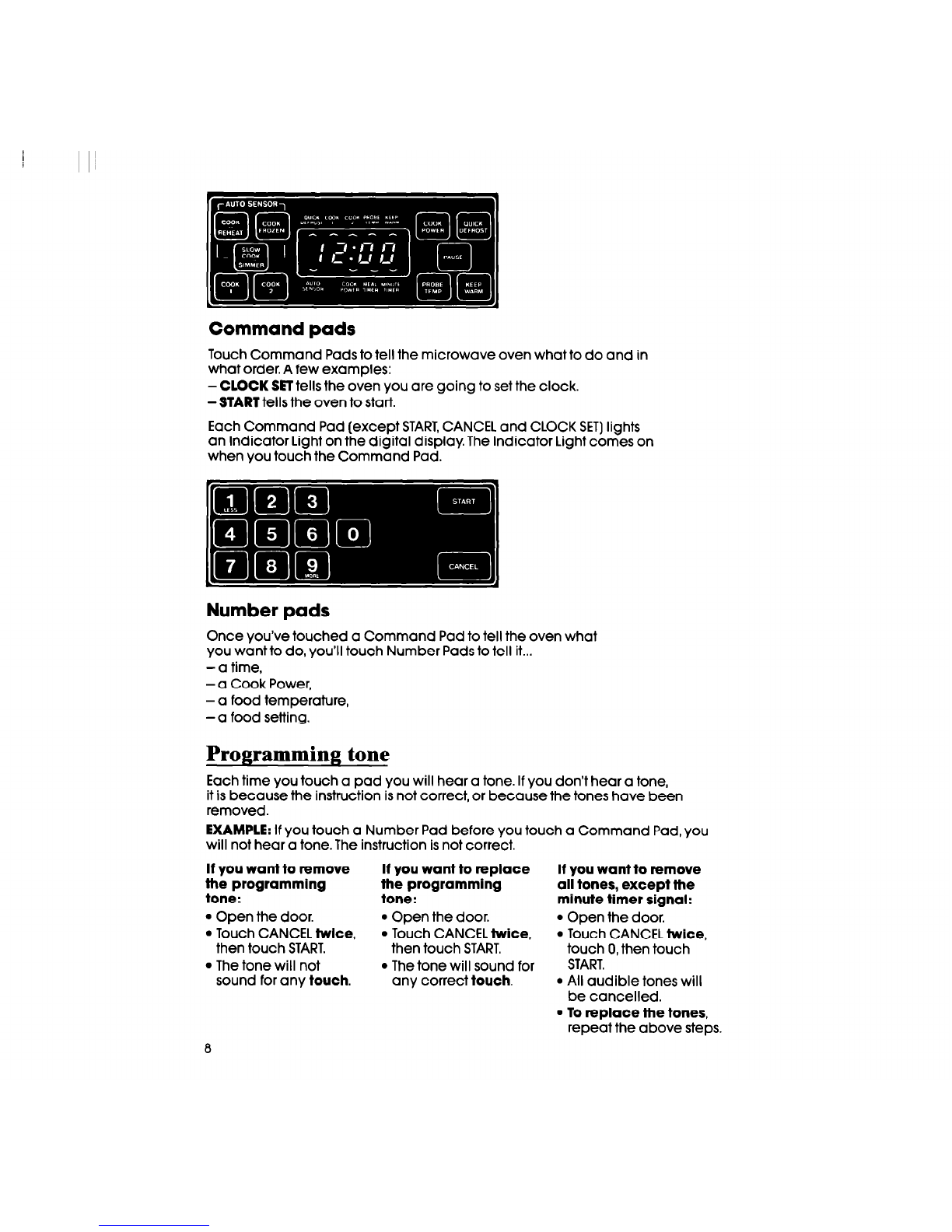

Command pads

Touch Command Pads to tell the microwave oven what to do and in

what order. A few examples:

-CLOCK SETtells the oven you are going to set the clock.

-START tells the oven to start.

Each Command Pad (except START,CANCEL and CLOCK SET]lights

an Indicator Light on the digital display. The Indicator Light comes on

when you touch the Command Pad.

Number pads

Once you’ve touched a Command Pad to tell the oven what

you want to do, you’ll touch Number Pads to tell it...

- a time,

-a Cook Power,

- a food temperature,

-a food setting.

Programming tone

Each time you touch a pad you will hear a tone. Ifyou don’t hear a tone,

it is because the instruction is not correct, or because the tones have been

removed.

EXAMPLE: If you touch a Number Pad before you touch a Command Pad, you

will not hear a tone. The instruction is not correct.

If you want to remove If you want to replace If you want to remove

the programming the programming all tones, except the

tone: tone: minute timer signal:

l Open the door. l Open the door. l Open the door.

l Touch CANCEL twice, l Touch CANCEL twice, l Touch CANCEL twice,

then touch START. then touch START. touch 0,then touch

l The tone will not l The tone will sound for START.

sound for any touch. any correct touch. l All audible tones will

be cancelled.

l To replace the tones,

repeat the above steps.

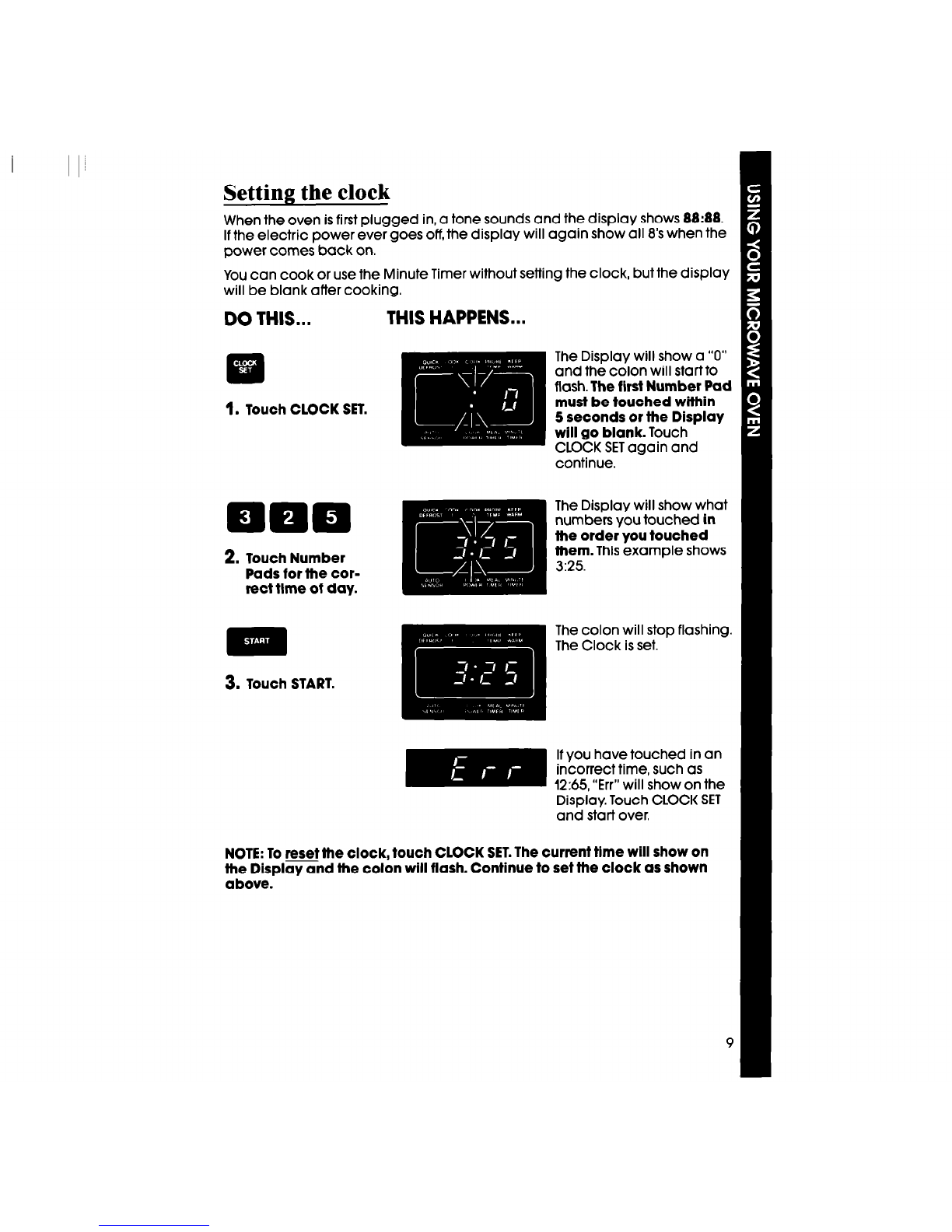

Setting the clock

When the oven isfirst plugged in, a tone sounds and the display shows 88:88.

Ifthe electric power ever goes off,the display will again show all 8’swhen the

power comes back on.

You can cook or use the Minute Timer without setting the clock, but the display

will be blank after cooking.

DO THIS...

1. Touch CLOCK SET.

2. Touch Number

Pads for the cor-

rect tlme of day.

THIS HAPPENS...

The Display will show a “0”

and the colon will start to

flash. The first Number Pad

must be touched within

5 seconds or the Display

will go blank. Touch

CLOCK SETagain and

continue.

The Display will show what

numbers you touched in

1the order you touched

I them. This example shows

13:25.

The colon will stop flashing.

The Clock is set.

Touch START.

Ifyou have touched in an

incorrect time, such as

12:65,“Err” will show on the

Display. Touch CLOCK SET

and start over.

NOTE:To m the clock, touch CLOCK SET.The current time will show on

the Display and the colon will flash. Continue to set the clock as shown

above.

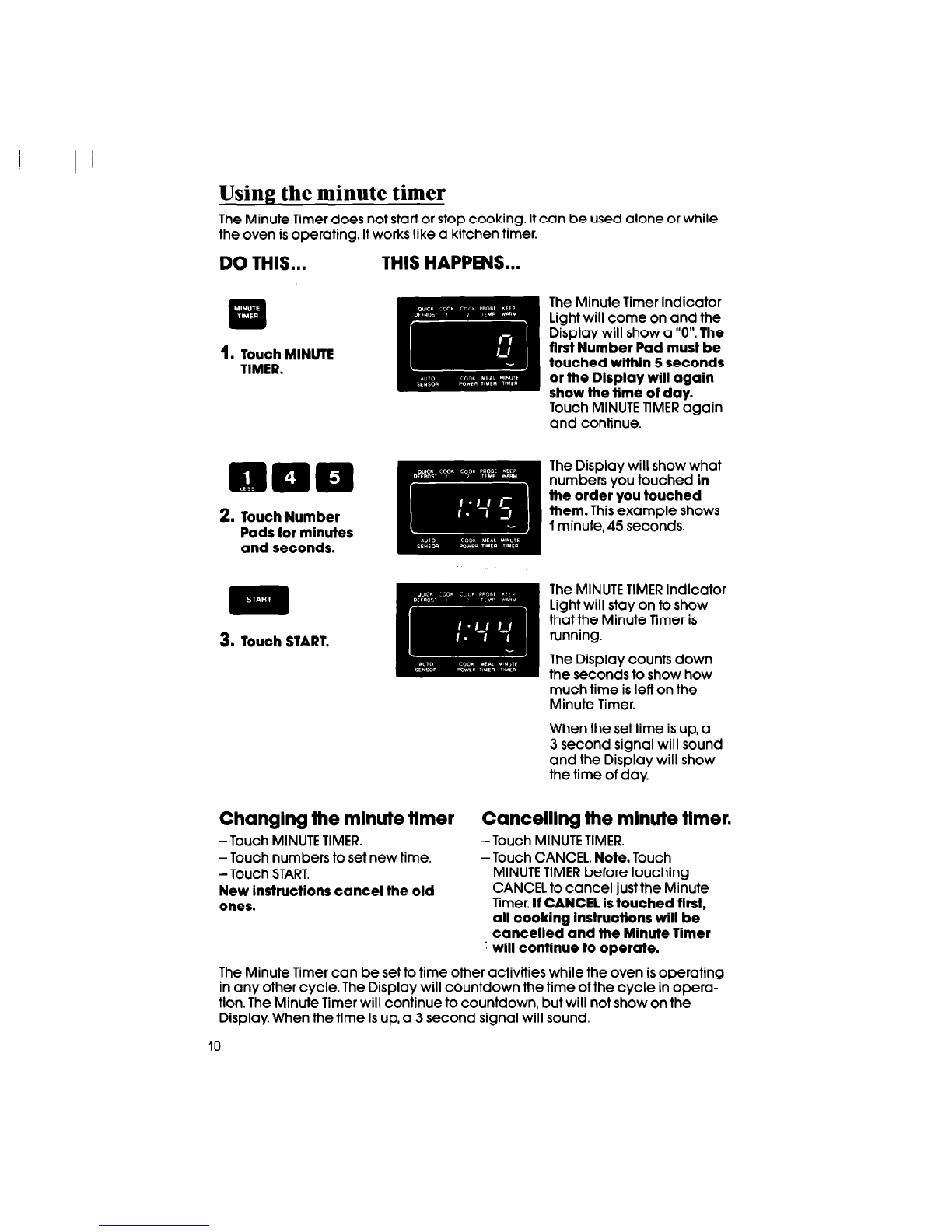

Using the minute timer

The Minute Timer does not start or stop cooking. Itcan be used alone or while

the oven is operating. Itworks like a kitchen timer.

DO THIS...

1. Touch MINUTE

TIMER.

2. Touch Number

Pads for minutes

and seconds.

Touch START.

THIS HAPPENS...

The Minute Timer Indicator

Light will come on and the

Display will show a “0”. The

first Number Pad must be

touched within 5 seconds

or the Display will again

show the time of day.

Touch MINUTETIMERagain

and continue.

The Display will show what

numbers you touched in

the order you touched

them. This example shows

1minute, 45 seconds.

The MINUTETIMERIndicator

Light will stay on to show

that the Minute Timer is

running.

The Display counts down

the seconds to show how

much time is left on the

Minute Timer.

When the set time is up, a

3 second signal will sound

and the Display will show

the time of day

Changing the minute timer Cancelling the minute timer.

-Touch MINUTETIMER. -Touch MINUTETIMER.

-Touch numbers to set new time. -Touch CANCEL. Note. Touch

-Touch START. MINUTETIMERbefore touching

New instructions cancel the old CANCEL to cancel just the Minute

ones. Timer. if CANCEL is touched first,

ail cooking instructions will be

canceiled and the Minute Timer

: will continue to operate.

The Minute Timer can be set to time other activities while the oven is operating

in any other cycle. The Display will countdown the time of the cycle in opera-

tion. The Minute Timer will continue to countdown, but will not show on the

Display. When the time is up, a 3 second signal will sound.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Microondas de Whirlpool

Whirlpool

Whirlpool YWMH75021HV2 Manual de usuario

Whirlpool

Whirlpool MT4110 Manual de usuario

Whirlpool

Whirlpool WMC50522HW Manual de usuario

Whirlpool

Whirlpool MT3185SH Manual de usuario

Whirlpool

Whirlpool COOK20 MWP201SB Manual de usuario

Whirlpool

Whirlpool GH7145 Manual del propietario

Whirlpool

Whirlpool MT5111XD Manual de usuario

Whirlpool

Whirlpool MH8150XM Manual de usuario

Whirlpool

Whirlpool RJM 7600 Manual de usuario

Whirlpool

Whirlpool MAGICOOK 20 L Deluxe-B Manual de usuario

Whirlpool

Whirlpool UMC5225 Manual de usuario

Whirlpool

Whirlpool AVM 512 Manual de usuario

Whirlpool

Whirlpool UMC5200BAS Manual de uso y mantenimiento

Whirlpool

Whirlpool MWO 611 WH Manual de usuario

Whirlpool

Whirlpool Estate TMH14XL Manual de usuario

Whirlpool

Whirlpool WOC75EC7HS Manual de usuario

Whirlpool

Whirlpool MWP 295 B Manual de usuario

Whirlpool

Whirlpool GH5184XPB0 Manual de usuario

Whirlpool

Whirlpool jet Chef JT 356 Manual de usuario

Whirlpool

Whirlpool W10191951A Manual de usuario

Whirlpool

Whirlpool WML55011HB Manual de usuario

Whirlpool

Whirlpool MT1111SK Manual de usuario

Whirlpool

Whirlpool 4619-655-9242114393764 Manual de usuario

Whirlpool

Whirlpool UMH50008 Manual de usuario

Manuales populares de Microondas de otras marcas

Daewoo

Daewoo KOG-574R0S Manual de usuario

LG MH7040SS Manual de usuario

Sharp

Sharp R-895(AL)M Manual de usuario

Dometic

Dometic DOTRM13W Manual de usuario

Sanyo

Sanyo EM-X680 Manual de usuario

Sharp

Sharp R-393M Manual de usuario

KitchenAid

KitchenAid KMCX4510 Instrucciones de instalación

Smeg

Smeg S45MCX1 Manual de usuario

Russell Hobbs

Russell Hobbs RHM2044 Manual de usuario

Sunbeam

Sunbeam SMW759 Manual de usuario

Gallet

Gallet FMOE230S Manual de usuario

Bosch

Bosch CEG732X.1B Manual de usuario

Dometic

Dometic Roadmate 230 Manual de usuario

Samsung

Samsung SJ0396W Manual de usuario

Sanyo

Sanyo EM-P494WS Manual de usuario

Sharp

Sharp R-240 Manual de usuario

Electrolux

Electrolux EMS2840 Manual de usuario

Daewoo

Daewoo KOC-984T2S13 Manual de usuario
