DOOR PARTS

For Models: MT4078SPQ2, MT4078SPB2

(DESIGNER WHITE) (BLACK)

12−05 Litho in U.S.A. (dmm) Part No. 8206407

Compact

MICROWAVE OVEN

0.7 CUBIC FOOT

Illus. Part

No. No. DESCRIPTION

1 LITERATURE PARTS

8205984 Use & Care Guide

8204862 Cook Guide Label

8204863 Tech Sheet

8204864 Instructions,

Installation

6 8205470 Latch

7 8171918 Spring, Latch

10 Complete Door

8205466 White Model

8205467 Black Model

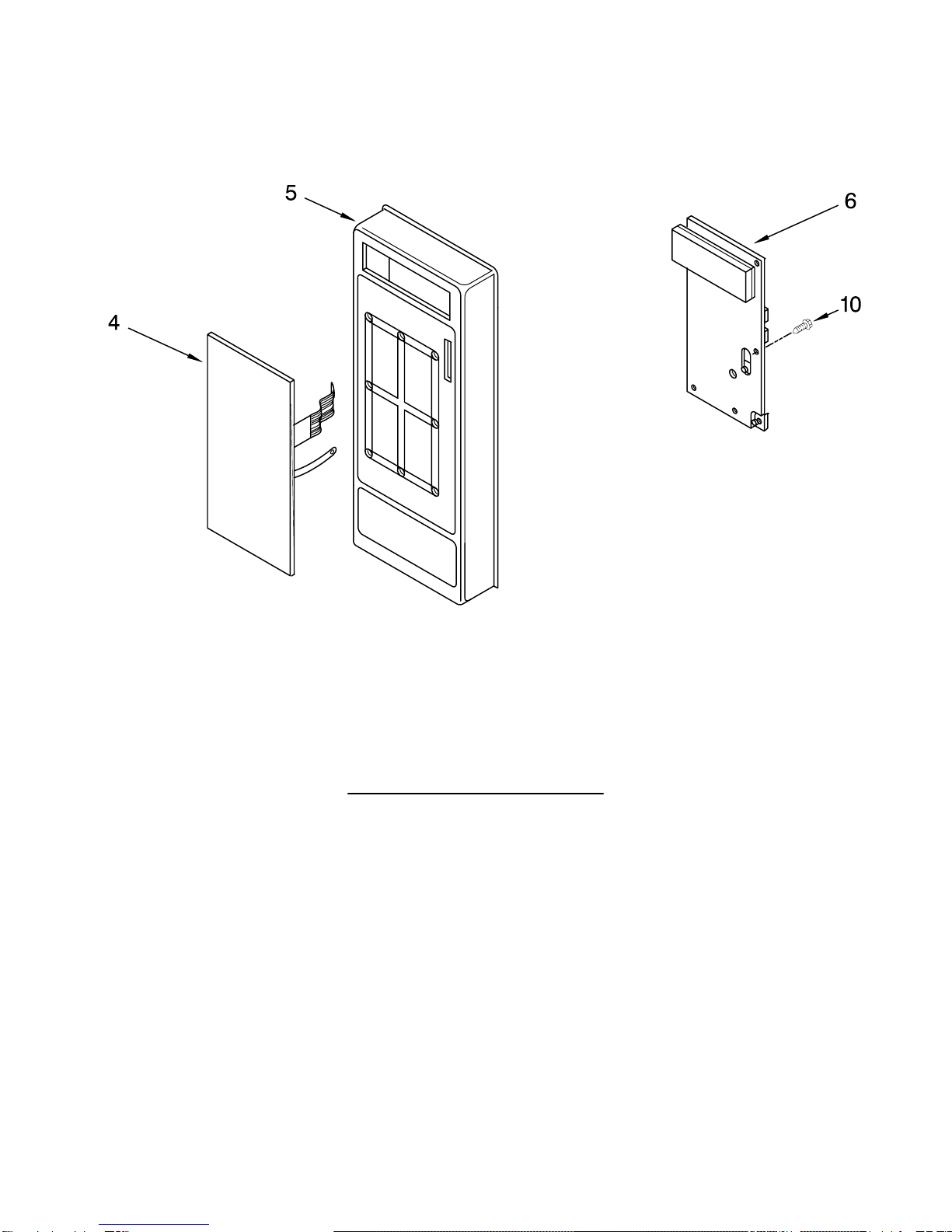

CONTROL PANEL PARTS

For Models: MT4078SPQ2, MT4078SPB2

(DESIGNER WHITE) (BLACK)

8206407

Illus. Part

No. No. DESCRIPTION

4 Key Membrane

8205468 White Model

8205469 Black Model

5 Control Panel

8205471 White Model

8205472 Black Model

6 8205473 Microcomputer

10 4358883 Screw

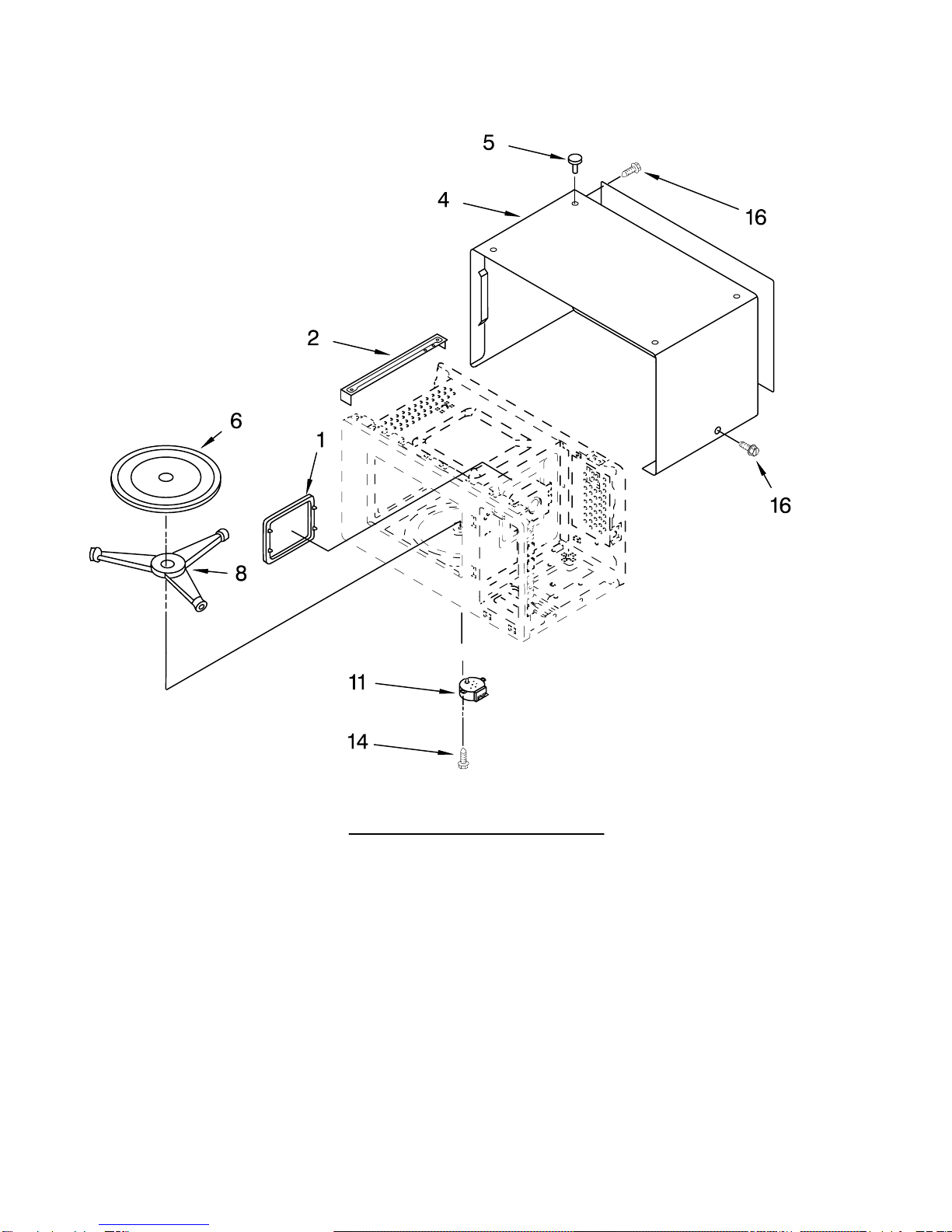

OVEN CAVITY PARTS

For Models: MT4078SPQ2, MT4078SPB2

(DESIGNER WHITE) (BLACK)

8206407

Illus. Part

No. No. DESCRIPTION

1 8205492 Canopy

2 8205476 UTC Bracket

4 Outer Case

8205474 White Model

8205475 Black Model

5 Mounting Cap

4158748 White Model (4)

4358857 Black Model (4)

6 8205098 Tray, Glass

8 8205099 Turntable Support

11 8184375 Motor, Synchronous

14 4358188 Screw

16 4358192 Screw

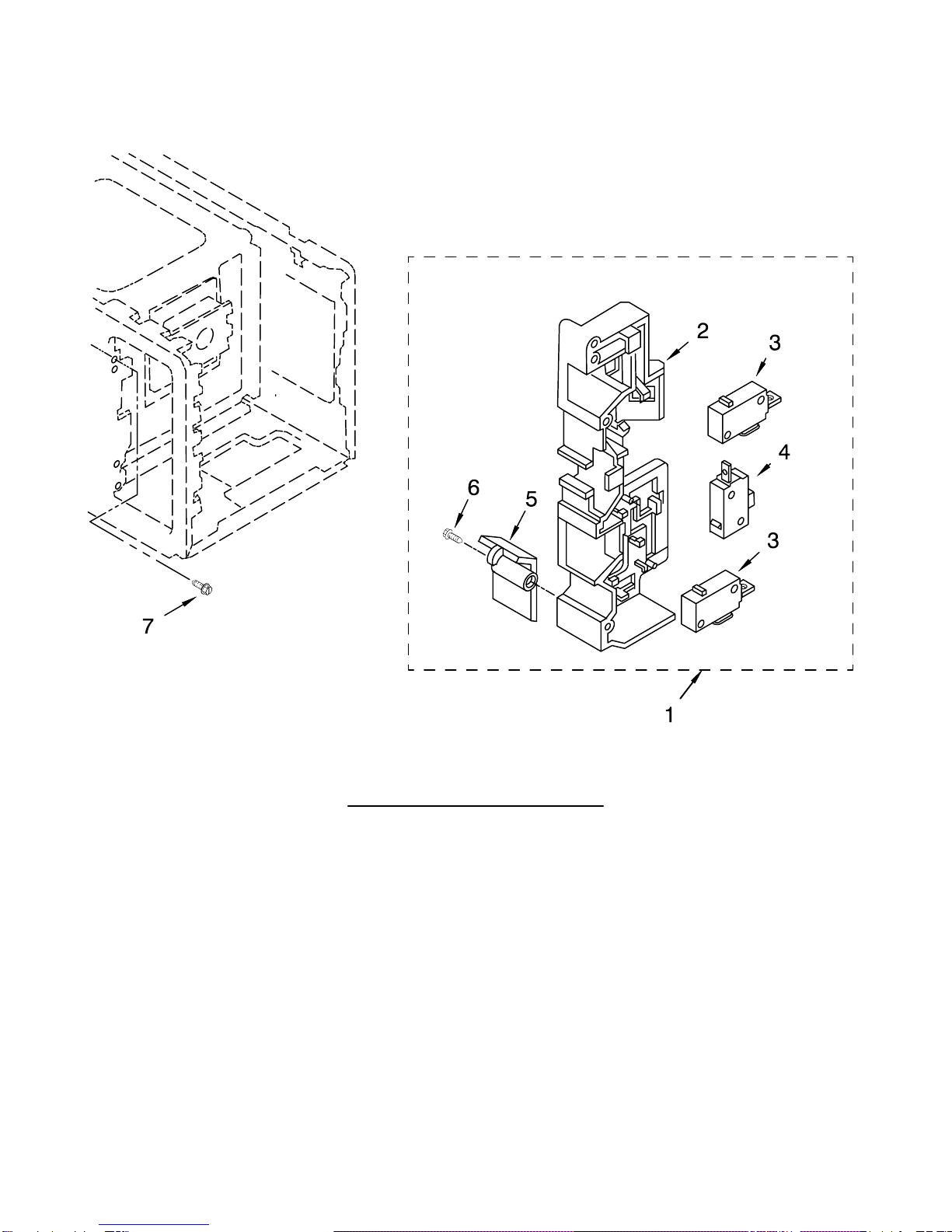

LATCH BOARD PARTS

For Models: MT4078SPQ2, MT4078SPB2

(DESIGNER WHITE) (BLACK)

8206407

Illus. Part

No. No. DESCRIPTION

1 Latch Board Assembly

(Non−Serviceable)

2 8205477 Latch Board

4358381 Screw

3 8184285 Switch Micro

Primary

4 8184286 Switch, Micro

Monitor

5 8205478 Lever

6 4358271 Screw

7 4358271 Screw

OVEN INTERIOR PARTS

For Models: MT4078SPQ2, MT4078SPB2

(DESIGNER WHITE) (BLACK)

8206407

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8184292 Blade, Fan

2 8205482 Guide, Suction

3 8205488 Motor, Fan

4 8184377 H.V. Capacitor

5 8205479 H.V.C Bracket

6 8206272 Leadwire Assembly

8 8205489 H.V. Diode Cable

9 8206271 Power Cord

10 8185274 Thermostat

11 4359165 Lamp, Baseless

12 8205484 Duct, air

13 8205486 Magnetron

15 8206269 Noise Filter

17 4358704 Fuse

18 8205483 Cap

21 4358489 Screw

24 4358190 Screw

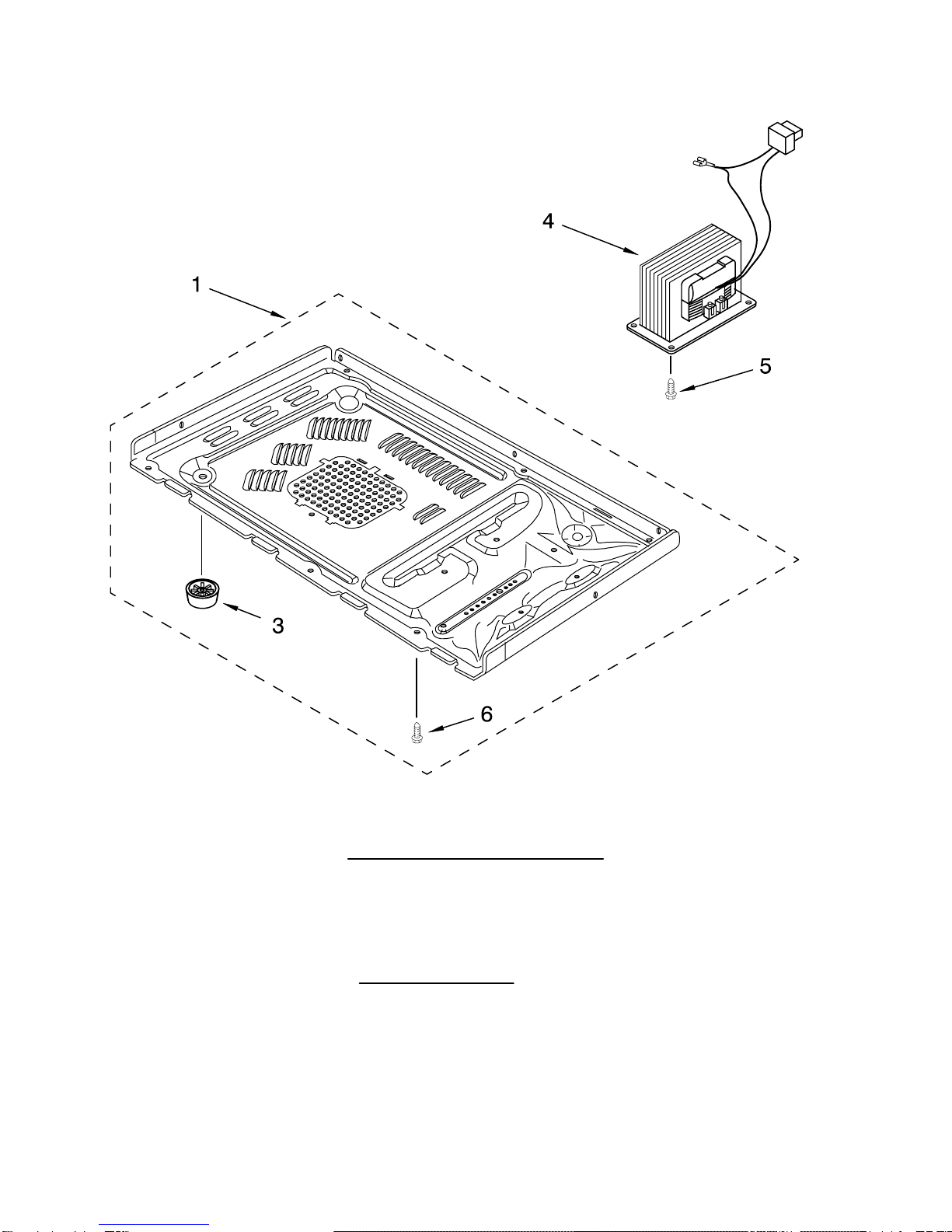

BASE PLATE PARTS

For Models: MT4078SPQ2, MT4078SPB2

(DESIGNER WHITE) (BLACK)

8206407

Illus. Part

No. No. DESCRIPTION

1 8205491 Base Plate Assy

3 8184385 Cap

4 8205485 Transformer

5 4358489 Screw

6 4358192 Screw

ACCESSORY PARTS

4359914 UTC Kit

Trim Kit

MK1074XHQ

White

MK1074XHB

Black
