Whirlpool GH5184XPB0 Manual de usuario

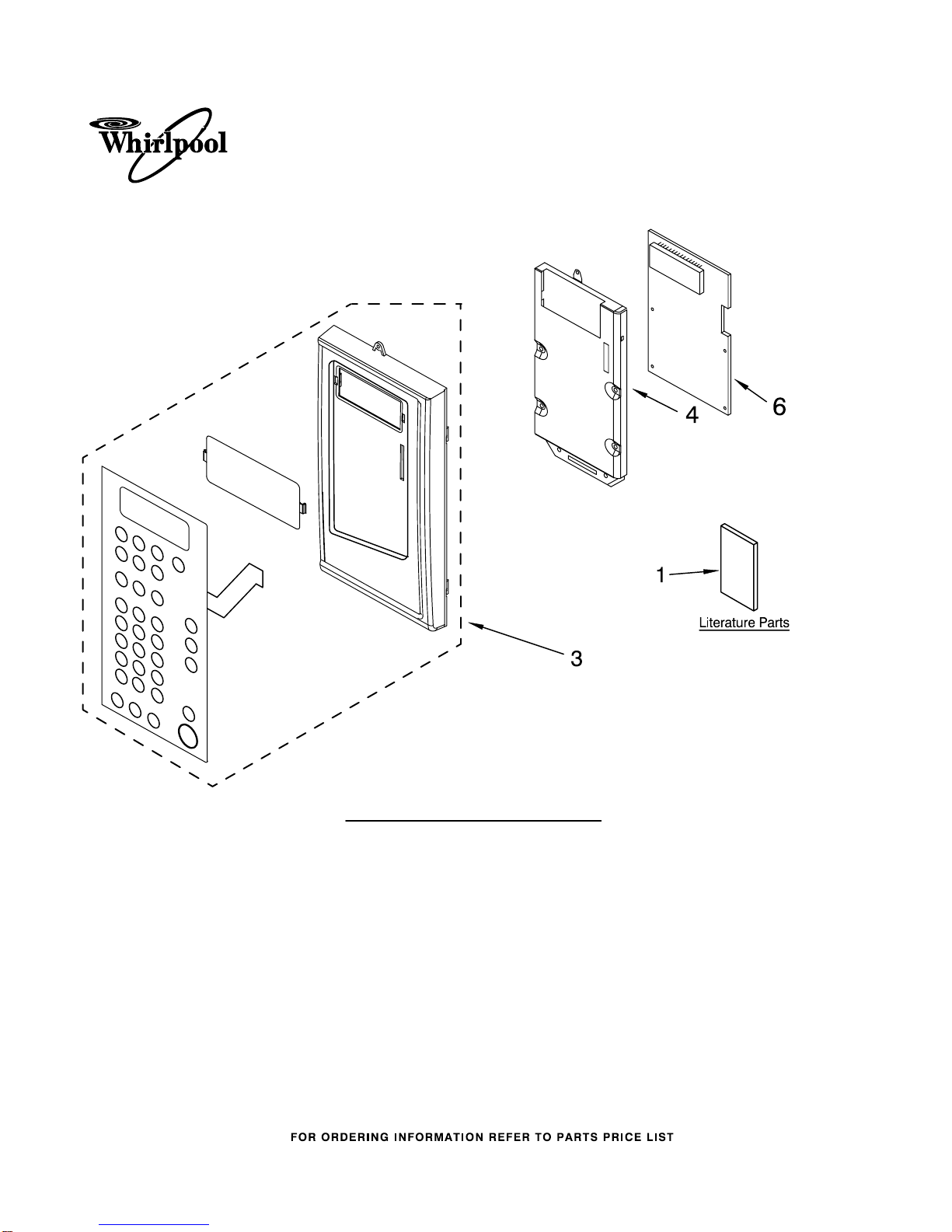

CONTROL PANEL PARTS

ForModels: GH5184XPQ0, GH5184XPB0, GH5184XPT0, GH5184XPS0

(WHITE) (BLACK) (BISCUIT) (STAINLESS)

3−06 Litho In U.S.A. (dmm) Part No. 8205165

Microwave Oven

1.8 Cu. Ft.

Illus. Part

No. No. DESCRIPTION

1 Literature

8204922 U & C Guide

8204911 Tech Sheet

8184059 Instructn, Install

8204933 Cook Guide Label

3 Panel Asy, Control

Includes Lens and

Membrane Switch

8205417 White

8205419 Black

8205418 Biscuit

8205420 Stainless

4 8205378 Bracket, Control

6 8205421 Microcomputer

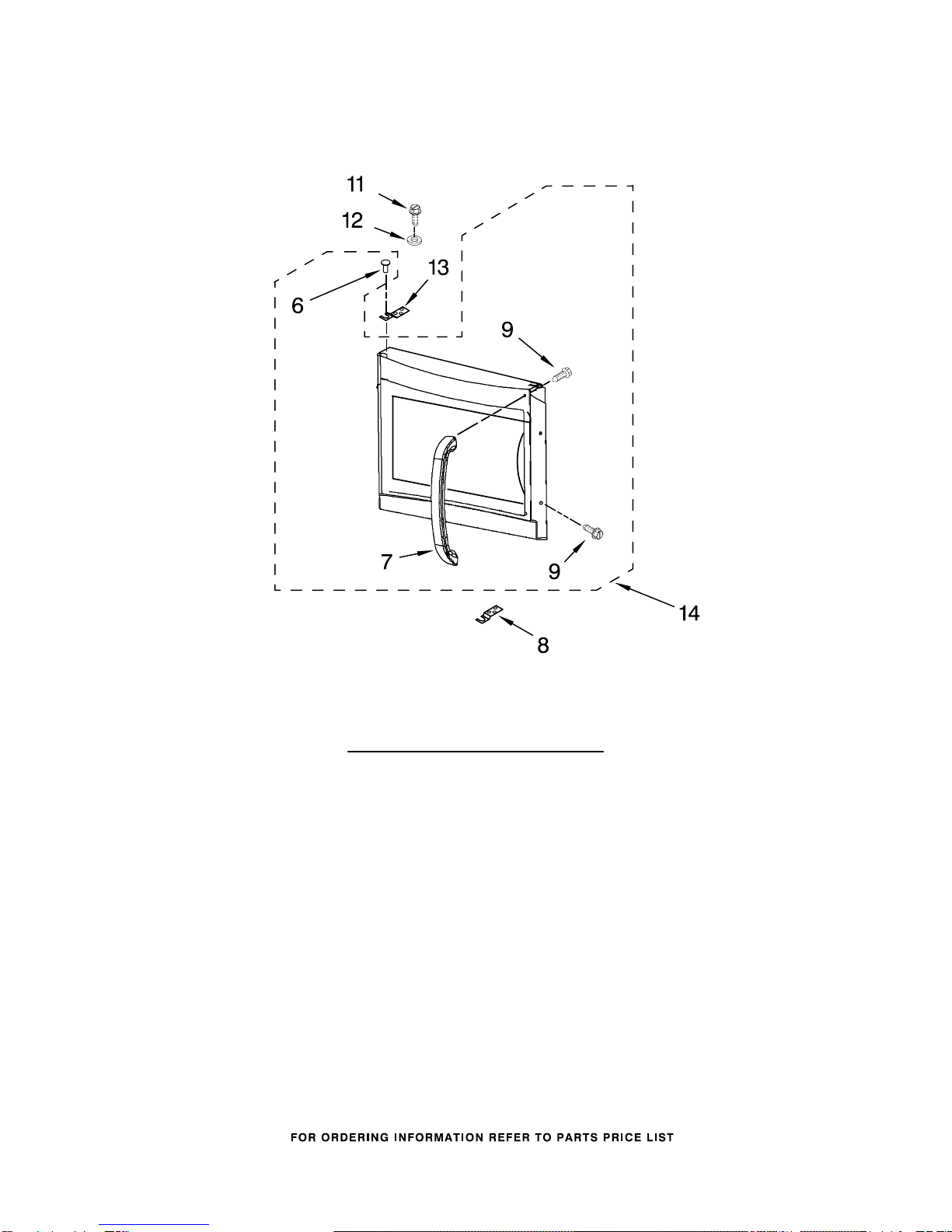

DOOR PARTS

Illus. Part

No. No. DESCRIPTION

ForModels: GH5184XPQ0, GH5184XPB0, GH5184XPT0, GH5184XPS0

(WHITE) (BLACK) (BISCUIT) (STAINLESS)

8205165

6 8184922 Pivot, Door

7 Handle, Door

8205224 White

8205227 Stainless

8205226 Black

8205225 Biscuit

8 8204678 Lower Hinge

9 8169479 Screw

11 8204690 Screw

12 8204691 Washer

13 8204679 Upper Hinge

14 Complete Door

8205413 White

8205416 Stainless

8205415 Biscuit

8205414 Black

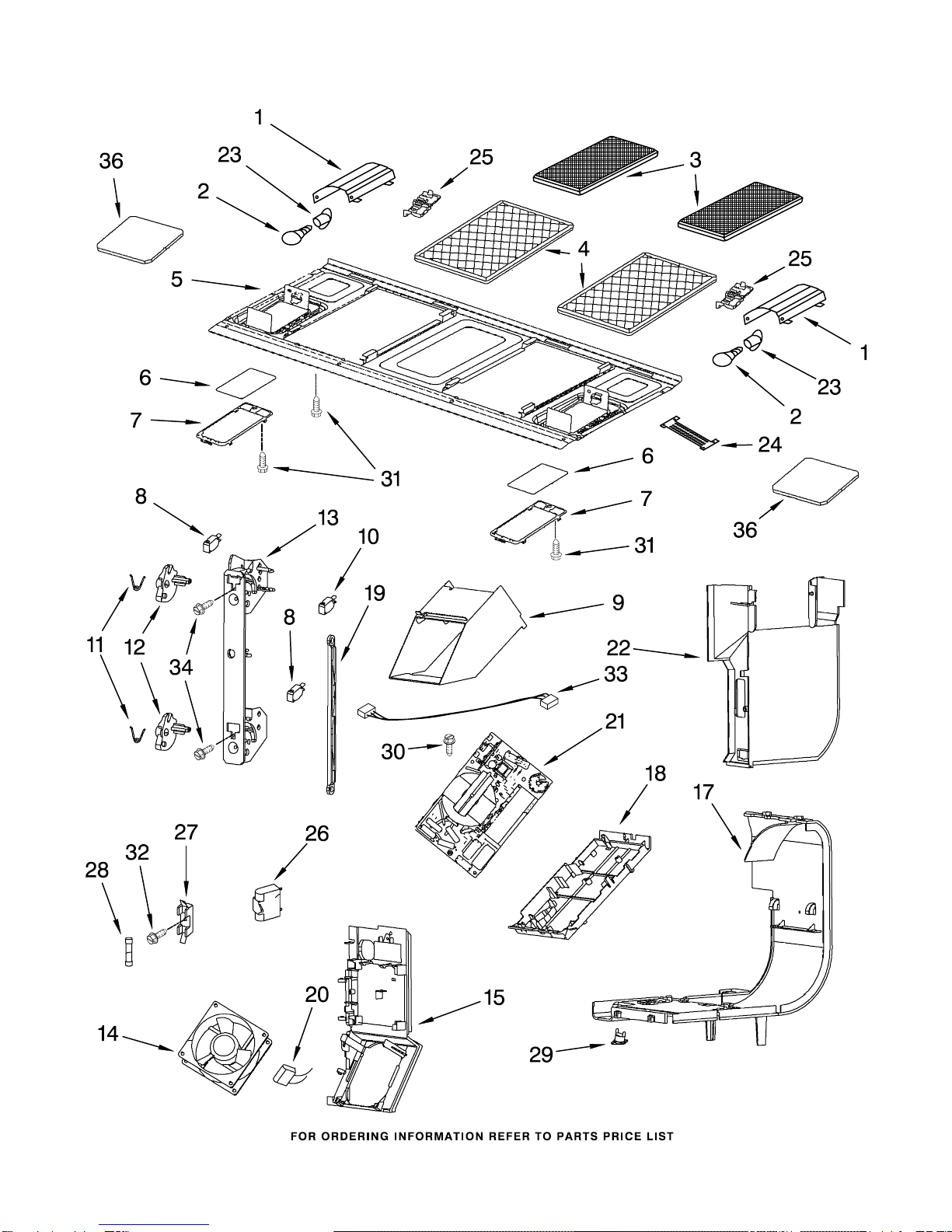

INTERIOR AND VENTILATION PARTS

ForModels: GH5184XPQ0, GH5184XPB0, GH5184XPT0, GH5184XPS0

(WHITE) (BLACK) (BISCUIT) (STAINLESS)

8205165

INTERIOR AND VENTILATION PARTS

ForModels: GH5184XPQ0, GH5184XPB0, GH5184XPT0, GH5184XPS0

(WHITE) (BLACK) (BISCUIT) (STAINLESS)

8205165

Illus. Part

No. No. DESCRIPTION

1 8205096 Reflector, Lamp

2 8183993 Lamp

3 8184002 Filter, Charcoal

4 8184003 Filter, Grease

5 8205412 Plate, Bottom

6 8184141 Glass, Lamp

7 8184889 Holder, Glass

8 4393599 Switch, Micro

Primary/Secondary

9 8184124 Cover, Inverter

10 4393697 Switch, Micro

11 8169438 Spring, Interlock

12 8205211 Plate, Cam

13 8185189 Support, Interlock

14 8184875 Fan, DC 12 Volt

15 8184894 Housing, Fan

17 8185032 Bracket, Holder

18 8184670 Holder, Inverter

19 8185190 Rod−Locking Link

20 8184093 Capacitor, 125 V

21 8205093 Inverter 1100 W

22 8185031 Plate, Side

23 8184926 Holder, Lamp

24 8184887 Cable

25 8184202 Cover, Terminal

26 8184204 Capacitor

27 8184312 Holder, Fuse

28 4393308 Fuse

29 8183998 Thermostat

30 8184199 Screw

31 4393835 Screw

32 8184200 Screw

33 8205014 Ribbon Cable

(P2 to CN701 on

1100 W Inverter)

34 8169477 Screw

36 8184203 Foil, Lamp

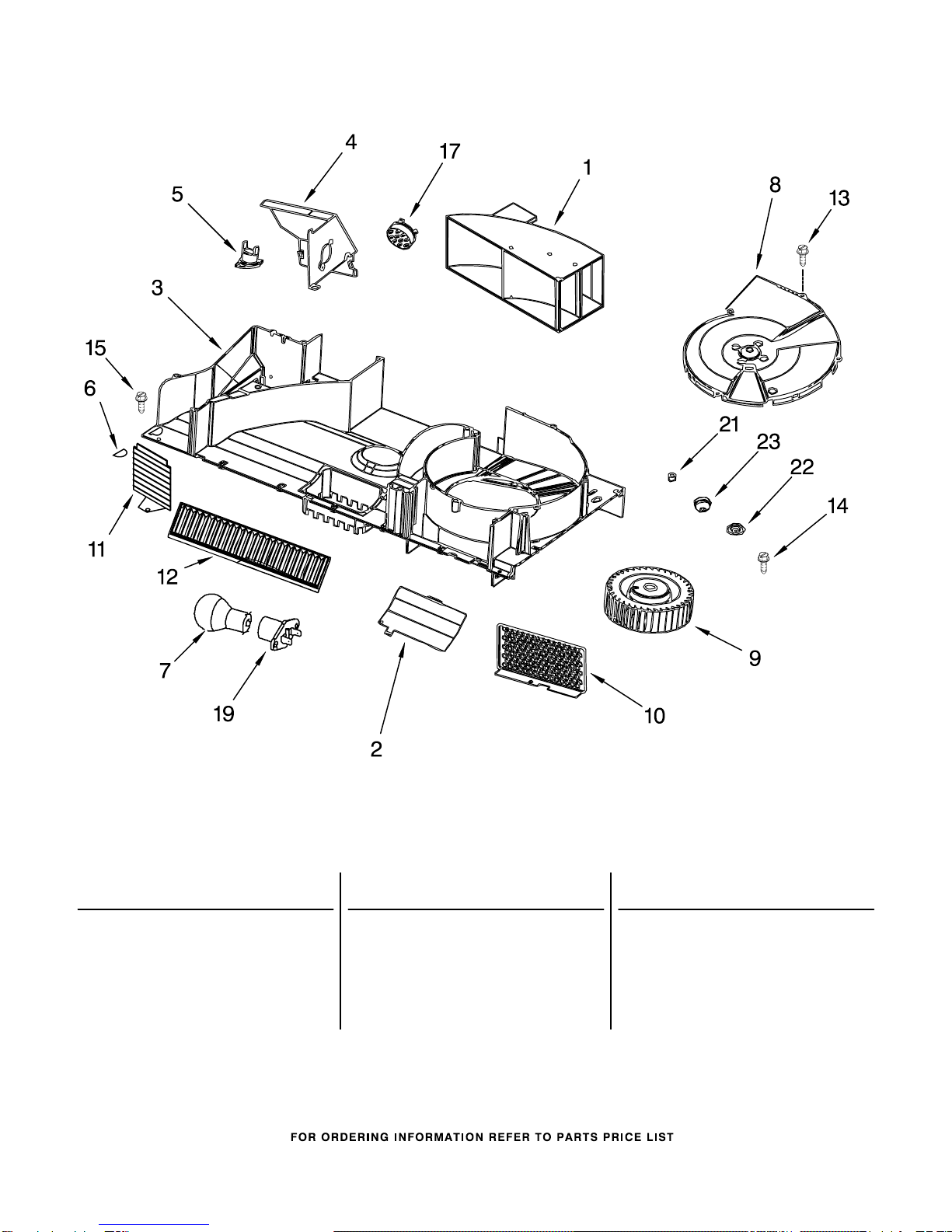

AIR FLOW PARTS

ForModels: GH5184XPQ0, GH5184XPB0, GH5184XPT0, GH5184XPS0

(WHITE) (BLACK) (BISCUIT) (STAINLESS)

8205165

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8184667 Deflector, Air

2 8184925 Cover, Lamp

3 8185350 Duct, Air

4 8204789 Bracket, Thermostat

5 8183999 Thermostat

6 8204676 Cover

7 8183993 Lamp

8 8184884 Cover, Fan

9 8184876 Motor, Fan Assy

10 8204754 Shield

11 8204790 Shield

12 8190268 Filter, Fan Hood

13 4393834 Screw

14 8184198 Screw

15 8169474 Screw

17 4393808 Humidity, Sensor

19 8184926 Holder, Lamp

21 8184129 Spacer−Copper Pipe

22 8204674 Plate, Damper

23 8169635 Cushion, Mtr

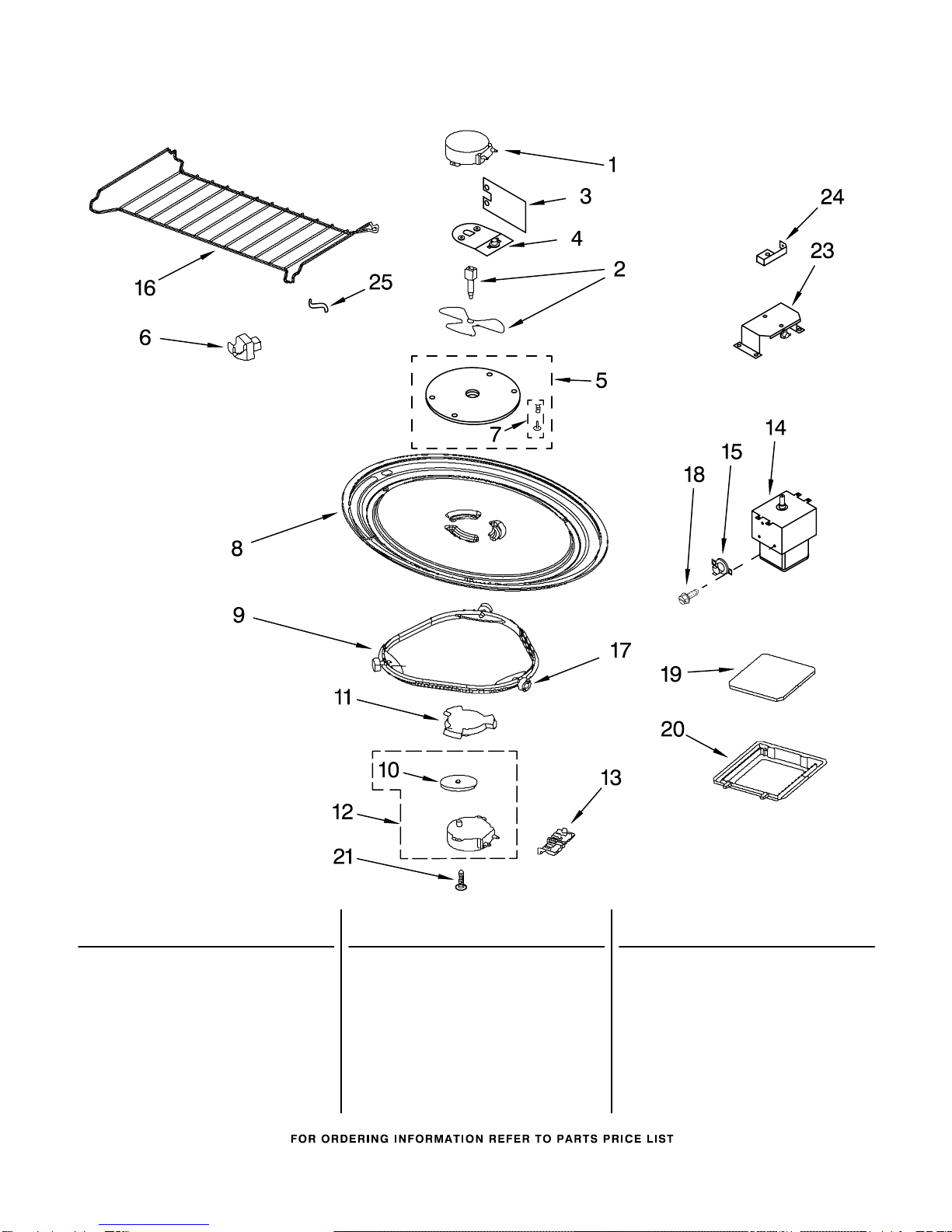

MAGNETRON AND TURNTABLE PARTS

ForModels: GH5184XPQ0, GH5184XPB0, GH5184XPT0, GH5184XPS0

(WHITE) (BLACK) (BISCUIT) (STAINLESS)

8205165

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8205044 Motor, Stirrer

2 8205202 Stirrer

Shaft/Blade

3 8184485 Shield, Nomex

4 8184585 Thermostat/Bracket

5 8184604 Cover, Inlet

Includes Nails

and Bushings

6 8204662 Hook, Rack (4)

7 8184549 Nails/Bushings

(5 of each)

8 4393799 Turntable

9 8184102 Ring, Turntable

10 8184109 Spacer, Waterproof

11 8183949 Driver, Turntable

12 8183953 Motor, Turntable

13 4393756 Cover, Terminal

14 8184139 Magnetron

15 8183994 Thermostat

16 8184052 Rack

17 4393861 Wheel (3)

18 4393838 Screw

19 8169499 Glass, Lamp

20 8169646 Frame, Glass

21 4393832 Screw

23 8184586 Thermostat/Bracket

24 8184669 Bracket, Plug

25 8205039 Spacer (4)

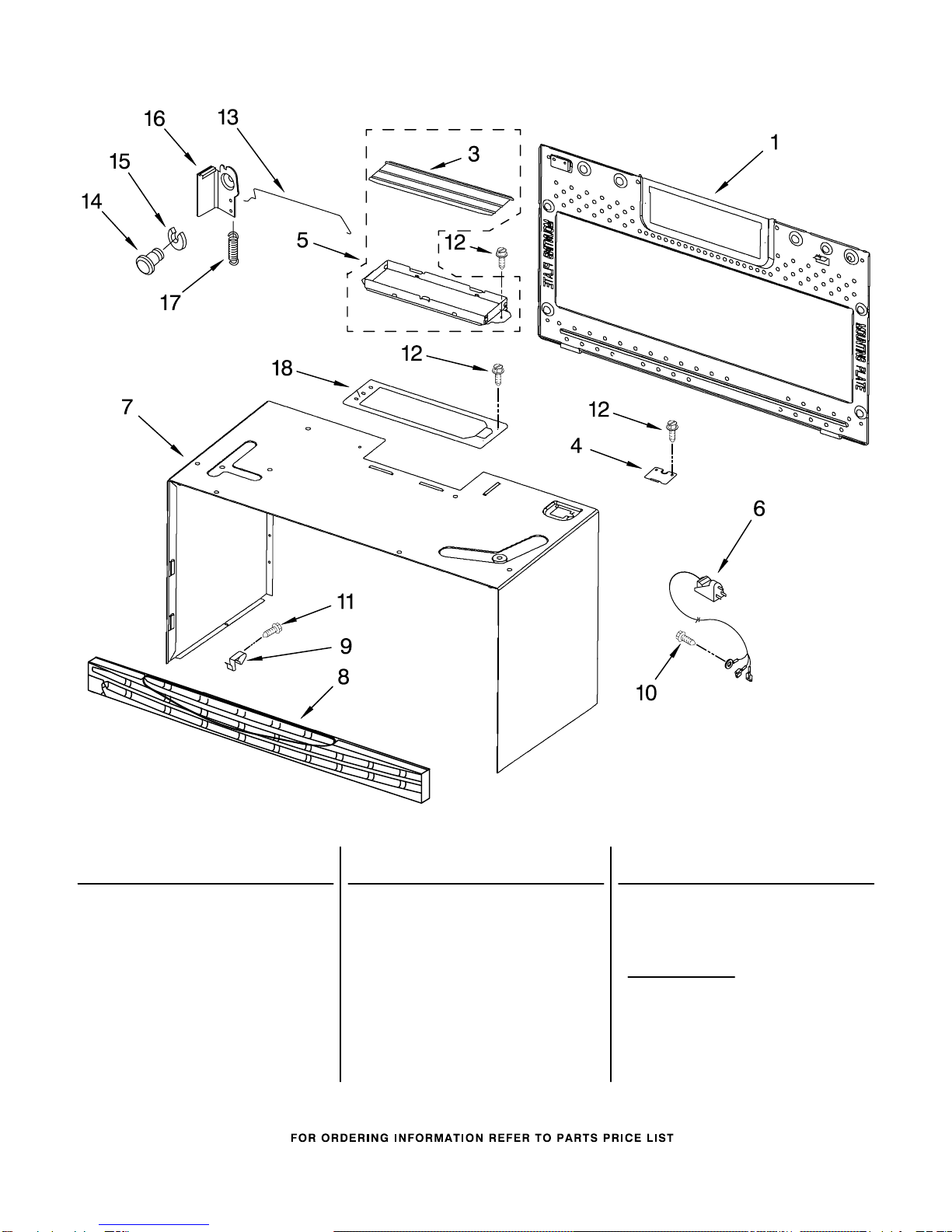

CABINET AND INSTALLATION PARTS

ForModels: GH5184XPQ0, GH5184XPB0, GH5184XPT0, GH5184XPS0

(WHITE) (BLACK) (BISCUIT) (STAINLESS)

8205165

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8184106 Plate, Mounting

3 4393713 Door, Damper

4 8184897 Lid, Power Cord

5 8183858 Frame, Damper

6 8184898 Cord, Power

7 Case, Outer

8205207 White

8205212 Black

8205213 Biscuit

8 Grille, Vent

8205214 White

8205215 Black

8205216 Biscuit

8205217 Stainless

9 8184190 Clip, Grille

10 4393836 Screw

11 8169475 Screw

12 4393472 Screw

13 8184135 Rod

14 8169319 Latch Pivot

15 8169320 E−Ring

16 8169321 Catch

17 8169374 Spring

18 8169697 Plate, Damper

Miscellaneous

8169659 Installation,

Hardware

8184781 Template, Upper

8183987 Template, Wall

8169704 Screw, Top Mountng
