Whirlpool MH2175XSB1 Manual de usuario

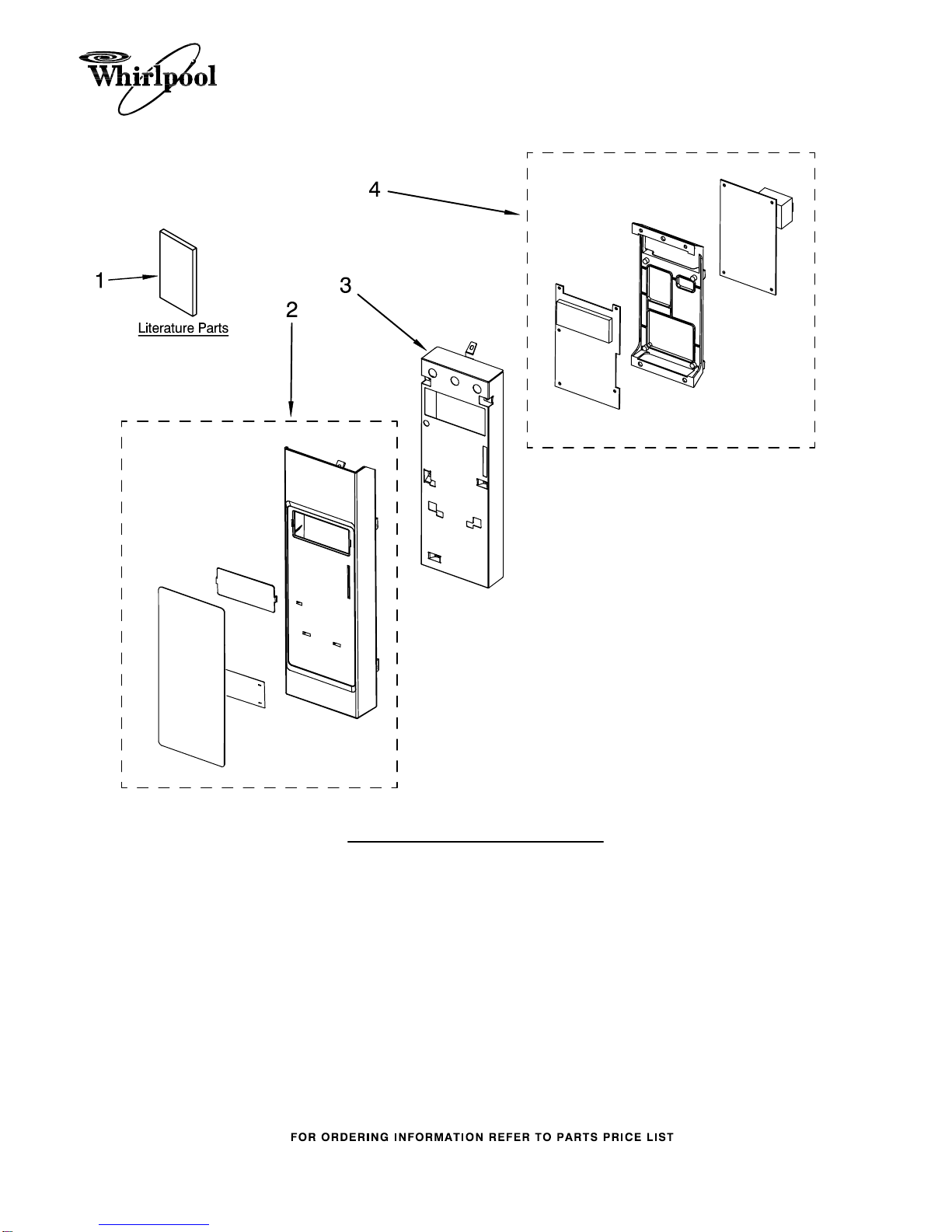

CONTROL PANEL PARTS

For Models: MH2175XSB1

(Black)

12−07 Litho in U.S.A. (rek) Part No. W10158785 Rev. A

Microwave Oven/Hood

1.7 Cu. Ft.

Illus. Part

No. No. DESCRIPTION

1 Literature

W10110894

U & C Guide

W10110899

Tech Sheet

8205888 Cook Guide Label

8206587 Install,Instruct.

2 Panel Asy, Control

Includes Lens and

Membrane Switch

8206621 Black

W10156814

Bracket, Control

4 8206619 Microcomputer

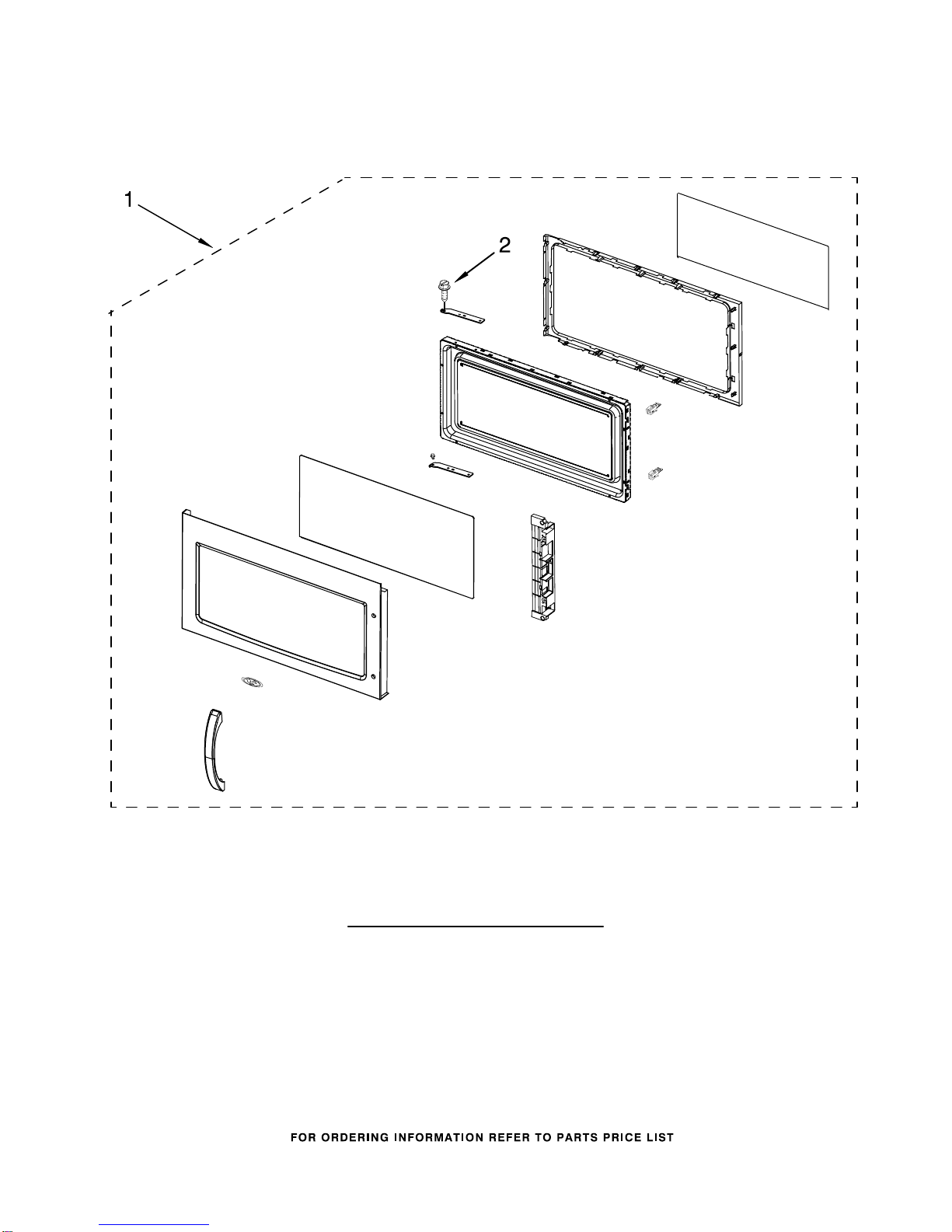

DOOR PARTS

For Models: MH2175XSB1

(Black)

W10158785

Illus. Part

No. No. DESCRIPTION

1 COMPLETE DOOR

8206395 Black

W10138802

Screw

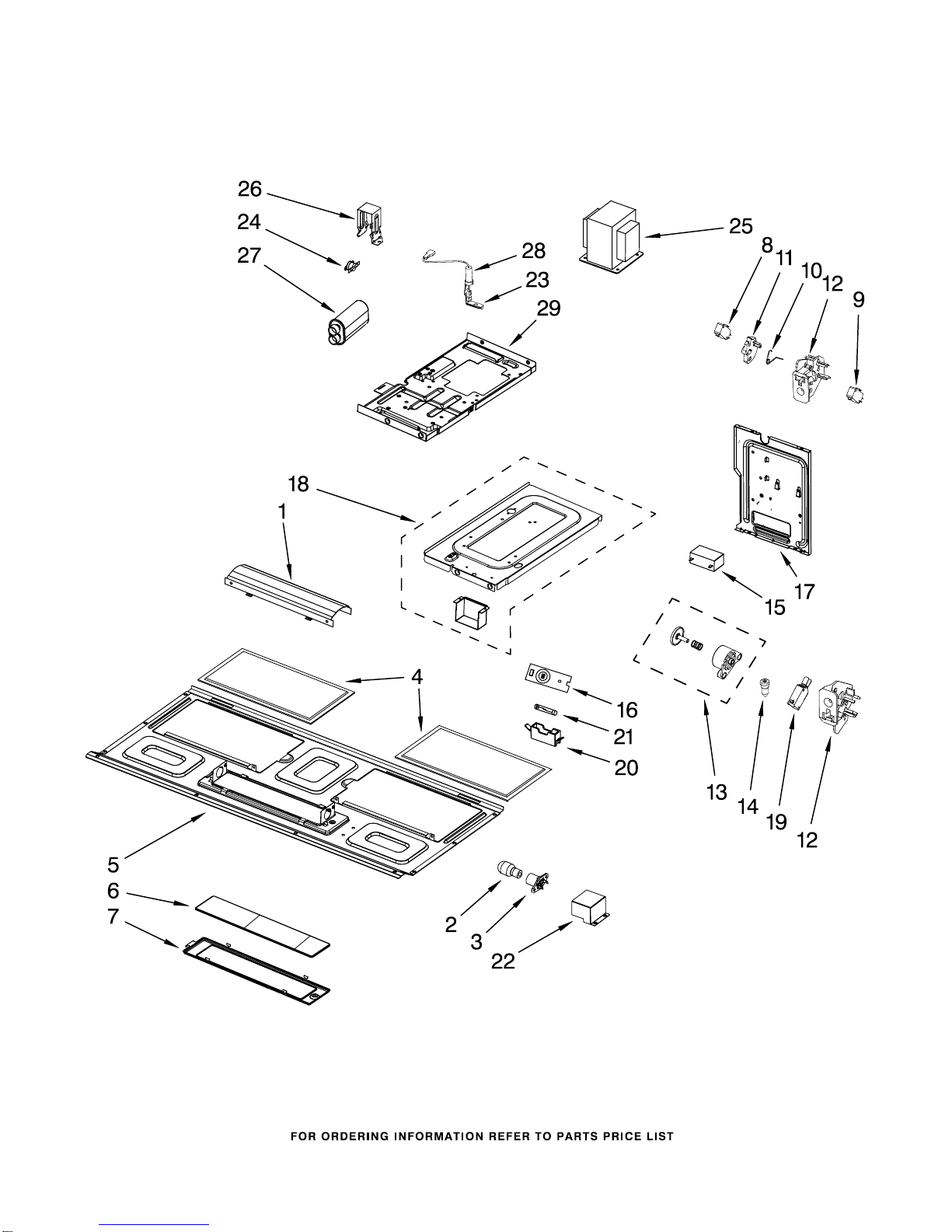

INTERIOR AND VENTILATION PARTS

For Models: MH2175XSB1

(Black)

W10158785

INTERIOR AND VENTILATION PARTS

For Models: MH2175XSB1

(Black)

W10158785

Illus. Part

No. No. DESCRIPTION

1 8206387 Reflector, Lamp

2 8206232 Lamp

3 8206374 Holder, Lamp

4 8206229 Filter, Grease

5 8206386 Plate, Bottom

6 8206376 Glass, Lamp

7 8206375 Holder, Glass

8 8206345 Switch, Micro

V5P010CG3

9 8206347 Switch, Micro

V5P020CG3

W10156812

Spring, Interlock

W10156811

Plate, Cam

12 Support, Interlock

8206419 Top

W10156813

Bottom

13 8206558 Piston Assembly

14 8206180 Screw

15 8206357 Capacitor, 125 V

16 8206421 Thermistor (PCBA)

W10138792

Plate, Side

18 8206358 Chassis Assembly

19 8206352 Switch, Micro

V5P030CG3

20 8184312 Holder, Fuse

W10138793

Fuse

22 8206359 Terminal Cvr,Lamp

23 8206370 Support, Diode

24 8206379 Thermostat

25 8206343 Transformer, H.V.

W10156817

Bracket, Capacitor

W10138798

Capacitor, H.V.

W10138796

Diode, H.V.

W10138791

Chassis

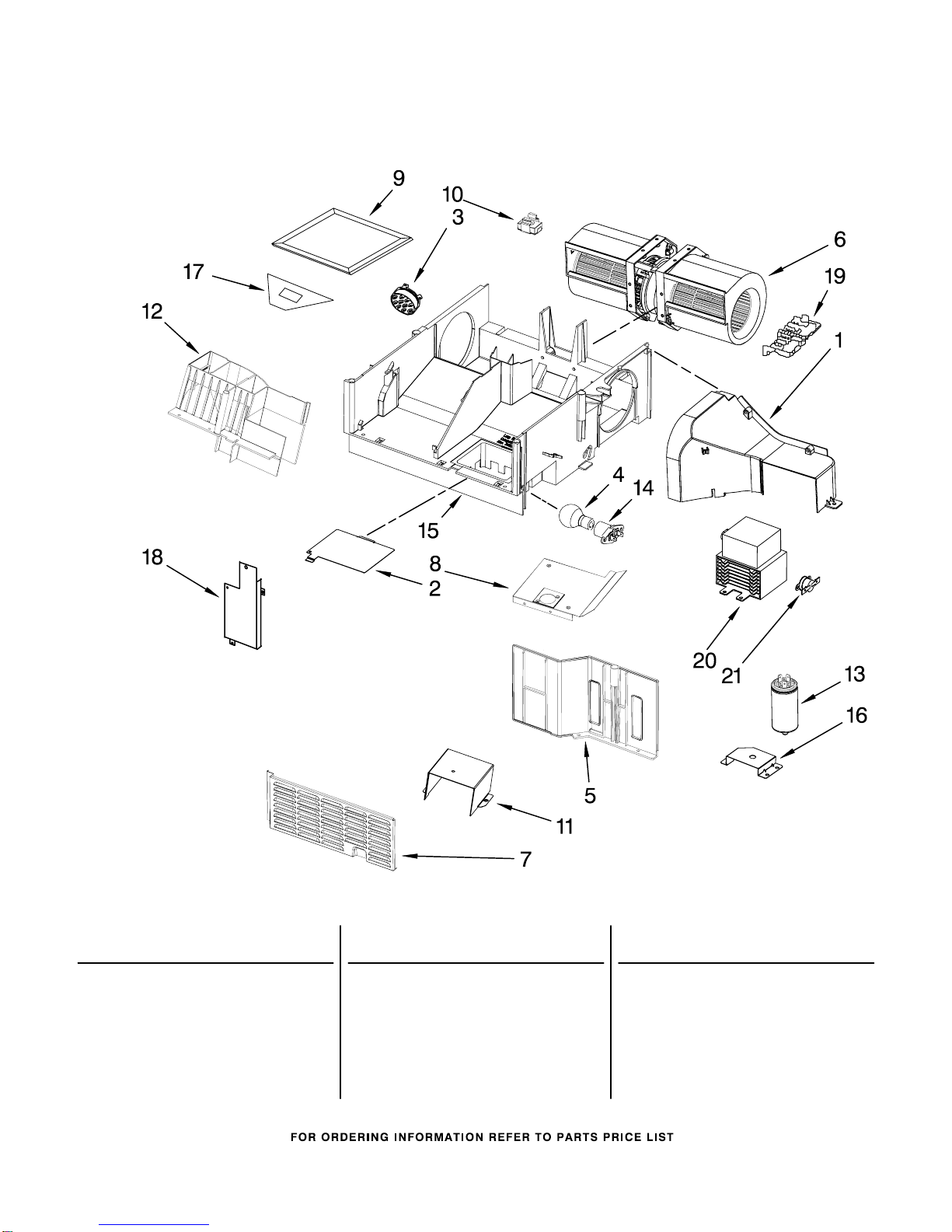

AIR FLOW PARTS

For Models: MH2175XSB1

(Black)

W10158785

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8206340 Deflector, Air

2 8206382 Cover, Lamp

3 8206626 Sensor, Humidity

4 4393681 Lamp

5 8206371 Cover, Side Inlet

W10114550

Motor, Fan Assy

W10156816

Shield

8 8206627 Air Guide

9 8206230 Filter, Charcoal

W10110862

Mounting, Nut (2)

11 8206625 Channel, Air

W10158781

Air Guide,Plate

13 8206624 Filter

14 8169539 Holder, Lamp

W10138799

Base Plate,

Air Guide

W10156815

Brkt−Mntg,Filter

W10139750

Socket, Motor Wire

18 8206629 Cover, Inlet

Air Cavity Guide

W10110598

Cover, Terminal

20 8206341 Magnetron

21 8206342 Thermostat

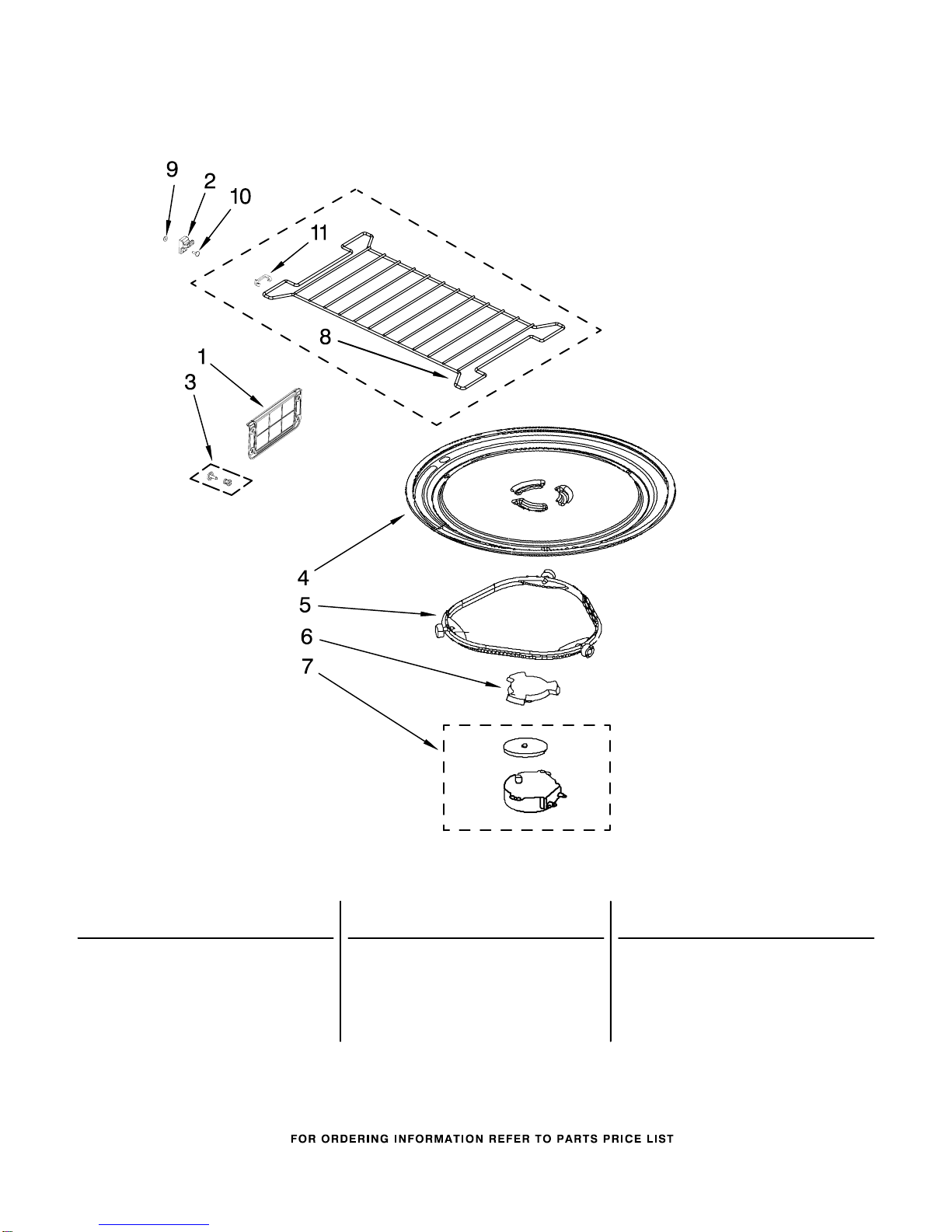

TURNTABLE PARTS

For Models: MH2175XSB1

(Black)

W10158785

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8206389 Cover, Inlet

Includes Nails

and Bushings

2 8206118 Hook, Rack (4)

W10138801

Nails/Bushings

(4 of each)

4 4393799 Turntable

5 8206227 Ring, Turntable

6 8206228 Driver, Turntable

7 8183953 Motor, Turntable

8 8184865 Rack

W10107790

Washer

10 8206618 Screw

W10107780

Spacer (4)

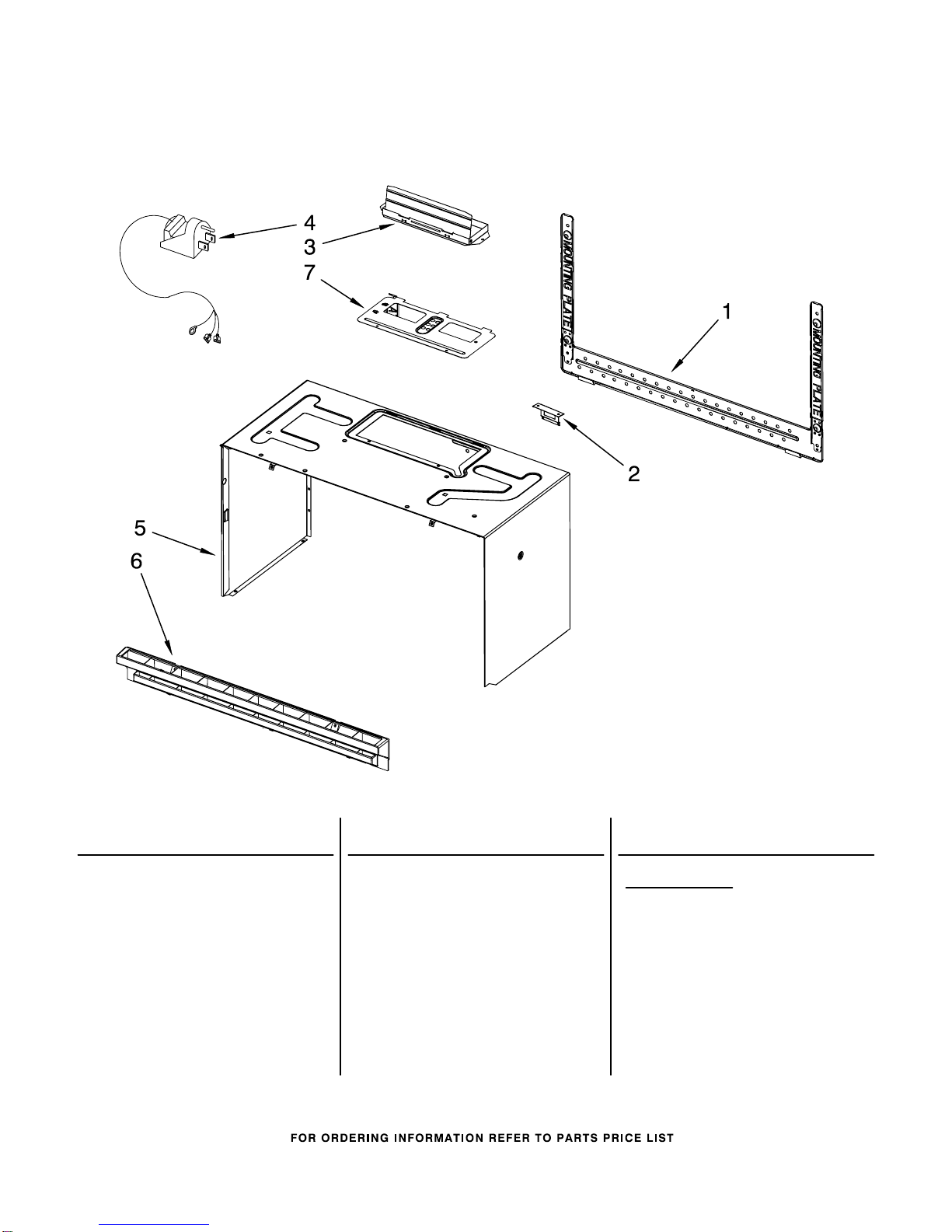

CABINET AND INSTALLATION PARTS

For Models: MH2175XSB1

(Black)

W10158785

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8206315 Plate, Mounting

2 8206385 Support, Wire Clip

3 8206442 Damper Assembly

48206388 Cord, Power

5 Case, Outer

8206338 Black

6 Grille, Vent

8206391 Black

W10157207

Plate, Damper

Miscellaneous

8205948 Installation,

Hardware

8205871 Template, Upper

8169704 Screw, Top Mountng

W10107710

Main Harness

8205635 Ground Wire Assy

8206415 H.V. Wire Assy

W10107760

Grnd Wire, Filter

W10138804

Hdlmp/TT Wire Assy

W10107740

HV Trnsfmr Wr Assy

W10107770

Harness Wire, NTC
