TOP AND CONSOLE PARTS

For Model: WED6600VW0

(White/Grey)

2−08 Litho in U.S.A. (LT.) Part No. W10186659 Rev. A

29" ELECTRIC DRYER

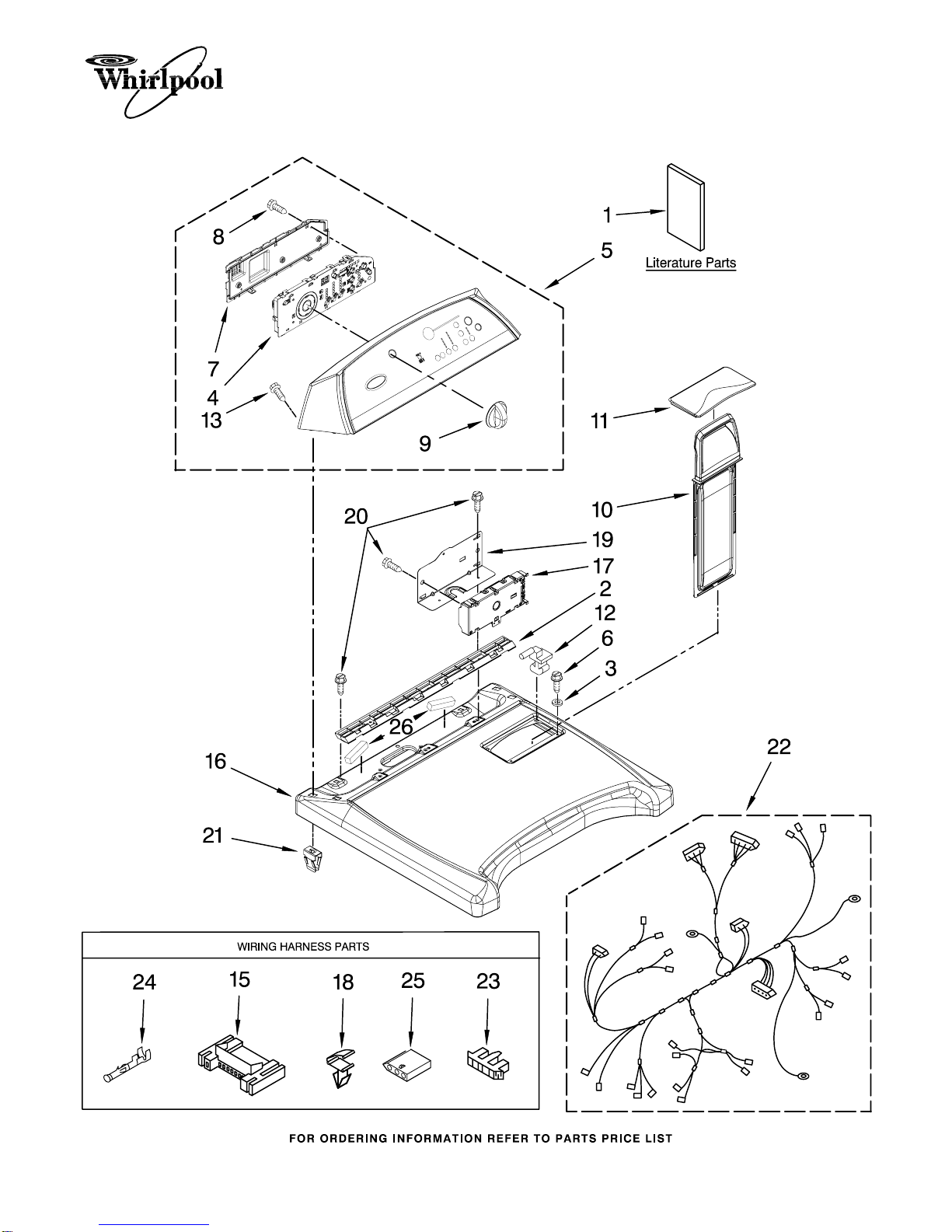

TOP AND CONSOLE PARTS

For Model: WED6600VW0

(White/Grey)

W10186659

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10156037

Tech Sheet

W10164159

Guide, Use & Care

W10150650

Guide, Quick Start

W10139322

Tip Sheet

W10134980

Installation,

Diagnostic Guide

W10166435

Performance

Tip Sheet

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677818 Do−It−Yourself

(Dryer)

2 8558863 Bracket, Console

3 237446 Washer (Top/Chute)

W10051165

User Interface

W10146153

Panel, Console

6 3196537 Screw, 8−18 x 5/8

7 8564265 Cover, Rear

W10003770

Screw, 6−19 x 3/64

9 8574957 Knob, Assembly

10 8572270 Assembly,

Lint Screen

W10168227

Cover, Lint

Screen

W10044470

Hinge, R.H.

W10044480

Hinge, L.H.

W10131402

Screw

15 3395683 Connector

(Motor)

W10167866

Top

W10111616

Control,

Electronic

18 3394427 Clip−Harness

19 8563853 Bracket,

Machine Controller

20 337686 Screw, 8−18 x 7/16

W10112673

Clip, Console

W10141980

Harness Wiring

23 3936144 Connector

24 94614 Terminal

25 3397269 Connector, Timer

W10177487

Seal, Foam

Console

CABINET PARTS

For Model: WED6600VW0

(White/Grey)

W10186659

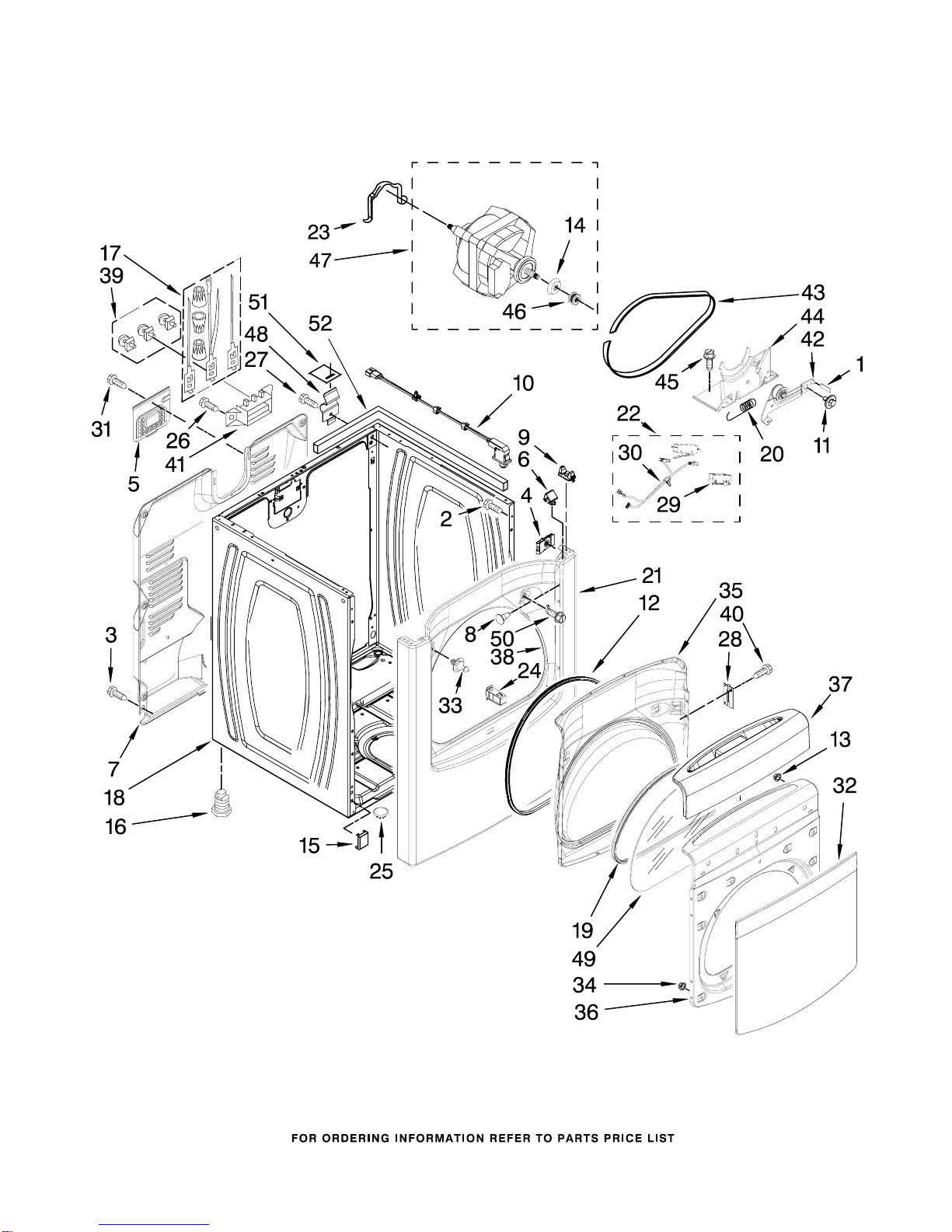

CABINET PARTS

For Model: WED6600VW0

(White/Grey)

W10186659

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10157845

Pad−Idler Foam

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, 8−18 x 3/8

W10007520

Clip, Ground (2)

W10110241

Cover, Block

6 8576625 Lock−Top Front (2)

W10140148

Panel, Rear

8 3404413 Plug−Hole

9 8568303 Locator,

Snap Down

10 3978977 Door Switch

Assembly

11 3389420 Retainer, Idler

W10130493

Seal, Door

13 342055 Pal Nut (4)

14 8578538 Restrainer, Belt

15 3394083 Clip, Front

Panel (2)

16 3392100 Foot, Dryer

279810 Foot−Optional

(Extended Length

Package of 2)

(Not Included)

17 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 39)

18 8557569 Cabinet

W10076060

Seal−Window

20 3387374 Spring, Idler

21 8565029 Panel, Front

22 8566208 Switch Assembly

23 660658 Clamp, Motor

24 8572982 Catch, Door

Assembly

25 8578560 Hole−Plug

(Cabinet Base)

26 3393008 Screw, 10−16 x 1/2

27 3390631 Screw, 8−18 x 1/2

28 8565018 Hinge, Assembly

29 8564011 Bracket, Switch

30 8539897 Belt−Switch

Jumper

31 8533974 Screw Ground

32 8575030 Window, Outer Door

33 8572983 Strike, Door

34 308499 Palnut (10)

35 8565037 Door Inner

W10116925

Door, Outer

W10111246

Door Handle

W10044490

Seal, Front Panel

39 279393 Terminal Block

Kit (For

Terminal Block)

40 342055 Screw, 10−32 x 5/8

41 3397659 Block, Terminal

42 8547174 Pulley Assembly

43 8547168 Belt, Drive

44 8547166 Base, Motor

W10002600

Bolt,

6−20 x 1 1/4

46 8578565 Pulley, 60 HZ

47 8566152 Motor Assembly

60 HZ.

48 238088 Hinge, Top (2)

49 8565015 Glass, Inner Door

W10100830

Screw,

10−16 x 3/64

51 18849 Pad−Top Hinge

W10157932

Seal, Foam

Cabinet

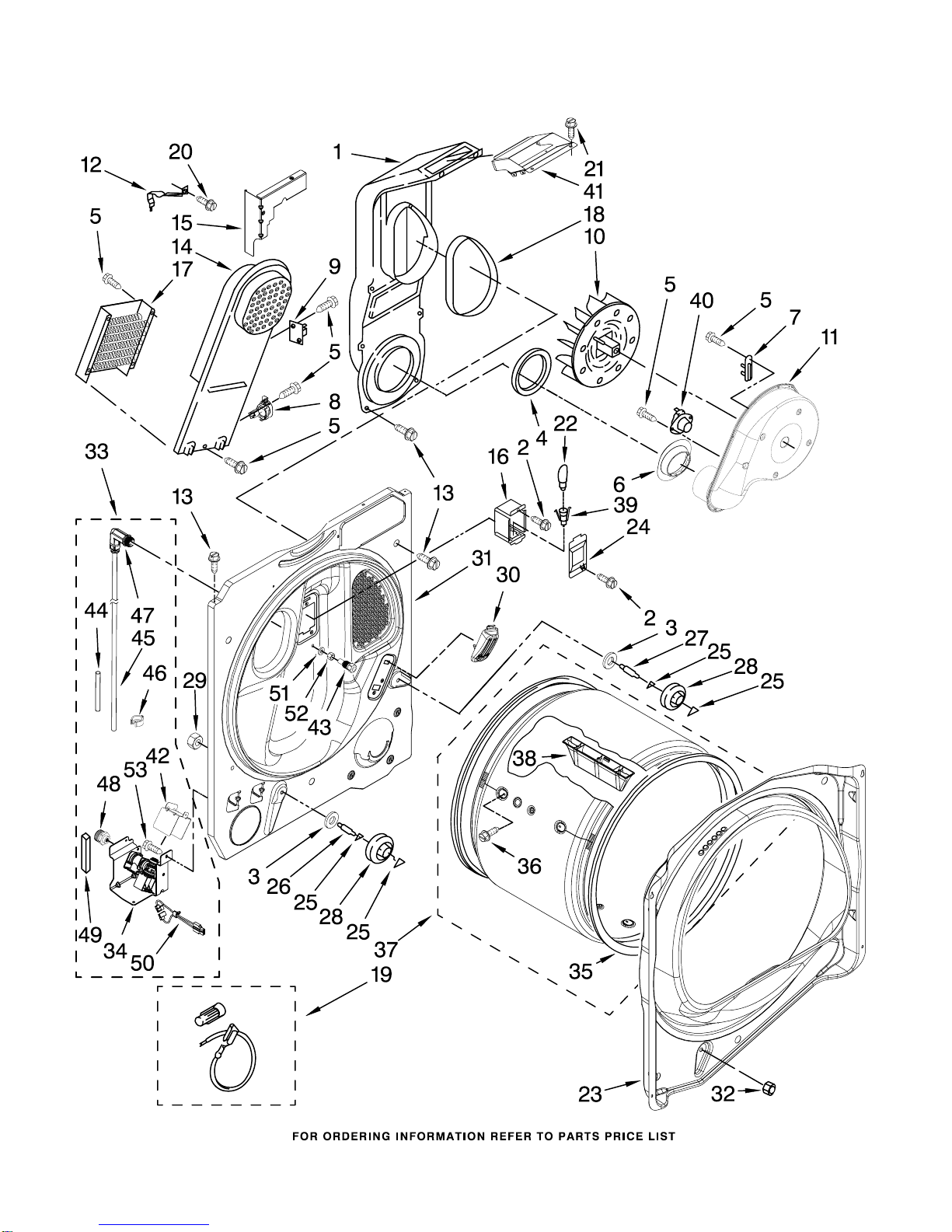

BULKHEAD PARTS

For Model: WED6600VW0

(White/Grey)

W10186659

BULKHEAD PARTS

For Model: WED6600VW0

(White/Grey)

W10186659

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8544805 Lint Chute

Assembly

2 487909 Screw, 8−15 x 1/2

3 3387459 Washer−Support

4 347139 Seal, Lint

Chute

5 90767 Screw, 8−18 x 3/8

6 8573836 Shield, Exhaust

7 3392519 Thermal−Fuse

(91 C)

8 8577891 Thermostat,

HI−Limit

W10169881

Thermal Cut−Off

(Includes

Item. 8 )

10 694089 Wheel, Blower

11 8577230 Housing, Blower

12 8546149 Clip−Heater Box

13 343641 Screw, 10−16 x 1/2

14 8544801 Box, Heater

W10053480

Bracket,

Lint Chute

16 3977373 Bracket, Drum

Light

17 3403585 Element, Heater

18 8544813 Seal

19 279457 Wire Kit, Terminal

(For Heater

Element Wiring

Harness Repair)

20 489463 Screw, 8−18 x 5/8

21 3196537 Screw

22 3406124 Bulb

23 8558890 Bulkhead, Front

24 3402841 Lens, Drum Light

25 690997 Ring Tri

26 8575325 Shaft, (L.H.)

27 8575324 Shaft, (R.H.)

28 8536973 Roller, Support

W10001120

Nut, 3/8−16

30 8576468 Assembly, Sensor

W10131528

Bulkhead, Rear

32 3934666 Nut 3/8−16 (R.H.)

W10153129

Valve & Hose

Assembly Complete

W10146150

Valve & Bracket

Assembly

35 8557277 Seal Drum (2)

W10109200

Screw, 11−16 x 3/4

37 8557270 Drum, Assembly

38 8565688 Baffle, Drum (2)

W10168632

Socket Assembly

40 8577274 Thermistor

41 8544810 Collar, Lint Chute

W10160575

Cover, Myst Valve

W10044629

Nozzle & Screen

Assembly

W10153865

Sleeve, Tube

W10131527

Hose, Assembly

(Not Servicable)

W10044615

Clip,

Push−To−Connect

W10153864

Nozzle & Hose

Assembly

(Includes Items.

45,43,51 & 52 )

W10044605

Coupling, Hose

W10158778

Foam, Myst Bracket

W10160610

Harness, Valve

W10044579

Washer, Nozzle

W10044628

Nut, Brass

9/16 − 24 x 1/2

53 693995 Screw, 8−18 x 3/8

OPTIONAL PARTS (NOT INCLUDED)

For Model: WED6600VW0

(White/Grey)

W10186659

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

W10071550

Dry Rack

8522199 Kit, Dryer

Vent Testing

8544761 Tube, Extension

49611 Kit,

Side Venting

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

Miscellaneous Parts Bag

W10044609

Bag Assembly

(Contains

The Following)

76314 Hose, Inlet

6 Ft. Hose

(With Elbow)

W10044603

Hose, Inlet

1 Ft. Hose

3976300 Washer

W10044604

Connector, Y Hose
