TOP AND CONSOLE PARTS

For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0

(Designer White) (White/Grey) (Biscuit/Gold)

10−02 Litho in U.S.A. (djc) Part No. 8179902

29"GAS DRYER

TOP AND CONSOLE PARTS

OPTIONAL PARTS (NOT INCLUDED)

For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0

(Designer White) (White/Grey) (Biscuit/Gold)

8179902

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8535830

Instructions,

Installation

LIT8522243

Use & Care Guide

LIT3979703

Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

2 3401684 Wire, Jumper

(Black)

3 694419 Buzzer, Mini

4 Cap, End (L.H.)

8271365 White

8271368 Biscuit

5 717252 Plug, 2−Way

Terminal

6 8274261 Panel, Rear

Console

7 3399639 Switch,

Temperature

8 Cap, End (R.H.)

8271359 White

8271362 Biscuit

9 693995 Screw, Hex

Washer Head

10 349639 Handle & Lint

Screen Assembly

11 Cover, Lint Screen

8283378 White

8283380 Biscuit

12 3978605 Hinge, R.H.

3978606 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 3400859 Screw, Grounding

15 3395683 Connector

(Motor)

16 Top

8271390 White

8271392 Biscuit

17 3955775 Medallion

18 Knob, Control (3)

8271339 LGR7620LQ0

8316540 LGR7620LW0

8316545 LGR7620LG0

19 3394427 Clip−Harness

20 388326 Screw, Console

21 8299766 Timer Assembly

(60 Hz.)

22 3397695 Wire, Jumper

(Guard On/Off)

23 3396029 Wire, Jumper

(Temperature)

24 3397269 Connector−Timer

25 3401144 Connector,

(PTS Relay)

26 3403499 Connector,

2−Position

(Gas Valve)

27 3403498 Connector,

3−Position

(Gas Valve)

29 3390646 Screw, 8−18 x 5/16

30 357213 Nut, Push−In (2)

31 8299879 Harness, Wiring

33 3347243 Connector

6−Circuit

34 3405156 Switch,

Wrinkle Shield

36 297535 Bumper, Lint Lid

39 3398095 Switch,

Push−To−Start

40 Timer Knob

Assembly

8312687 LGR7620LQ0

8316538 LGR7620LW0

8316549 LGR7620LG0

41 94614 Terminal, Female

42 8271418 Bracket, Control

43 Panel, Control

(Includes

Illus. 17)

8532614 White

8532615 Grey

8532616 Gold

44 3936144 Connector

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

3406839 Dry Rack

279948 Dryer Repair

Kit

346764 Kit, Hold−Down

(Gas Dryer Mobile

Home Installation)

8522199 Kit, Dryer

Vent Testing

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

CABINET PARTS

For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0

(Designer White) (White/Grey) (Biscuit/Gold)

8179902

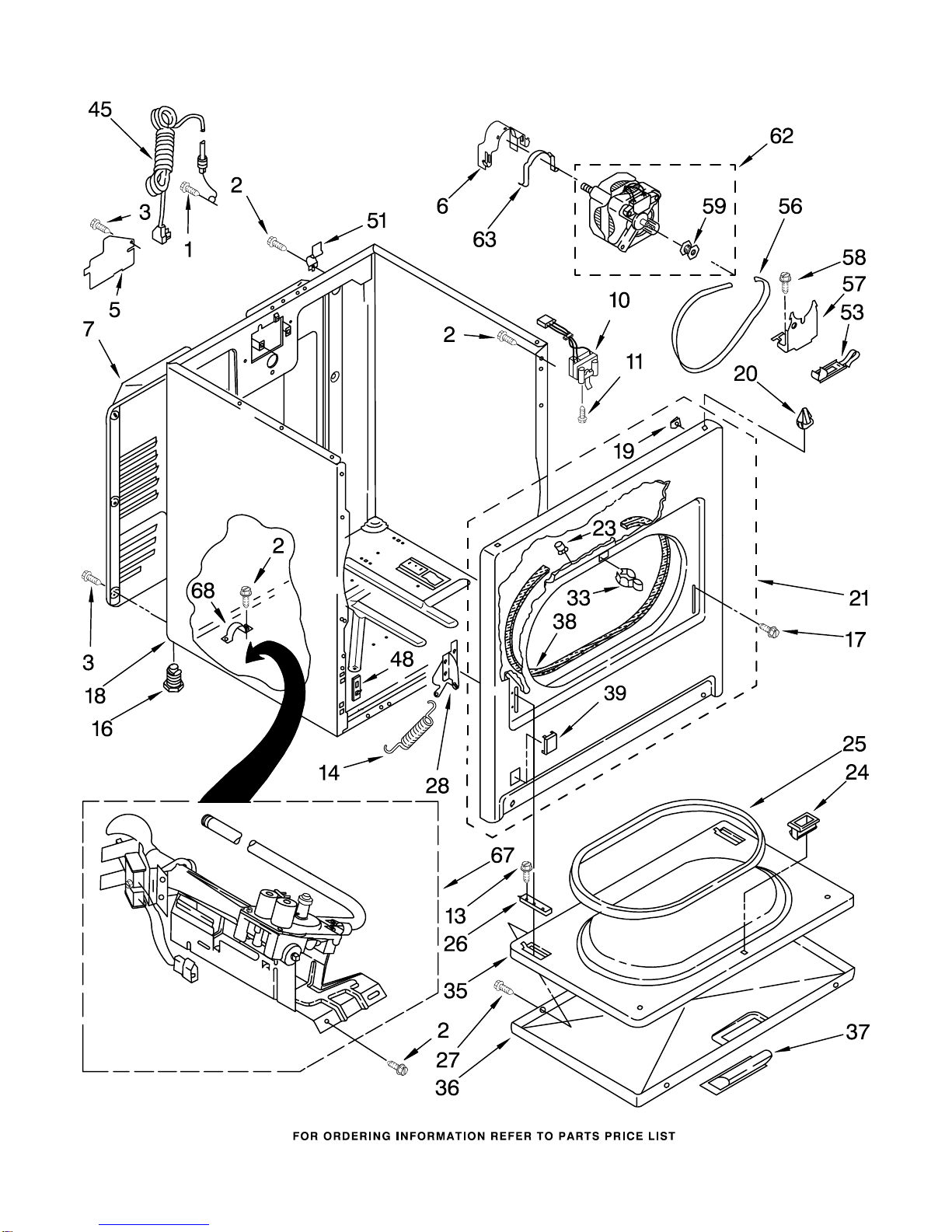

CABINET PARTS

For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0

(Designer White) (White/Grey) (Biscuit/Gold)

8179902

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 697776 Screw, 10−32 x 5/8

(External Ground)

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, Hex Head

5 3396795 Cover, Block

6 3404162 Clamp, Motor

(W/Shield)

7 3396805 Panel, Rear

10 3406107 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

13 3357011 Screw, 10−16 x 1/2

14 692495 Spring, Door (2)

16 3392100 Foot, Dryer

279810 Foot−Optional

(Extended Length)

(Package of 2)

(Not Included.)

17 342043 Screw, 10−32 x 3/8

18 Cabinet

8530603 White

8530606 Biscuit

19 98234 Clip, Ground (2)

20 690363 Lock, Front Top (2)

21 Panel Front

3395197 White

3977243 Biscuit

23 685203 Clip, Felt Pad (2)

24 3389441 Catch, Door

Assembly

25 3390731 Seal, Door

26 337189 Clip, Hinge (2)

27 694091 Screw, 8−18 x 3/8

28 8066056 Hinge, R.H.

8066057 Hinge, L.H.

33 696144 Strike, Panel

35 695737 Door, Rear

36 Door, Front

3393549 White

3977241 Biscuit

37 Handle, Door

690270 White

3977242 Biscuit

38 3406129 Seal & Bearing

Assembly

39 Plug, Front Panel

3394975 White

3394978 Biscuit

45 344020 Cord, Power

48 3394083 Clip, Front Panel

51 238088 Hinge, Top (2)

53 3394332 Idler & Slide

Assembly

56 8066065 Belt, Drive

57 348780 Base, Motor

58 3400500 Bolt, 5/16−18 x 3/4

59 3394341 Pulley, 60 Hz.

62 661654 Motor Assembly

60 Hz.

63 660658 Clamp, Motor

67 8318272 Burner Assembly,

60 Hz.

(See Pages 7 &

8 For Further

Burner Breakdown)

68 341029 Clamp, Pipe

BULKHEAD PARTS

For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0

(Designer White) (White/Grey) (Biscuit/Gold)

8179902

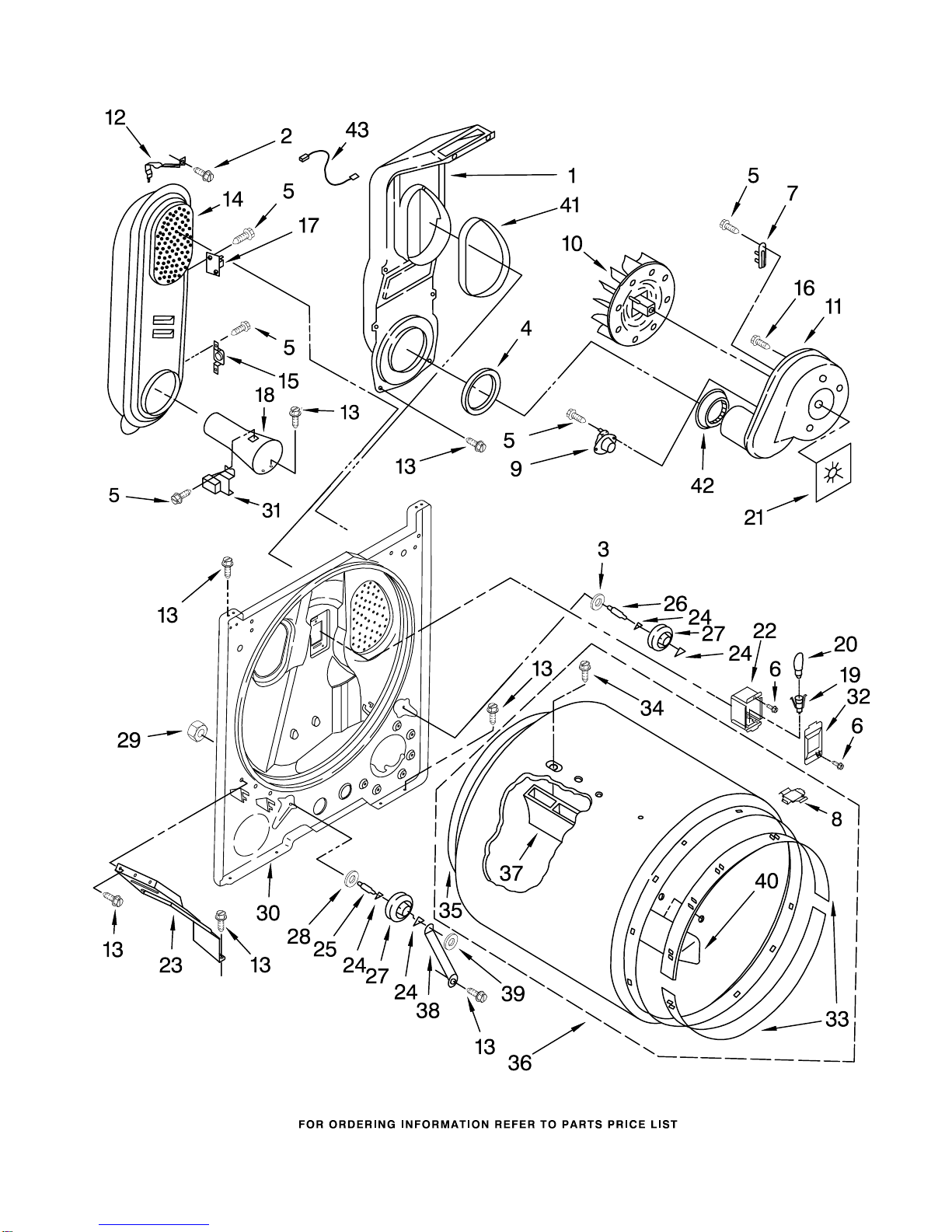

BULKHEAD PARTS

For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0

(Designer White) (White/Grey) (Biscuit/Gold)

8179902

Illus. Part

No. No. DESCRIPTION

1 348368 Lint Chute

Assembly

2 489463 Screw, 8−18 x 5/8

3 3388703 Washer−Support

4 347139 Seal, Lint

Chute

5 90767 Screw, 8−18 x 3/8

6 487909 Screw, 8−15 x 1/2

7 3392519 Fuse, Thermal

8 8066086 Drum Hole

Plug

9 3387134 Thermostat,

Internal−Bias

10 694089 Wheel, Blower

(Includes

Illus. 21)

11 3405016 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 8530285 Box, Heater

15 3403140 Thermostat, 205 F

(96 C)

16 3390647 Screw, 8−18 x 1/2

17 280010 Kit, Thermal Cut−Off

(Includes

Illus. 15)

18 8066049 Funnel, Burner

19 3403634 Socket Assembly

20 3406124 Bulb

21 3394196 Seal, Blower

22 3977373 Bracket, Drum

Light

23 3406022 Bracket, Bulkhead

24 690997 Ring, Tri

25 3399506 Shaft, L.H.

26 3399507 Shaft, R.H.

27 3397588 Roller, Support

28 348197 Washer, Support

29 3359452 Nut, 3/8−16

30 3403413 Bulkhead

31 338906 Sensor, Radiant

32 3402841 Lens, Drum Light

33 692526 Ring, Bearing

34 97787 Screw, 11−16 x 3/4

35 3406130 Seal, Rear Drum

36 695587 Drum Assembly

37 692490 Baffle, Drum (2)

38 3976434 Bracket, Support

39 90296 Clip

40 3403636 Baffle, Drum (1)

41 339956 Seal

42 696302 Shield, Exhaust

43 3401707 Wire, Jumper

BA−150

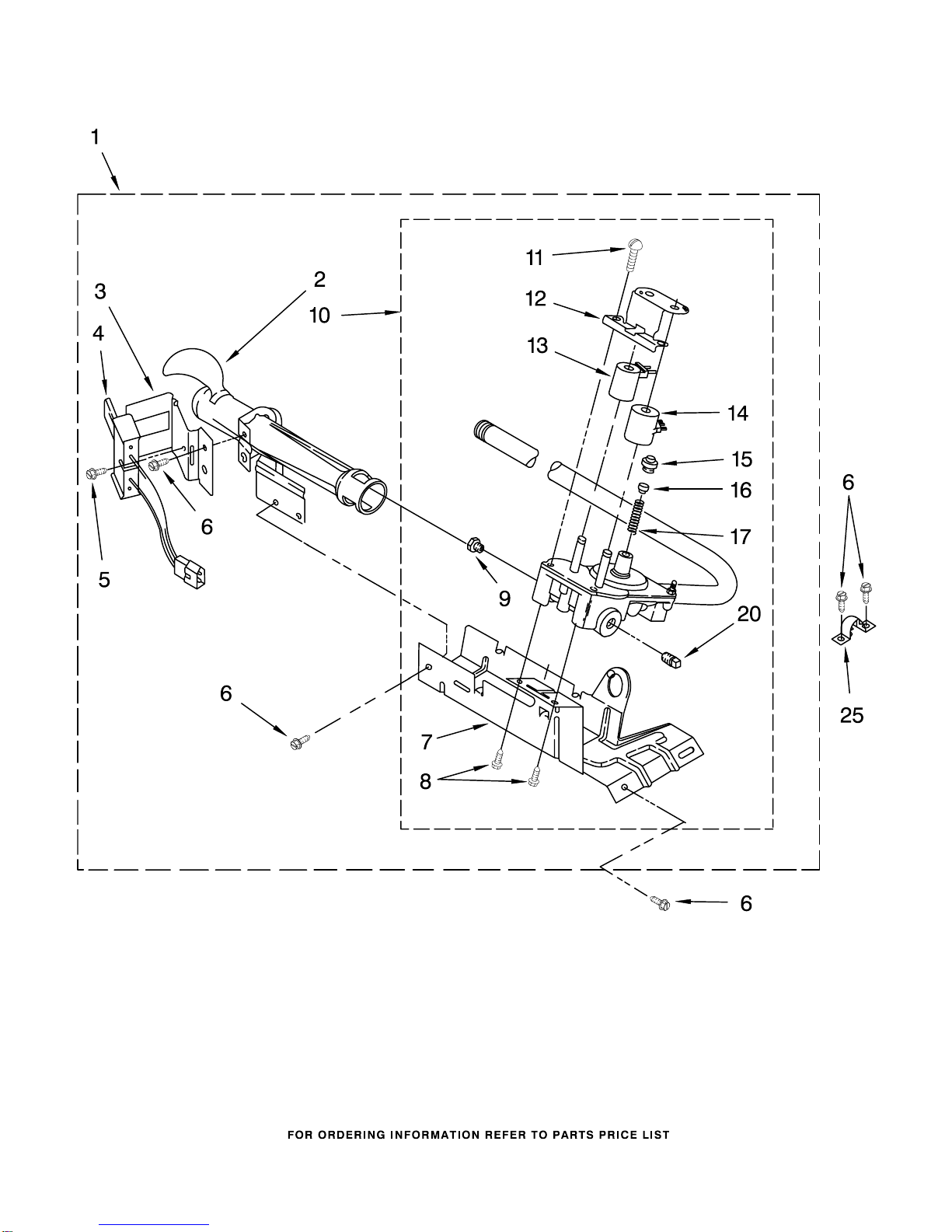

8318272 BURNER ASSEMBLY

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0

(Designer White) (White/Grey) (Biscuit/Gold)

8179902

Illus. Part

No. No. DESCRIPTION

BA−150

8318272 BURNER ASSEMBLY

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

1 8318272 Burner Assembly

60 Hz.

(Type 1)

(White Rodgers)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 686590 Ignitor

5 3393909 Screw & Washer

(8−32 x 5/8)

6 343641 Screw, 10−16 x 1/2

7 693986 Base, Burner

8 3387057 Screw, 8−18 x 3/8

9 Orifice, Burner

234826 Type 1

229742 Type 4 (Butane)

234868 Type 4 (Propane)

10 8318277 Valve, 60 Hz.

(Includes Pipe &

Illus. #7)

11 694421 Screw,

8−32 x 1/2 (2)

12 694538 Bracket, Coil

13 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

14 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

15 694424 Leak Limiter

16 694423 Screw, Regulator

Adjustment

17 694422 Spring, Regulator

20 239822 Plug, Pipe

25 341029 Clamp, Pipe

694572 Conversion Kit

(Type 1)

to Type (4) L.P.G.

Following Parts Not Illustrated

For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0

(Designer White) (White/Grey) (Biscuit/Gold)

8179902
