Whirlpool GLT3057RB01 Manual de usuario

COOKTOP, BURNER AND GRATE PARTS

For Models: GLT3057RB01, GLT3057RQ01, GLT3057RT01

(Black) (Designer White) (Biscuit)

30" SEALED GAS COOKTOP

4−06 Litho in U.S.A. (cre) Part No. 8186508 Rev.A

COOKTOP, BURNER AND GRATE PARTS

For Models: GLT3057RB01, GLT3057RQ01, GLT3057RT01

(Black) (Designer White) (Biscuit)

8186508

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 LITERATURE PARTS

8286304 Installation

Instructions

8286615 Use & Care Guide

3191638 Safe Cooking Tips

9759133 Safe Cooking Tips

8286620 L.P. Conversion

Instructions

2 Bowl, Burner

6K (RR)

3191307 Black

3191308 White

3191819 Biscuit

9K,12K (LR,RF,LF)

3191302 Black

3191303 White

3191818 Biscuit

3 Grommet, Glass

3180079 Black

3180081 White

3191817 Biscuit

4 Cap, Burner

6K (RR)

8286153CB

Coal Matte Black

8286153CG

Cumberland Gray

8286153EP

Espresso

9.5K (LR)

8286154CB

Coal Matte Black

8286154CG

Cumberland Gray

8286154EP

Espresso

12.5K (LF,RF)

8286155CB

Coal Matte Black

8286155CG

Cumberland Gray

8286155EP

Espresso

5 Grate

Left Hand

8285892CB

Coal Matte Black

8285892CG

Cumberland Gray

8285892EP

Espresso

Right Hand

8285894CB

Coal Matte Black

8285894CG

Cumberland Gray

8285894EP

Espresso

6 Cooktop, Glass

8286102 Black

8286103 White

8286104 Biscuit

7 Knob, Control (4)

8286058BL

Black

8286058WH

White

8286058BT

Biscuit

8 Grate, Center

8285893CB

Coal Matte Black

8285893CG

Cumberland Gray

8285893EP

Espresso

10 3191932 Seal, Foam

15 Holder, Orifice

8286179 6K (RR)

8286180 12K (LF,RF)

8286178 9K (LR)

16 Head, Burner

8286181 RF

8286182 LF, RF

8286184 LR

18 4449809 Screw

20 3368921 Screw

Following Parts Not Illustrated

Harness, Wire

Ignitor

4456626 15"

4456627 28"

4449809 Screw (4)

3400806 Screw (2)

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: GLT3057RB01, GLT3057RQ01, GLT3057RT01

(Black) (Designer White) (Biscuit)

8186508

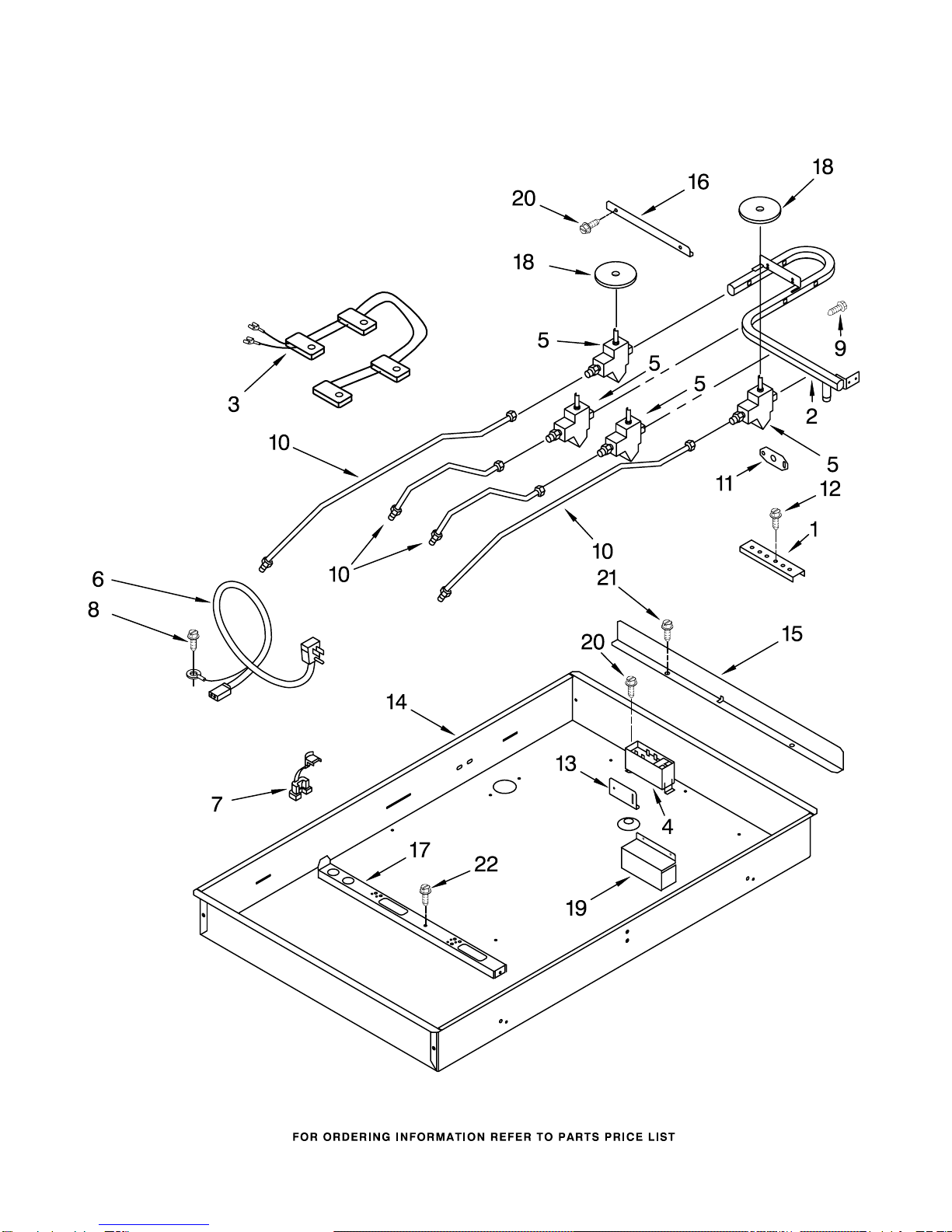

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: GLT3057RB01, GLT3057RQ01, GLT3057RT01

(Black) (Designer White) (Biscuit)

8186508

Illus. Part

No. No. DESCRIPTION

1 4455917 Bracket, (2)

Cooktop mounting

2 8286069 Pipe, Manifold

3196160 Screw (2)

3 4456905 Harness & Switches

4 8522423 Spark Module

5 Valve, Burner

8286559 Auxi (White)

8286560 Rapid (Purple)

4456817 Large (2)

6 9763116 Power Cord

7 4173634 Bushing, Cord

8 3177991 Screw, Ground

9 8523704 Bolt, Gas Valve

10 Tubing, Burner

3191326 LF

3191325 RR

3191324 RF

8286100 LR

11 3192491 Bracket, Manifold

12 3400093 Screw

13 4455837 Bracket, Spark

Module

14 8286098 Box, Burner

15 3191462 Shield, Heat

16 9759145 Bracket, Support

17 Rail

8286099 Burner

8285791 Center

18 3191387 Seal, (4)

Switch Cover

19 8285788 Shield, Heat

20 3400843 Screw

21 3177991 Screw

22 4449809 Screw

Following Parts Not Illustrated

and Optional Parts Not Included

8286320 Spud Kit

4455918 Hardware Kit

(Mounting)
