COOKTOP, BURNER AND GRATE PARTS

For Models: SCS3017RB03, SCS3017RQ03, SCS3017RT03, SCS3017RS03

(Black) (Designer White) (Biscuit) (Stainless)

10−07 Litho in U.S.A. (amd) Part No. W10168541 Rev. A

30" GAS COOKTOP

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

3192098 Wiring Diagram

W10131955

Installation

Instructions

8286994 Use & Care Guide

Safe Cooking Tips

3191638 English

9759133 French

2 Panel, Control

8286502 Black

8286503 White

8286504 Biscuit

3 Cooktop

3191242 Black

3191243 White

8284705 Biscuit

W10157843

Stainless

4 Cap, Burner

8286153CB

Coal Matte Black

8286153CG

Cumberland Gray

8286153EP

Espresso

8286154CB

Coal Matte Black

8286154CG

Cumberland Gray

8286154EP

Espresso

LF & RR

8286155CB

Coal Matte Black

8286155CG

Cumberland Gray

8286155EP

Espresso

5 Grate

Right

8285888CB

Coal Matte Black

8285888CG

Cumberland Gray

8285888EP

Espresso

Left

8285886CB

Coal Matte Black

8285886CG

Cumberland Gray

8285886EP

Espresso

6 9782116 Electrode

7 Knob, Control (4)

8286057BL

Black

8286057WH

White

8286057BT

Biscuit

8 Orifice

8286473 RF

3192523 LR

8286551 LF & RR

9 8273062 Screw

11 Holder, Orifice

W10128449

W10128450

8287052 LF & RR

12 Head, Burner

8286181 RF

8286184 LR

8286182 LF & RR

Following Parts Not Illustrated

Harness, Wire

Ignitor

4456626 15"

4456627 28"

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: SCS3017RB03, SCS3017RQ03, SCS3017RT03, SCS3017RS03

(Black) (Designer White) (Biscuit) (Stainless)

W10168541

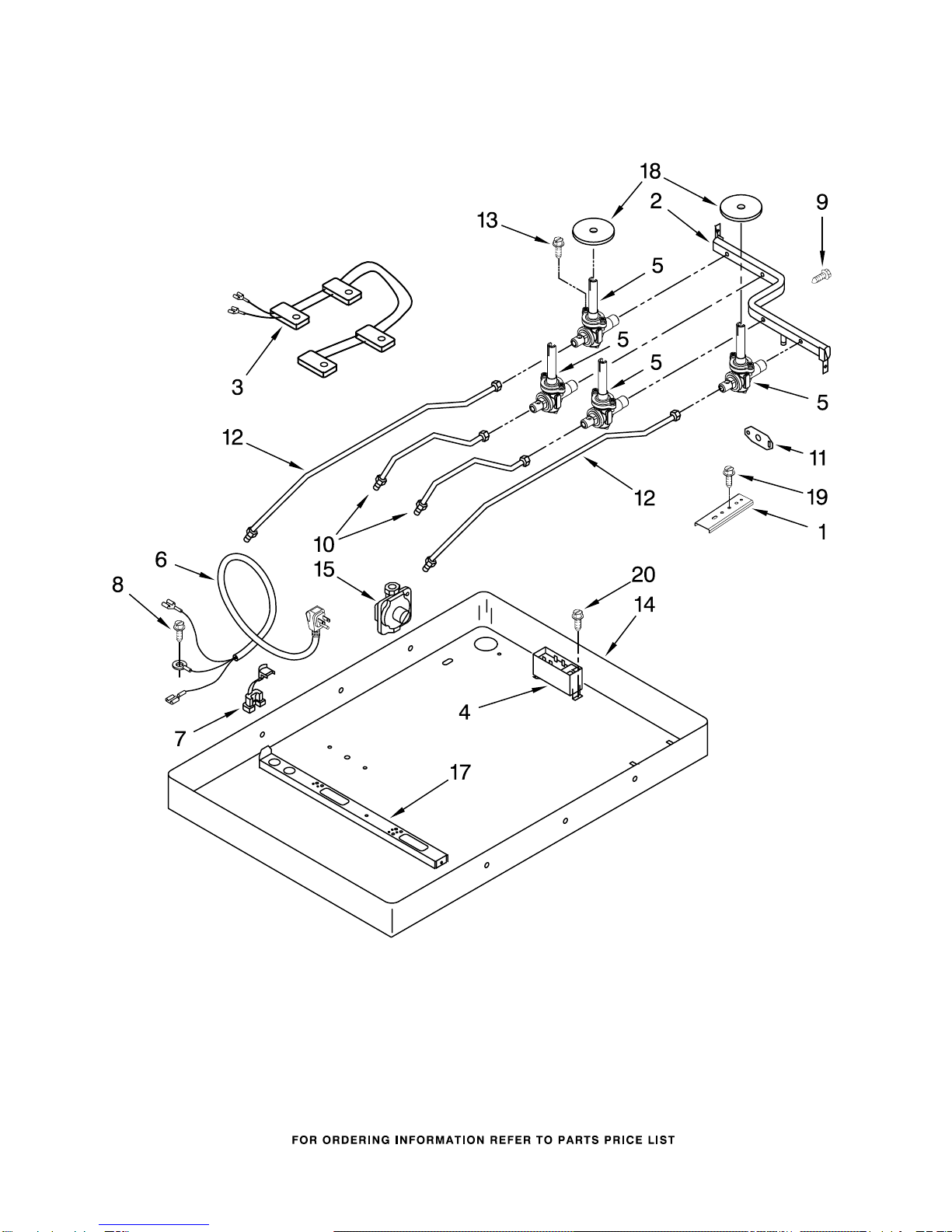

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: SCS3017RB03, SCS3017RQ03, SCS3017RT03, SCS3017RS03

(Black) (Designer White) (Biscuit) (Stainless)

W10168541

Illus. Part

No. No. DESCRIPTION

1 4455917 Bracket, (2)

Cooktop mounting

2 9759354 Pipe, Manifold

3 4456905 Harness & Switches

4 8522423 Spark Module

5 Valve, Burner

4456817 Large (Black)

8286559 Auxi (White)

8286560 Rapid (Purple)

6 9763116 Power Cord

7 4173634 Bushing, Cord

8 3177991 Screw, Ground

9 3186217 Bolt, Gas Valve

10 3191318 Tubing, Burner

RR & RF

11 3192491 Bracket, Manifold

12 3191320 Tubing, Burner

LR & LF

13 3196160 Screw

14 4456780 Box, Burner

W10131956

Regulator,

Pressure

17 8286099 Rail, Burner (2)

18 3191387 Seal, (4)

Switch Cover

19 3400093 Screw

20 3400843 Screw

Following Parts Not Illustrated

and Optional Parts Not Included

8286320 Gas Conversion Kit

(Natural Gas To

LP Gas)
